- L -
The French

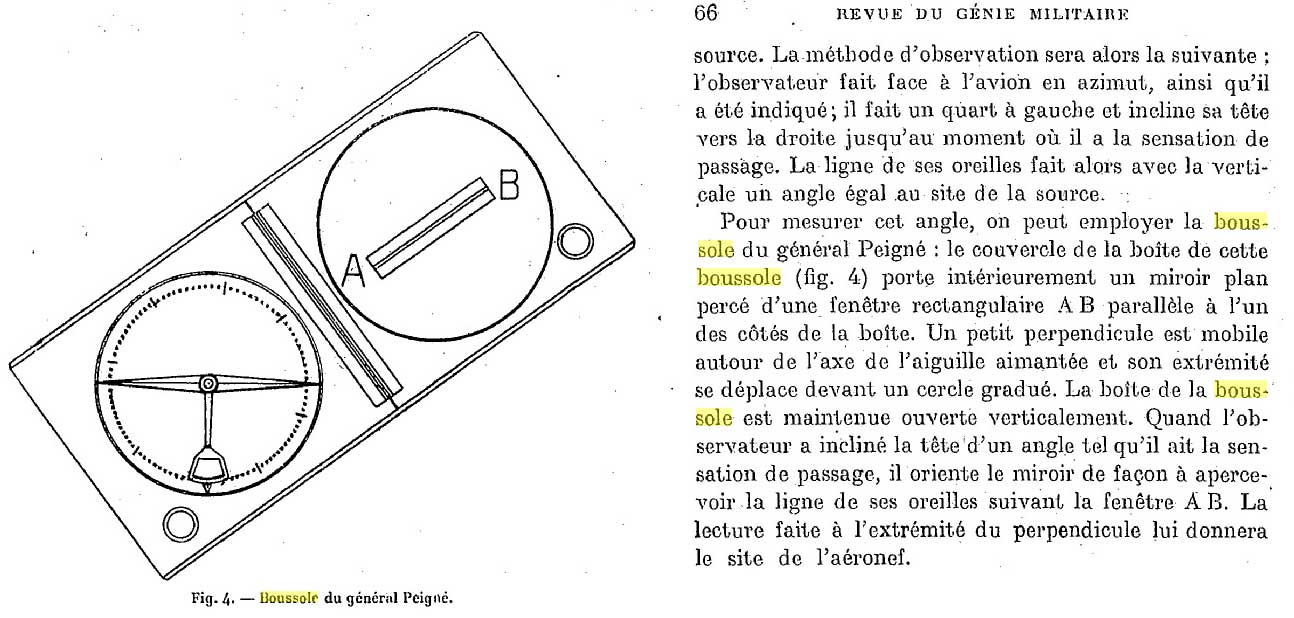

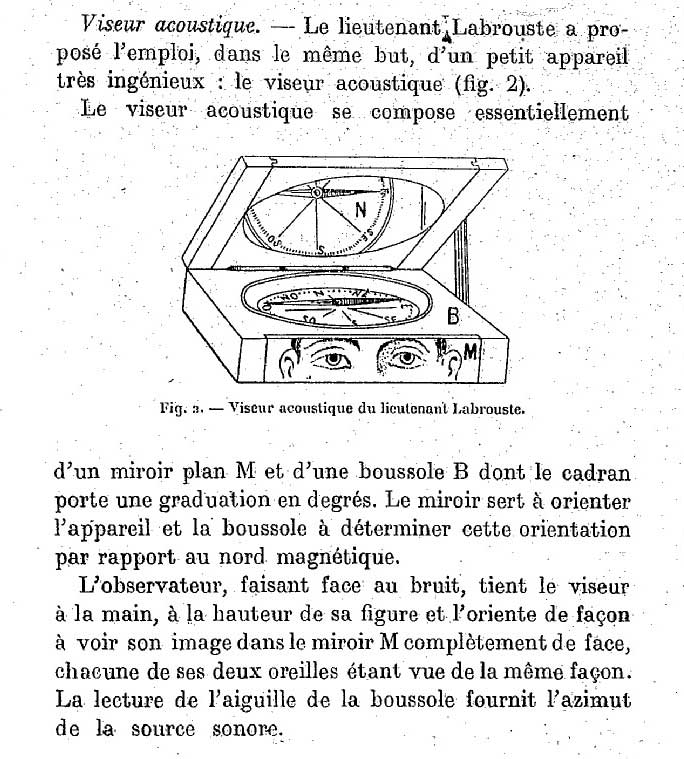

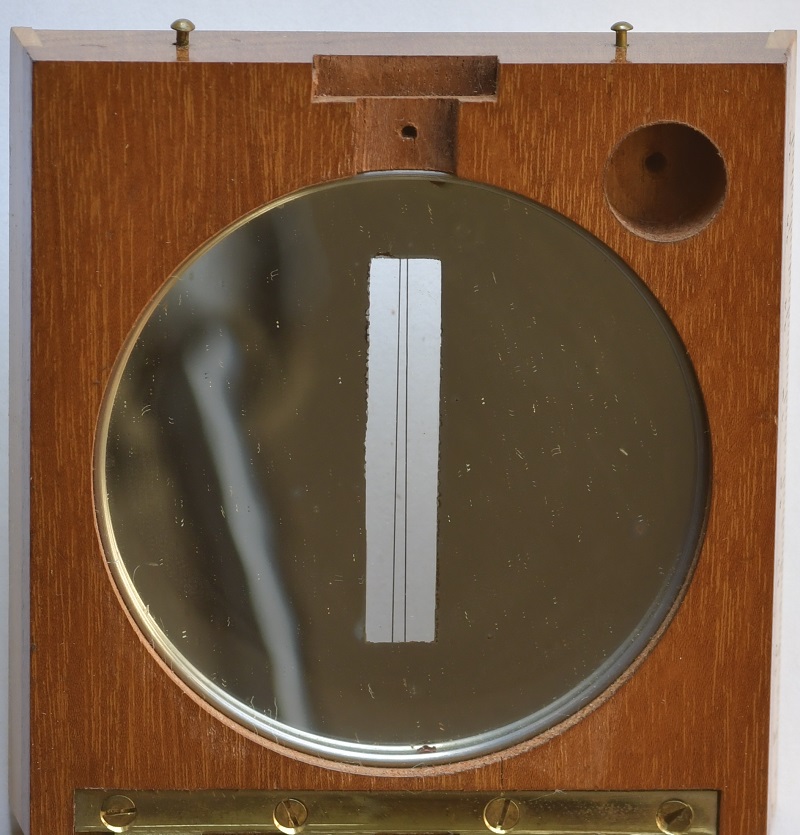

lieutenant Labrouste conceived during WWI a simple
device to assess the position of a (foe) aircraft not yet visible. The
observer would simultaneously turn his head in the direction of the
sound coming from the aircraft and look at the reflection of his own
face in a thin second mirror placed on the front side of the
case taking care to see his both ears. For full wording click
on the image at r. (
Revue
du Génie Militaire, Jan. 1922). The elevation angle would
be measured with a
Peigné
compass.
Former French company: Constructeur des Instruments
de
l’Ecole Spéciale
Militaire, 69, rue Gambetta
Malakoff
- Paris,
late 19th C.
It was eventually bought by Doignon. (COMPASSIPEDIA
doesn't
possess any information about this
company - your help is needed).

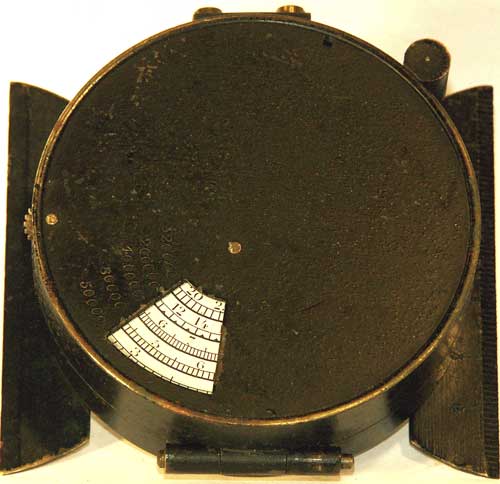

Below: the modernized round version (dated 1887) of the famous model
designed
by the French général
Paul
PEIGNÉ.
The weekly magazine
Revue
du Cercle
Militaire
(RCM, iss. 8 Jan. 1888 - 3 p., copies available) states
that gén. Peigné had this compass
version made by

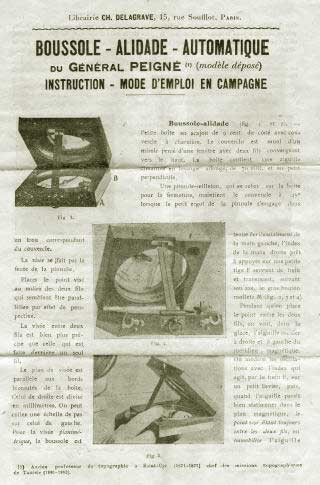

LADOIS. The article contains a
detailed description and a user
instruction (incl. 4 fig.). This compass was selected by the
Artillery school in Saint-Maixent.

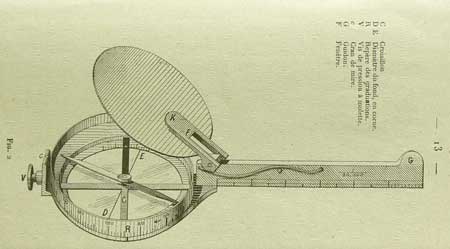

Drawing
at r.:

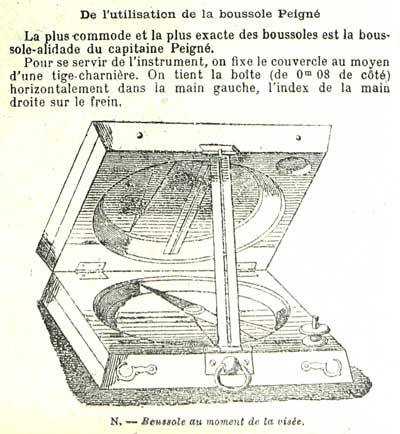

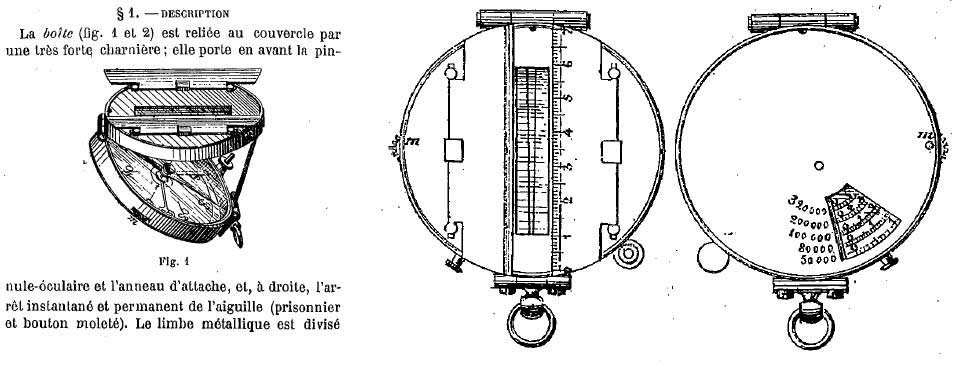

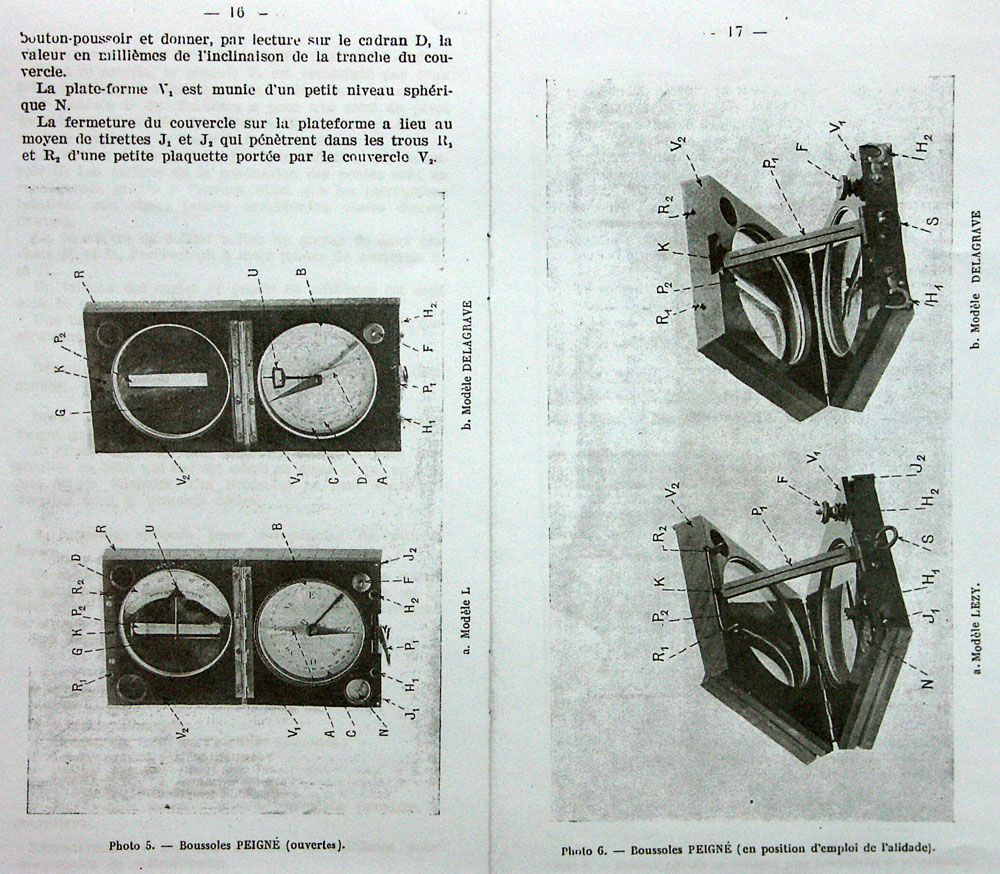

Excerpt of the article de la RCM (click on image for
enlarged views)

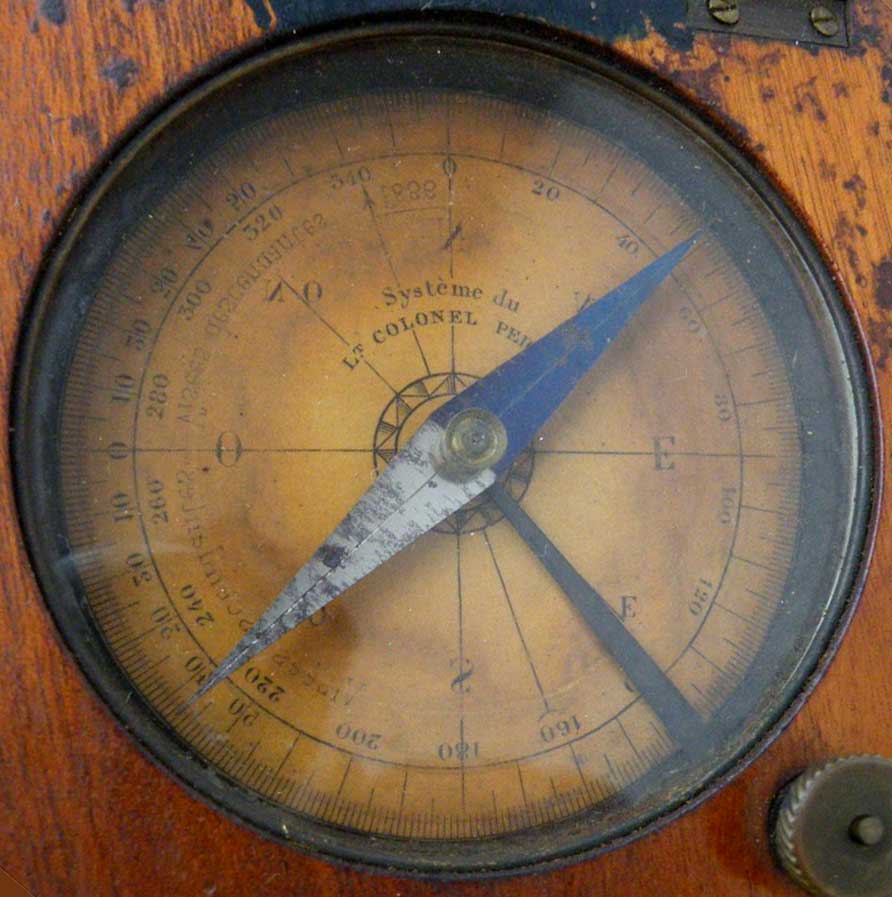

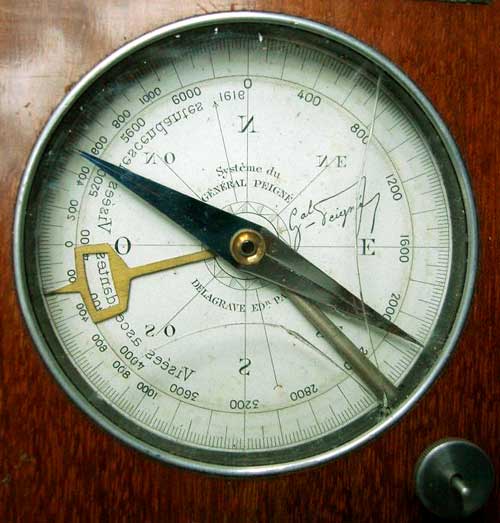

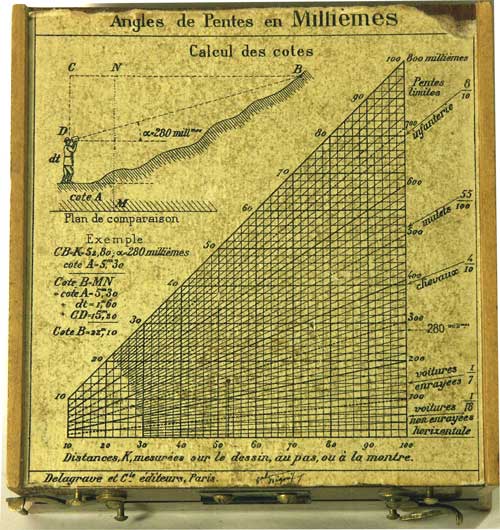

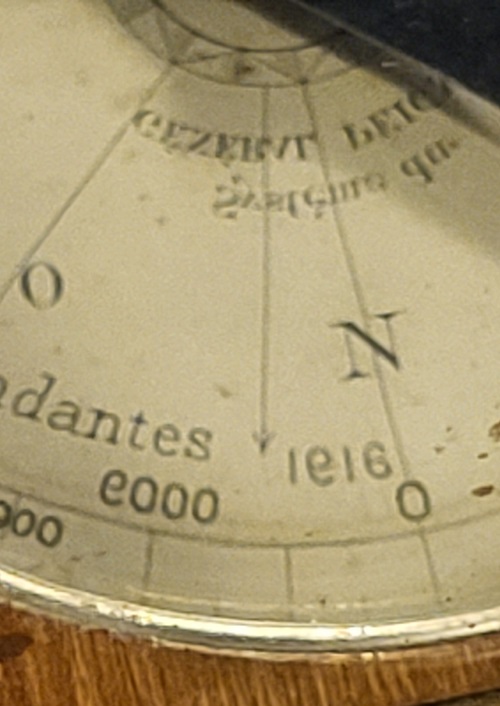

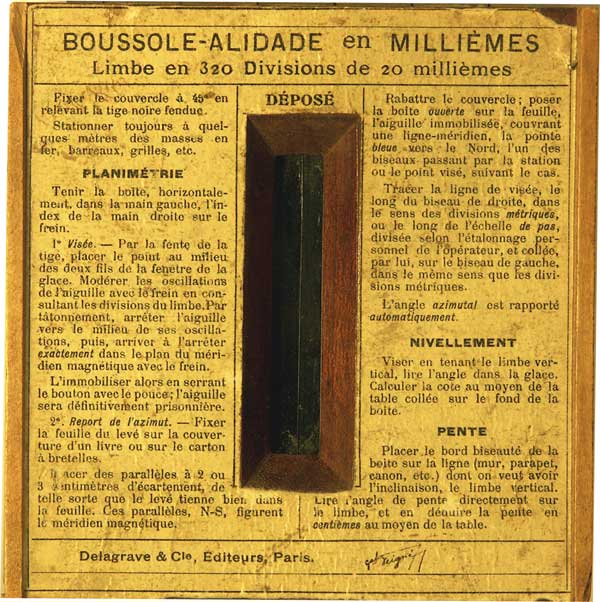

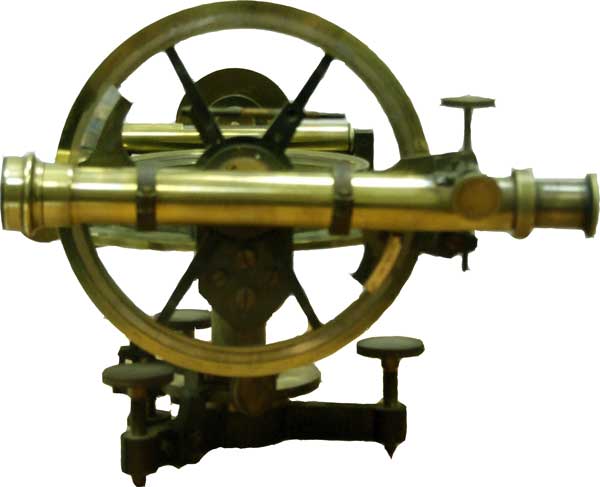

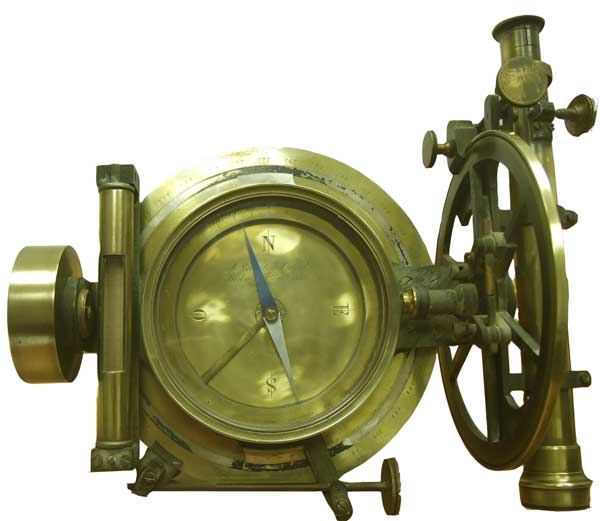

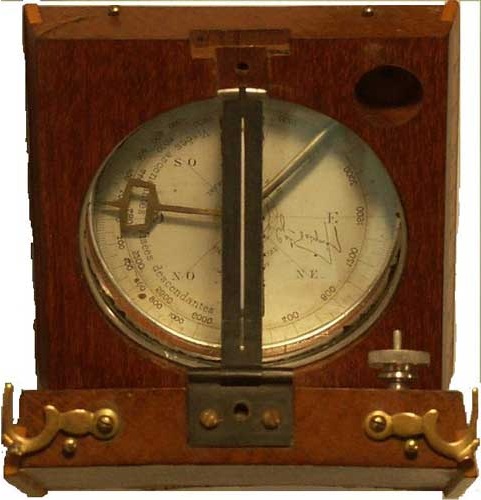

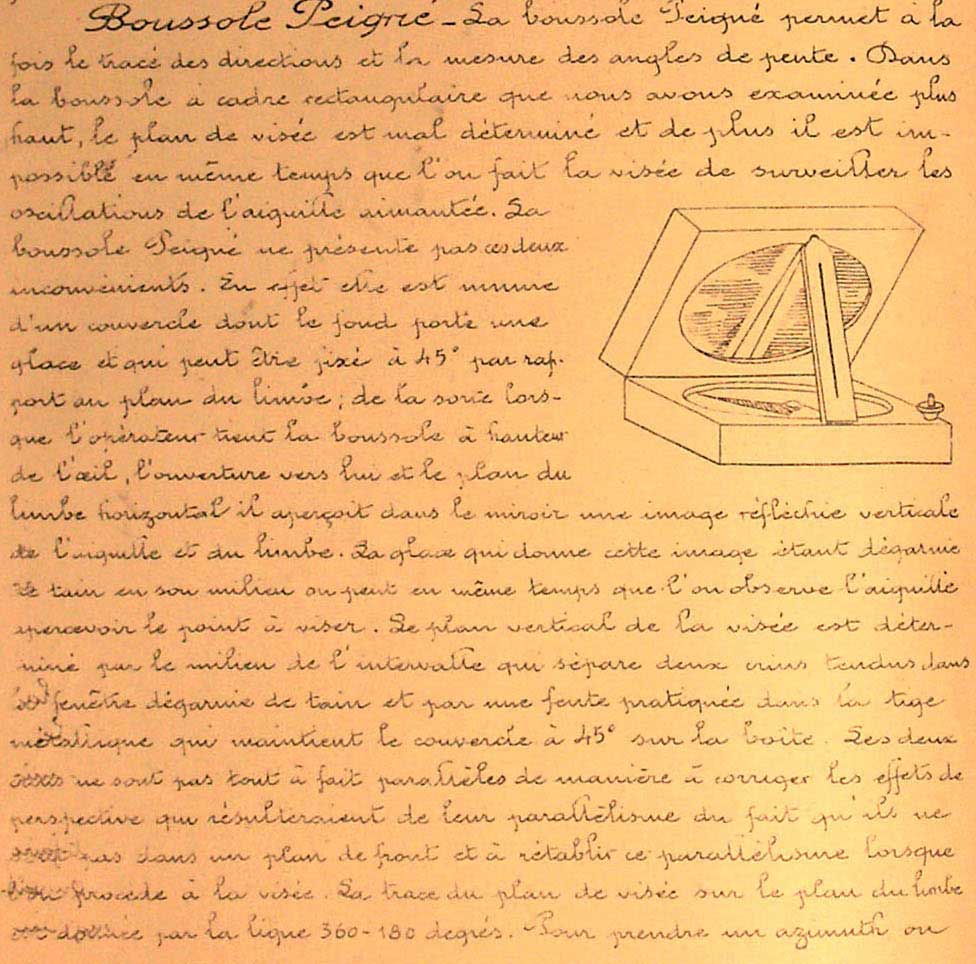

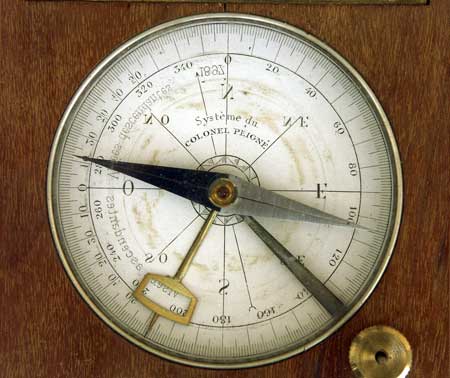

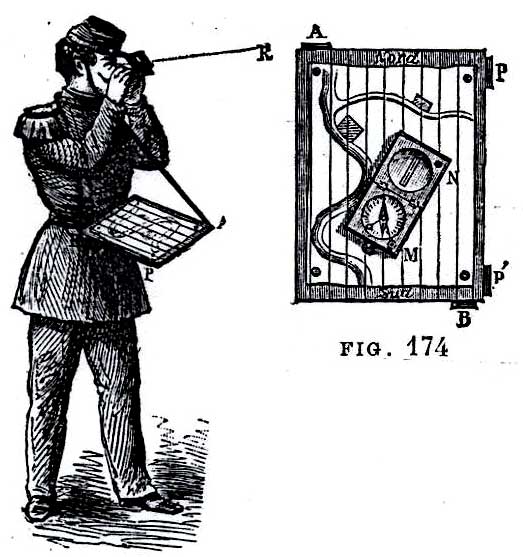

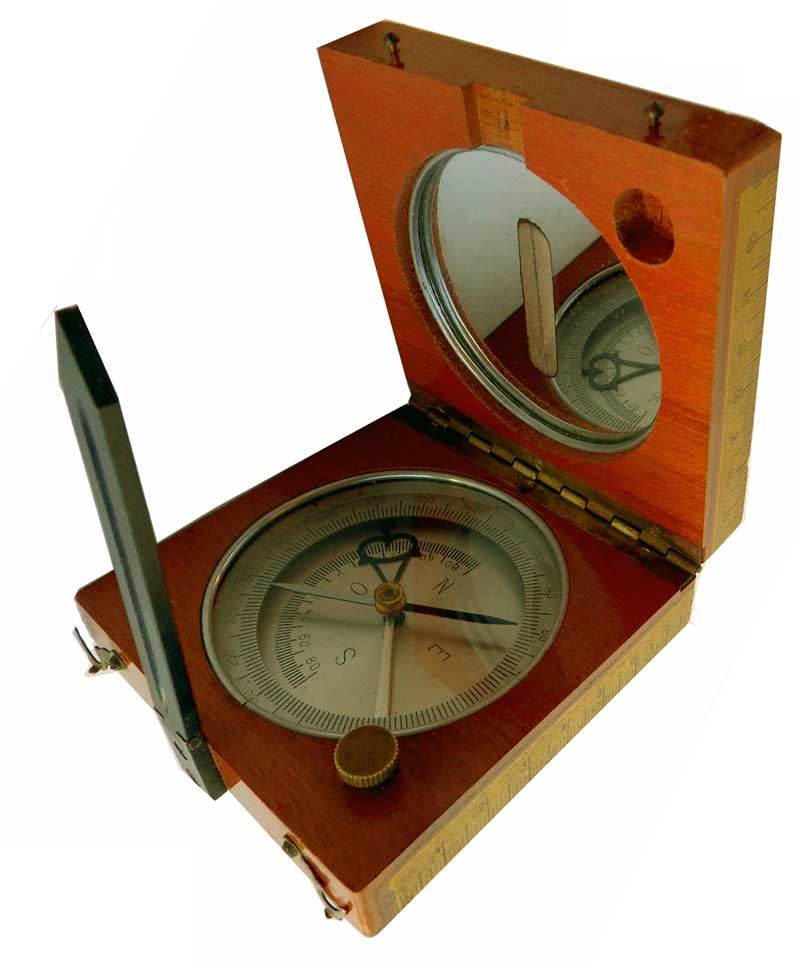

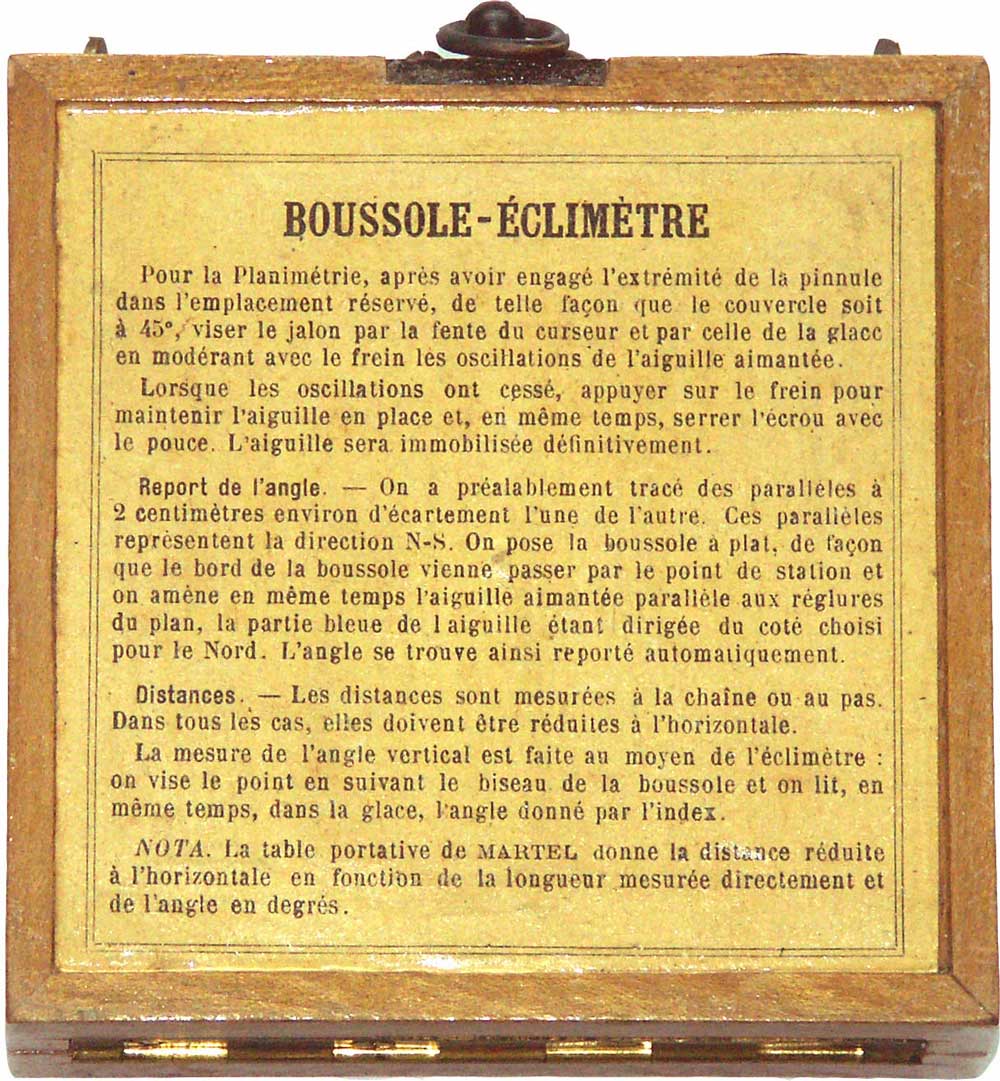

Below: General
PEIGNÉ's famous
system and a
tacheometer.

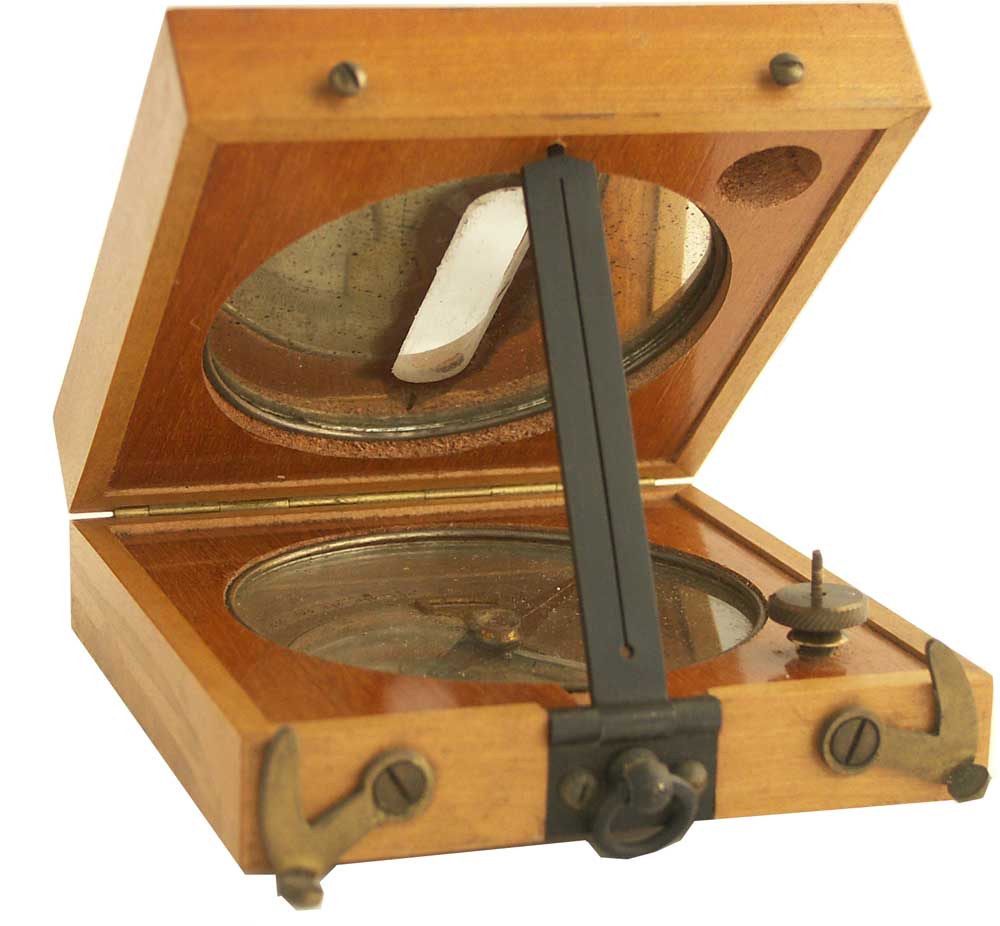

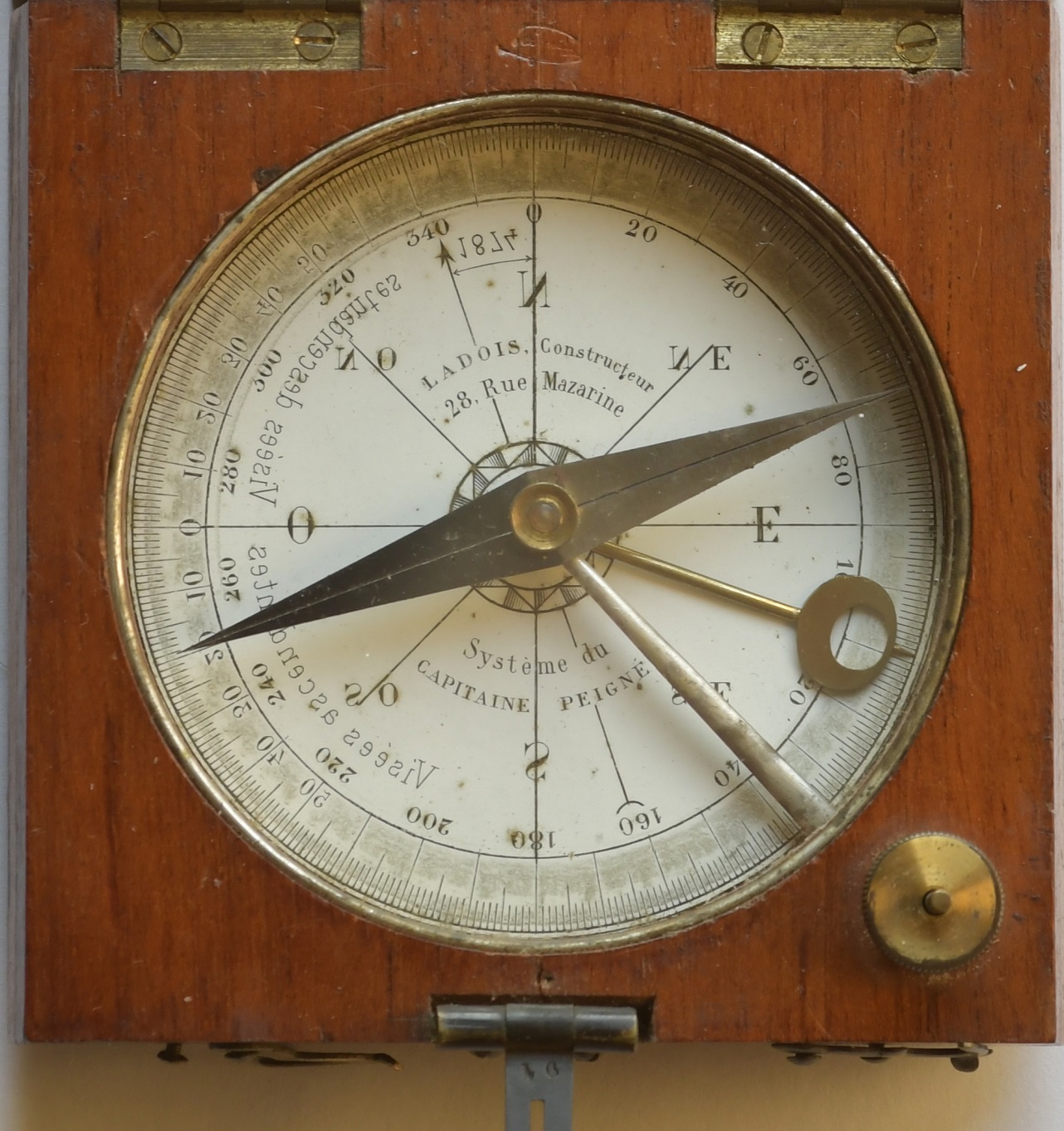

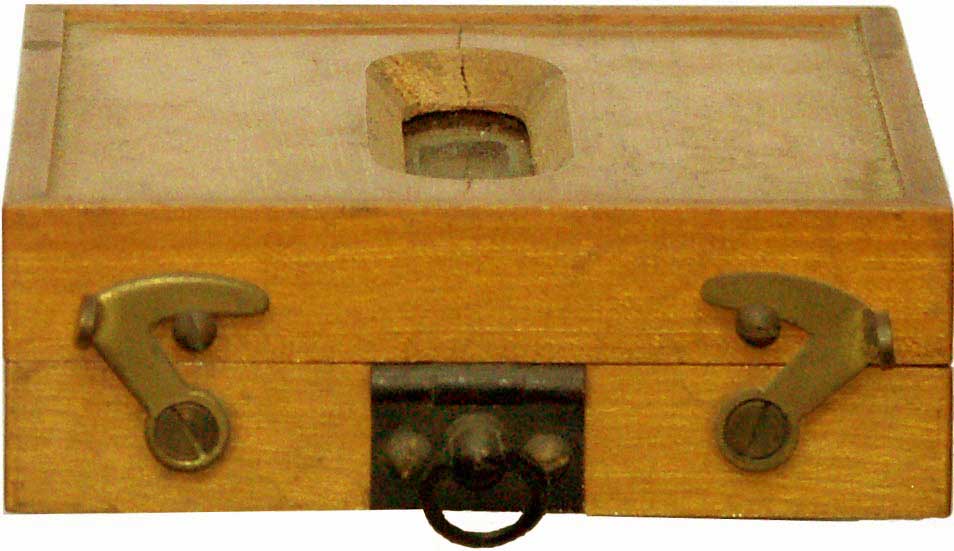

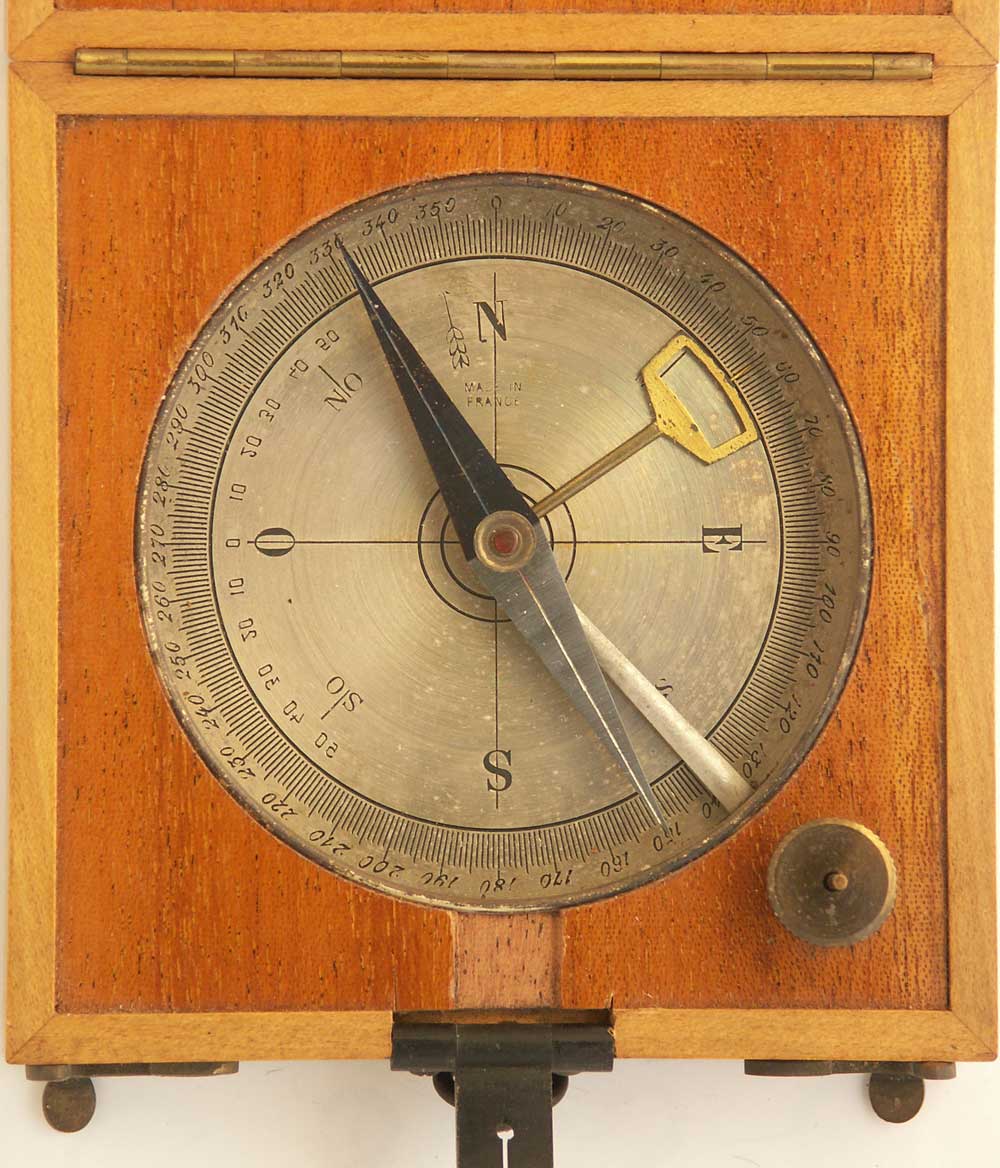

LADOIS also built the square wooden version and was a retailer
of

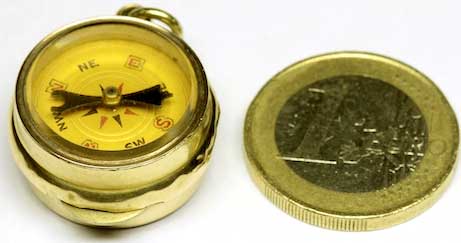

small pocket compasses.
Spanish manufacturer (located in Saragossa), created
in 1880 by Amado Laguna
der Rins. Produced precision instrumente.
Incorporated in 1920. The shares are hold by the family.
LAGUNA built in the 1930s a modernized version of the
BÜCHI
compass
model II
(see this manufacturer's survey compasses).
See also this
wooden case item.

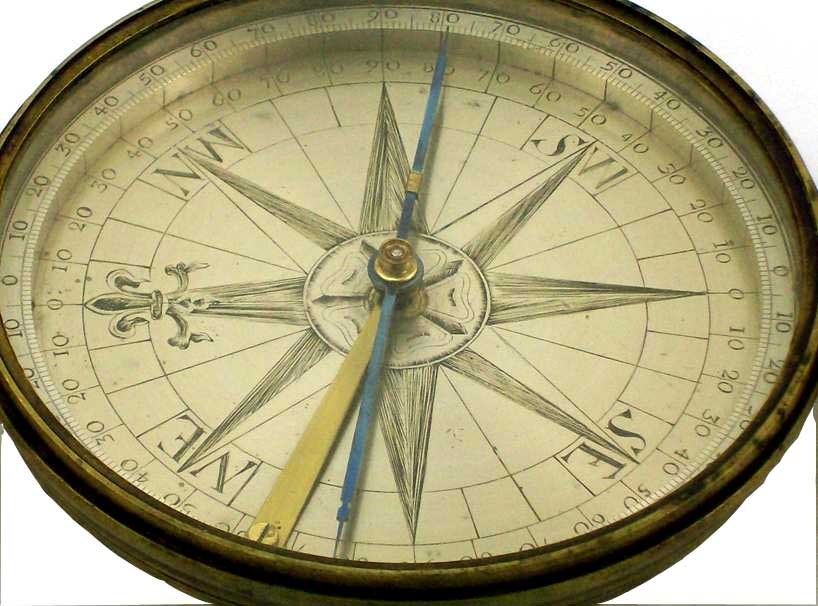

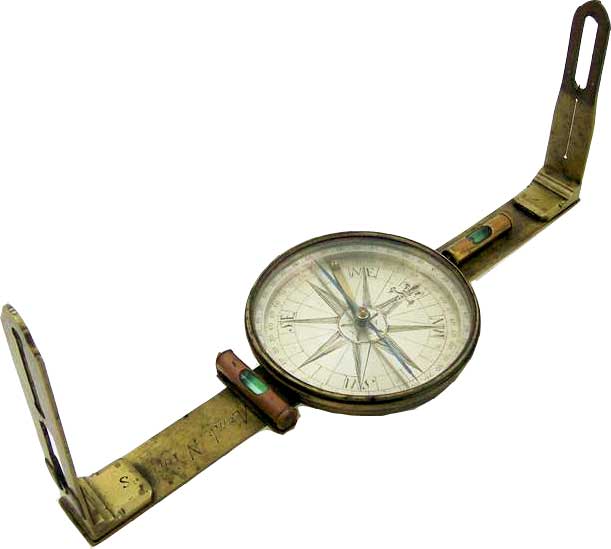

Anthony
Lamb has history in London and was an apprentice to an instrument maker
there and then he got wrapped up in some not so good things and became
an accomplice to a very renowned burglar. He ended up getting caught
and was sentenced to transportation to the Colonies. He did his time
and became one of the first instrument makers in the Colonies. This
compass pre-dates the revolutionary war.
Lamb’s son was
very instrumental in the U.S. and actually served under General
Washington during the war.
|
Pictures
courtesy
Brian/surveyantiques.com
(Click on images for enlarged views)
|
Technical
Data
Dimensions: 15” long, 5 ¼” Compass
diameter, compass
needle 4 ½”, Sighting vanes are 6” tall.
Weight: ca. 4 lbs.
Manufacturer's date: c. 1740

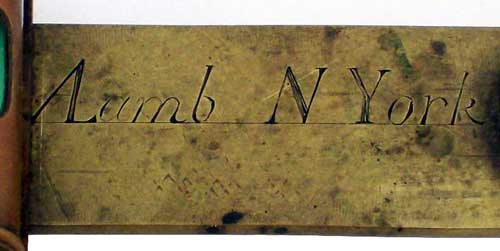

The Manufacturer's signature:
ALamb
N York
|
Former
French company located 44, rue
Etienne DOLET - 94230
CACHAN created by the son of Secrétan's director on Jan. 1st 1957. It
was
bought
later by MORIN and was then called first MORIN-SECRETAN and later SRPI
MORIN. Closed on Dec. 25, 2003
We
don't know more about this
company - your help is needed.

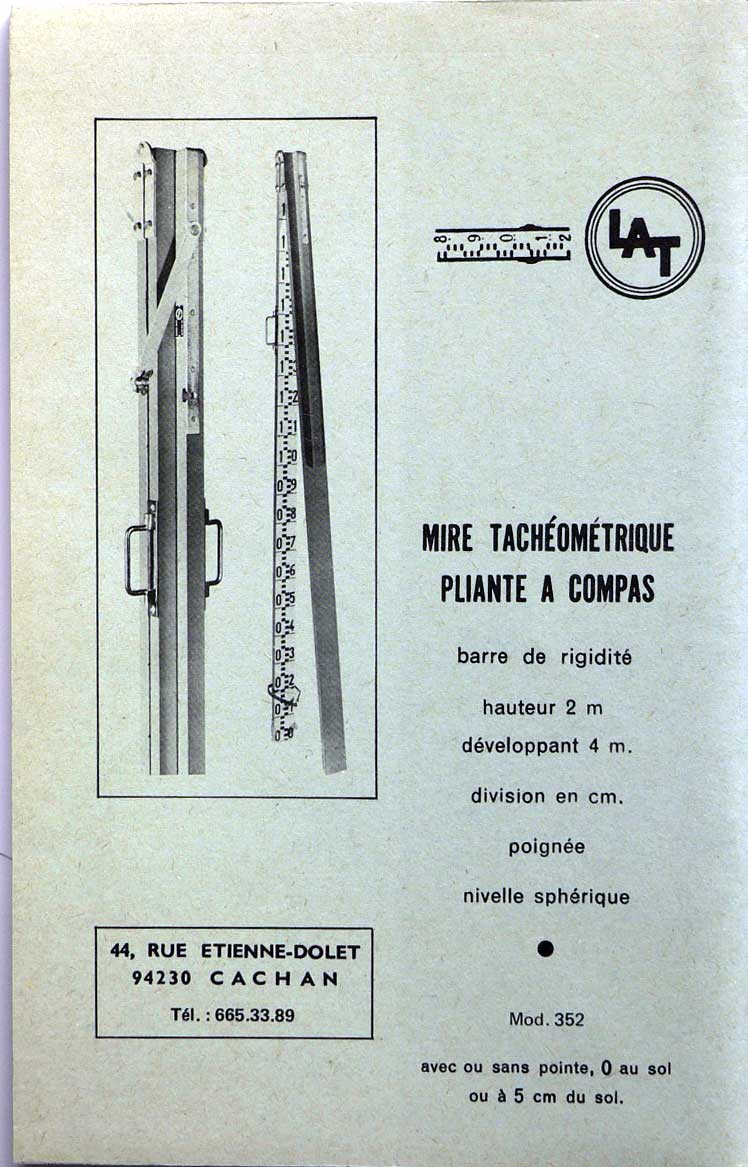

L.A.T. produced materiel for survey works. Picture of an advertisement
for survey materiel
HERE.
Dominique LATOUR was a French maker and
retailer of survey materiel who established the company named after him
in 1857. The logo depicted a lighthouse, the letters D & L and
a
banner marqued FIAT LUX. It was located
13, Boulevard Voltaire in Paris. The name was changed in 1907 in D.
Latour & Fils (Latour and son) after the son Adolphe-Dominique
inherited. The plants were located in
Ligny-en-Barrois (Département Meuse). Many items like
small compasses were supplied by HOULLIOT. LATOUR also offered military
and survey
compass

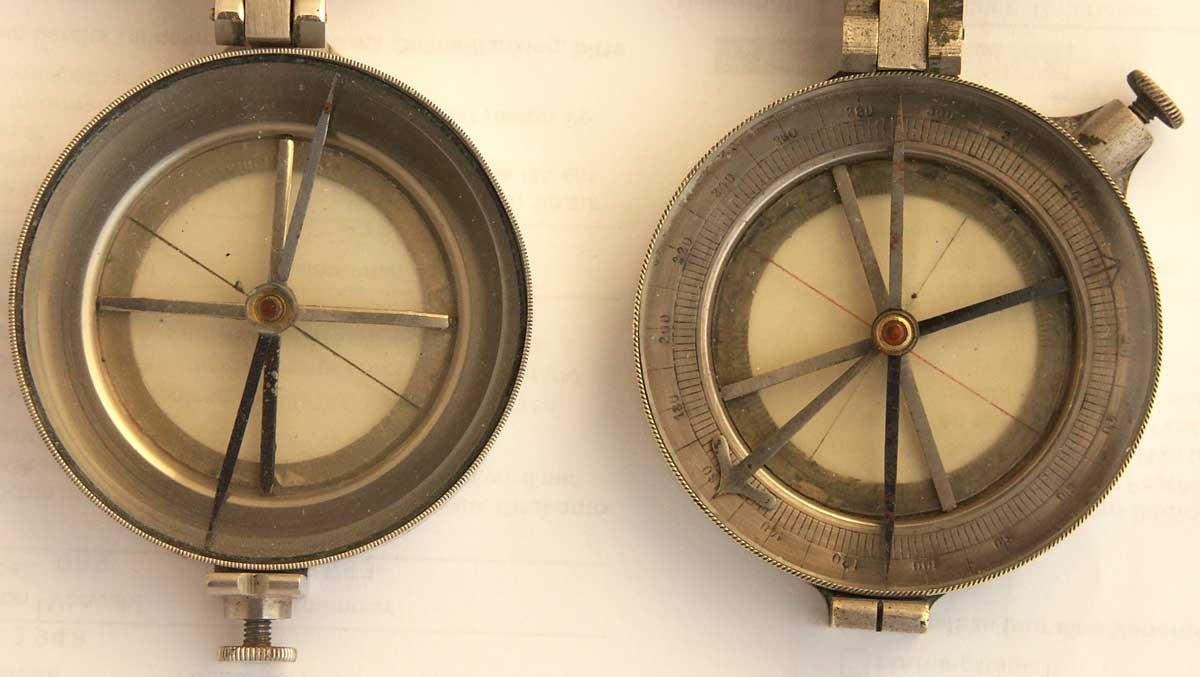

types designed by the French officers Burnier, Peigné and Rossignol
(see below). The catalogue for the year 1929 depicts a view of
the
plant - See also Pocket compasses.
Pictures courtesy
A. Coubard (l.) and M. Collignon (r.)
|

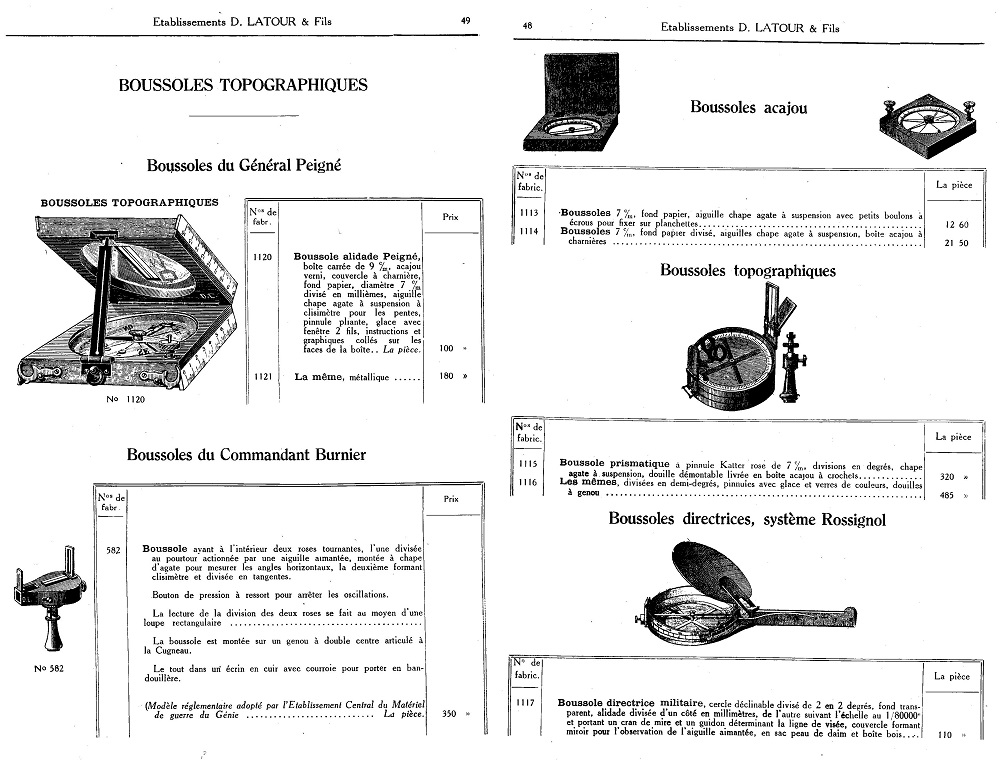

Click on image for enlarged view of full page
|
Click on picture for enlarged view of more compass models
|

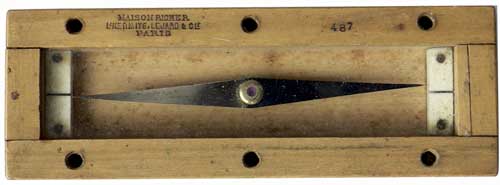

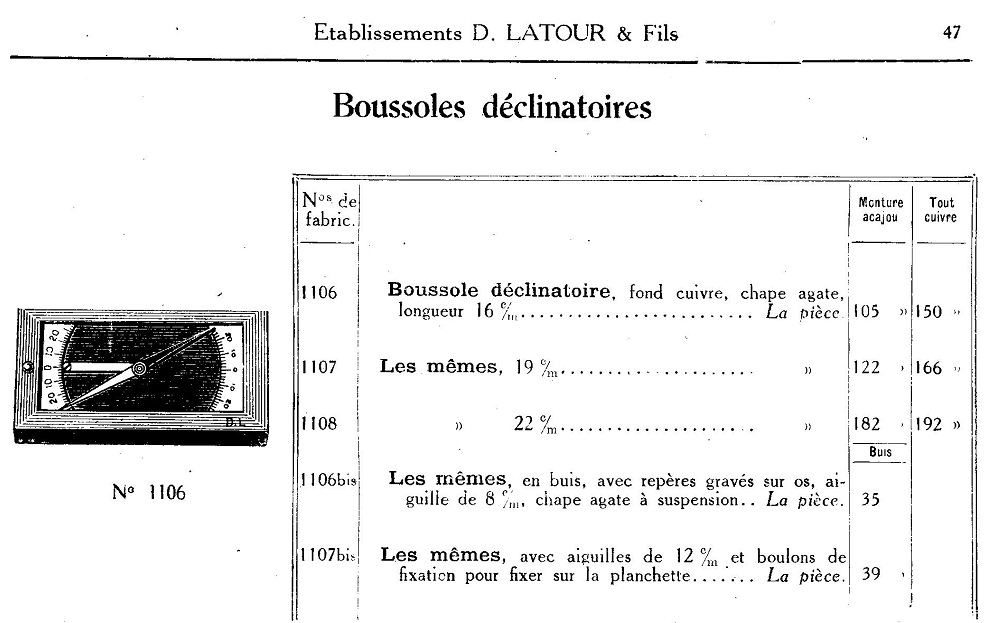

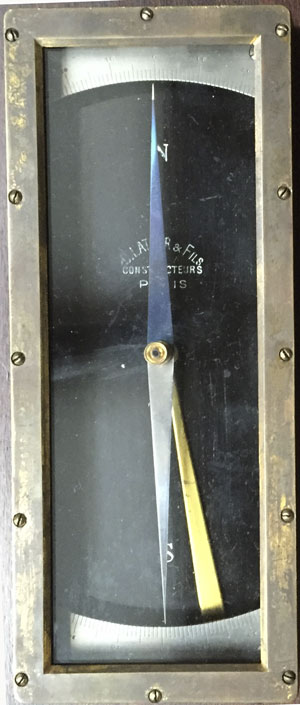

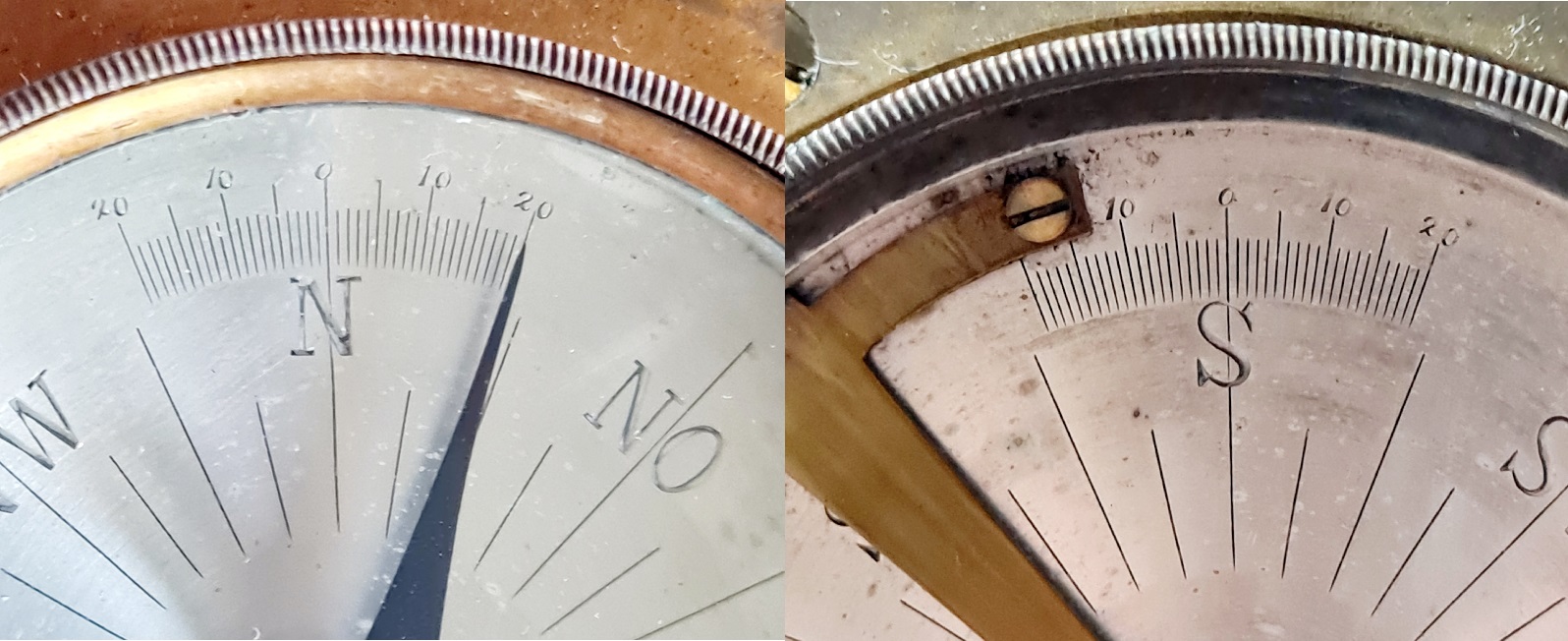

Trough compass
|
Catalogue 1929
|
Technical
Data
Dimensions:
Trough compass available in three sizes: 160, 190 and 220 mm
Material: mahogany, box wood or copper
Needle length: 80 or 120 mm
|
Charles Lavauzelle & Cie is a French company
(printed matters,
stationary items). It was created in
1835 and was many years France's War Department's sole
supplier for maps,
official documents, specialized literature etc.

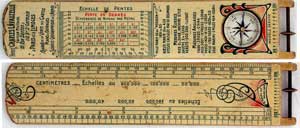

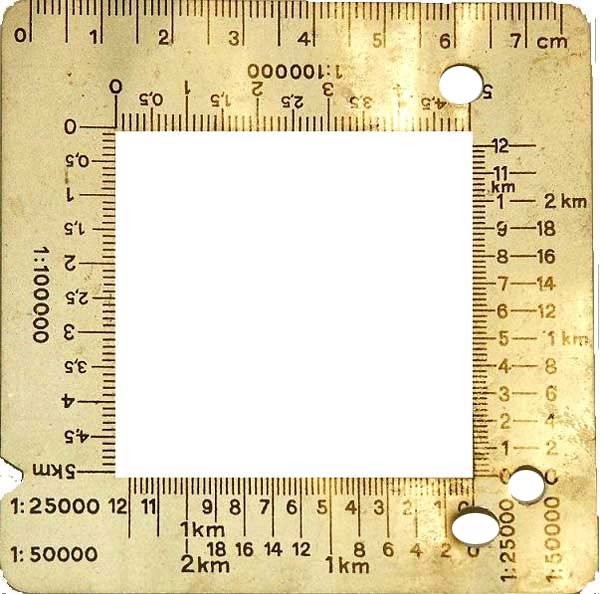

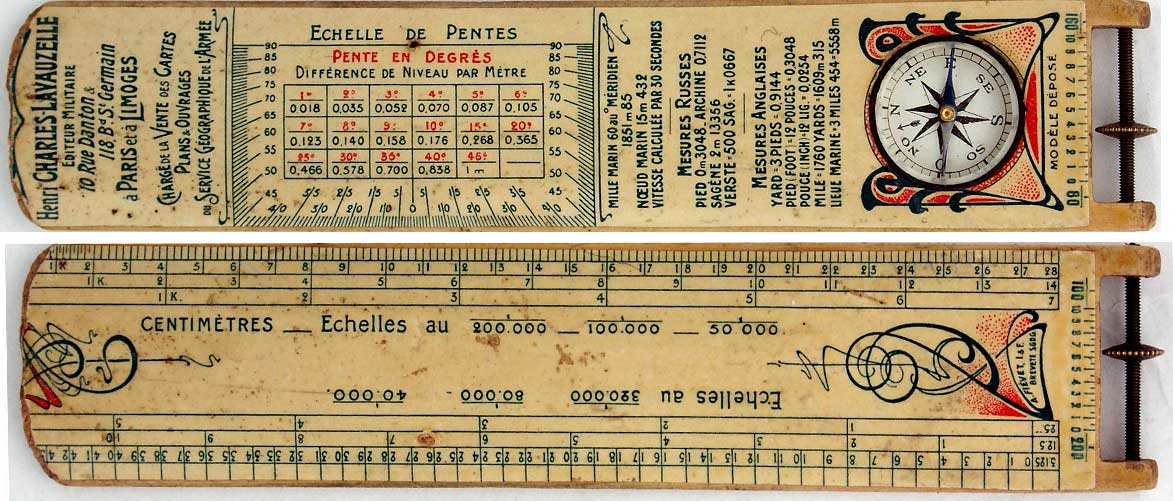

1 - Special ruler for distance assessment used by WW1 officers with
slope table
in
degrees (compare
with Général
Peigné's
system and the ruler used together with the Bézard
compass. The tip was cut away by its user propably so that it fits into
a uniform's pocket closed with a flap. The ruler can still be used
since the top of the curve still matches the (missing) zero mark.
|

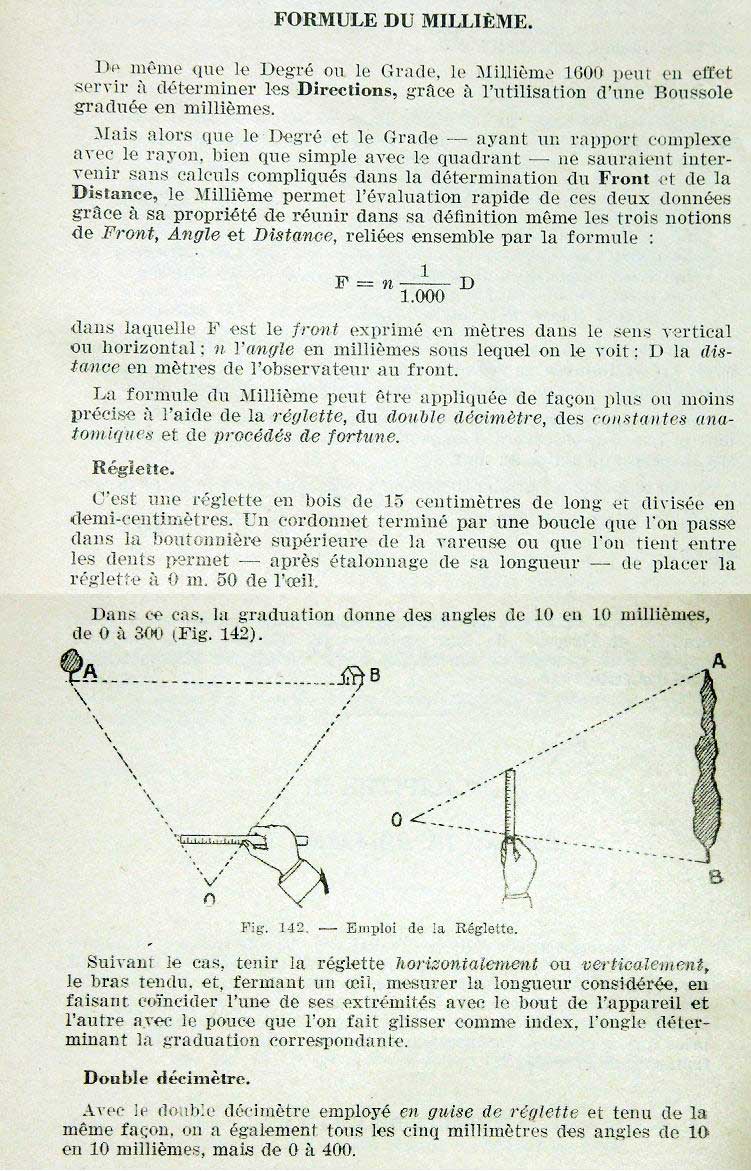

User instr. ("Précis
de
Topographie", by Col.
Mathieu, 1939) |
1
- (see descr. above)
Technical
Data
- Dimensions: 150 x 30mm

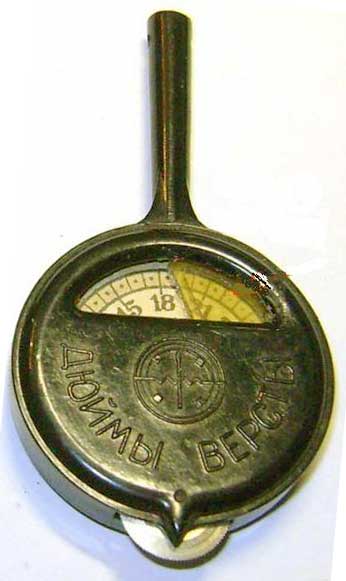

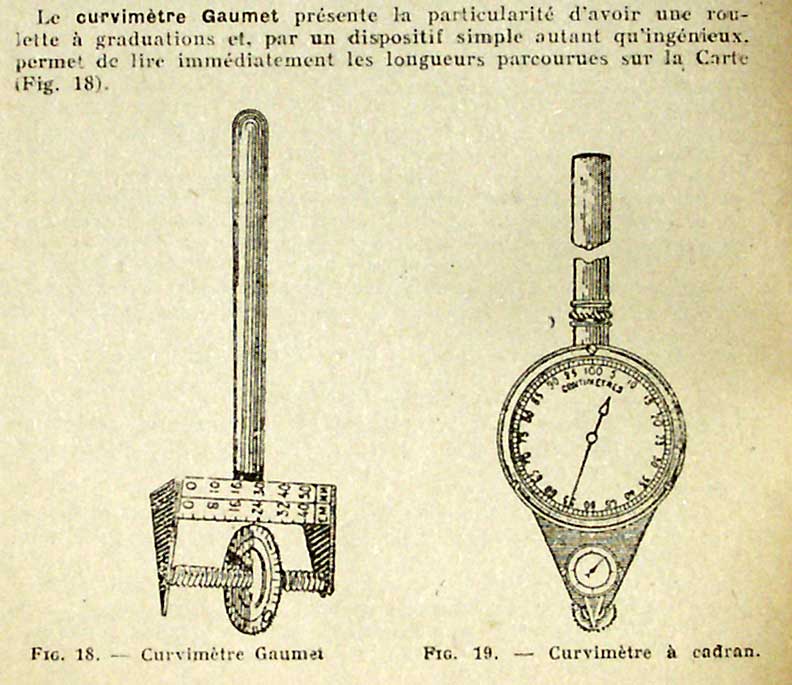

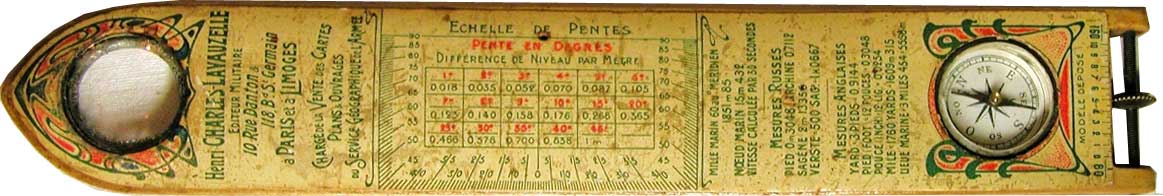

- Map reading device: Gaumet-type
wheel
- British and Russian measuring units.
- The ruler featured a magnifying
glass at one end.
|
|
|

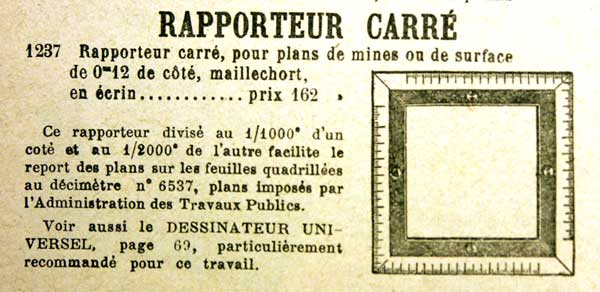

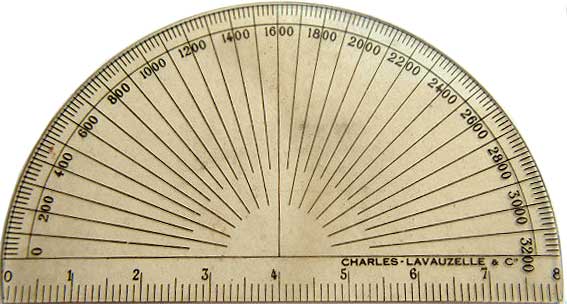

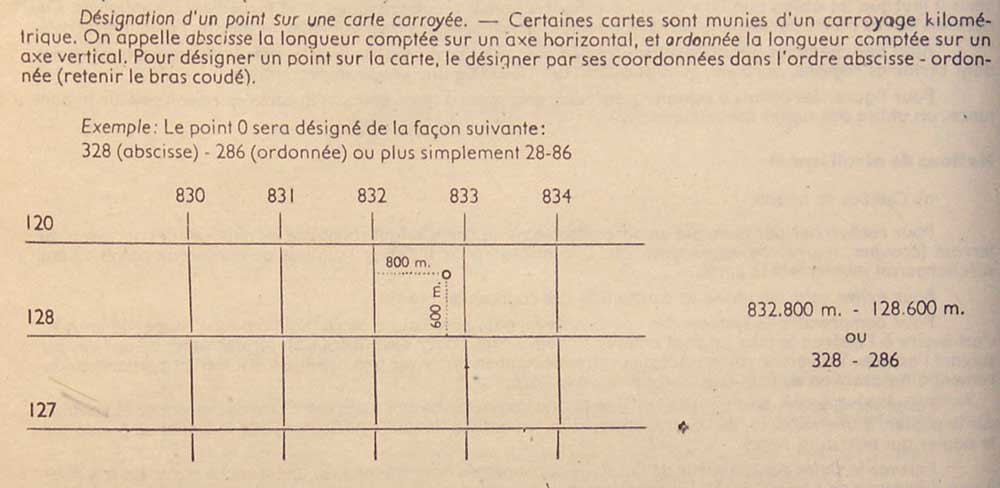

2 - Special protractor
graduated in MILS. It was to be
used together

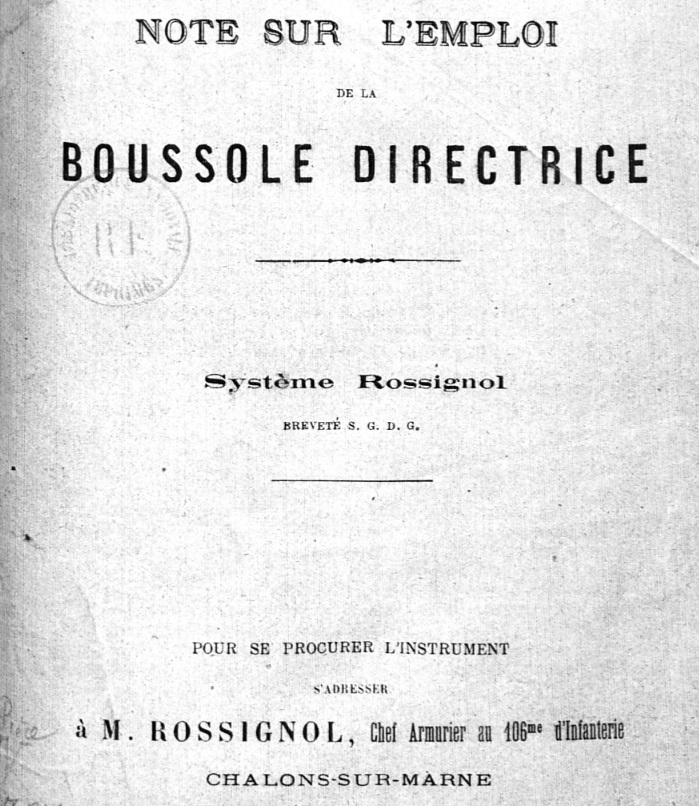

with a compass called Boussole
Directrice (ex.: see MORIN, S-L).
Illustration: French War Dept. document on Compasses (Note
technique du Ministère de la Guerre)
|
British retailer. The Lawes Brothers started their
business in 1919. The Dacres Rabjohns started their business in 1922.
In 1936 they registered a joint marketing company called Associated
Drawing Materials and Equipment Ltd (Admel). In 1947 the Lawes
Brothers and Dacres Rabjohns merged to form Lawes Rabjohns Ltd and in
1964 Lawes Rabjohns Ltd was re-named Admel International Ltd
(Source: Gilai
Collectibles).

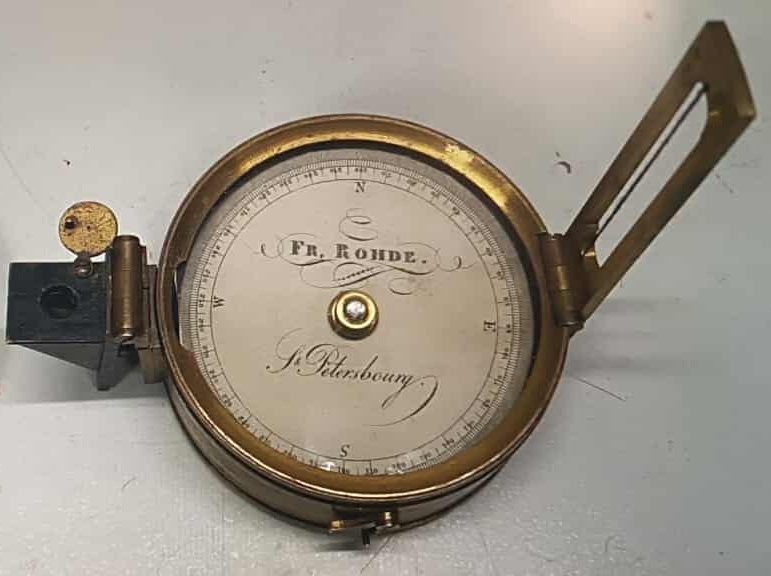

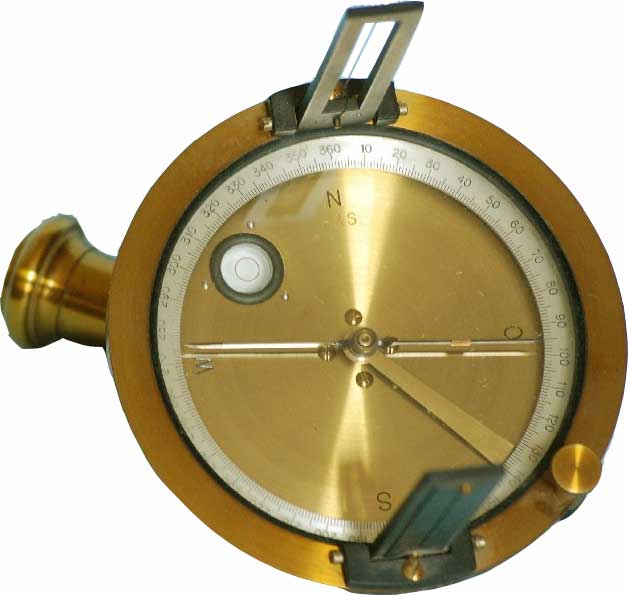

SCHMALCALDER
type surveyor's compass, i.e. with prism and alidade (see also F.
Barker
catalogue)
|
|
Technical
Data
- Diameter: 86 mm
- Depth (closed, with lid): 30 mm
- Height (alhidade upright): 100 mm
- Weight: 265 gr
|

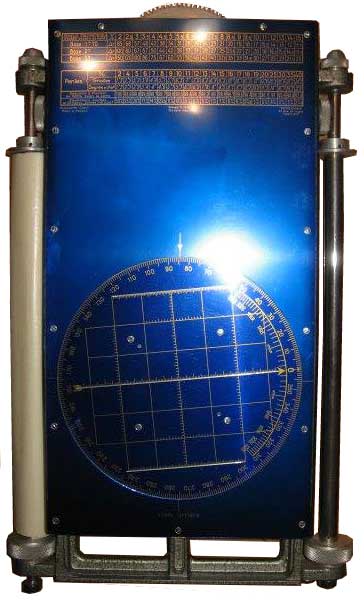

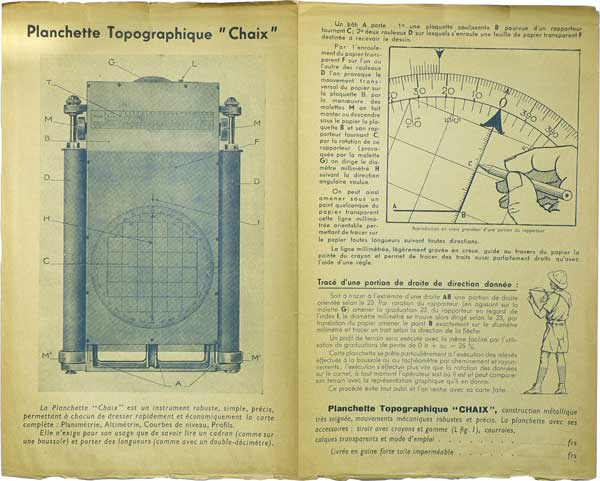

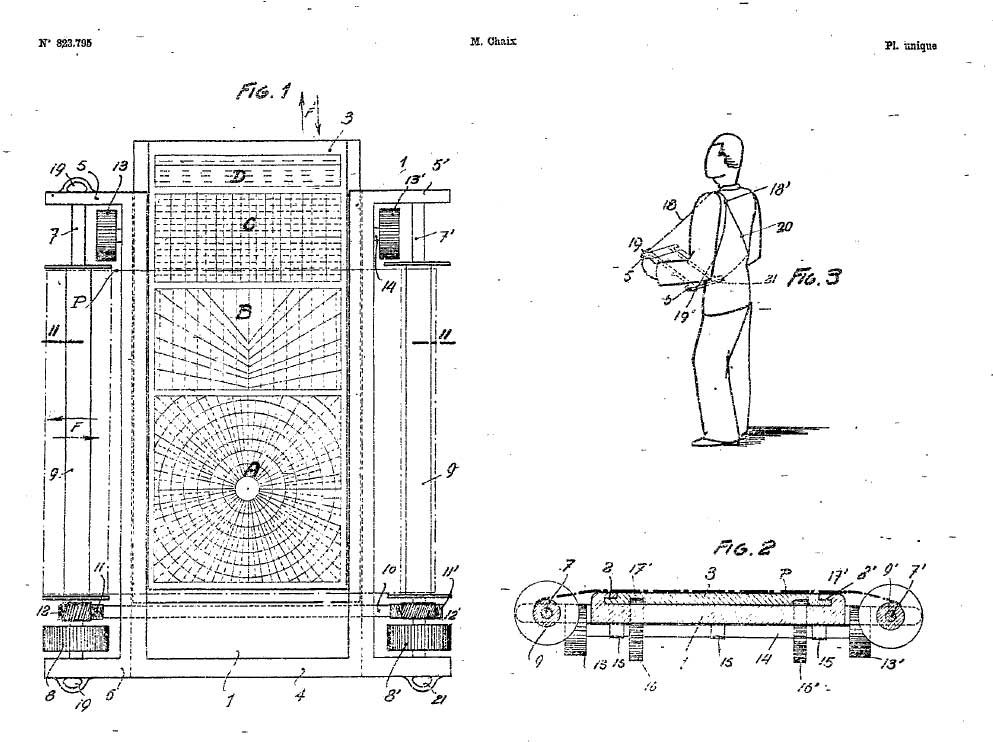

LECOMTE & DÉGLISE was a French maker located 3, rue Valette,
75005 Paris). It had been created in 1900 and closed 3 June 1985 (see
excerpt of the French
registre

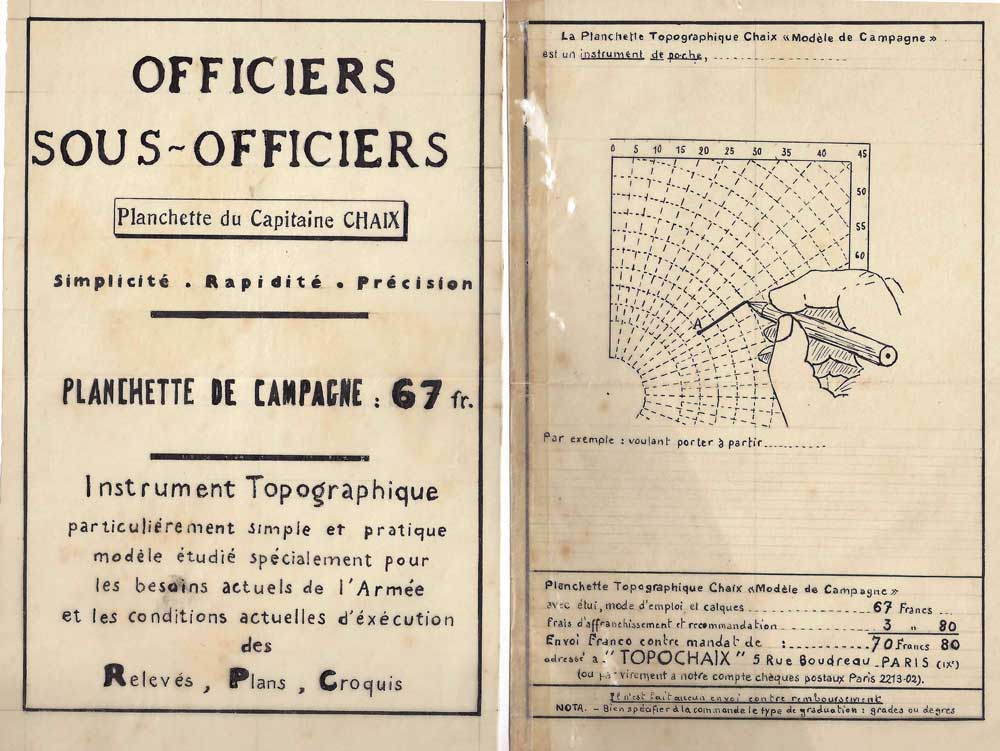

du commerce). The company produced optical and precision
instruments d'optique, among other the compasses
TOPOCHAIX.
The French company LEMAIRE (see the sections Wrist, Pocket and Marching
compasses)
built
also among other instruments an artillery level called
sitomètre
(see next entry).

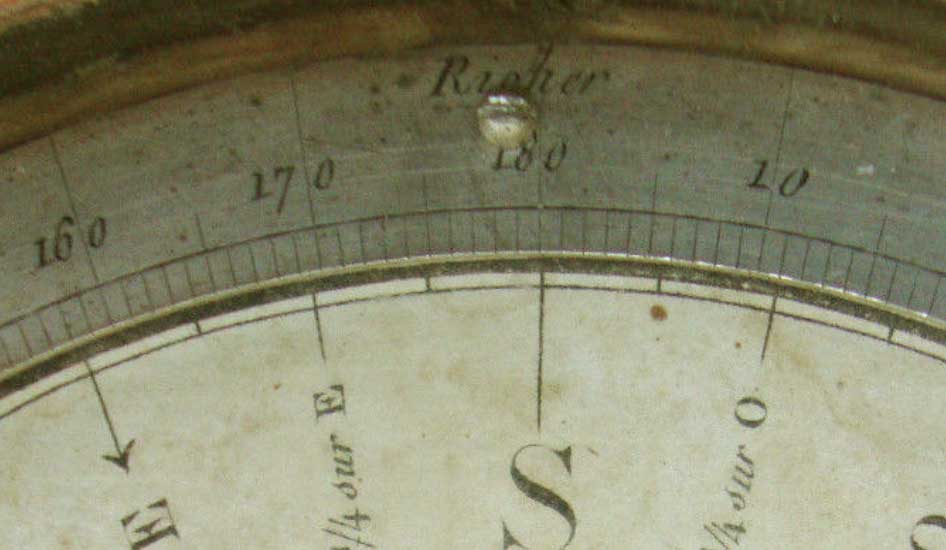

LEREBOURS
LEREBOURS Noël-Jean (1761-1840) was Opticien
de l'Observatoire Royal
et de la Marine et du Bureau des Longitudes (Optician with the French
Royal Observatory and the Navy and member of the Bureau of Longitudes).
Hir shop was located Place du pont neuf, Paris.
His son Noël Marie Paymal (1794-1855) was his successor.

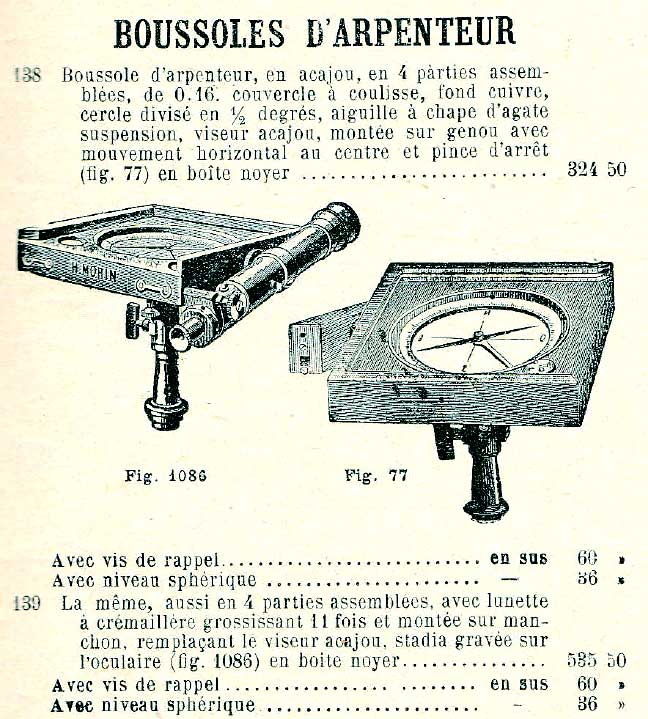

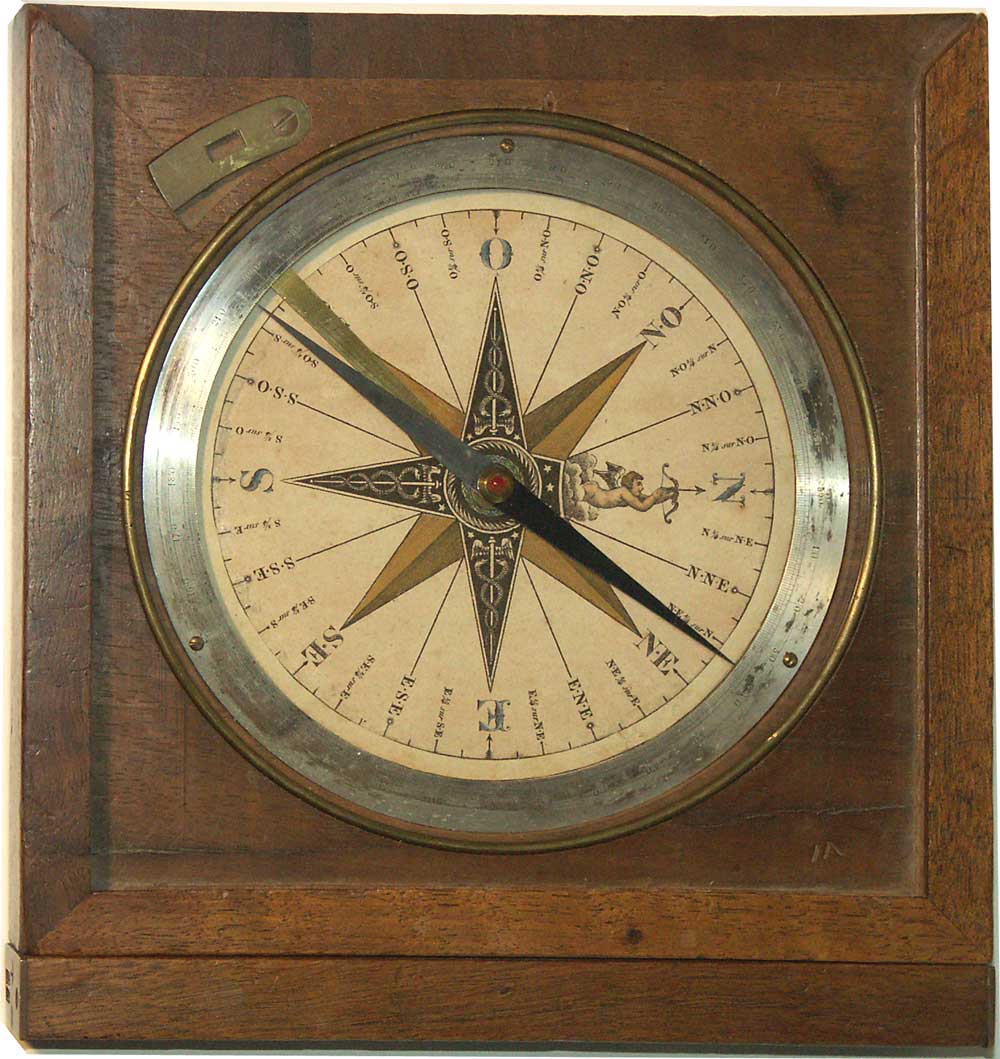

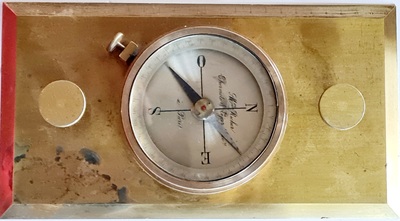

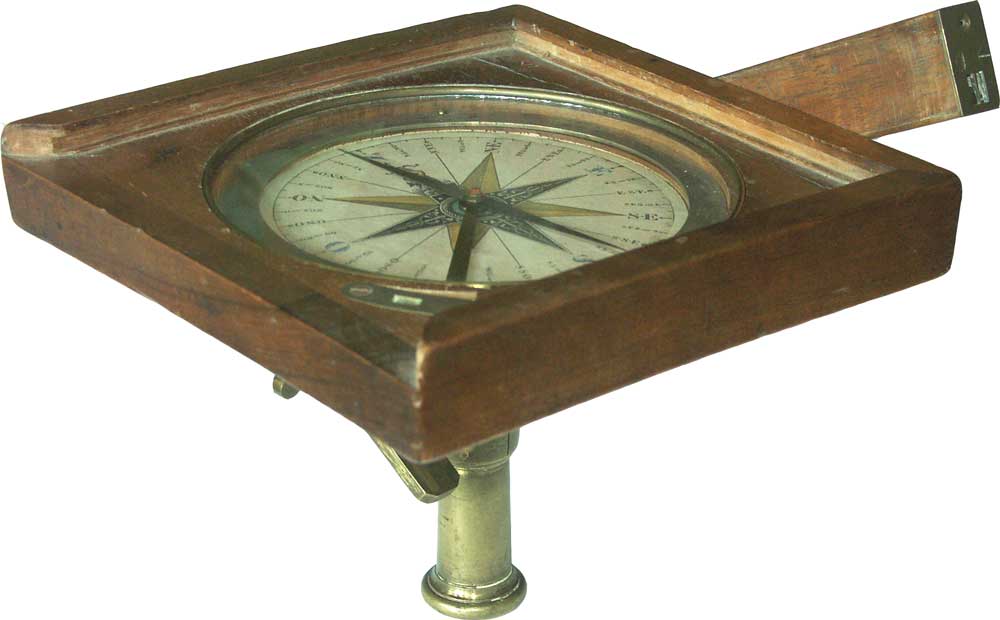

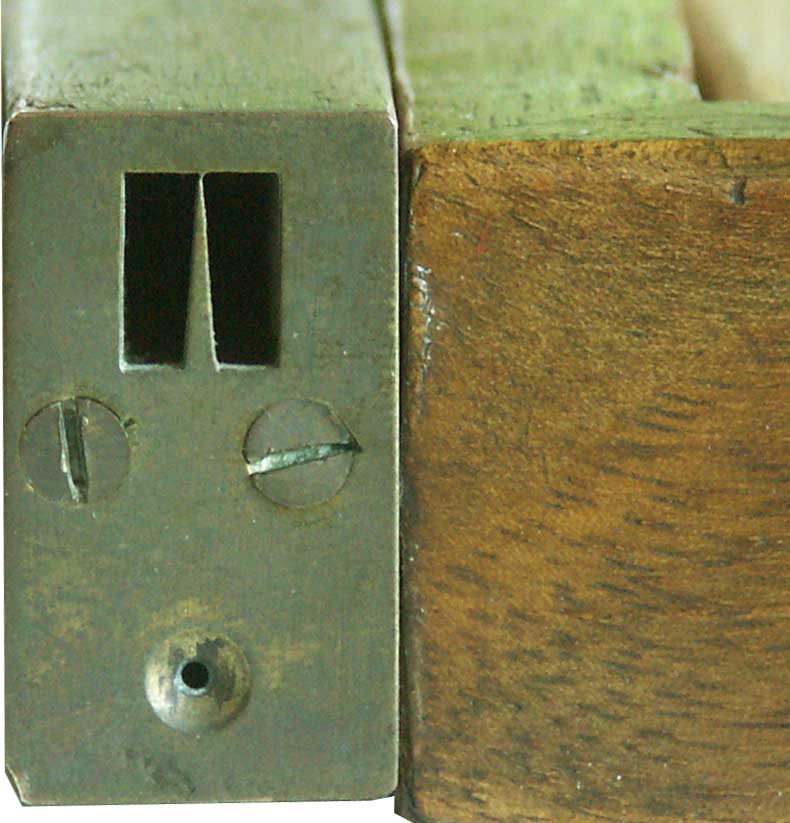

This instrument is called in French catalogues
boussole
d'arpenteur (ex. Morin,
until c.1930) and also sometimes
boussole de forestier.

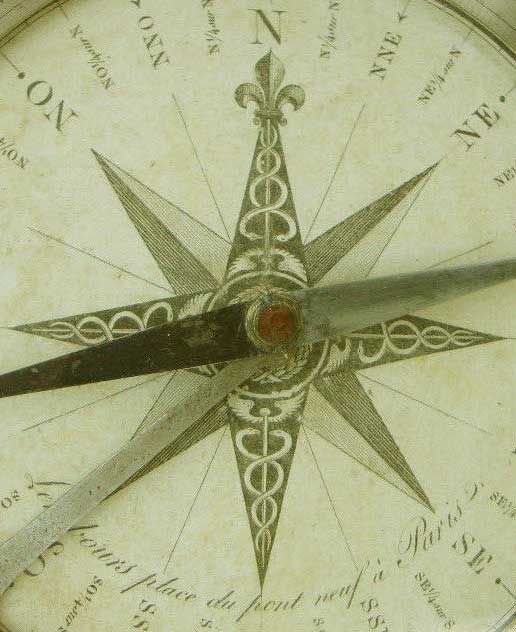

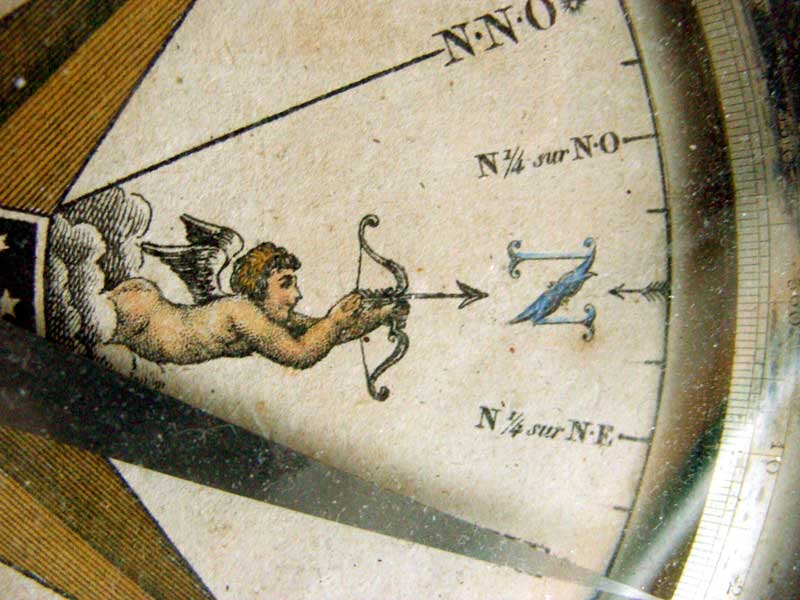

This special one existed signe (at r.) and unsigned. The very special
rose
of the winds

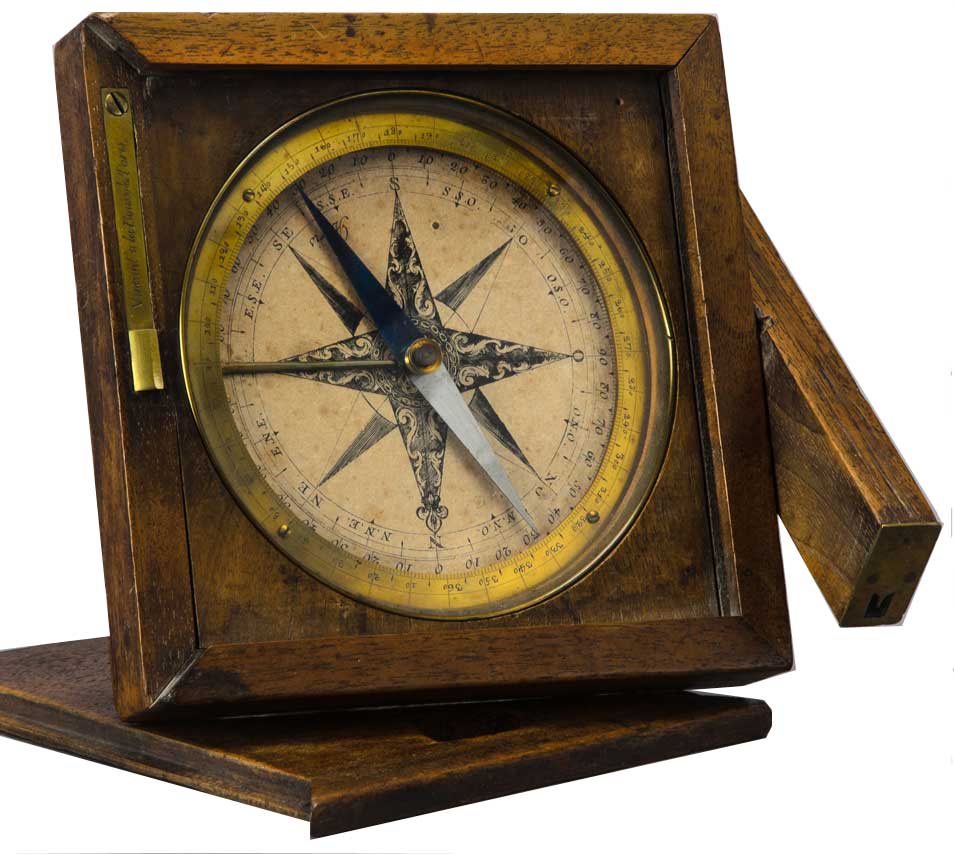

on the item below doesn't feature the usual heraldic lilly (see at
right) also
symbol for the French kings, see an example
of
a
similar compass with a fleur de lys; pic. courtesy
Hotel_des_ventes)
for the NORTH
cardinal point but an
amor shooting an arrow at a large
letter
N resembling strongly the one
representing the French emperor Napoléon Bonaparte.
The radii to the other three cardinals represent each a
caduceus, a typical symbol used
during this historical period (1800-1815). The same design is to be
found on a trough compass (further below).
(Click
on images for enlarged views) |
|

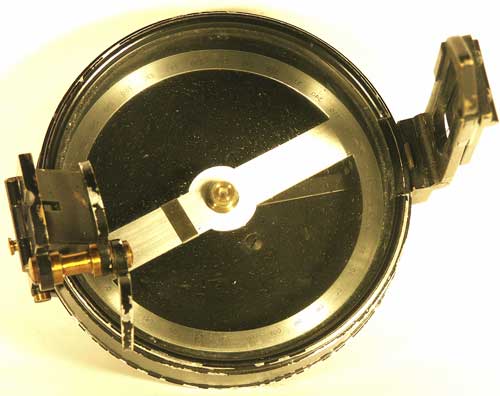

Double sight
|
Technical
Data
- Dim.: 205 x 192 mm
- Divisions: 360°, precision ½ a
degree
- Slide-in protection lid
- Wooden case, double rotatable sight
Make: c. 1810
|

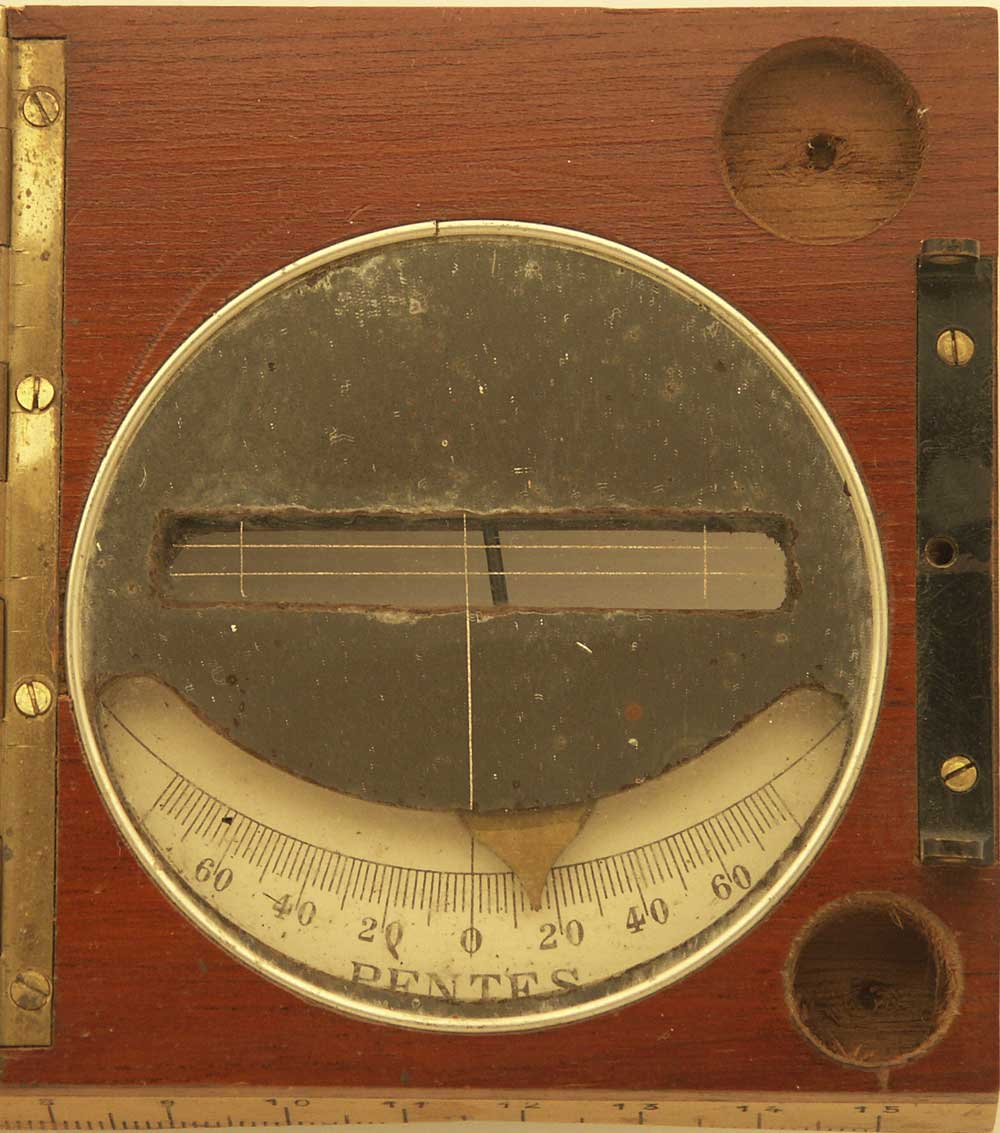

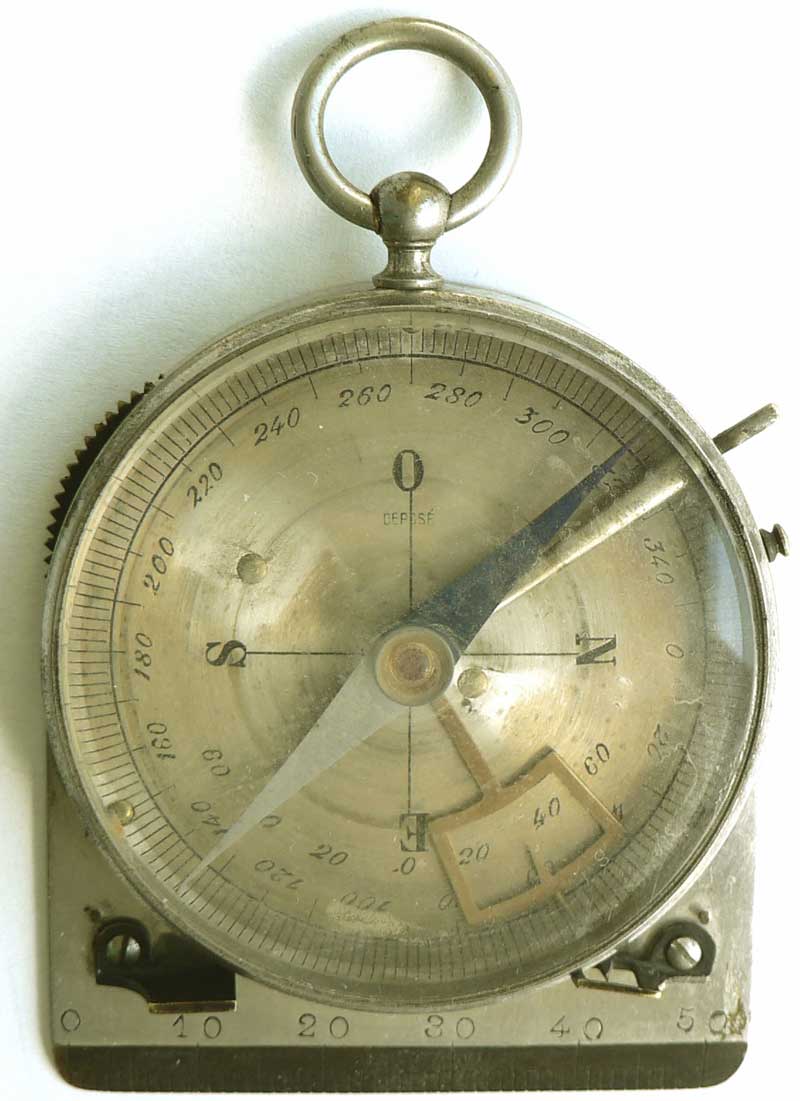

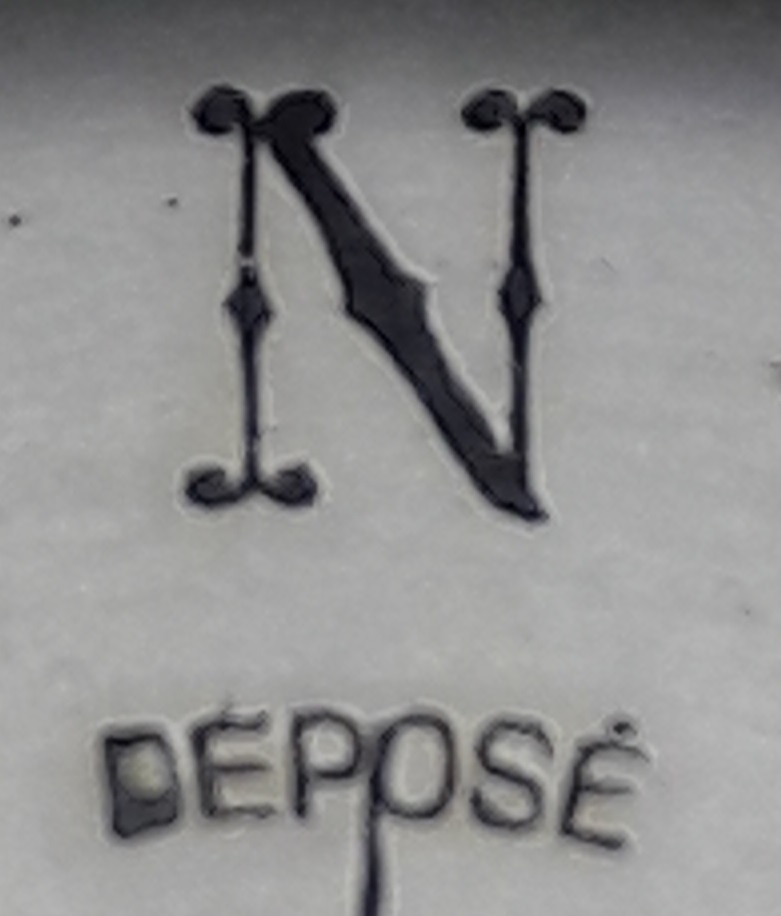

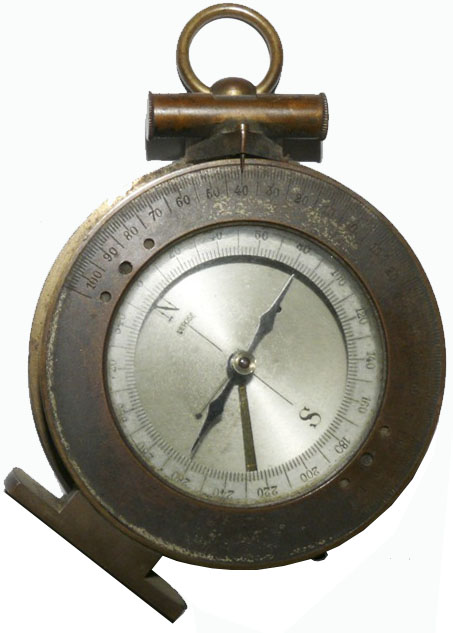

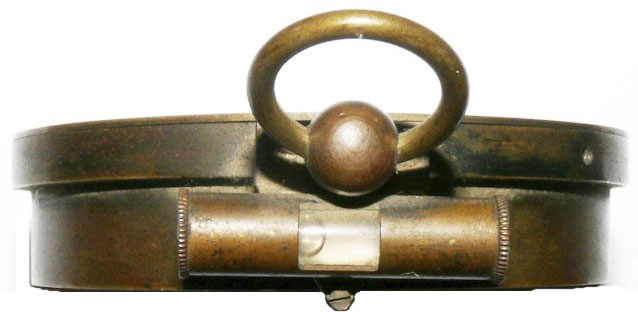

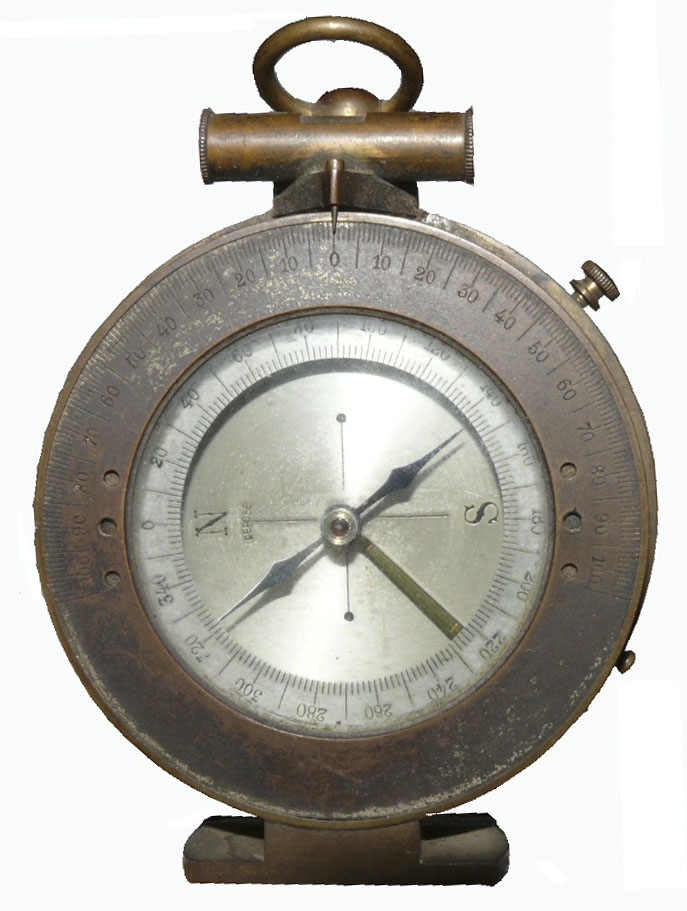

Small compass with clinometer and bubble level. It is unsigned
but
the decorated letter N (north)
resembles the particular north mark of the
large compass above so that we momentarily assume that
Lerebours was
its maker. The slope angle measuring device is unique: after
having placed the base on the slope rotate the case until the level is
horizontal. The tiny needle located below the level will then point to
the angle value on the 100 degree double scale.

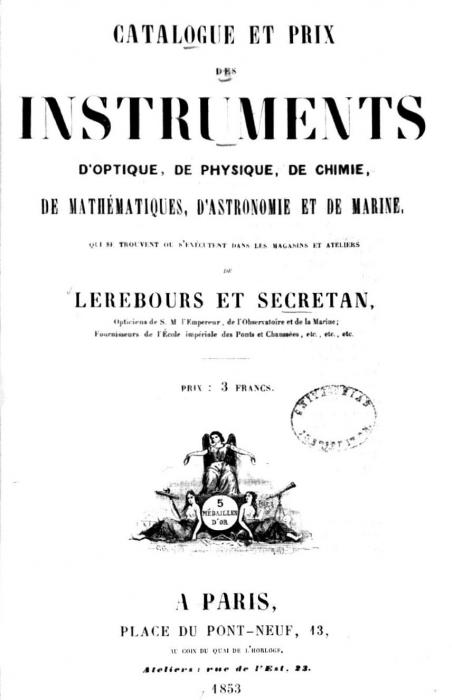

This instrument though is not listed in the only known catalog Lerebours (1853).
|
The three holes on each side are the witnesses of the missing sighting
aids |
|
Make: late XIXe s.
Dimensions: dia. 50mm
Gradation: 360°
Marking: DÉPOSÉ = French for Reg. Trademark.
|
LEUPOLD
This manufacturer is described in the section Marching Compasses.

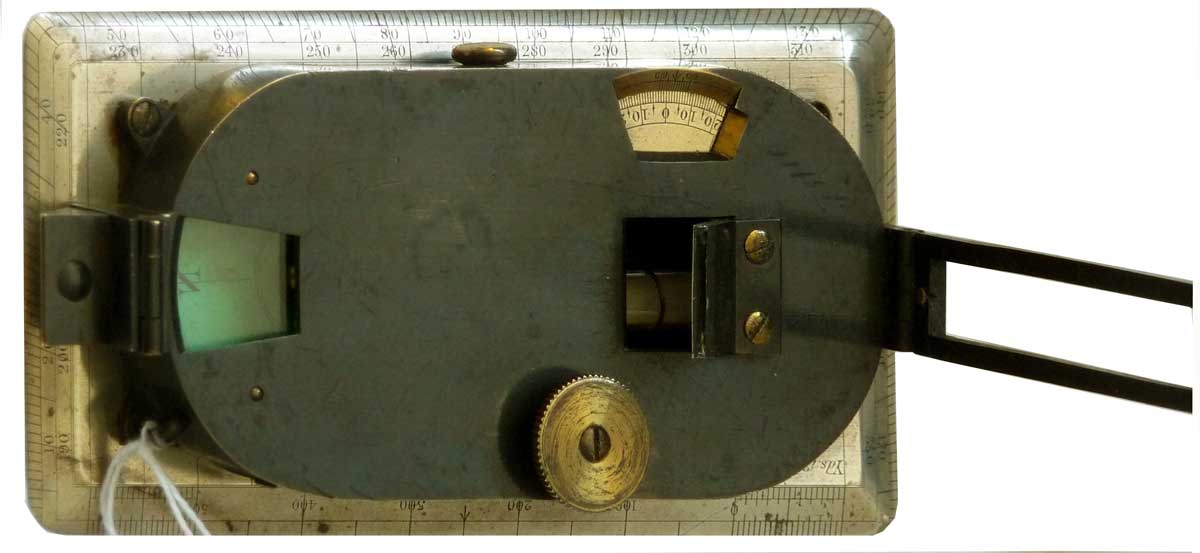

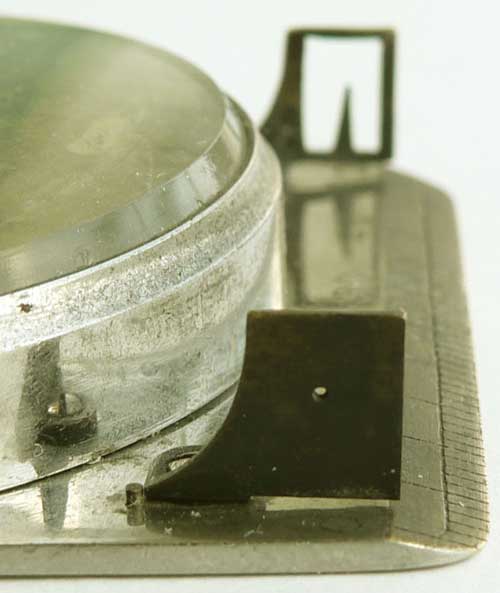

Manufacturer unknown - Compass with clinometer.

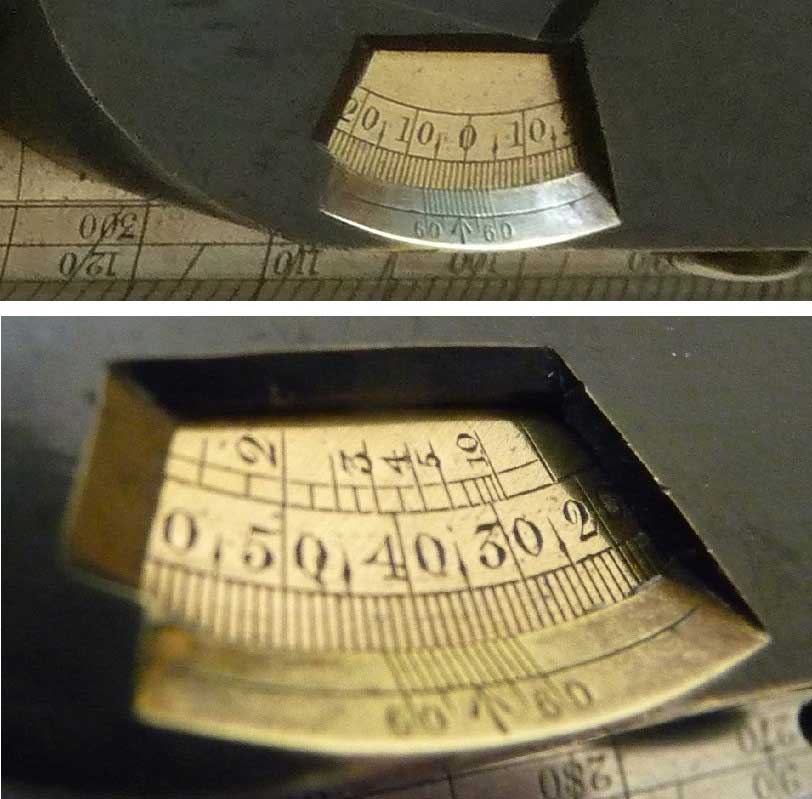

Procedure for measuring an elevation angle: Holding the case tilted
sideways, sight at a feature through the pin-hole located under the
prism and past the hair in the vane. A bubble level located on a
graduated disc is visible via the mirror of a lift-up window. Rotate
via the serrated wheel the scale of degrees visible in the opening on
the opposite side until the bubble is levelled and read the angle
between
horizontal and the feature aimed at.

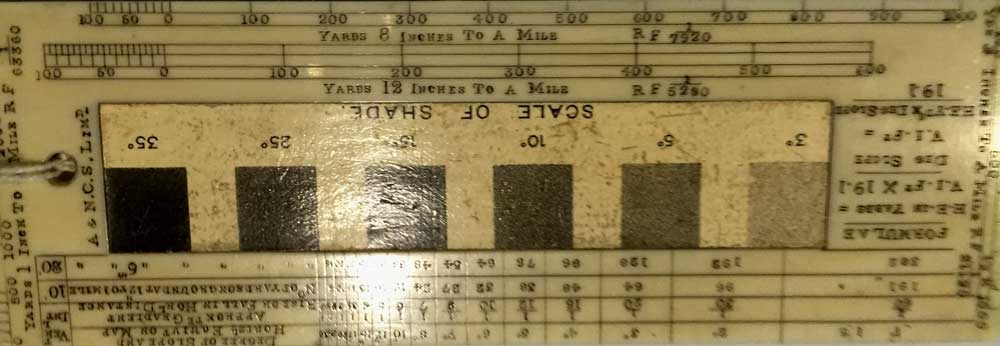

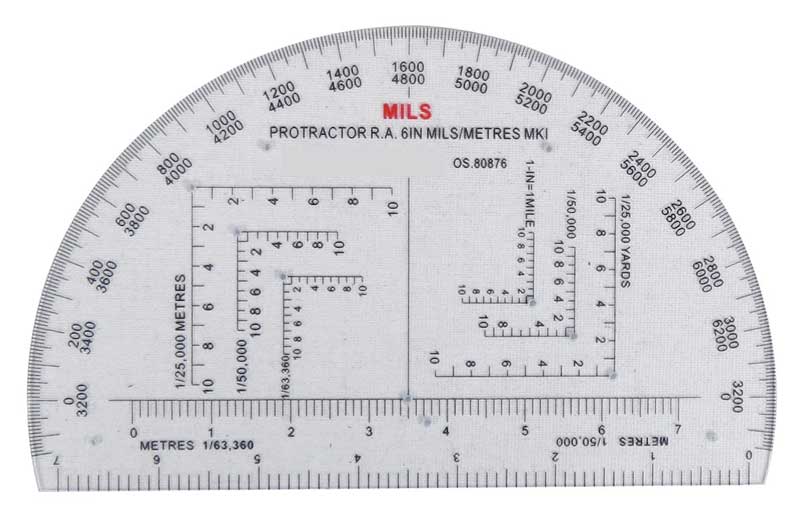

The side to side lines on the base plate, are
the same as those on
military
use protractor/rules (link to
pic.), and
can be aligned
with map grids.
Technical
Data: Dimensions
(base-plate): 5.5" x 2.75"; Markings: Yds. 12 In
s
= 1 Mile; NOTE: the use of the inner scale in the window is not known.

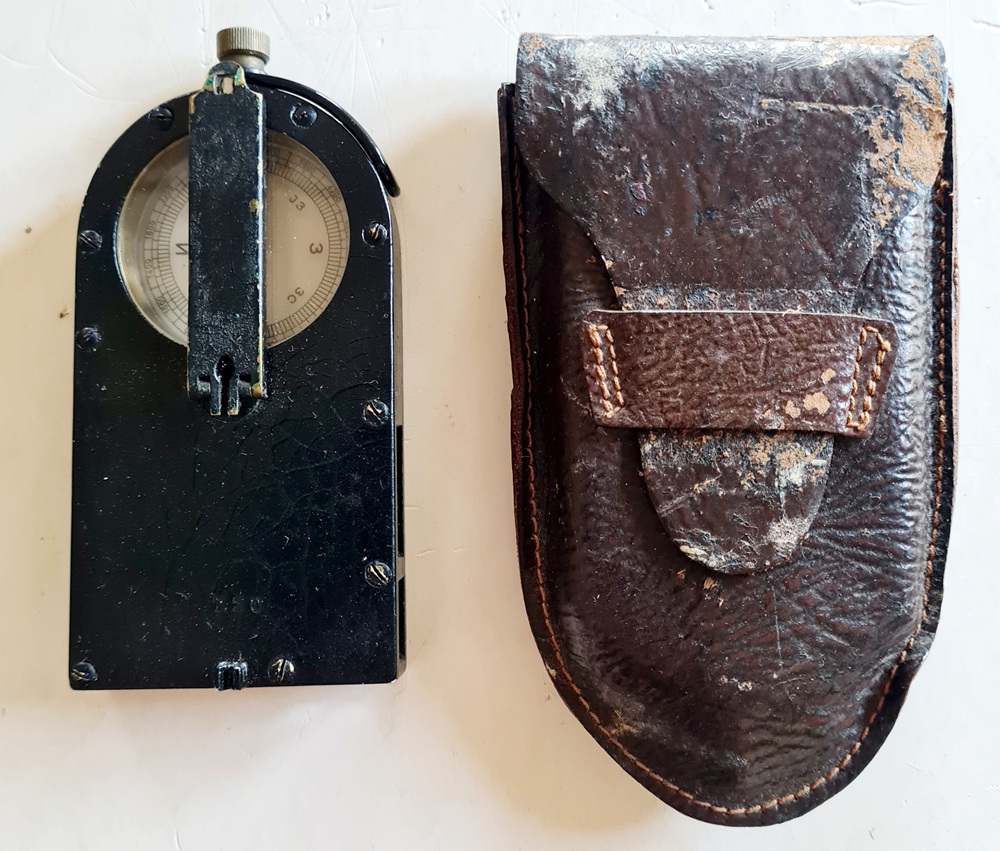

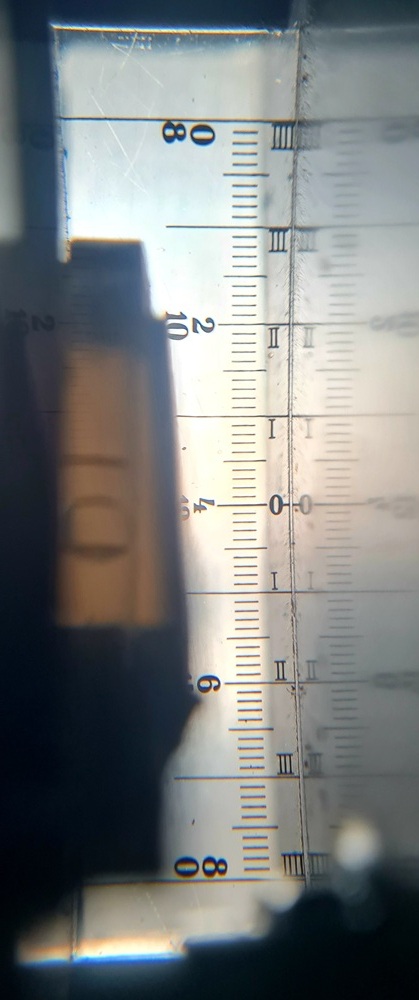

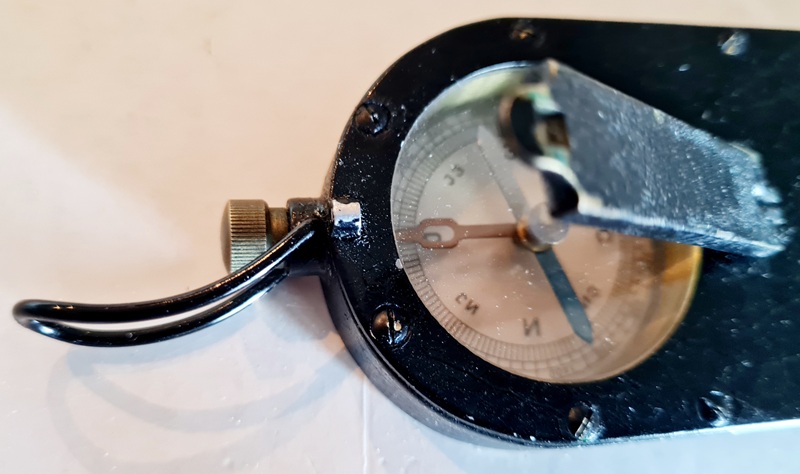

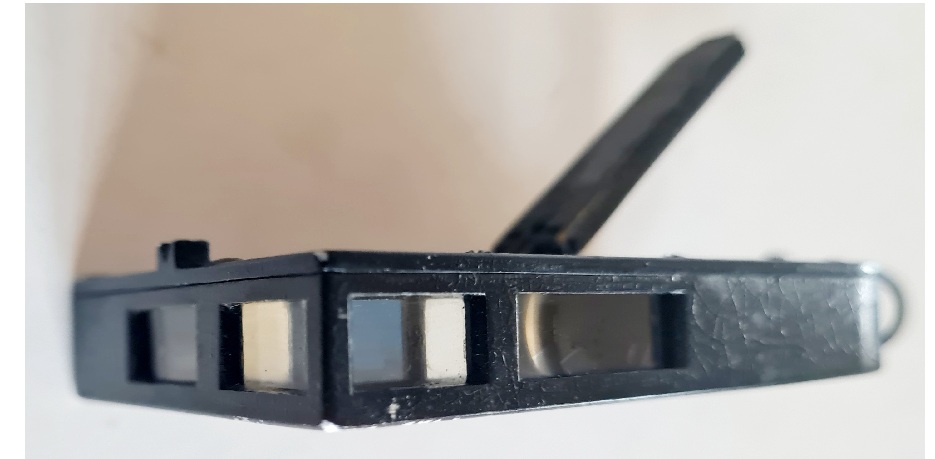

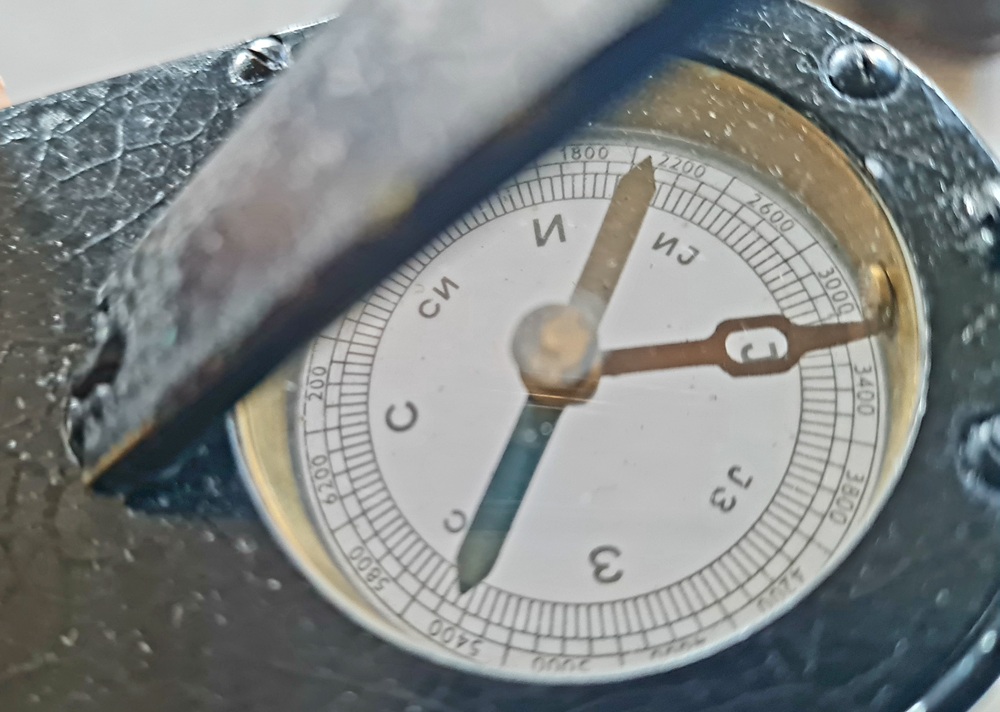

The instruments in the next table are called
sitomètre
(or
sitogoniomètre)
in French and
Sitometer
in Swiss German. The name
comes from the French expression for elevation angle which is called
angle
de site while the azimuth angle
is
called
angle de
gisement.

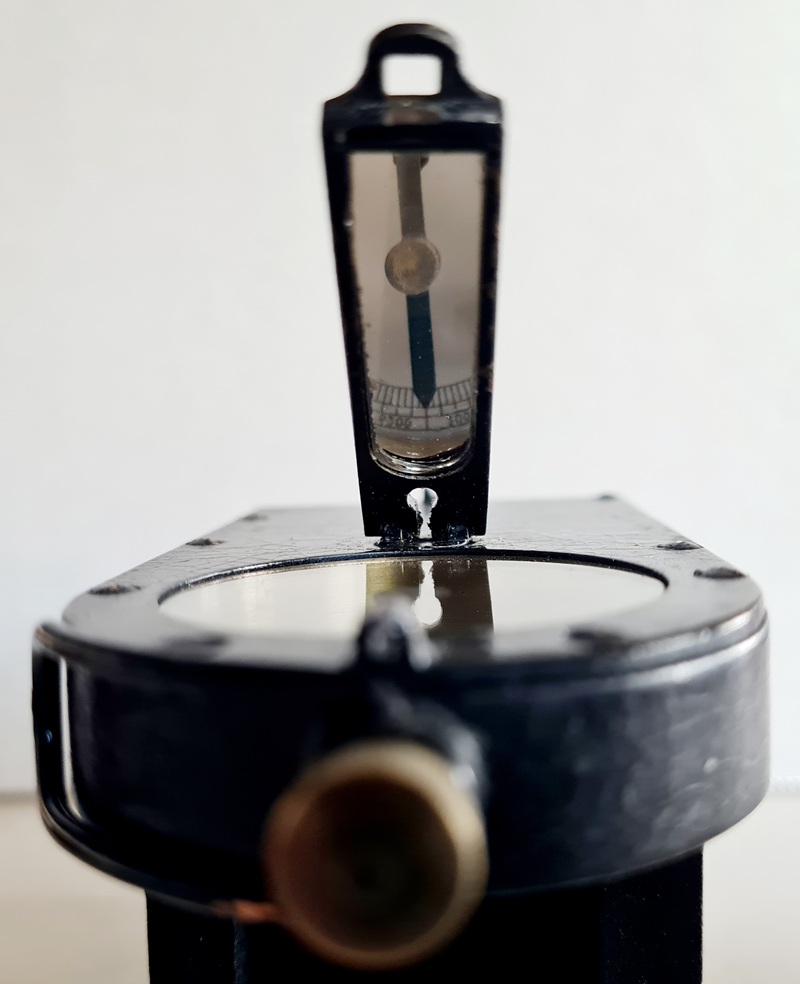

French
level system called
sito(gonio)mètre
Early system produced by the French companies HUET, LEMAIRE, MORIN
and SECRETAN from 1911 on until the 30's.
For techn. details see SECRETAN |
French
level system called clisimètre
Early system produced by the French company MORIN in the 1930's
|
Swiss
level
system called Sitometer
For details see BÜCHI
and KERN |
German
system
(WW1?)
For details see GOERZ.
|
This system is called Abney level. It was designed by Sir William de
Wiveleslie Abney (born 24 July 1843 - died 3 Dec. 1920) and is
very
popular in England and the U.S.A.
Sir Abney was an English astronomer and chemist
best known for his pioneering of color photography and color vision.
Sir Abney invented this instrument under the employment of the School
of Military Engineering in Chatham, England in the 1870's. It is
described by W. & L. E.
Gurley
(*) as an English modification
of
the Locke hand level, noting that it gives angles of elevation and is
also divided for slopes, as 1 to 2, 2 to 1, etc. Since the main tube of
this instrument is square, it can be applied to any plane surface. The
clinometer scale is graduated to degrees, and read by vernier to 10
minutes.
The original Abney level did not have a compass. It was simply a type
of sextant for measuring vertical angles on land, not using the sun
– no filters. Until its invention clinometers were either
very bulky (sextants were used) or were not very accurate. Abney
invented his pocketable level purely to fill a much needed gap in the
market. Surveyors welcomed his invention, but it was primarily used by
the military for artillery and engineering (creation of roads, bridges
etc). However, the addition of a compass was a much later invention and
it is possible, though not definite, that
F.
Barker was the one to make the
combination.
* W. & L. E.
Gurley, A Manual of the
Principal Instruments Used in American Engineering and Surveying,
Troy, N. Y., 1893, p. 228.
(Source: WIKIPEDIA)
Abney
level made by F. BARKER & Son
(see catalogue at right)
Multiplying the TAN no. (tangent) of the angle (given in
a table) by the distance in metres to the base of
the object
gives its height.
(Click
on images
for enlarged views)
All pictures by www.TRADEMARKLONDON.com |
Prismatic compass with SINGER's
patent type green paper dial with fixed prism
and folding sighting vane.
The compass transit lock engages when the sighting vane is folded down,
and has a "brake" button to help settle the card for a reading.
The 5" version has no adjustable telescope (no draw tube).
|
Technical
Data
- Dimensions: 5 x 2 ½ in. (12.5 x 6 cm)
- Compass diameter: 1 ½ in. (38 mm)
- Compass calibrated in 360 degrees.
BARKER catalogue 1909
|
DE LISLE'S REFLECTING
CLINOMETER
1890 - 1945 ANTIQUE, BRITISH MILITARY ITEM USED DURING THE BOER WAR,
THE FIRST WORLD WAR AND THE SECOND WORLD WAR
This simple device was invented by General A. de Lisle, (1825-99). The
half mirror in the diamond frame reflects the observer's eye when the
instrument is suspended from the thumb and held at arm's length. A
sighting on a distant object through the clear glass will be on the
same level as the observer’s eye and its mirror image. In
this
model the mirror can be tilted by using the weighted arm running over
the scale on the arc as a “handle”. This will give
a
measure of the inclination of the distant object. A heavy arc is
constructed upon the lower part of the instrument. This
is jointed upon a vertical axis so that it may be revolved to bring the
mass of the arc either forward or backward, to take inclines upwards or
downwards, or to rest at an intermediate position to make the
instrument flat and portable. The arc has a stiff centre axis with a
radial bar, the edge of which forms the index. A sliding weight is
placed on the radial bar, which is sufficiently heavy when at its
greatest extension to exactly counterbalance the weight of the arc in a
horizontal position and to make the mirror quite vertical. In this
position it forms a simple Burel level.
A set of graduations are made
upon the arc, which are numbered 1 to 50. The radial bar index set to
one of these numbers gives the amount of inclination that will result
from the coincidence of the reflection of the centre of the pupil of
the eye cutting the object to be observed. It is calibrated for
gradients from 1 in 50 to 1 in 5.
Overall length 160mm / 6 inches ; weight : c. 300 gr.
/ 10 oz.
An instrument used to determine the angle of elevation or depression. A
De Lisle's Pendant Clinometer was used by surveyors and Royal Engineers
to set out slopes and gradients in the construction of paths, tracks
and roads.

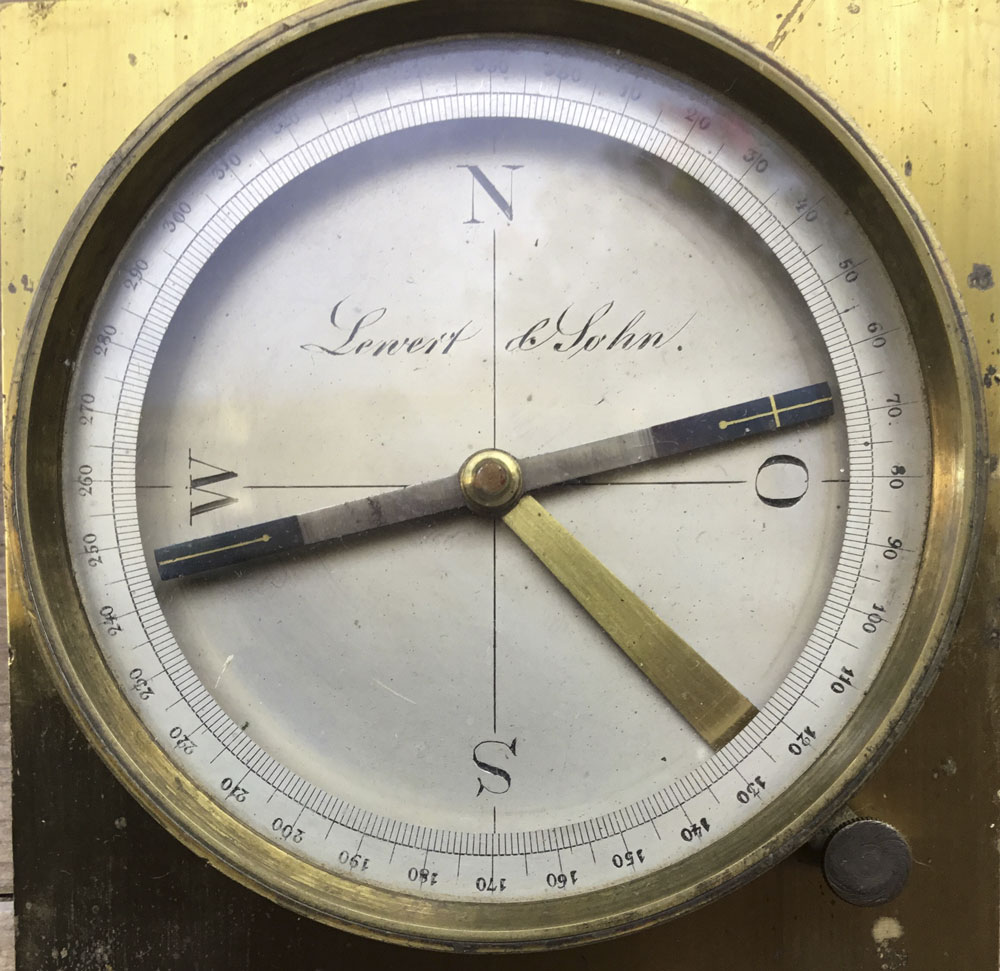

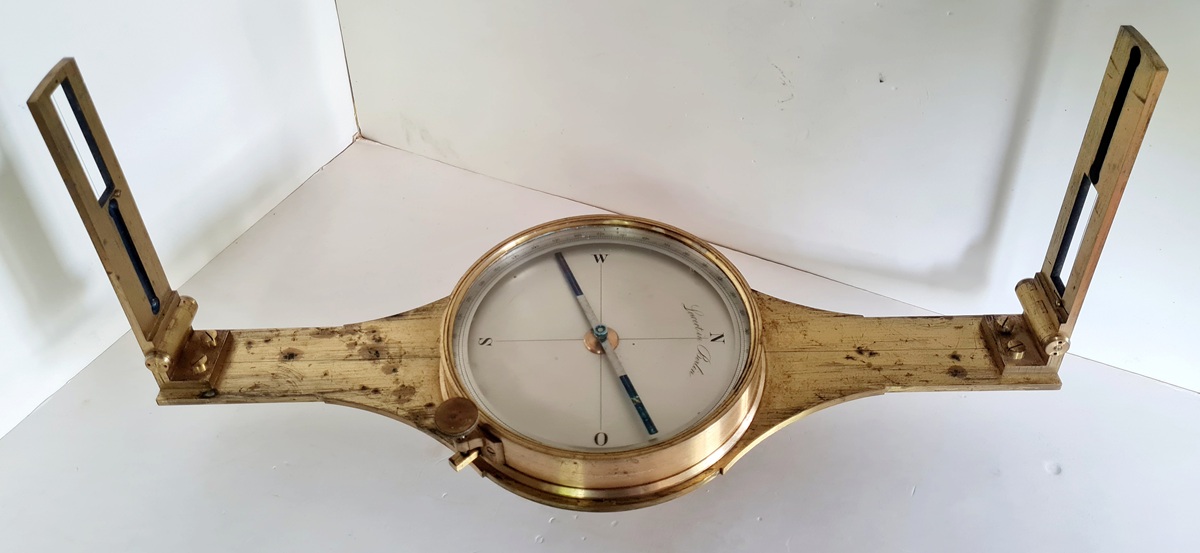

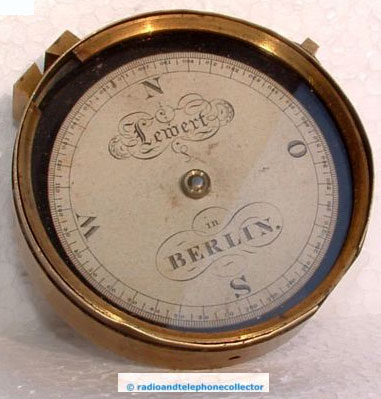

LEWERT

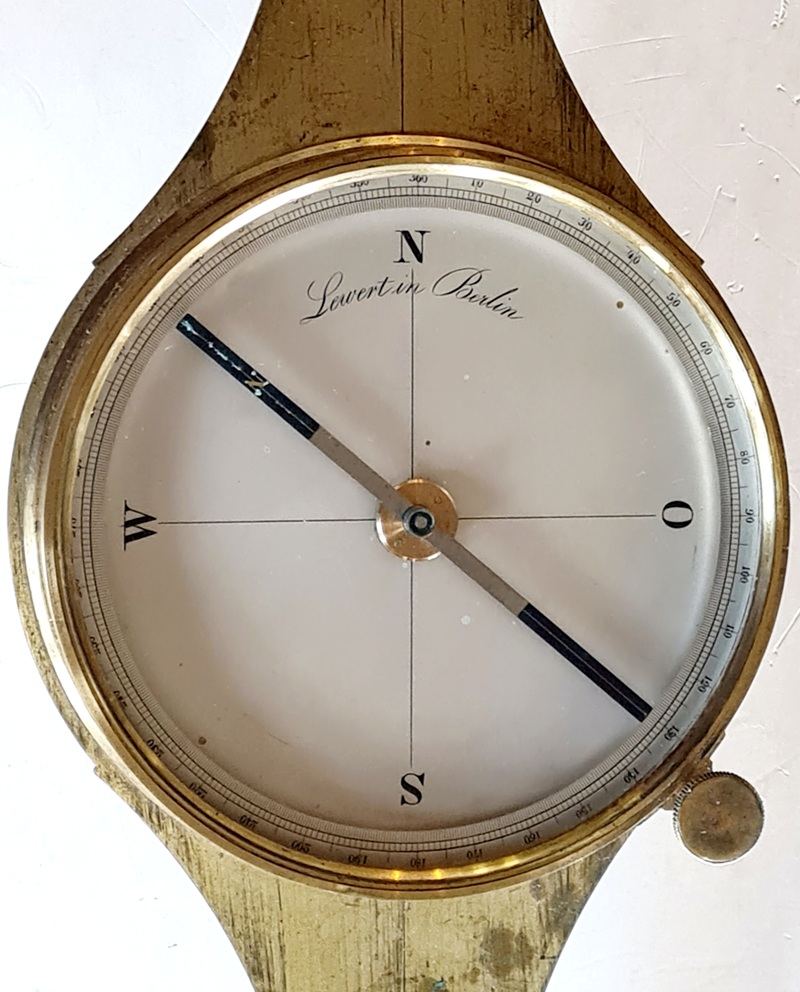

Miner compass made by LEWERT & Sohn, Berlin
(Germany). From 1873
on the maker Carl Friedrich Erdman LEWERT (the son?) is listed in the
official journal
Deutscher
Reichsanzeiger
(Mechanische und Telegraphenwerkstatt, Brüderstr. 14). In the following
years the address changes : Luisen-Ufer 11 (1897),
Elisabethufer 5/6 (1909), Tempelhof, Lorenzweg (1921 until 1931,
last entry). Several electromechanical devices (parts for telegraph and
telephone) are known, made together with Siemens-Halske.
Picture courtesy
Liekele
Kuipers
Click on image for enlarged view |
Technical
Data
- Dim.: 150 x 110 mm
- Div.: 360°
- Make: approx. mid 19th c.
The base was probably equiped with sighting vanes,
|
Schmalcalder Type
(w/o prism and vane)
|

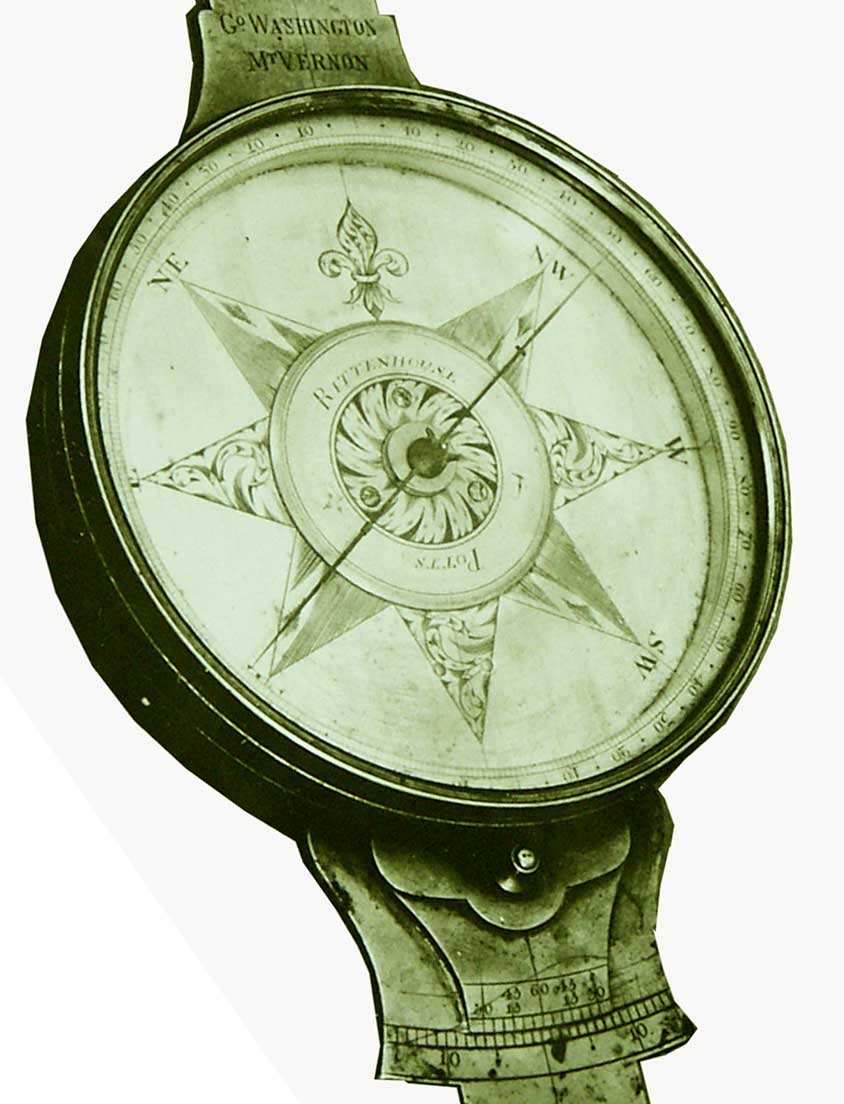

Instrument design copied by many makers in the U.S. (example: see
Rittenhouse).
|
(Marie) Gustave
LEZY, precision mechanics, born in Brienne le
Château on 27.03.1867 at no. 7, rue Zacharie, Paris, 5rd
arrondissement, d. at home, 20 boulevard Jourdan,
Paris
14° on 11.2.1927) was a French manufacturer of
electrical
devices. His workshop was created in 1892 and located first at
no.
4 (in 1899)
then no.
17
(in 1910)
in the
former rue Maurice Meyer in
the 13th
arrondissement near the actual rue de la Glacière. The
production most probably ceased after WWI since he is
designated a
retiree in official documents (his daughter's wedding and his death
certificate).

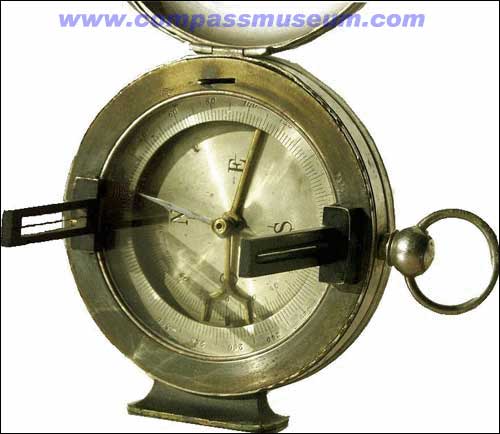

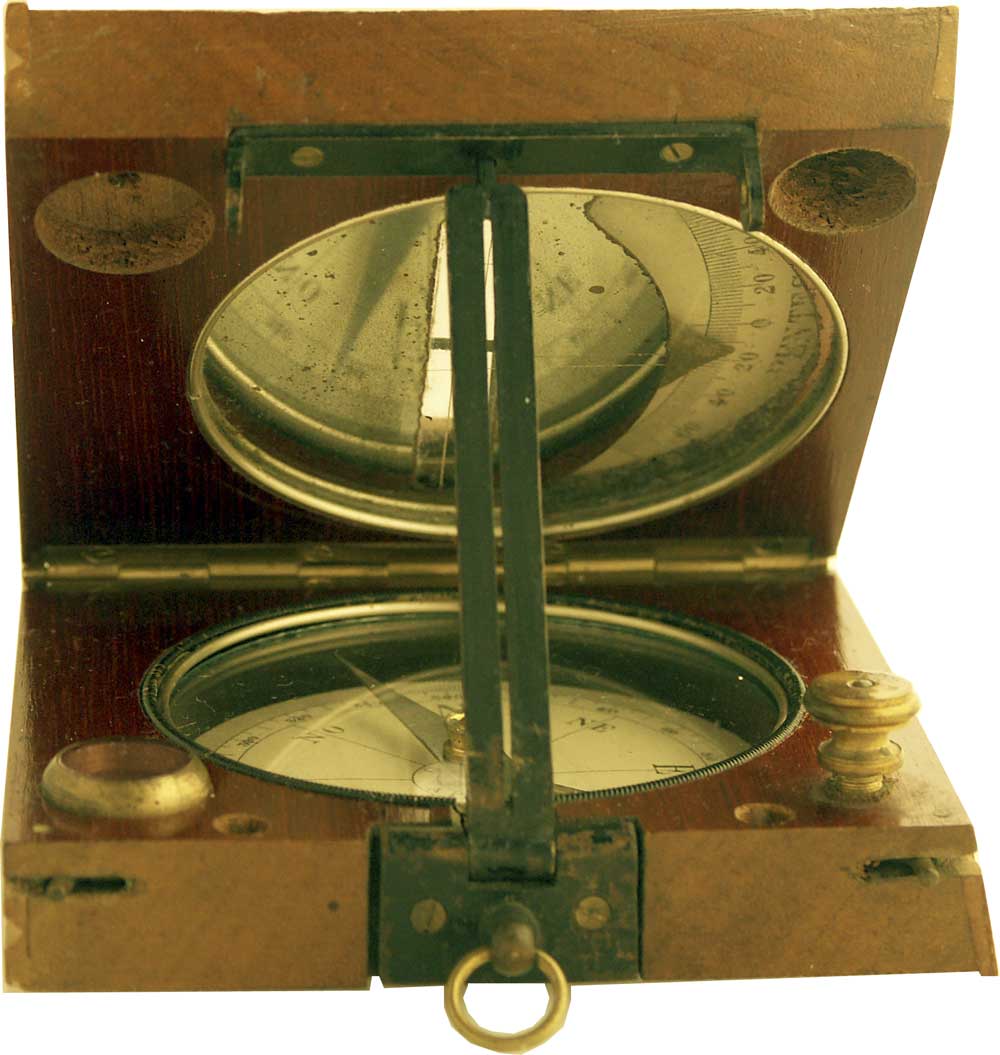

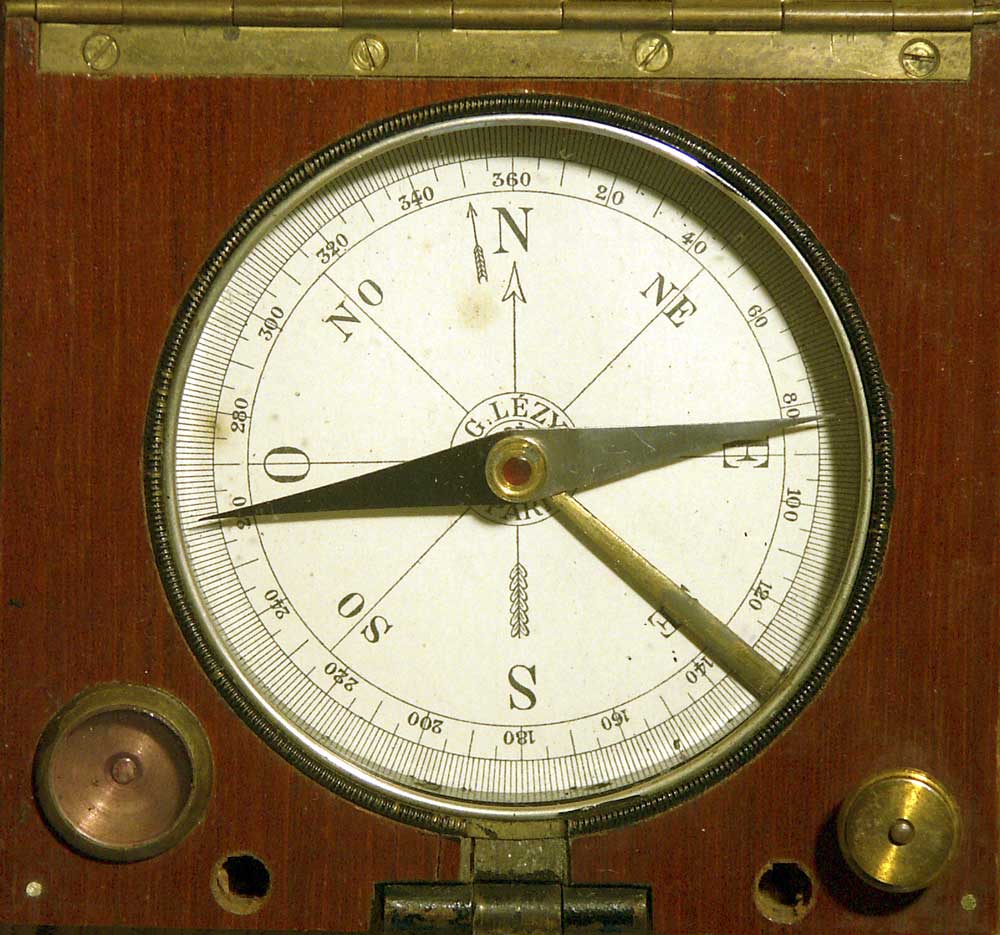

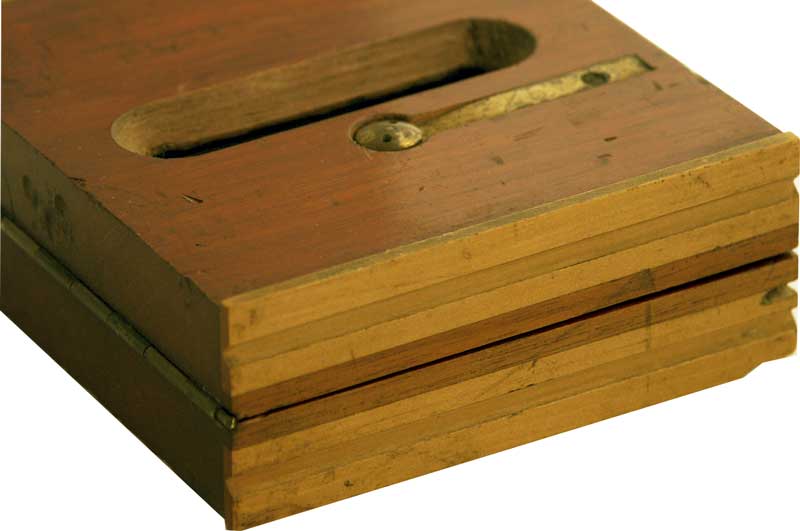

He designed
at the turn of the century an improved
version of General
PEIGNÉ's
famous
system. In the
Note
Technique sur
les Boussoles, 1931 (see pic.
at r.), this type is
designated as
the Modèle LEZY and compared to Peigné's
version. It features different or additional devices
like the round bubble level and its separate clinometer integrated in
the lid. The clinometer's sighting system in a groove in the case side
opposite
to the 15 cm ruler. The slope angle measuring pendulum is locked and
can be released by depressing a bar on the lid's outer side. There is
no military user instruction glued on the case. The two holes
of
the fitting used as a sighting device (on the lid) are also part of the
locking mechanism (together two sliding pins on either
side of the attachment ring).

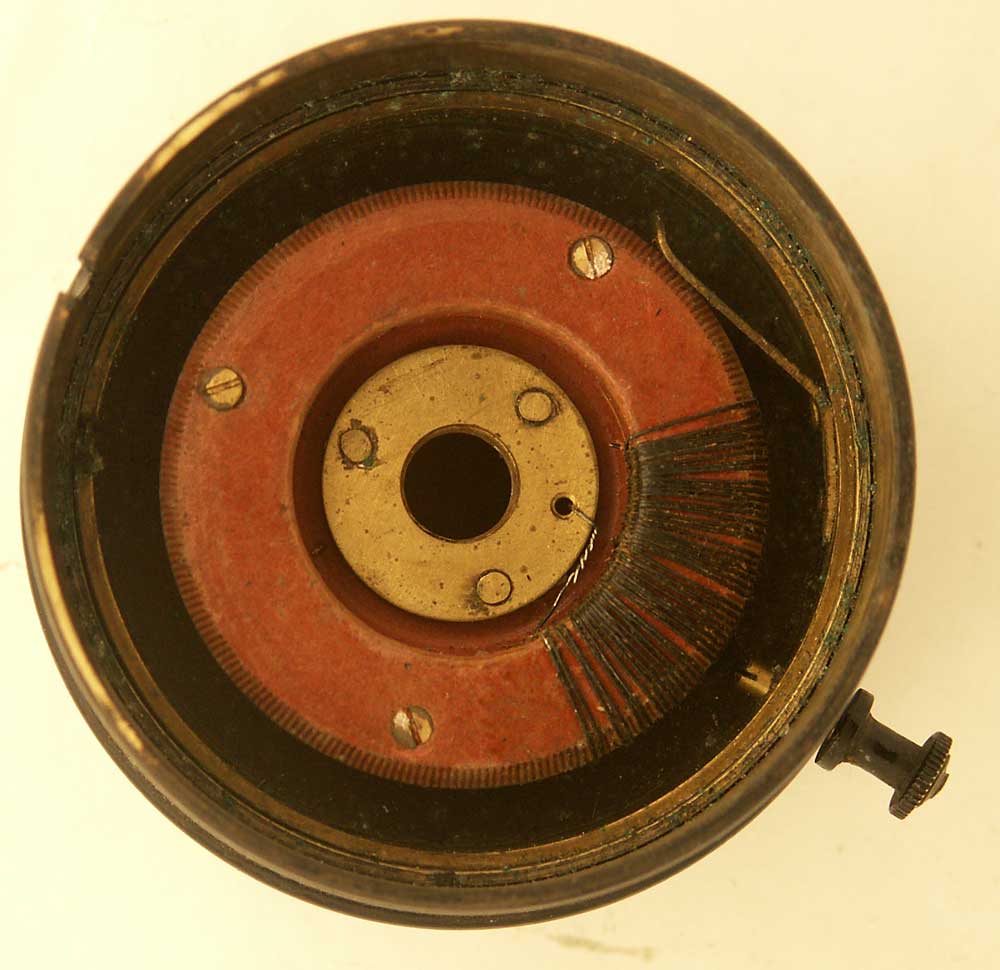

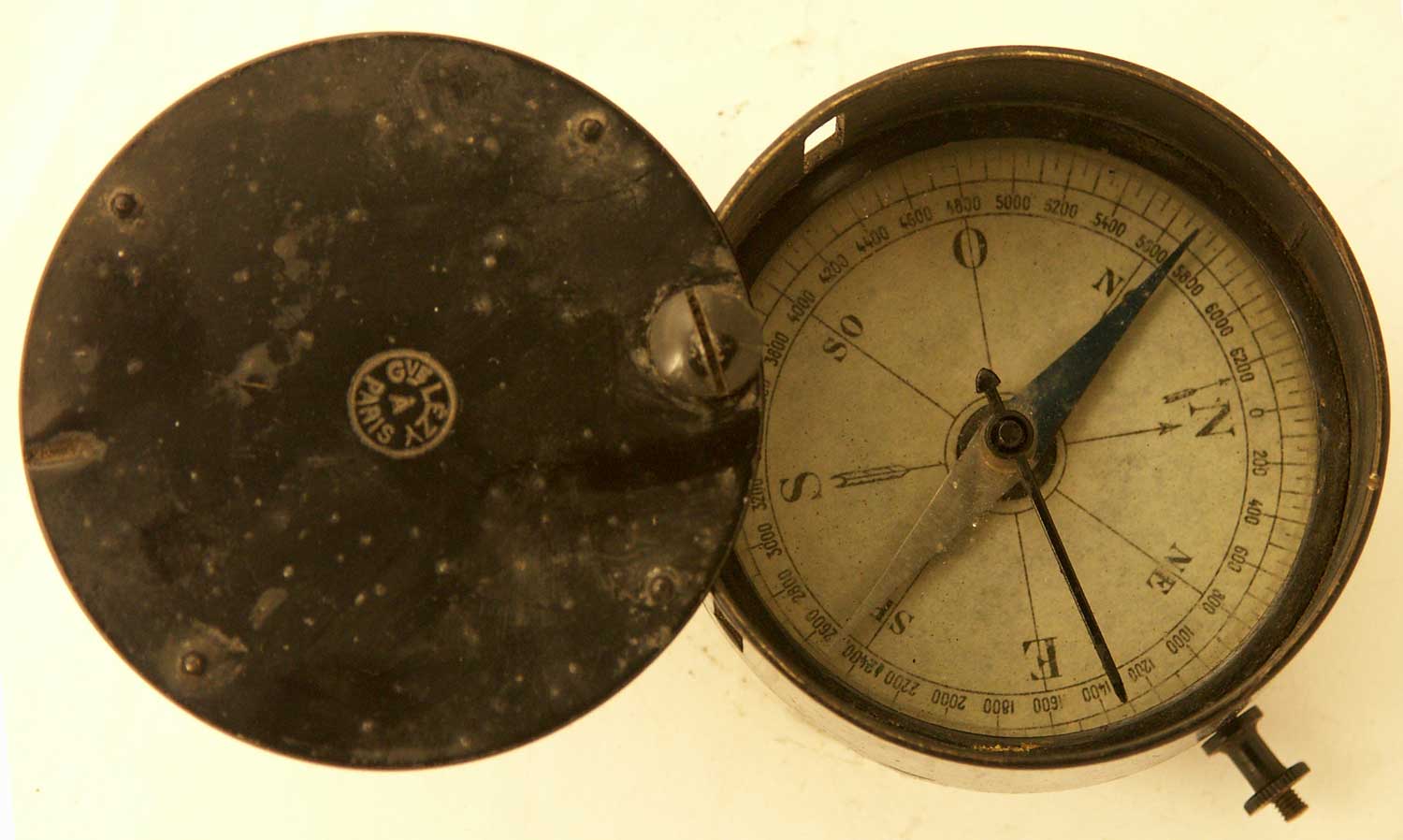

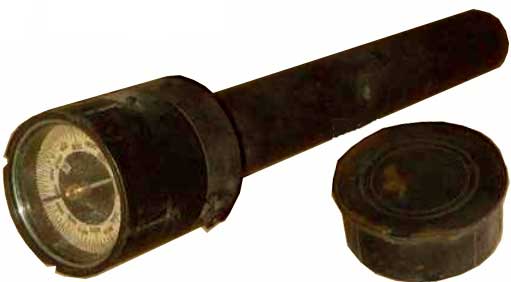

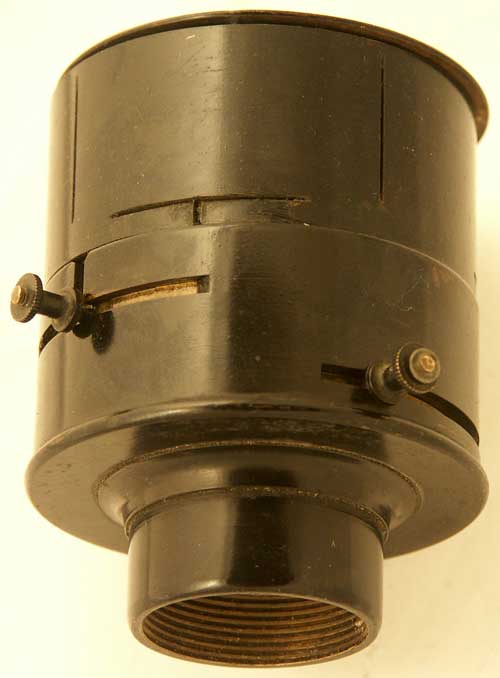

The museum's collection comprises a second instrument made by
LÉZY: a cylindrical
cross staff
head
(see tyble below, 2nd row) graduated in 6400 MILS featuring an
electrical lighting system. Its poor precision was probably the reason
it is extremely rare...
A. LIETZ was a former U.S. manufacturer (for more information
click
HERE).
Product range - among others, they built the famous Forestry Compass
which was available in two versions : 360 degrees and four quadrants
(compare with Keuffel & Esser).
On this compass, the cardinals West and East appear reversed (their
position left and right of North is swapped left to right). This is a
typical feature on some U.S. geologist's compass: The needle indicates
here the direction that you
are facing when your turn on the spot with the compass in your hand
(look for "quadrant" in MISCELLANEOUS / Terminology). You
will also find
more details in this
Tutorial.
Other instruments: see
CHARVOZ and
LUTZ (below).
|
(Click
to enlarge) |

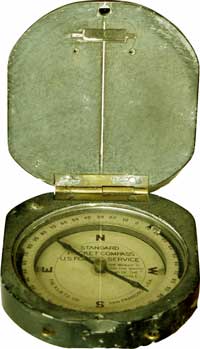

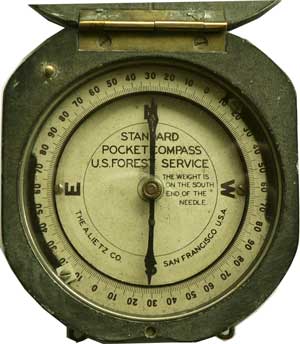

STANDARD
POCKET COMPASS
U.S. FOREST SERVICE
Technical Data
- Dimensions: 83 x 75 x 18 mm
- Weight: 190 gr
- Divisions: quadrants
- Material (case and lid): aluminum, black paint
- Bubble level in the lid (possibly missing but not represented in the
LIETZ
1959 catalog)
The needle's horizontal position is balanced by means of a small weight
wound around the needle's southern end.
The declination adaption range covers plus/minus 32.5 degrees, so that
the compass can be used from the farthest point of the East coast to
the extreme western end of Alaska. |

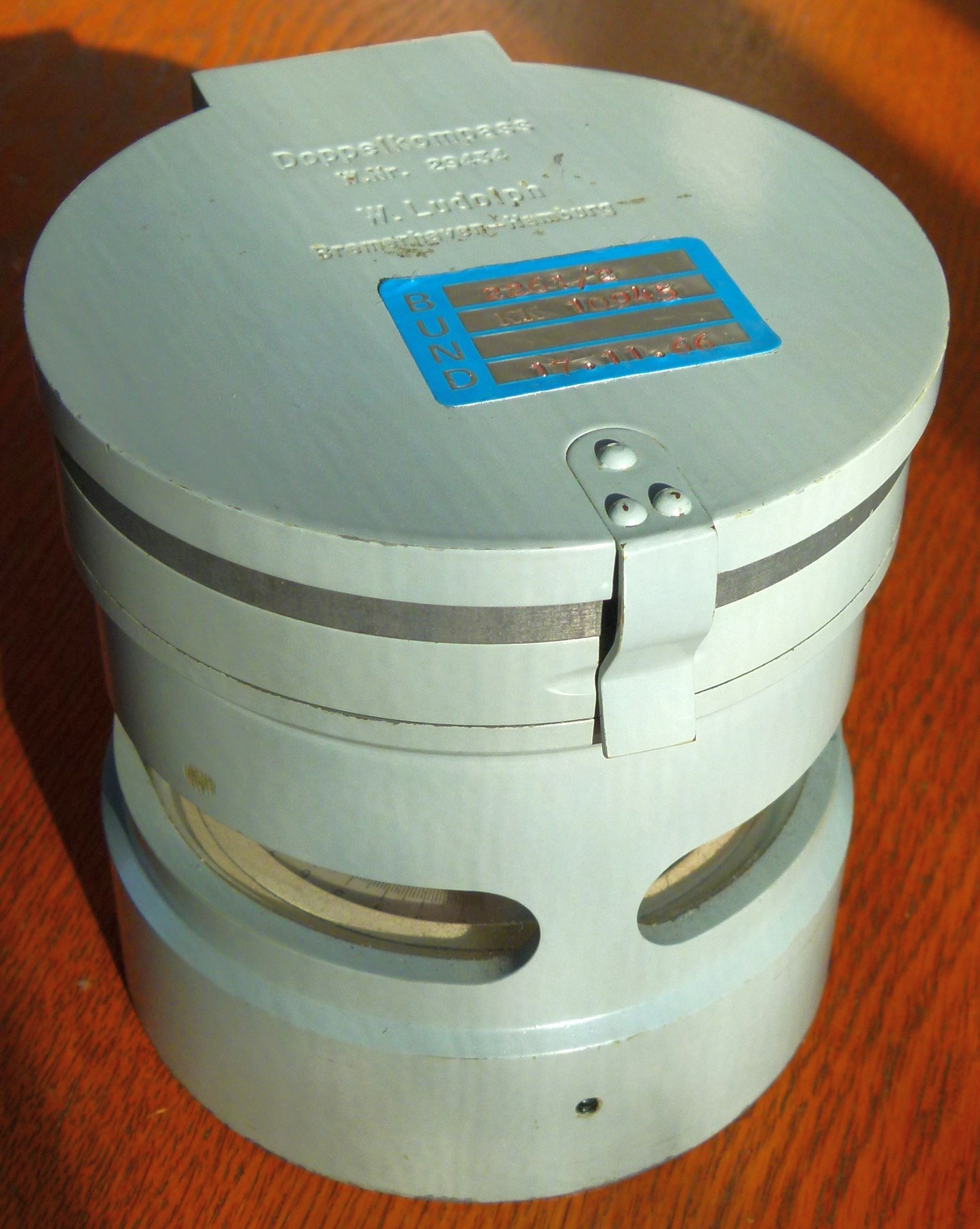

LUDOLPH
(link to the main entry) also built a "
double
compass" (link to pic, courtesy BSH) similar to
BUSCH 's design. The label
on it states BUND (owner is the German Army,
Bundeswehr) and a date 17.11.66. This means that an old instrument was
reused long after WWII.
LUFFT
(link to the main entry) is a famous German barometer manufacturer.
They built
few compasses. The most famous is the marching type called
BÉZARD and some pocket
compasses. In the lot, some were imported from France (made by
Houillot).

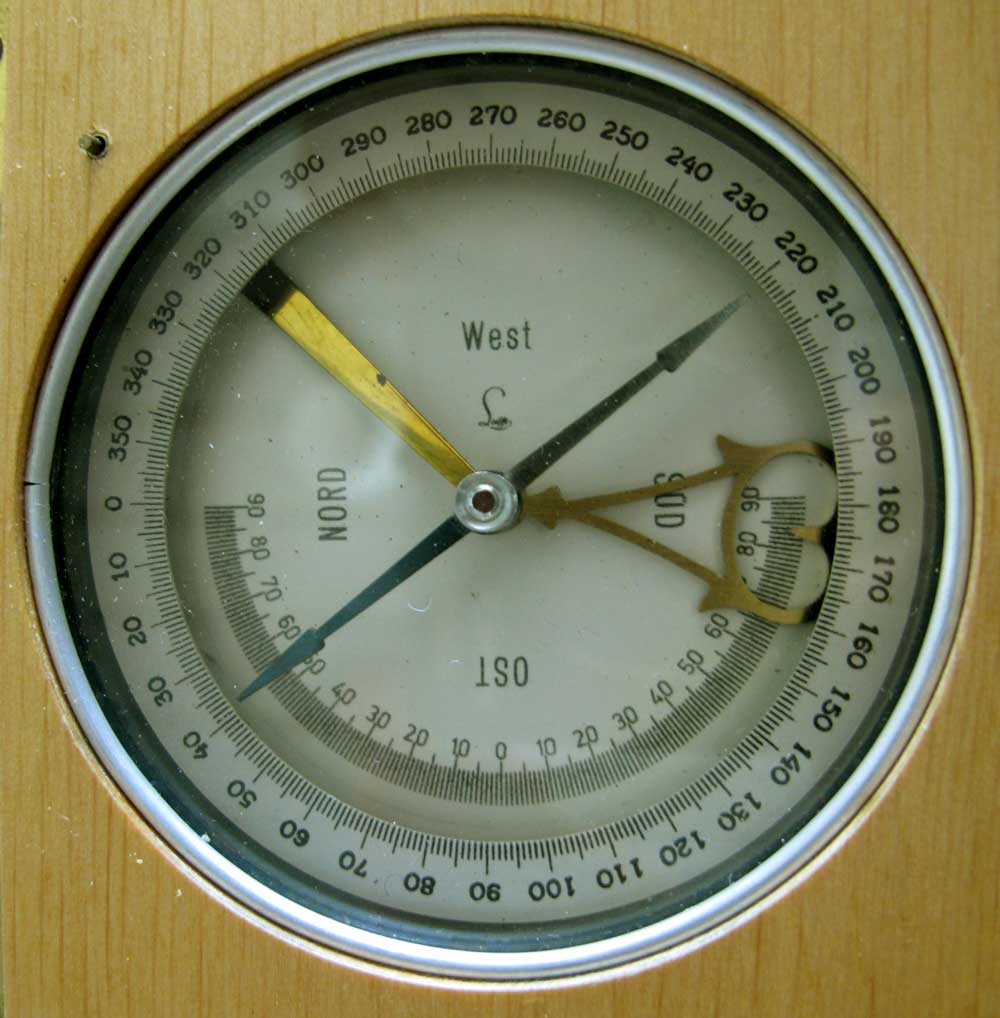

The compass at right
(picture
courtesy Th. Steffen) was maybe made in reality by BUSCH
and retailed by LUFFT.
NOTE:
the cardinals W and E are permuted and the divisions indicated counter
clockwise. This was a standard design in the mines in ancient times in
Germany and Austria (see Schablass) and still is on U.S. survey
compasses (see BRUNTON).

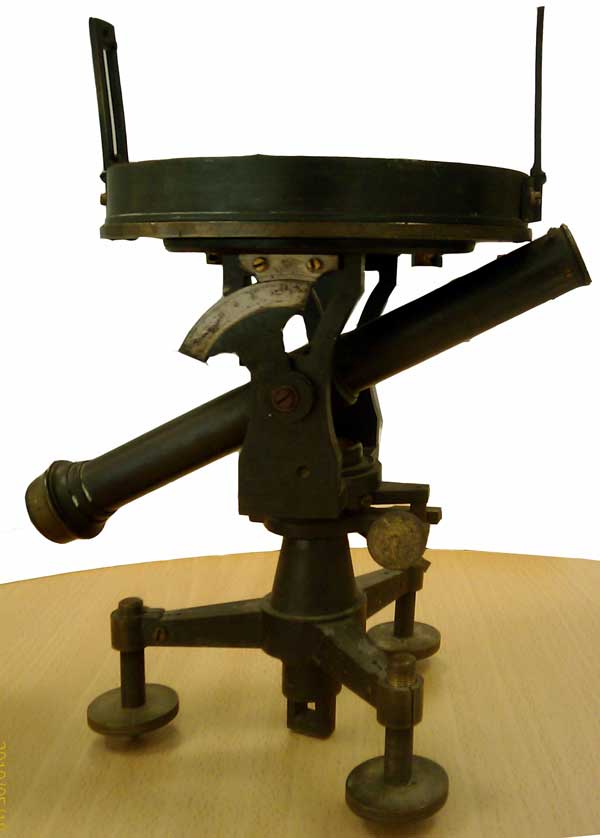

The name C. LÜTTIG (Berlin) appears on a theodolite
made probably at the turn of the 20th C. No other information
momentarily available.
|
(Click
for enlarged view) |
Technical
Data
- Dimensions : x x mm
- Weight : gr
- Divisions : 360°
- Clinometer: one part ist attached to the sighting tube, the other
under the compass capsule
- Serial no.: 1684
- Inscription engraved on the tube:
F. V. St. 139
|

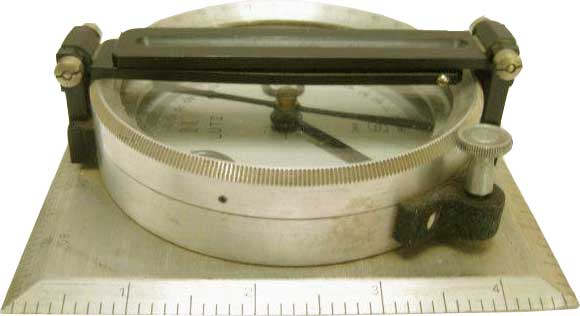

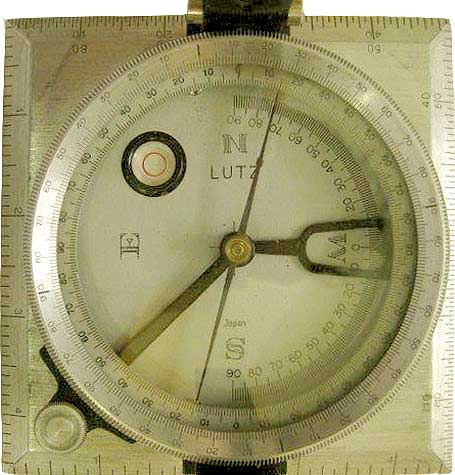

This Japan-made compass is identical to the one displayed
under the name
CHARVOZ
which was also identical to a LIETZ -made compass. The name LUTZ was
probably chosen for the resemblance with LIETZ. No other information
momentarily available.
Pictures
courtesy
alantoda
(Click
on images for enlarged views) |
|
Technical
Data
- Dimensions: 4 1/2" (118mm) side length
- Dia.: 95 mm
- Divisions: quadrants (4 x 90°) on inner and outer
dials
- Clinometer: +/- 90°
- Side rulers:
. simple, inches (4 1/2)
. double (two-way), inches with decimal
divisions from 0 to 4.50 and from 4.50 to
9.0.
- Adaption of magnetic
declination by side screw.
|
- M -
According to the U.S. Army Field Manual 21-26 App. G, the
M1 compass
was a
predecessor of the
M2
(pictures: see
Brunton).
The description given in this document reads as follows:
"One of the most important features of the M2 compass is
that it
is graduated in mils and does not require a conversion from degrees to
mils as does the M1 compass."
We suppose that the M1 was identical to the standard Brunton pocket
transit compass because we couldn't until now find a picture of any
compass matching this
definition. On many websites, the standard lensatic marching compass
(example: see
Cammenga)
is
designated M1 but this is not consistent with the definition above
since all models known feature both graduations (degrees and
mils). FM 21-26, Ch. 9 describes the lensatic marching compass but this
instrument is never designated M1.
British design, maybe late 19th c. It appears in F. BARKER's
catalogue as early as in 1909 (see in LINKS , the website
www.TRADEMARKLONDON.com) together with the 4 in. (10 cm) prismatic
compass described in P. Dériaz' manual
THE PRISMATIC COMPASS
(1917).

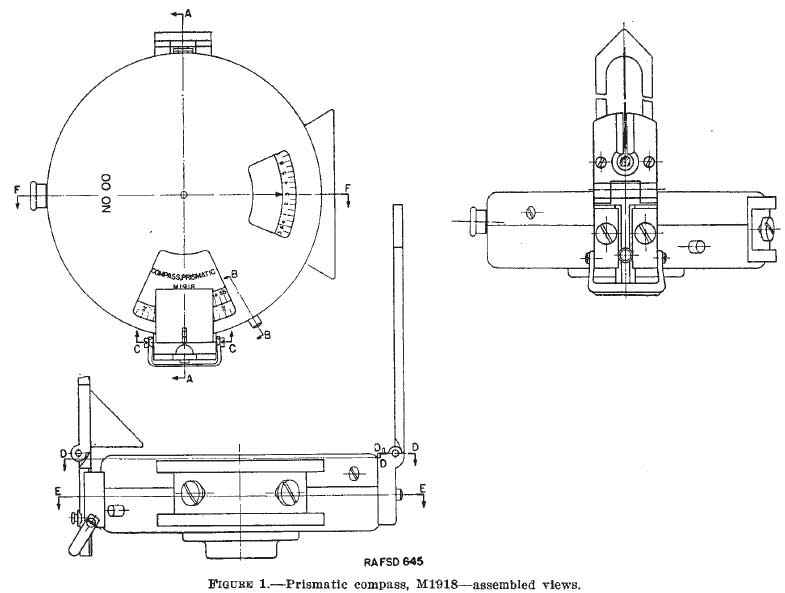

The graphic (below, centre) shows the French Model 1918 that could be
utilized together with different gun types, among others the French
155mm howitzer type M1918. This drawing is to be found in a Maintenance
Manual (TM 9-1595) issued during WWI and reprinted during WWII by the
U.S. Secretary of War in 1943.

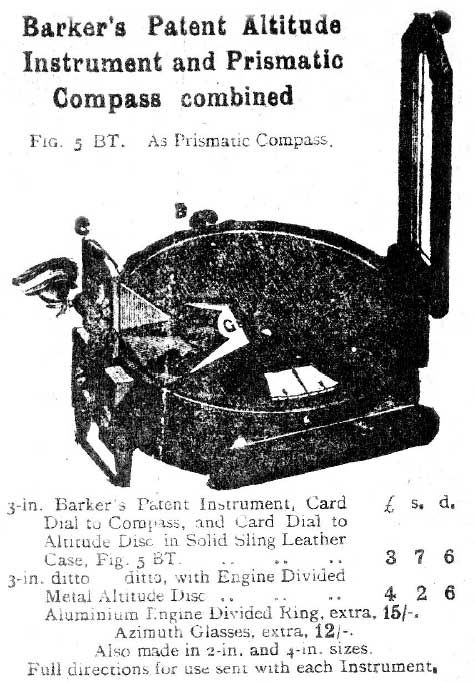

BARKER
catalogue (1909)
|
Maintenance
Manual
(copy available)
|
Technical
Data
- Diameter: 100 mm (4")
- Height: .. mm
- Weight: ... gr |

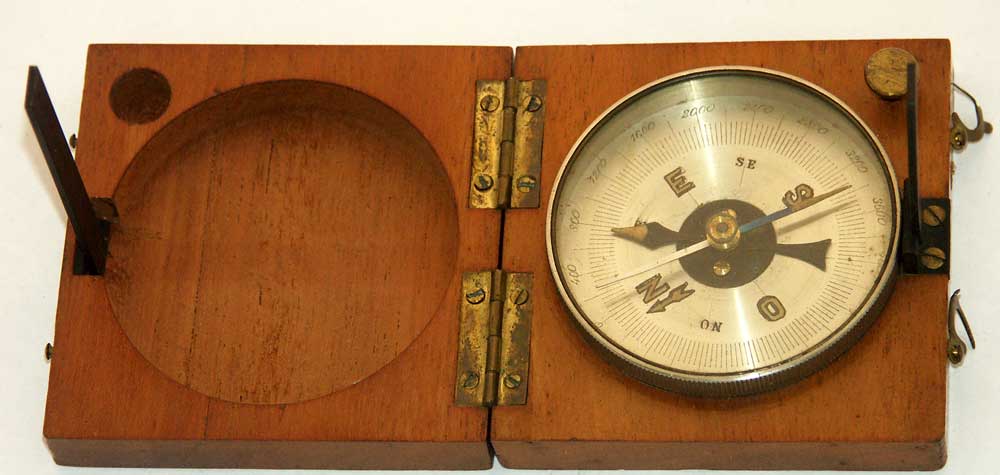

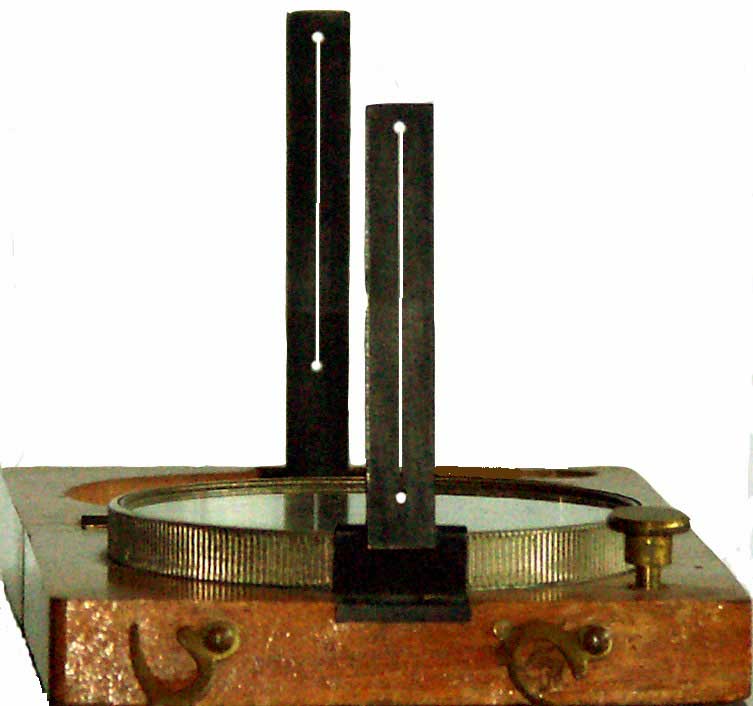

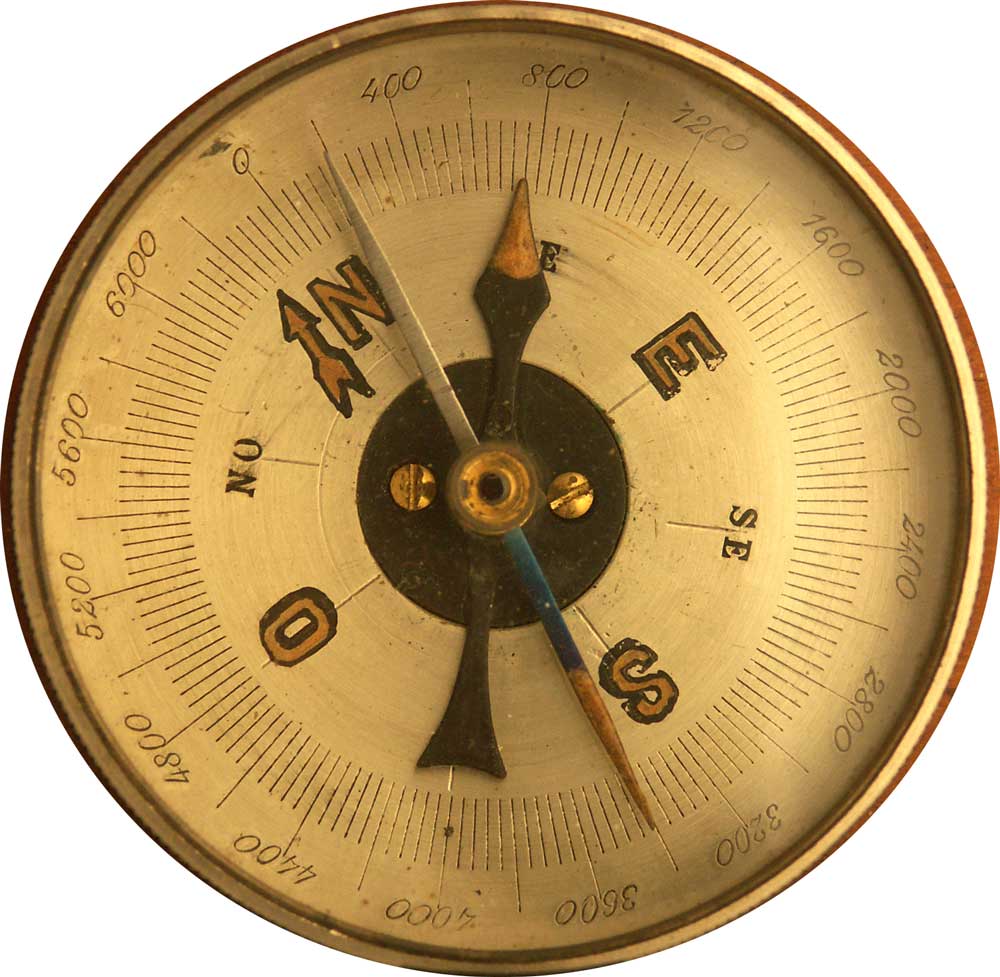

This compass was used during WW1 and is described in a French
Army booklet (
Note Technique sur les
Boussoles,
1931,
Photocopies available in
our
SHOP) as being an already
older special compass for MG
units (
boussole
spéciale pour
compagnies de
mitrailleuses). Detailed
information (in French) and photographs
of units and material are posted on the website
Pages d'histoire 14-18.
The compasses used in the
German
Maschinengewehr-
Scharfschützen- Abteilungen
are displayed in this museum in the articles

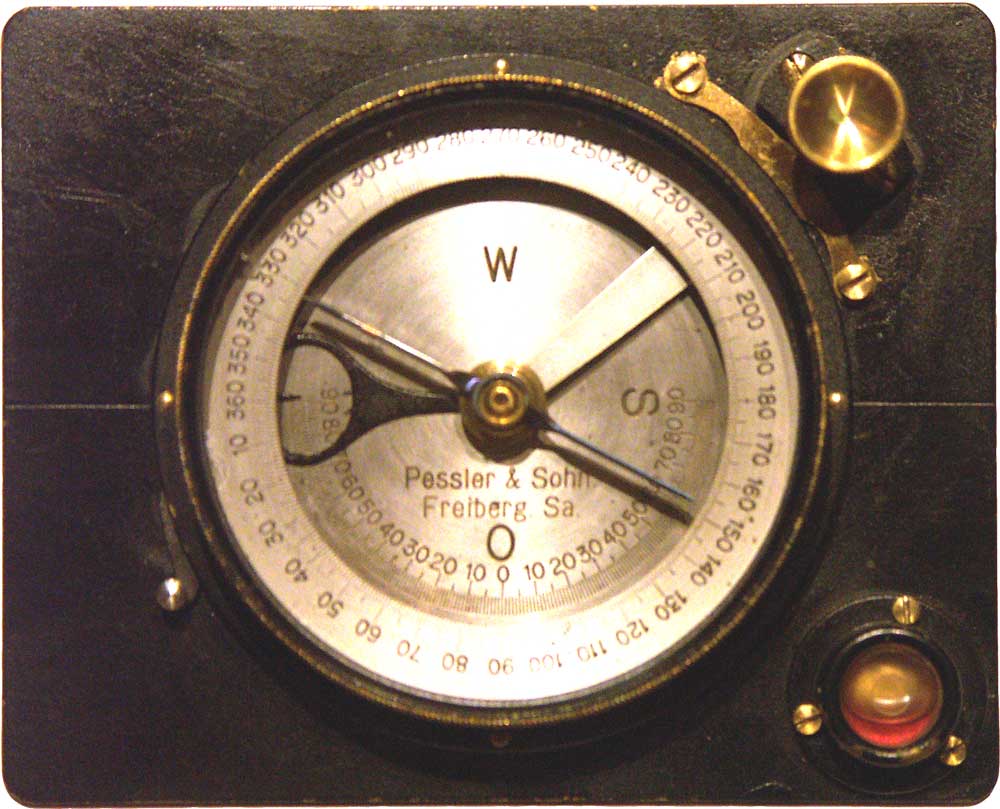

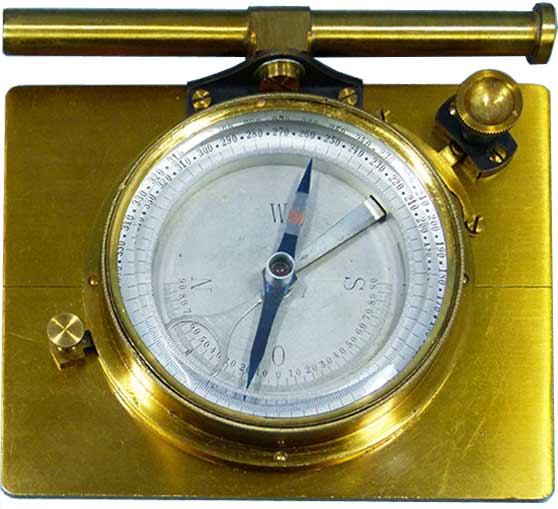

VOIGTLÄNDER and PESSLER.
(Click
on images for
enlarged views)
|

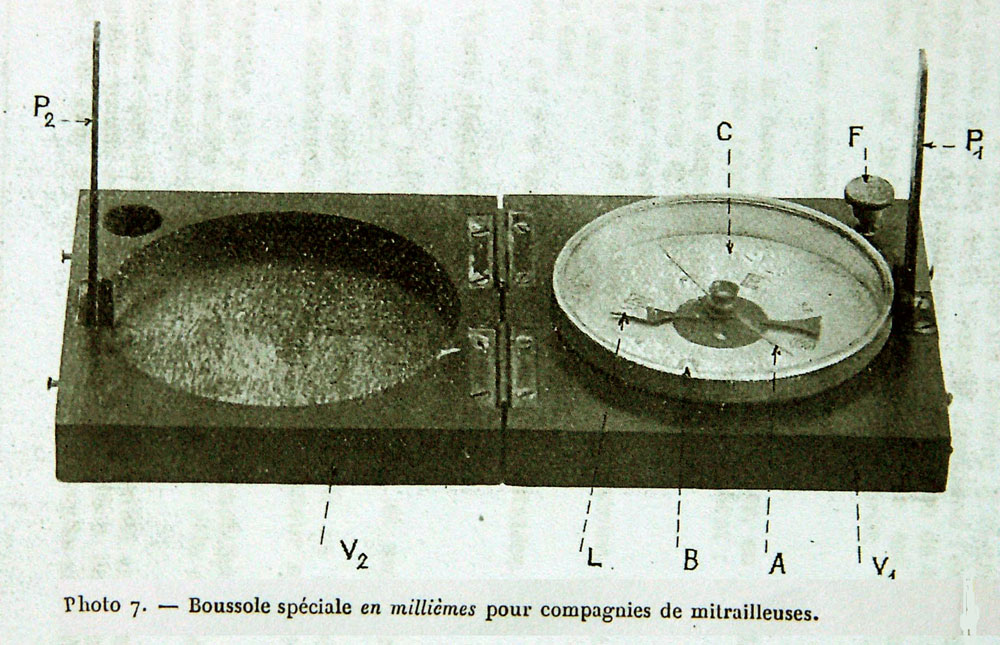

Photograph
of the
description given in the
Note
technique sur les boussoles
(1931)
|
Technical
Data
- Dimensions (clsd.):
80 x 80 x 25 mm
- Weight:150 g
- Divisions : 6400 mill. clockwise,
- Manufacturer unknown
- Cardinals: French, Radium paint markings black lined
- Needle lock: spring-loaded, releasing by depressing the
button
(F)
|

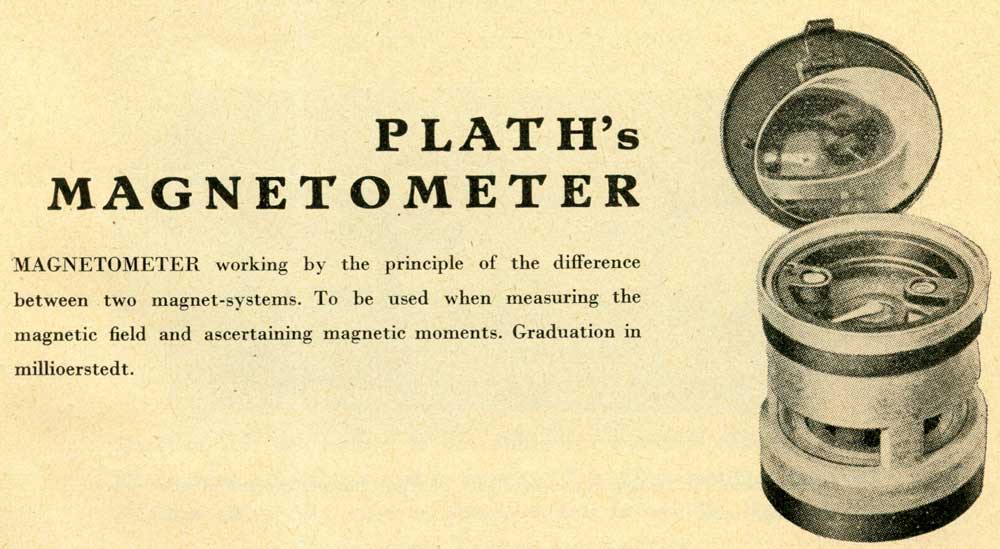

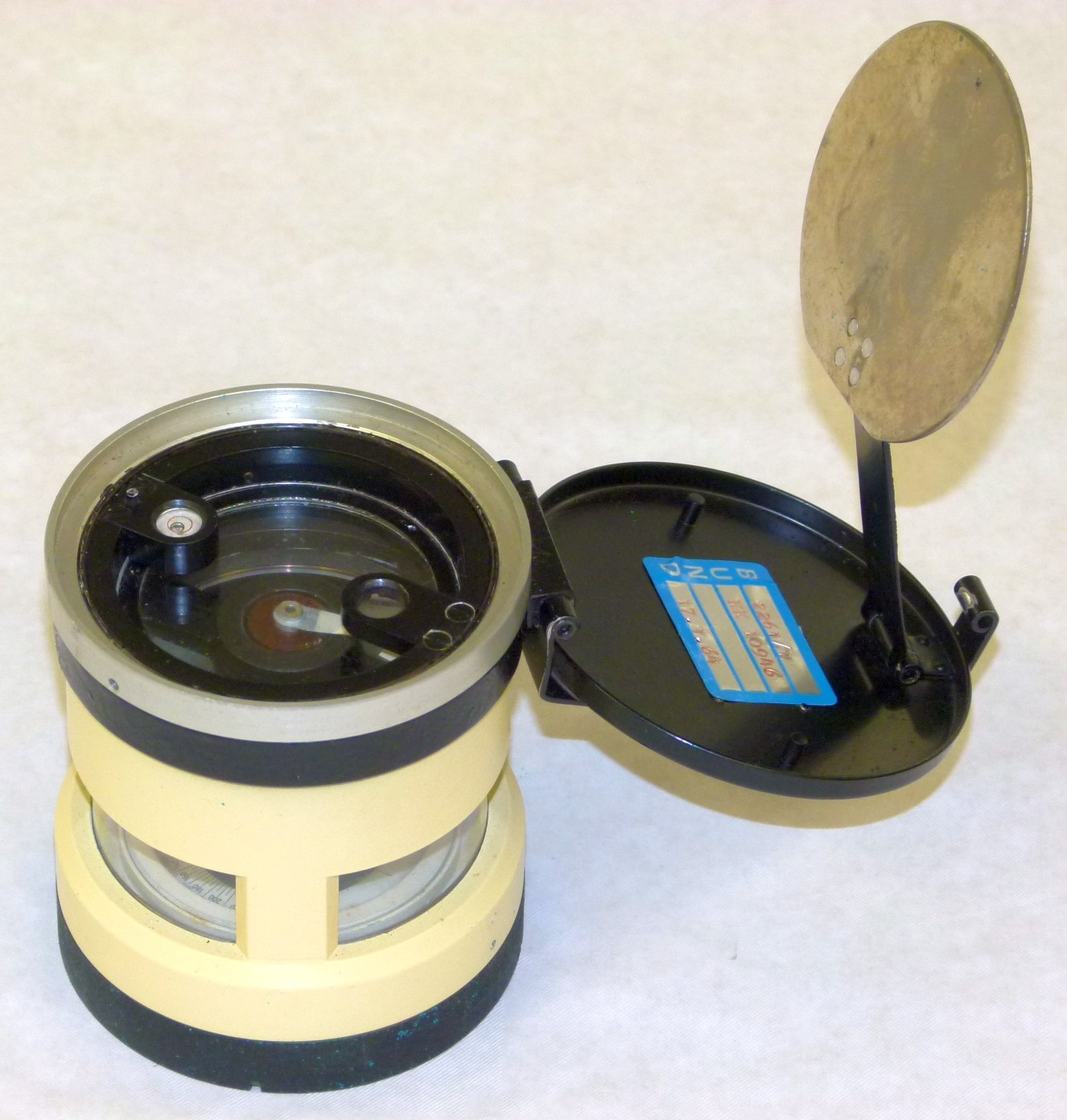

MAGNETOMETER
An instrument designed for measurement of the absolute value of a
magnetic field intensity or of one component of this, be it from the
earth ot from some instrument. We describe special
magnetometers
used for electrical circuits (
galvanometers)
in the section "Other Compasses". Some magnetometers were used in the
ship and aircraft industry to determine the best place for a compass
onboard.
See examples and read more here:
Askania,
Bamberg,
Busch,
Compass
Laboratory,
Geophysical
Instr.,
Plath...

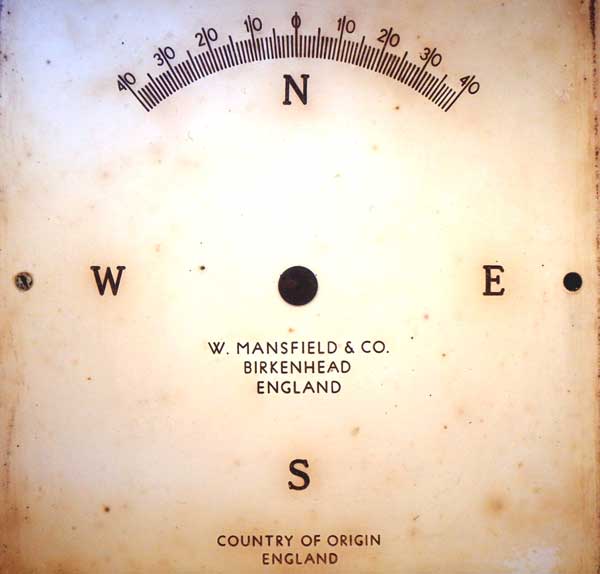

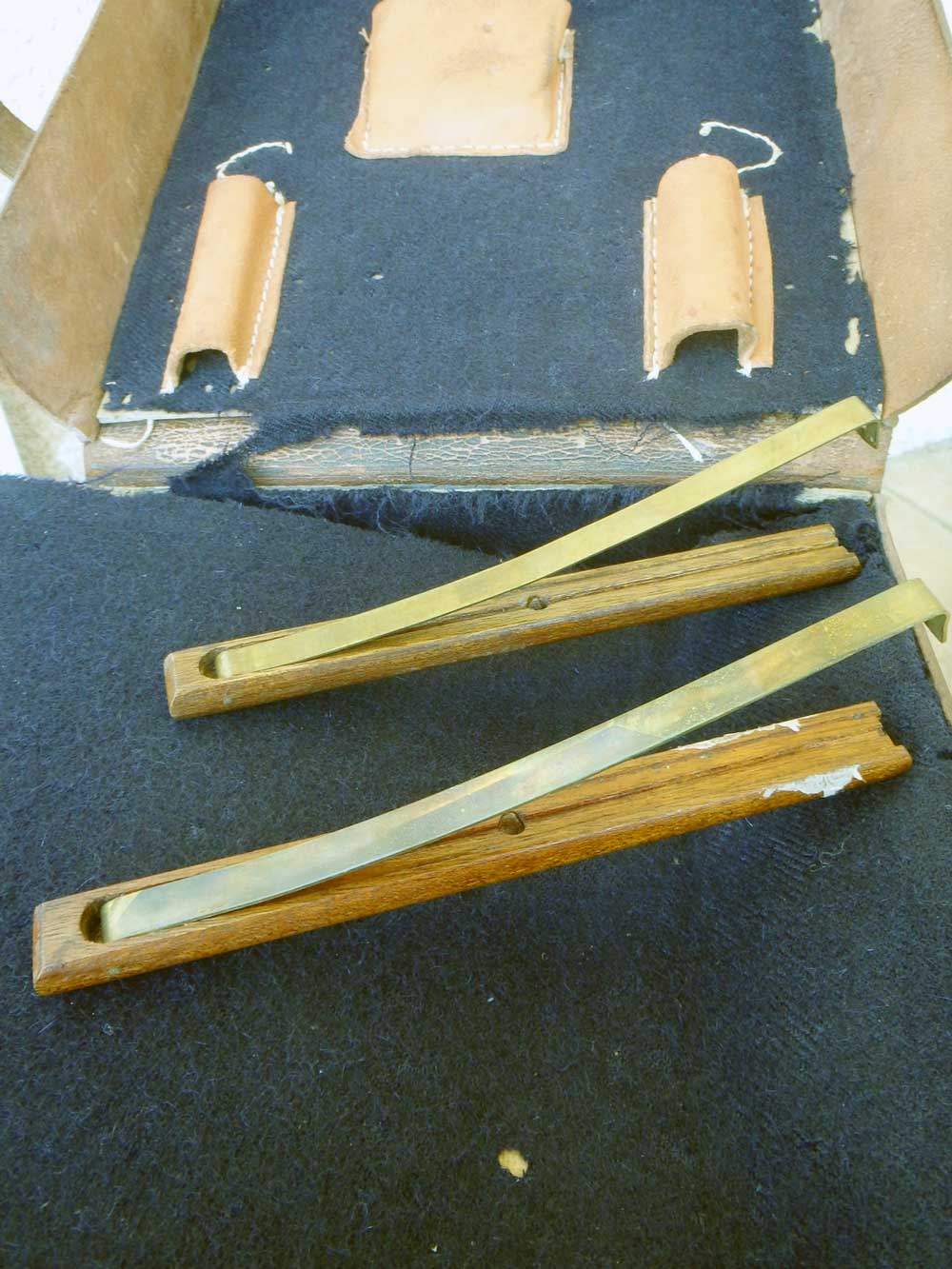

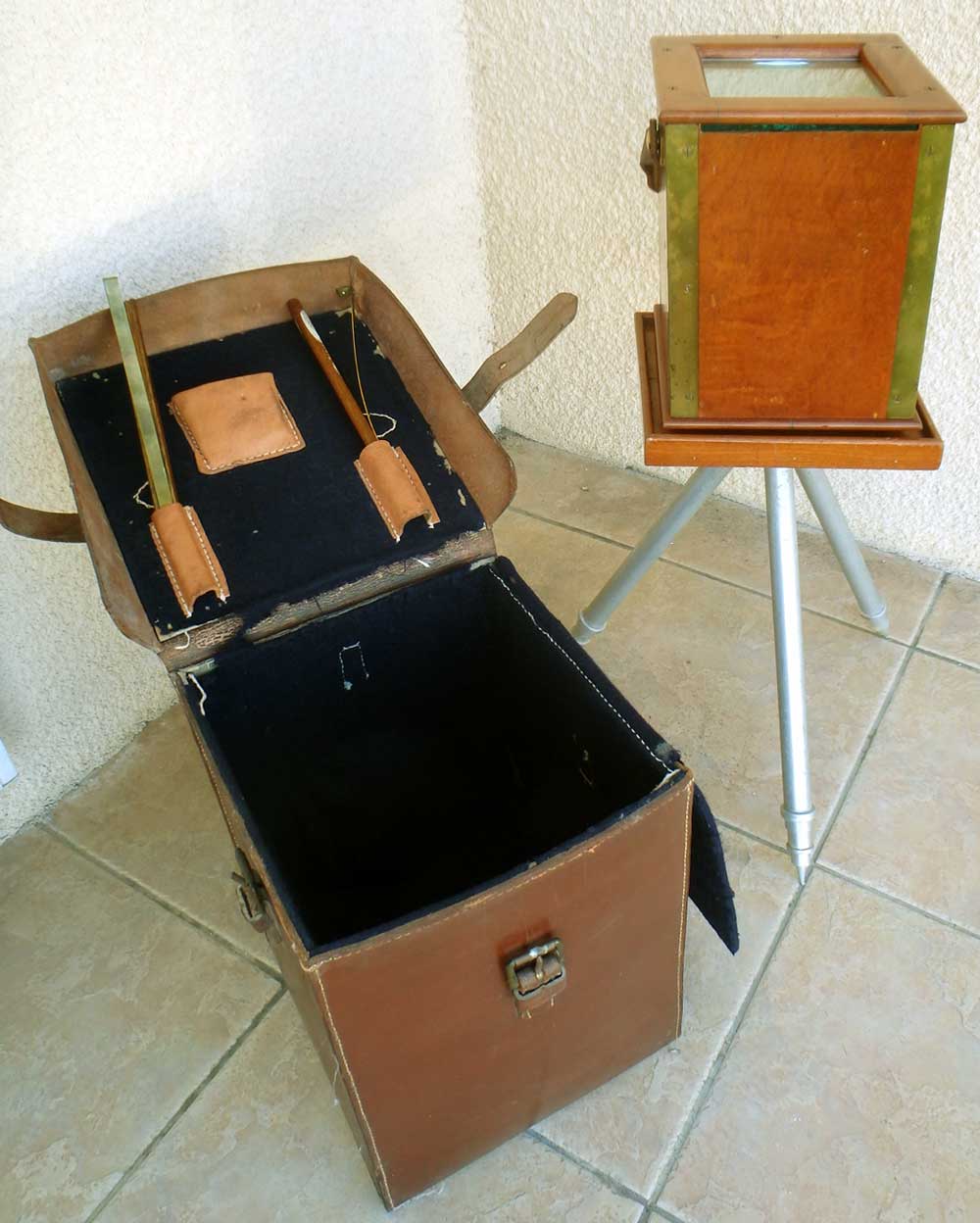

MANSFIELD
W. Mansfied & Co. Birkenhead / England.
|
|
|
Technical
Data
-
Dimensions : x x mm
- Weight: g
- Divisions : only on both sides of North: + / - 40 deg.
|

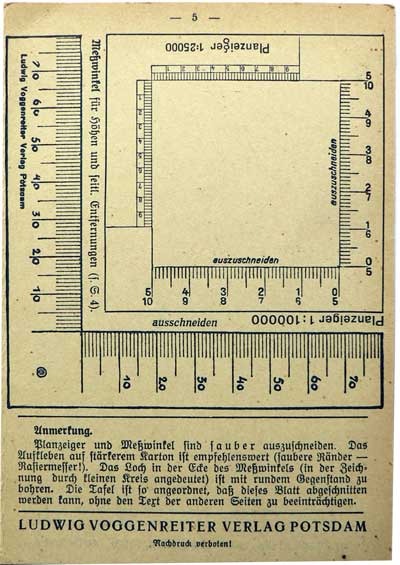

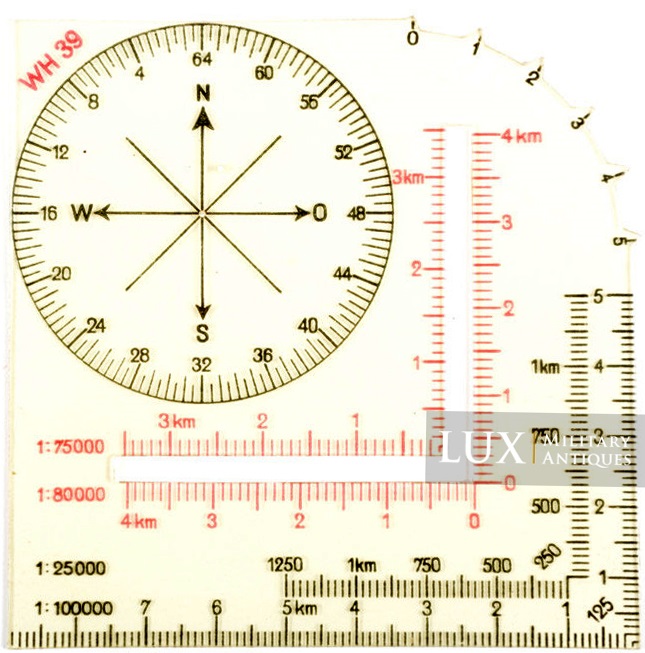

Map
(military, Germany, WWII)
NOTE:
For WWII British escape aid maps go to Escape
Compasses.
The WWII German soldiers were given maps of the fighting area
called
Tornisterschrift
(backpack document) especially printed for the Third
Reich's
Oberkommando
der Wehrmacht
(OkW). They belonged to a large collection of (originally)
teaching and tourist maps made by the
Bibliografisches
Institut in
Leipzig called
Schlag
nach
which means 'look up' (like in a dictionary). These words were followed
by the name of the region, in the example below,
Mittelmeer,
i.e. Mediterranean.
This one (no. 11) shows the complete area and especially North
Africa where many
German troops fought with Marschall Rommel and were taken prisoners by
the British Army.
The
political
Mediterranean Area in 1940
On
this
map, countries or
parts thereof are indicated together with the relevant authority
(printed in
red): Greece and Bulgaria were a single country. Italy, Lybia
and
Albania formed one unit (mention in red: In Personalunion).
Algeria,
Morocco, Tunesia and Syria were French colonies, protectorates or départements
(and thus
friendly states) whereas Egypt,
Palestine, Malta, Trans Jordan, Cyprus were on the British side
(foe).
|
Cover of
folded
map: "Restricted - Use only within the German Army"
|
Technical
Data
- Dim.: 18 x 44"
(46 x 111 cm)
- Scale: 1 to 4,500,000
- Issue: 1939/40 - 1st year - Booklet no. 11
The only military
information are red triangles indicating friendly (simple shape) or
ennemy (double triangle) facilities like Malta's harbour of La
Valetta held by
Great-Britain located near the coast of fascist Sicily:
|
Examples of ancient map pockets for military use or hiking. Some had
transparent walls, others pockets for drawing tools (colour pencils,
eraser, ruler etc.). Some can be carried with a shoulder strap, others
with two short straps for example on a bike's steering handles.
Some also had a small integrated compass.
(click
on pic. to enlarge)
|

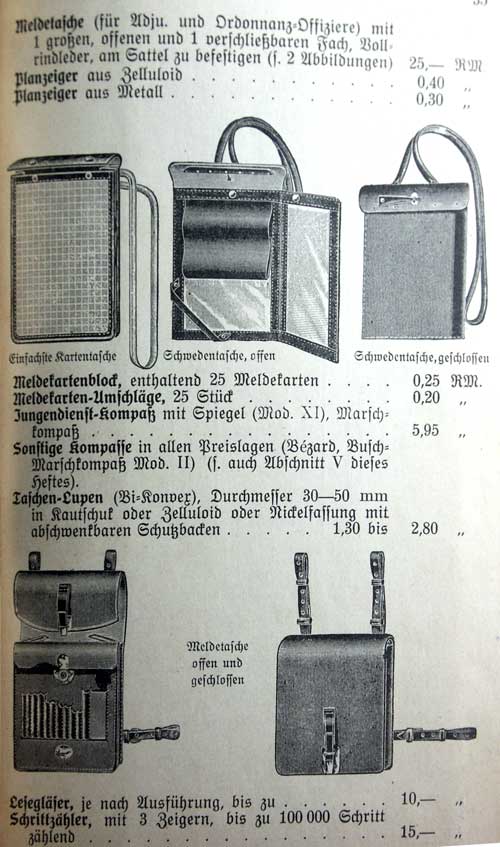

System called "Swedish" in German (see catalogue below)
|
Technical
Data

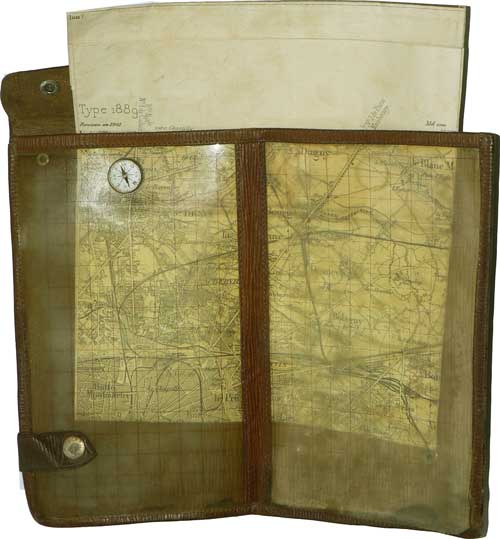

Leather map holder with transparent walls, compass and shoulder strap
(France, 1920's)
- Content: map (1/20.000) of area East of Paris,
around Drancy, type 1889, dated 1928.
- Dimensions : 230 x 140 mm
- External pocket for a booklet (training data of artillery soldiers in
1929) |
|

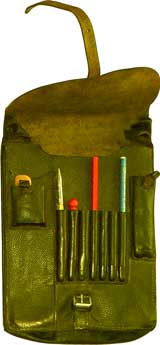

Official Wehrmacht pocket (Meldetasche)
|
Technical
Data
Leather map holder with pockets for colour pencils, eraser, ruler etc.
and straps for horse saddle, bike etc.
- Two compartments inside
- Straps for bike steering handles
- Germany, 1930's and WWII
- Dimensions: 270 x 190 mm
Pic.
at r.:
Eisenschmitt, Karte und Gelände, Ausg. 1939 with list
of pockets and compasses |

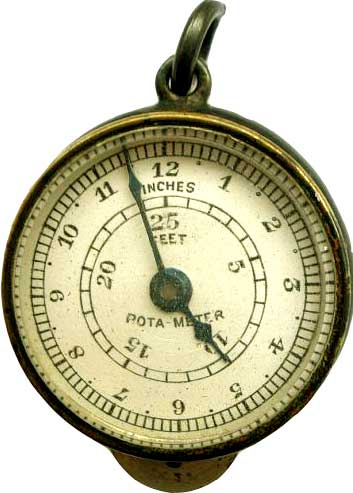

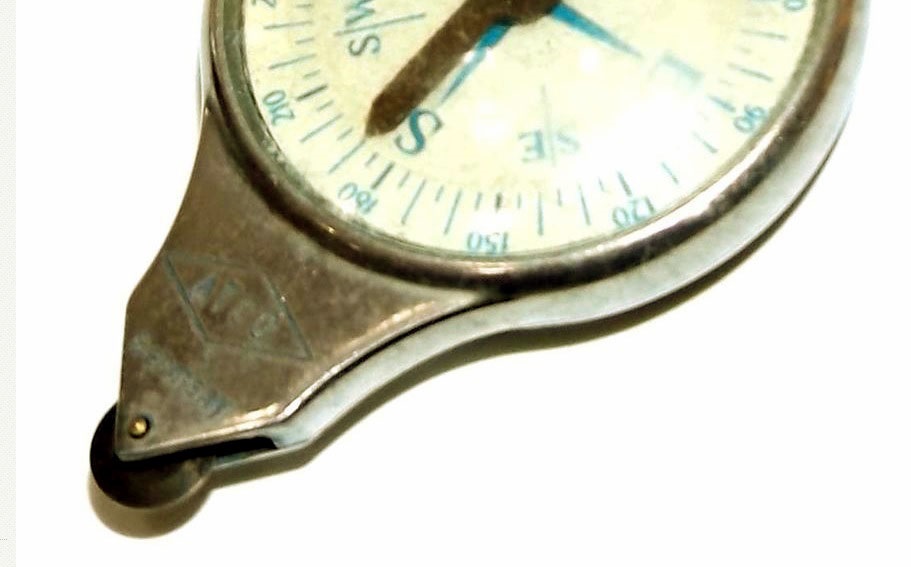

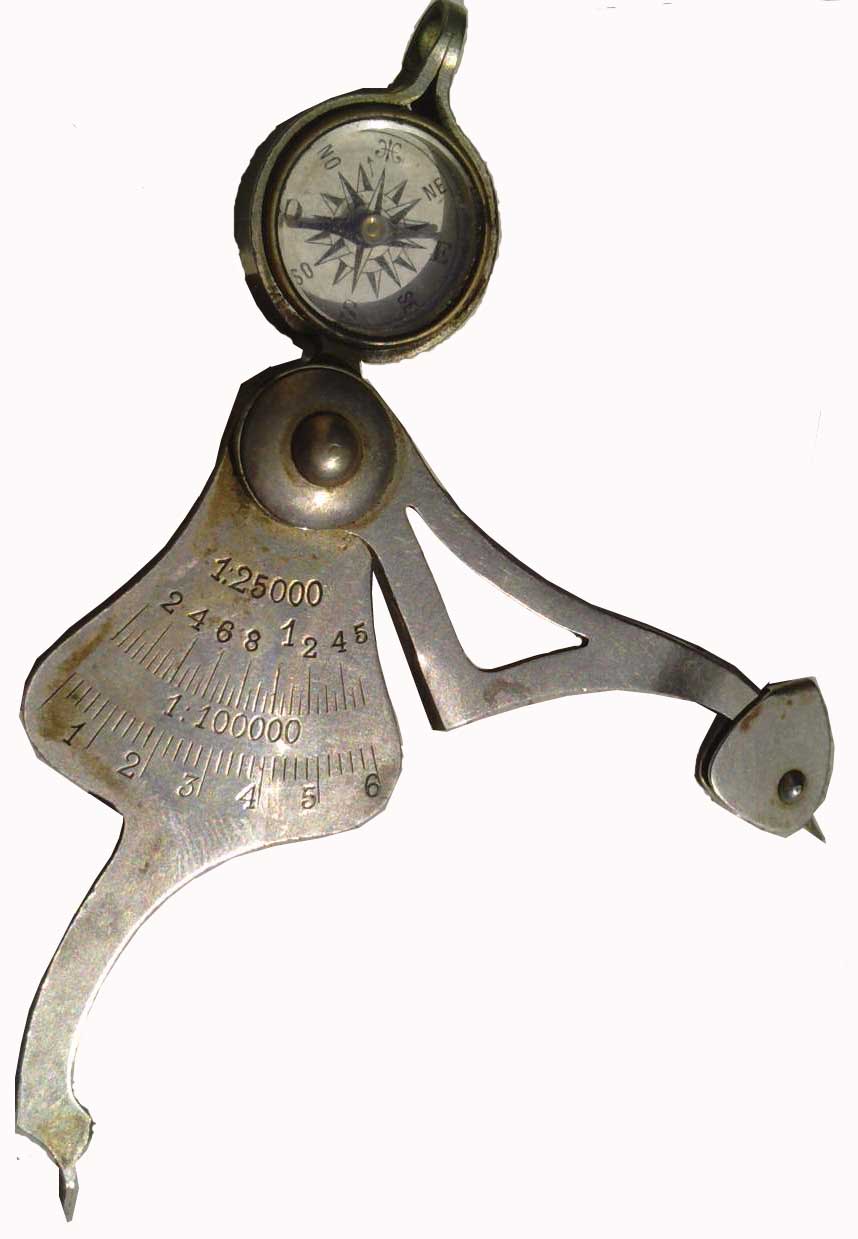

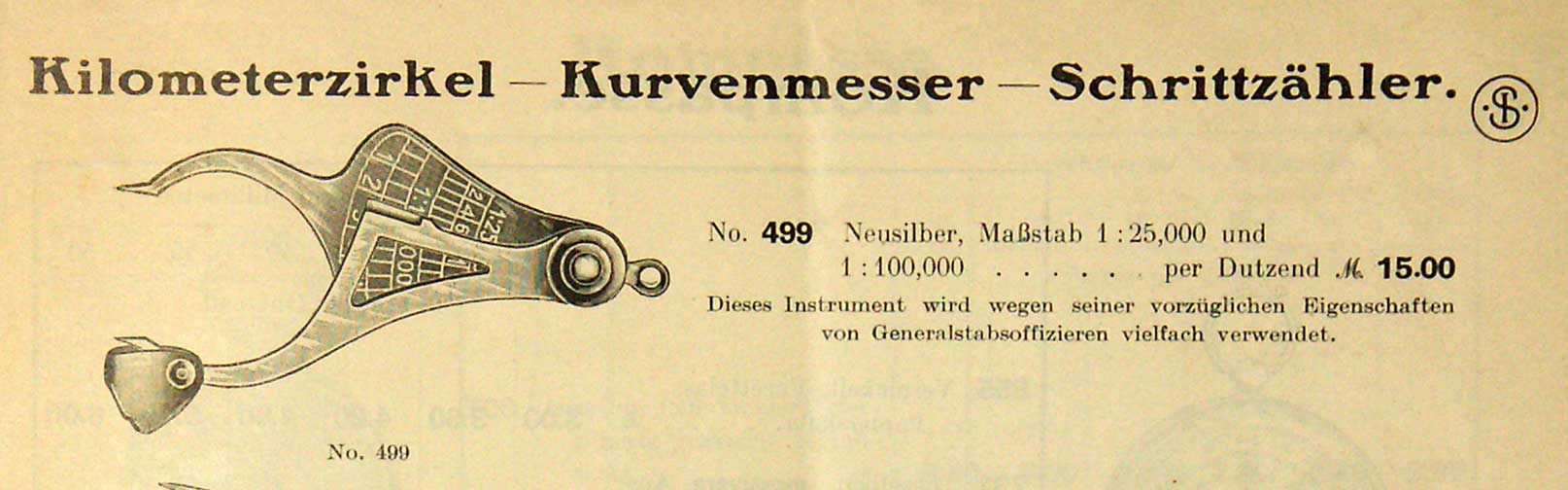

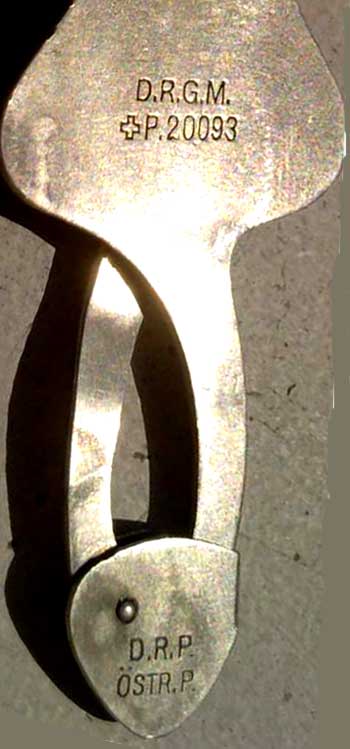

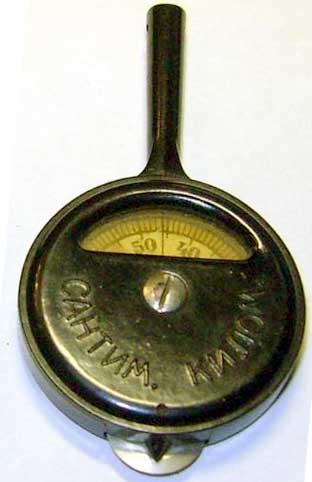

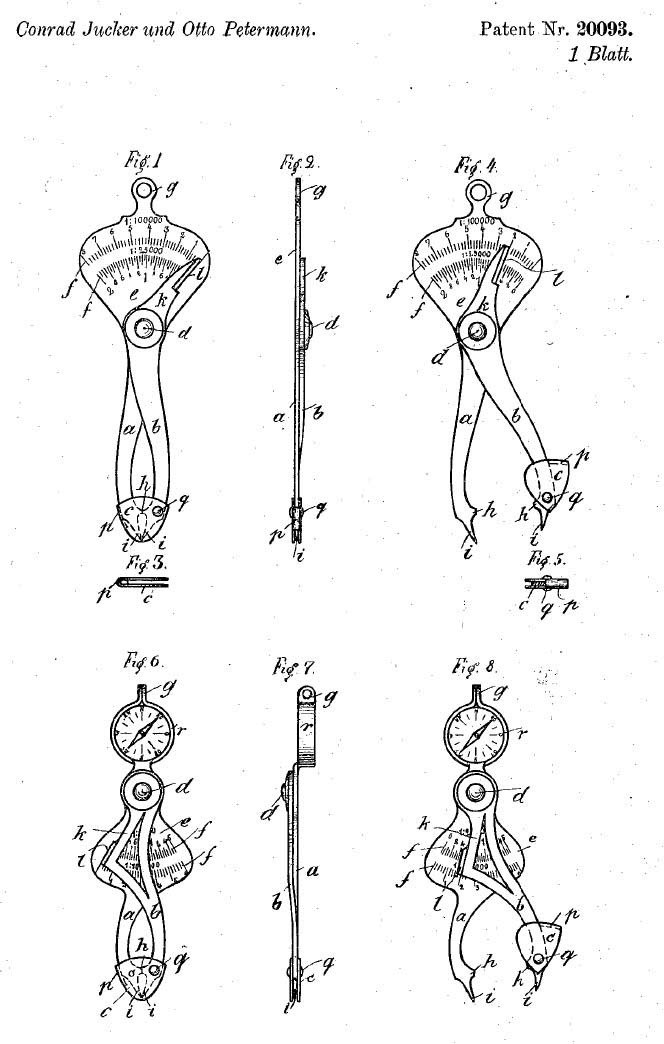

Description : This instrument is used to measure distances on
maps (see also the early models made by
ZIKO).
It is made of a tiny wheel that can follow the curves of a road.
This wheel is connected to a pointer that shows the measured track on a
dial. Some compasses are equiped with map readers with several scales -
see in particular
Breithaupt
(model Cokil)
and

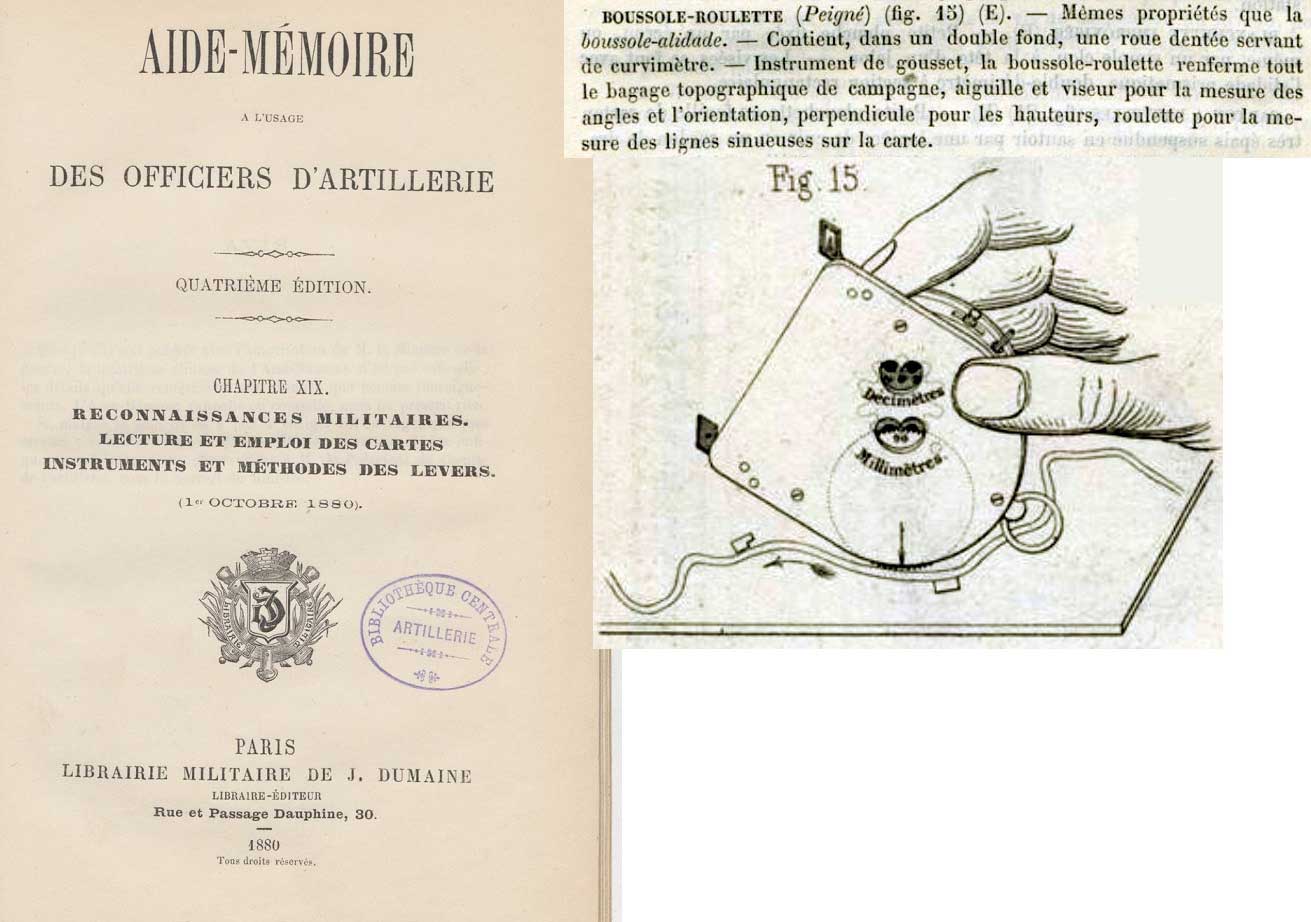

Peigné
(metallic
version made by Ladois).

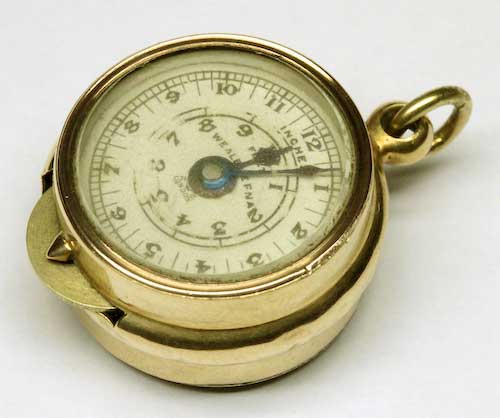

The French maker Baudet (later : Burnat) offered in his
catalogue
for the year 1925 numerous models
in all European and British/U.S. measuring

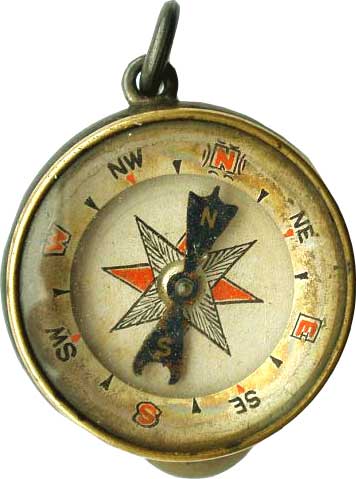

units, one with a
tiny
compass in the pendant (follow
links to pictures).

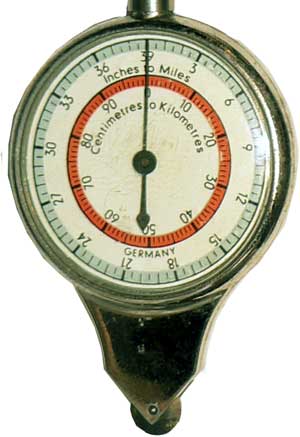

The instrument shown at right (built in the 1950's-60's) displays
divisions that allow direct reading of distances on maps with the
scales 1:20,000, 1:40,000, 1:80,000 and 1:100,000 on one side
while the opposite side has divisions for the scales 1:25,000,
1:50,000, 1:75,000 and 1:200,000.
(Photo
at right: click
for
enlarged view )
Name of a company in the former Soviet Union located in
Moscow
(see
GK-2).

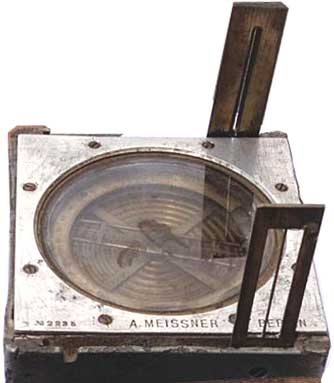

Former German manufacturer, company created in Berlin in
1820.

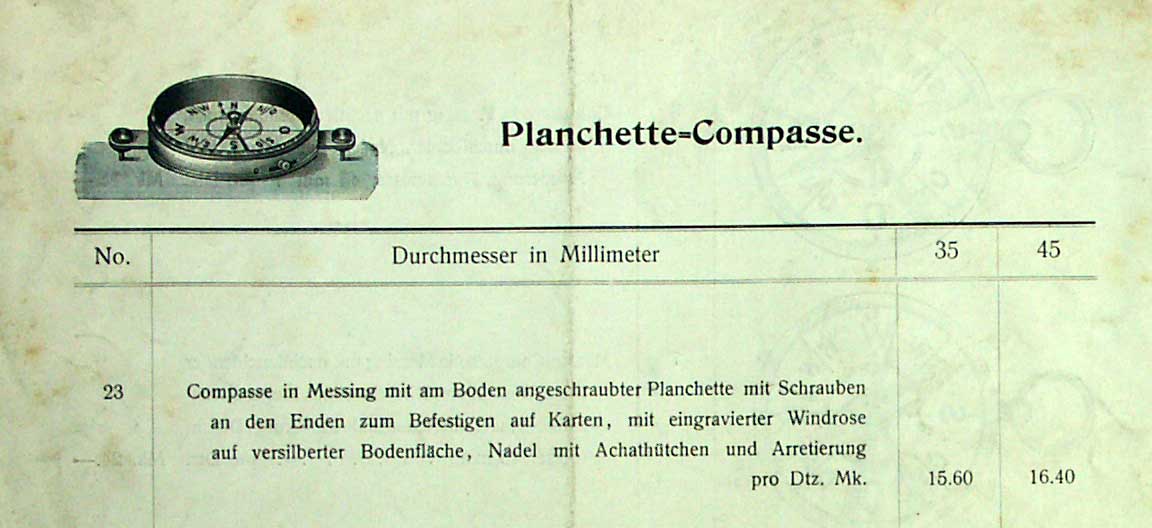

A catalogue for survey materiel dated 1910: "
Illustrirter
Katalog und Preis-Verzeichniss über
geodätische Instrumente, Messgeräthe, Reisszeuge etc:
Erzeugnisse der mechanischen Werkstätte für
wissenschaftliche
Präcisions-Instrumente
von A. Meissner (Inhaber: H.
Müller
& F. Reinecke) Mechaniker und Optiker Berlin W."
Pictures
courtesy E. Horsfield
(Click on images for enalrged views)
|
|
Technical
Data
- Dimensions: ? mm
- Divisions: 360° counter clockwise
- Magnetic needle: two parallel bars driving a divided circle.

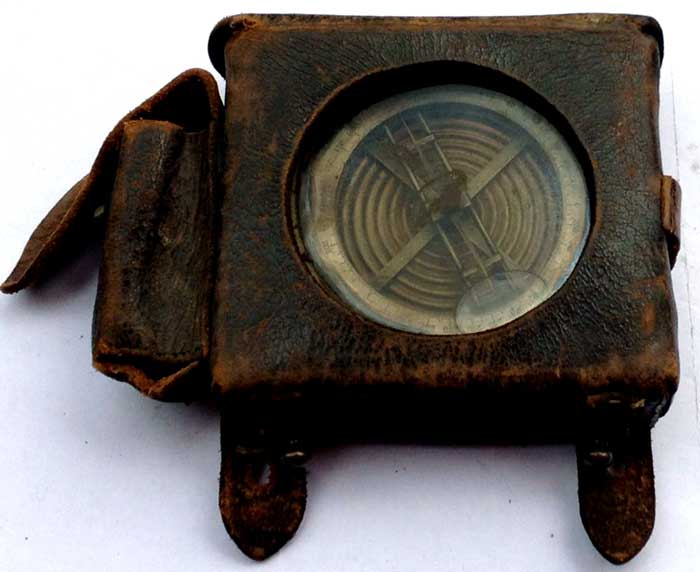

Case with foldable vanes and a leather pouch with a round window like
the SPRENGER
instrument but the capsule is fluid dampened and its bottom is shaped
with concentric waves like a barometer's aneroid capsule.
|

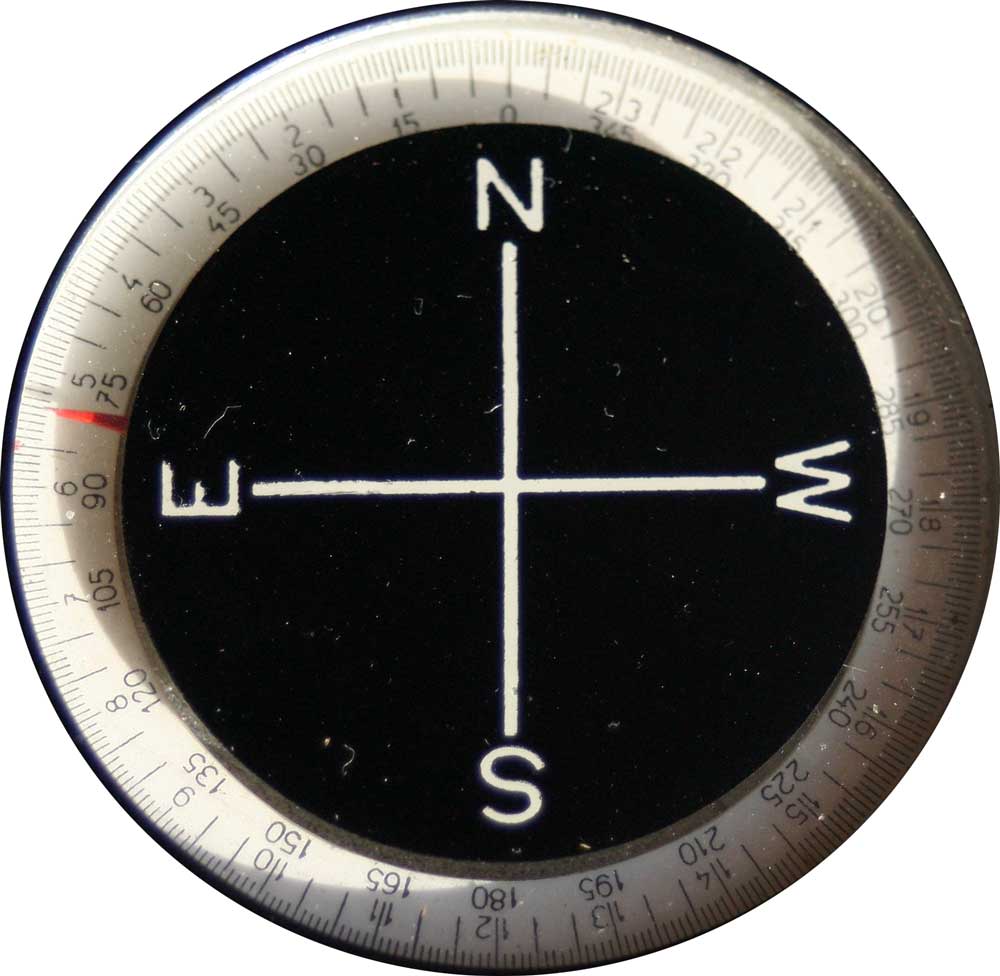

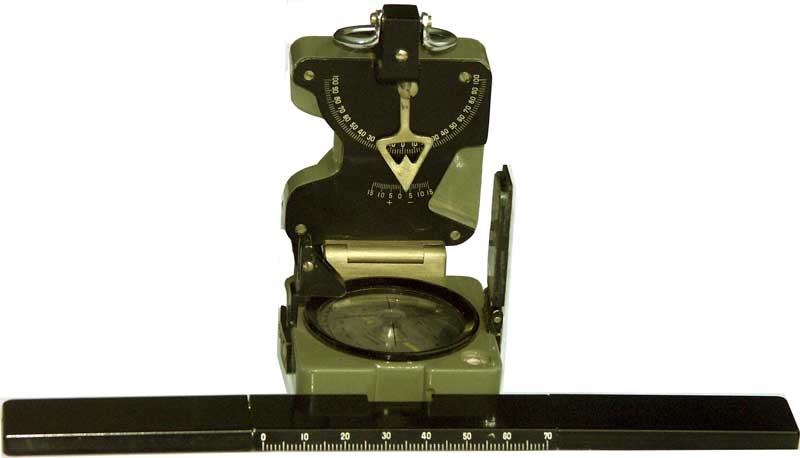

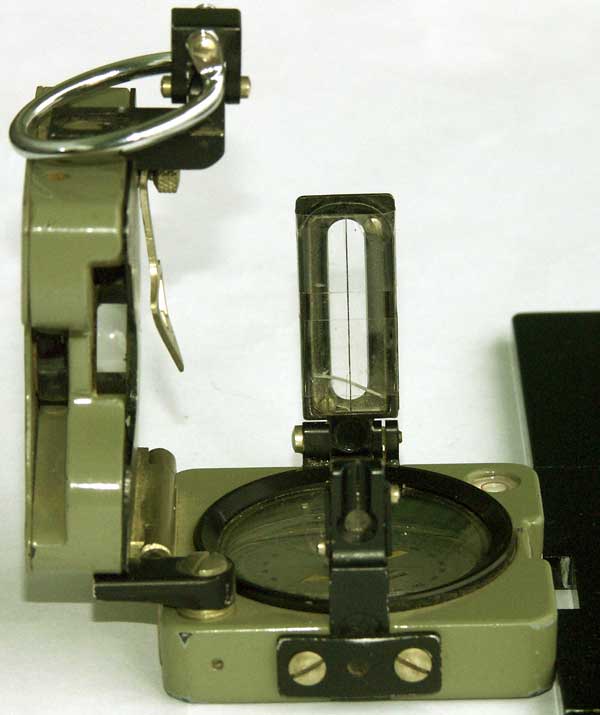

Former Czechoslovakian
manufacturer located in Prague (
Praha
in Czech language).
Its confidential three-letter code during the communist era was
xbk
(link to a military model). See also the section Marching Compasses.
|
Pictures courtesy Houcke
(Click on images for enlarged views)
|

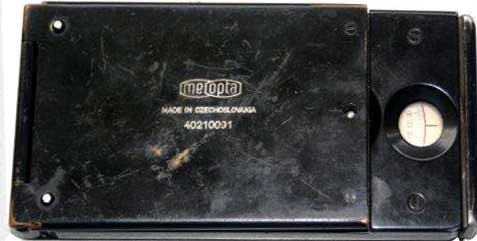

Logo
and clinometer window
Side ruler and sights
|
Technical
Data
- Dimensions: 130 x 10 x 65 mm
- Bubble level
- Divisions : 360° clockwise and 24 hrs counter
clockwise.
Cardinal points : N.W.S.E printed reversed for reading in mirror
- Clinometer: +/-110° unlocked by depressing the knob
on the
right
- Extendable rifle-type sights for measuring vertical angles on the
right side
- Back face: round window for illumination of scales from below
- Side ruler: 10 cm / scale 1/1000
|

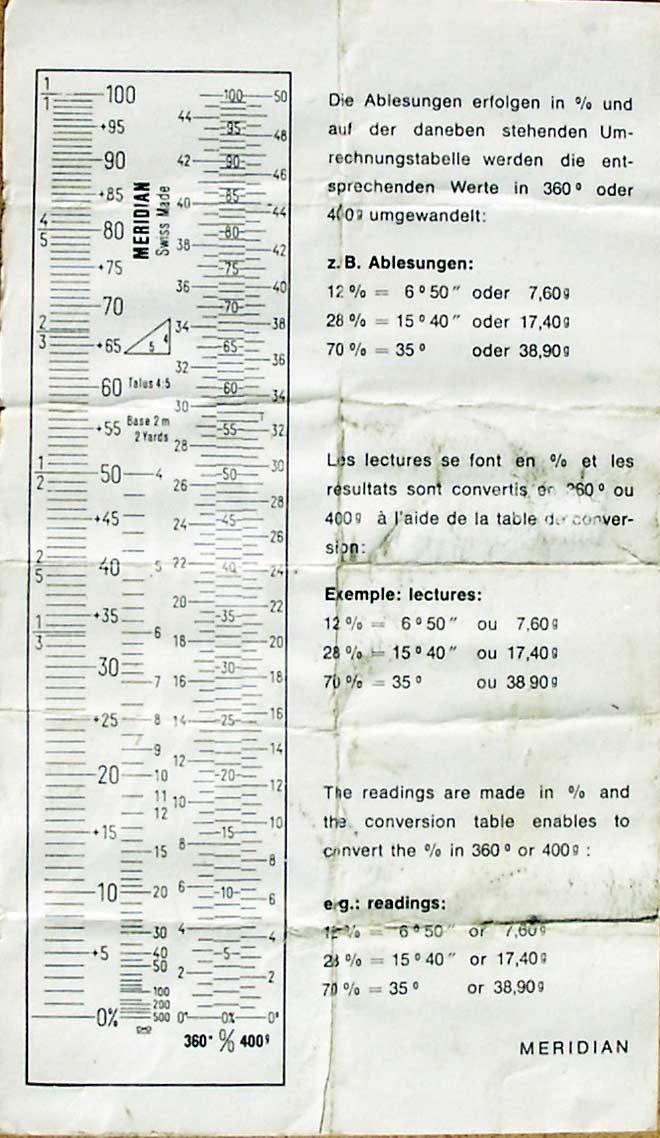

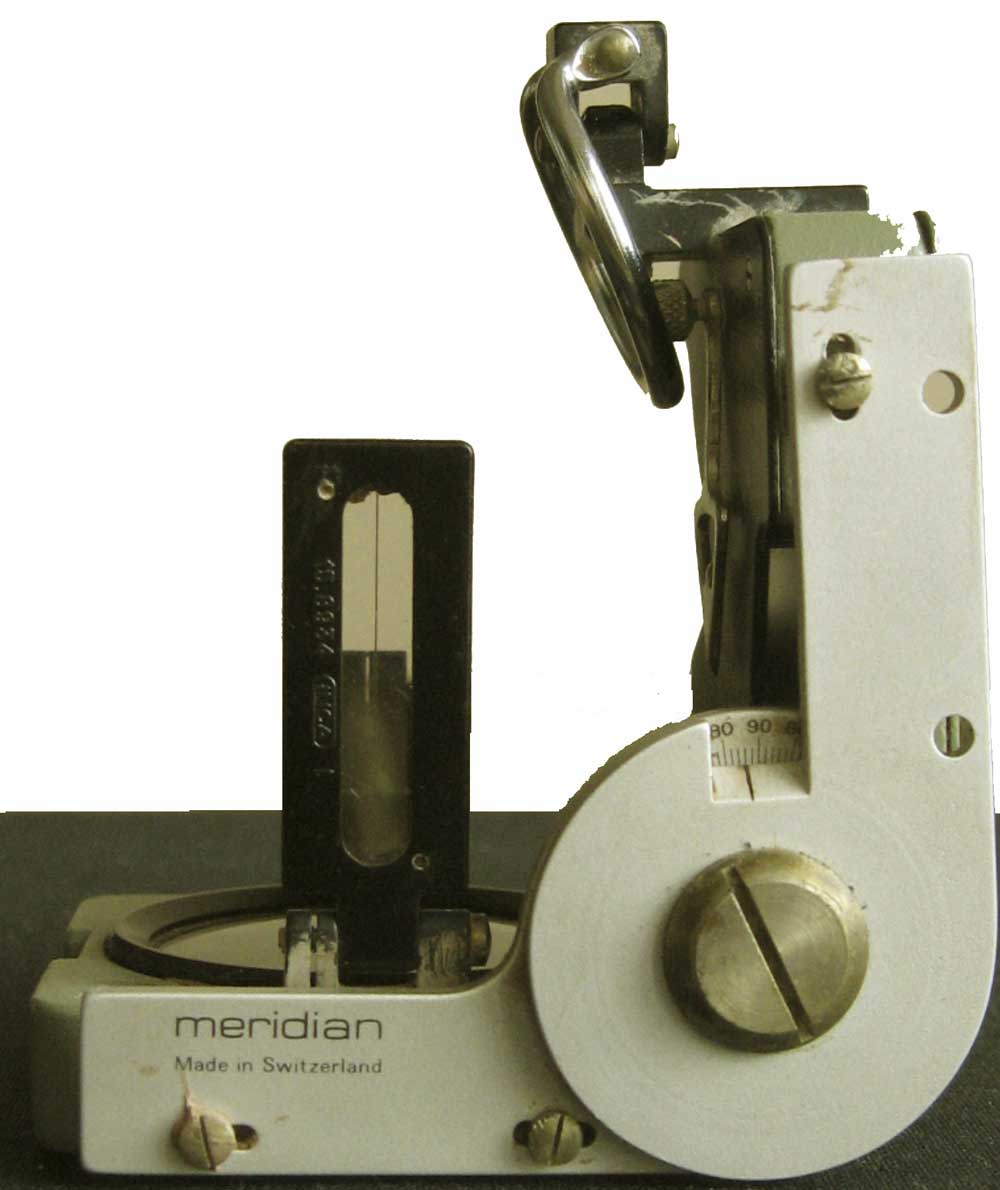

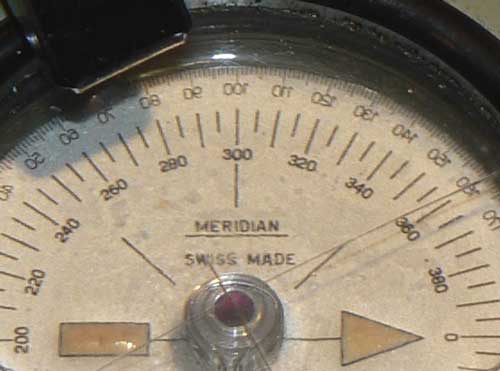

Former Swiss manufacturer (for more information
click
HERE).

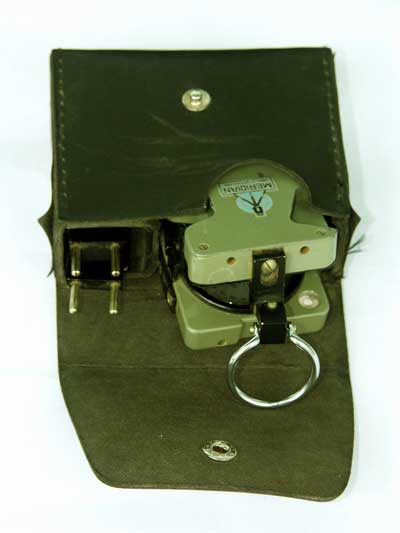

Not to be mistaken for the MERIDIAN called compass model made by the
former German company WILKIE and the actual K&R (see also
MARCHING compasses).

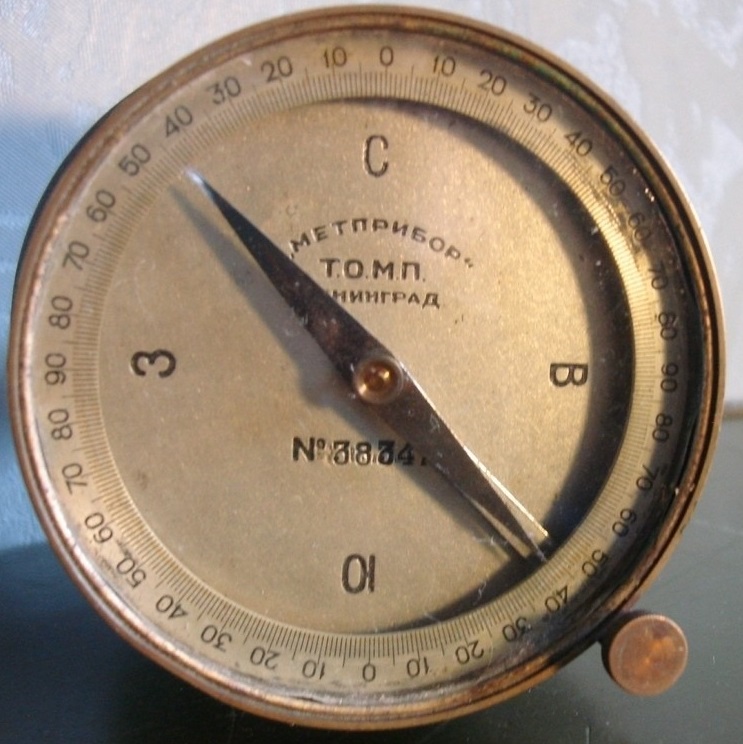

METPRIBOR
(метприбор)
Former soviet manufacturer of metrological instruments located in
Leningrad / St Petersburg. Other items known are map readers.
The abbreviation TOMP / ТОМП reads: Треста оптико-механических
производств and means Trust of Optical and Mechanical Production.

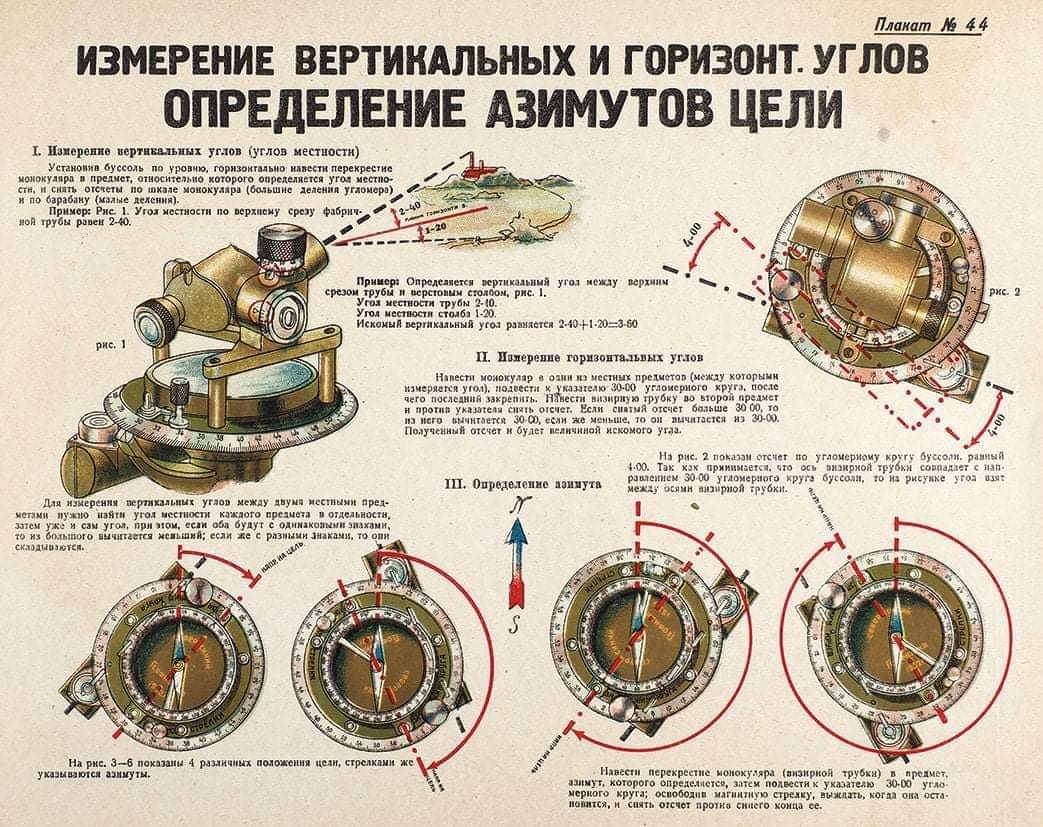

Mikhalovski
- Touroff
(Михаловский - Tуров)

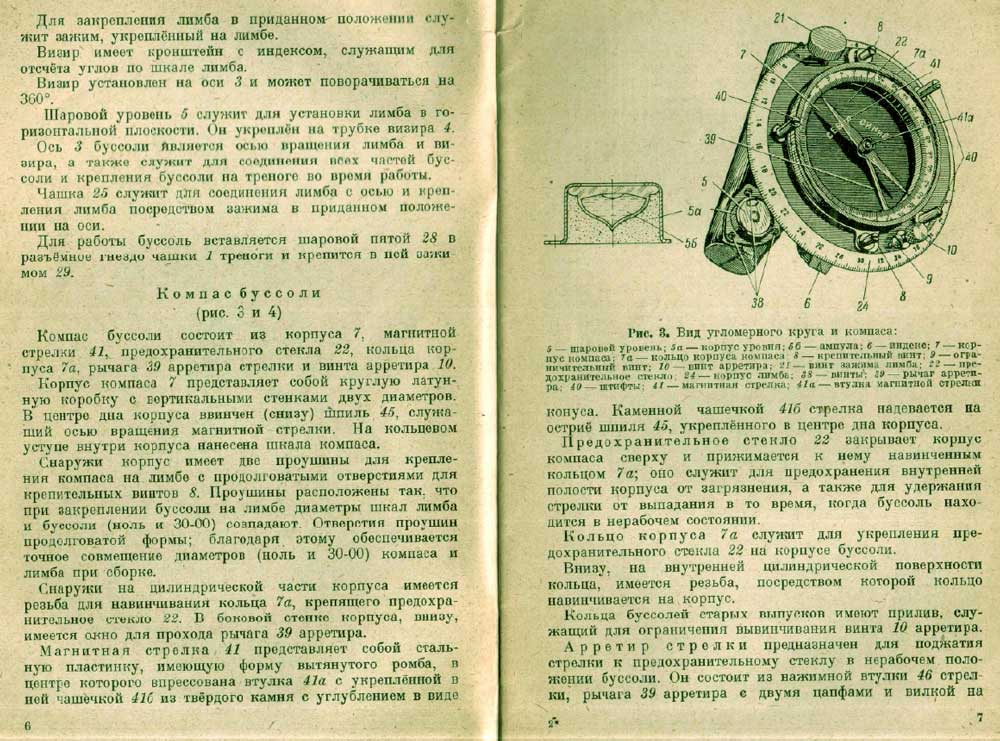

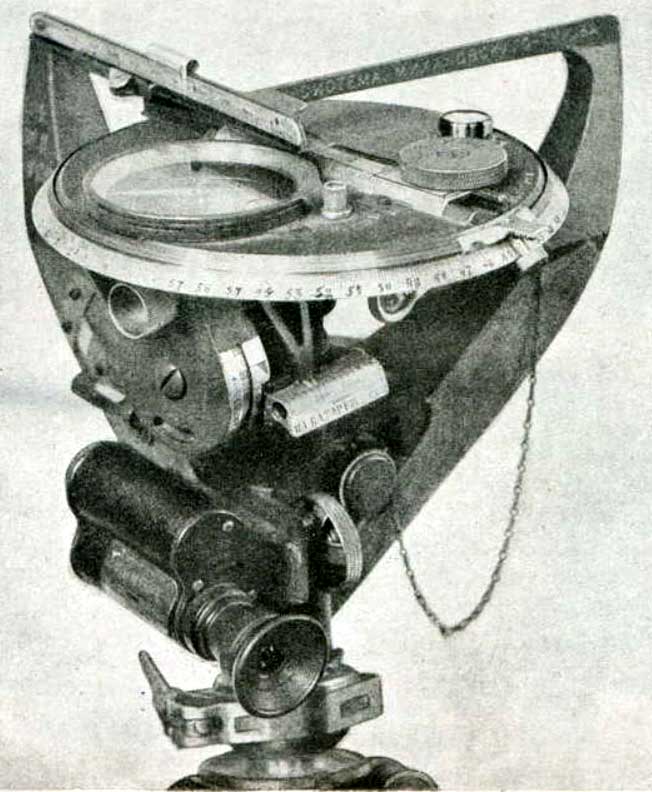

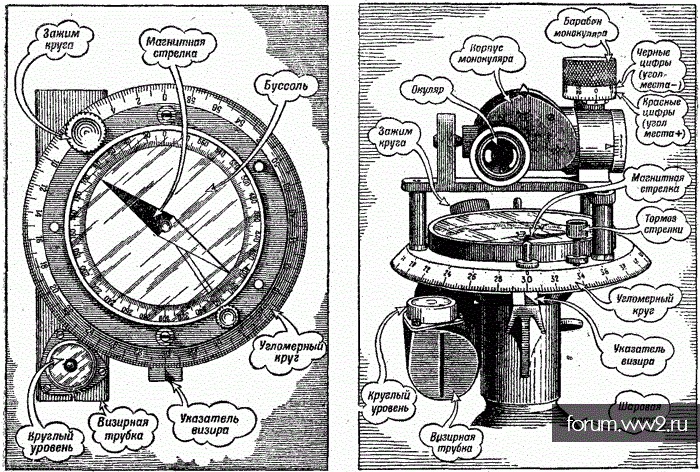

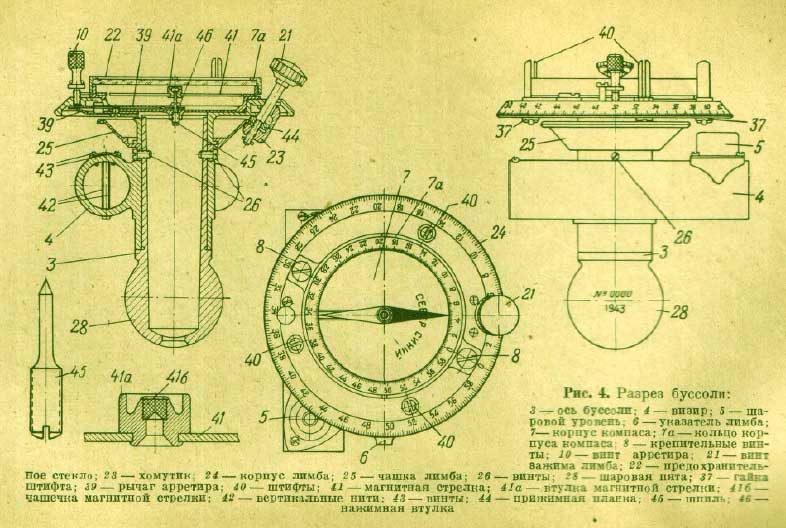

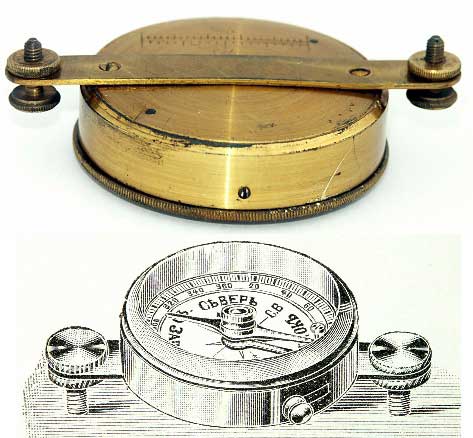

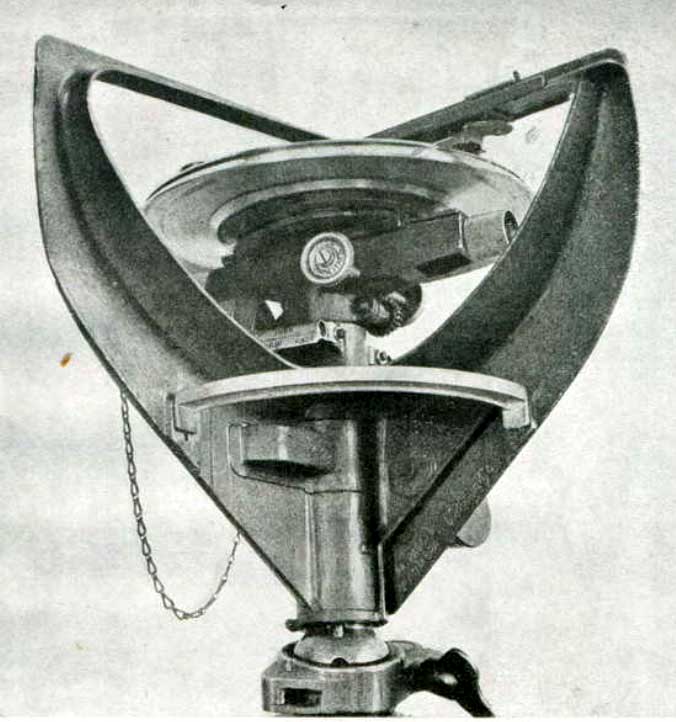

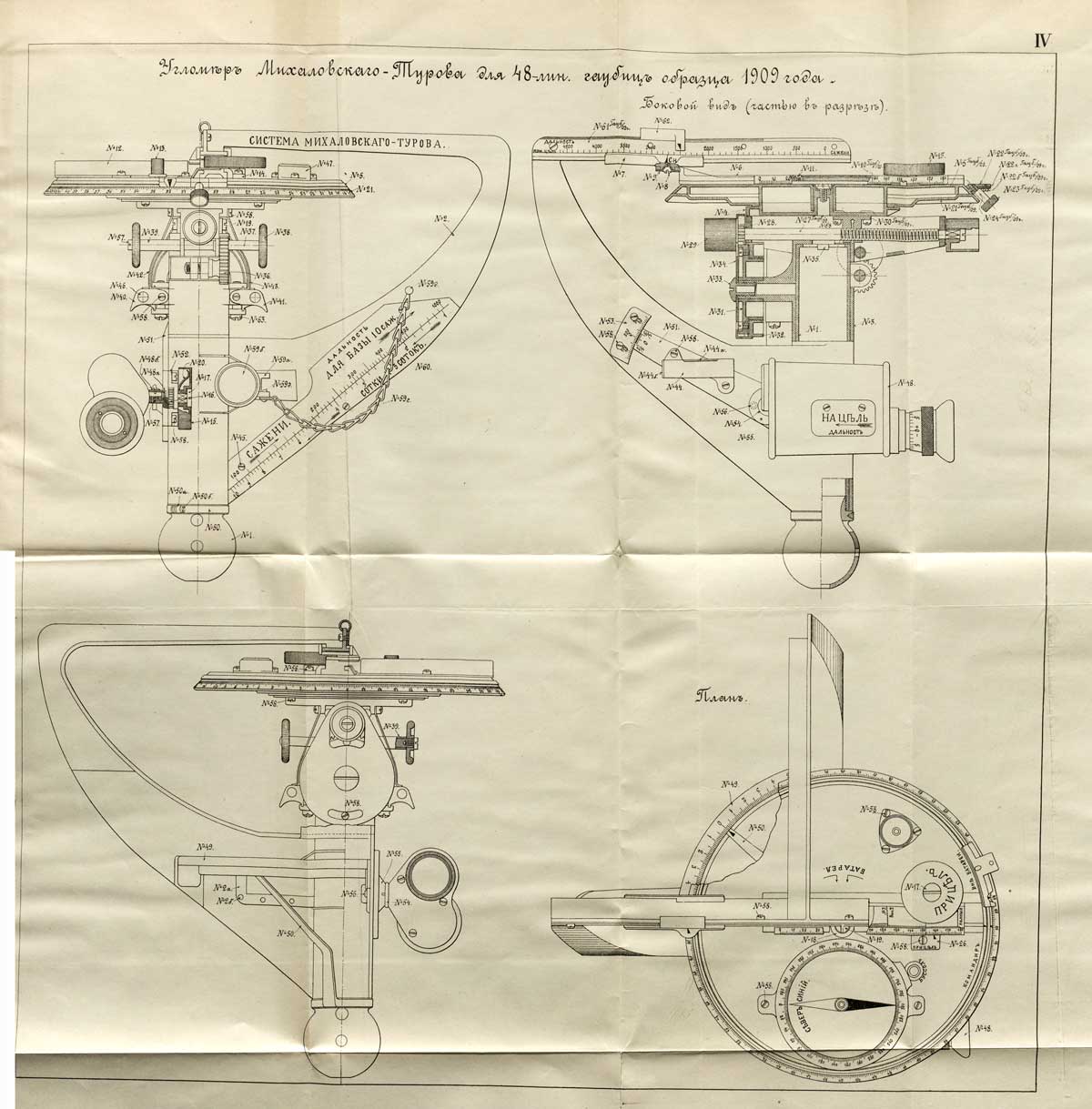

MIKHALOVSKI and TOUROFF (Михаловский -
туров) designed in the early 20th c. aiming circles.
|
Pics
by courtesy of Archives Russ. Fed.
|
|
Technical Data
Click on the image for an enlarged three-sides view
|
The words север синий
mean 'North blue', i.e. the needle's blued half points north.

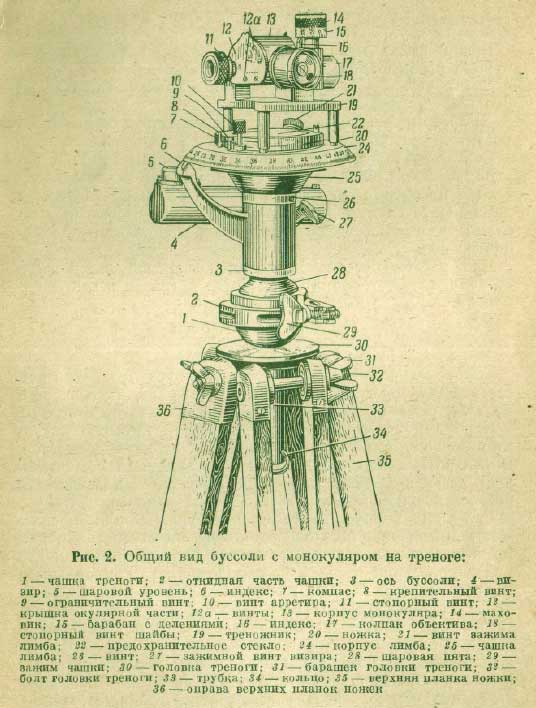

Click on the link for a view of the complete
aiming circle.
Manufacturer UOMZ.
|
|
|
Technical data
Click on the image below for a view of the complete system and follow
the
link for an exhaustive description
of the compass.
|

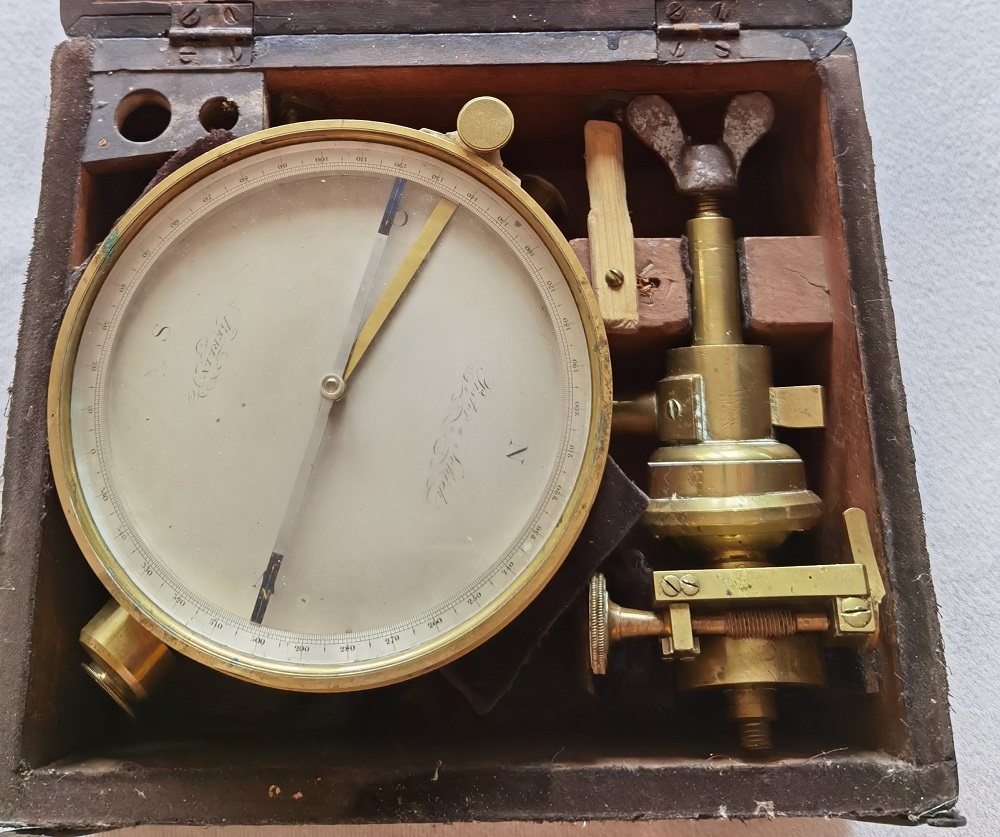

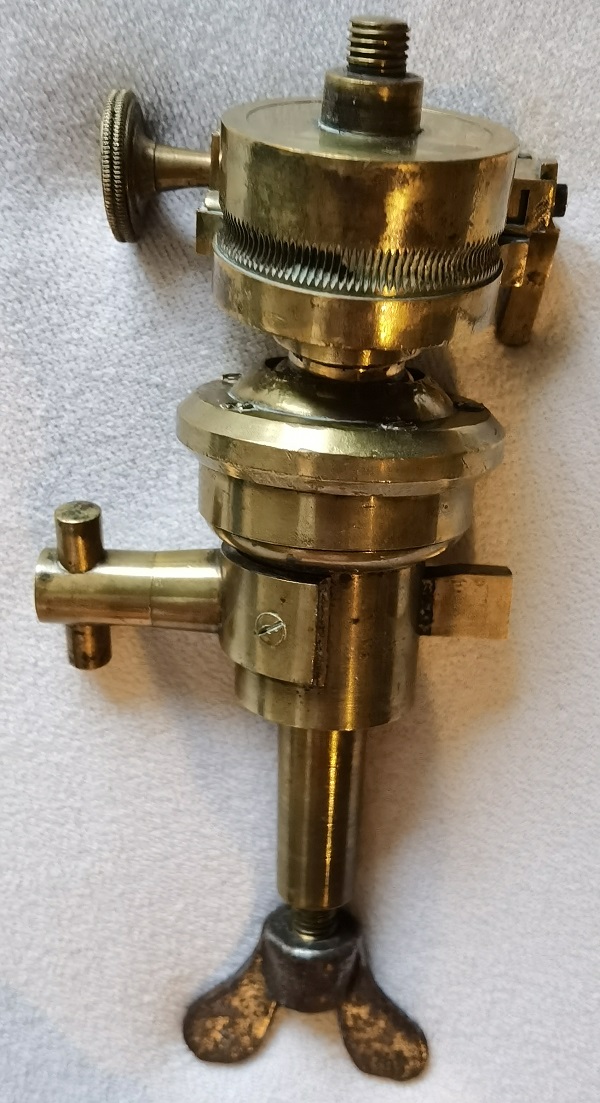

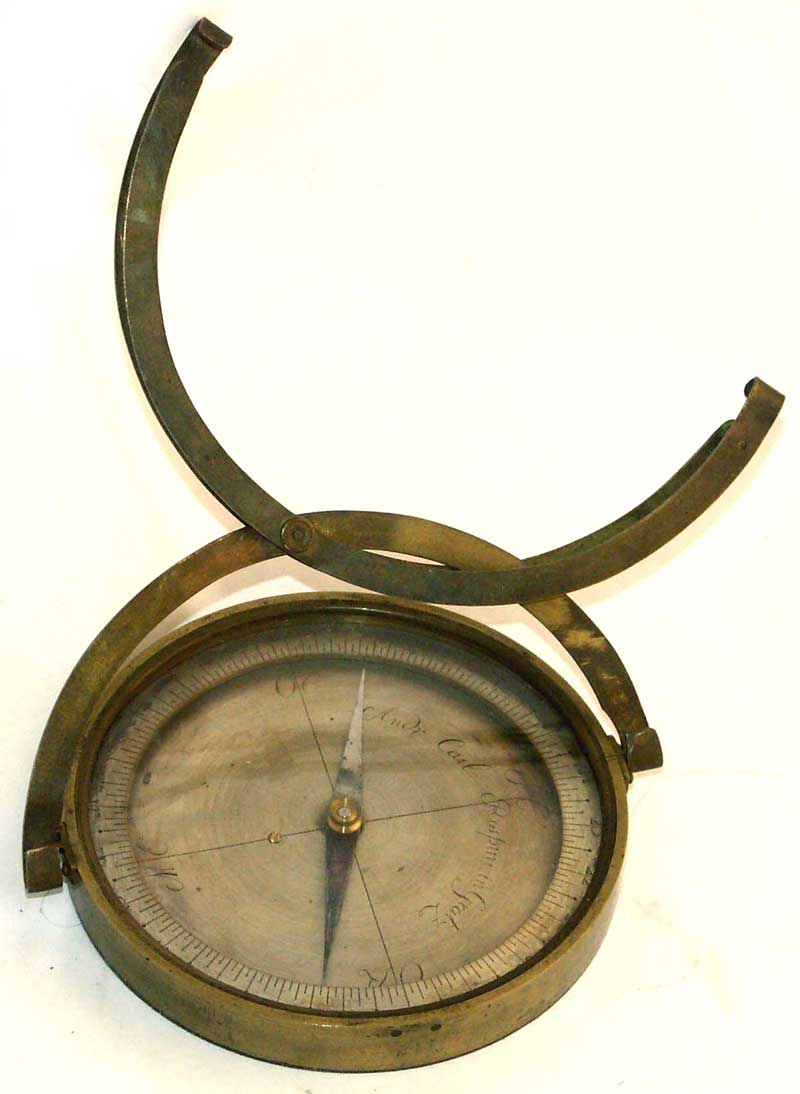

Definition: special compass system for survey tasks in mine galleries.

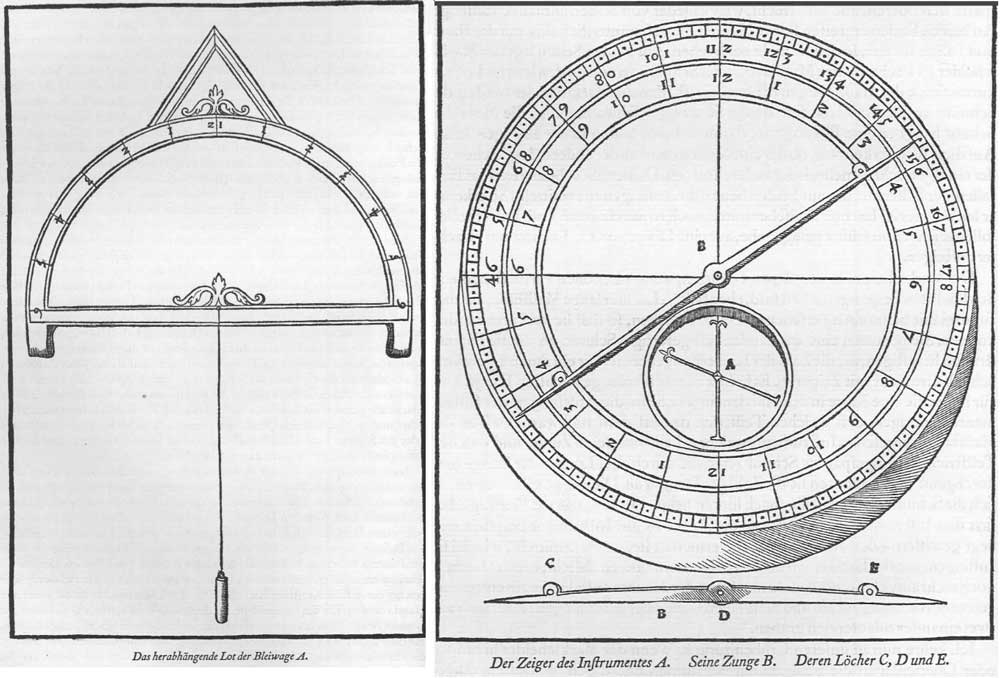

The first description known occurs in
DE RE
METALLICA, by G. Agricola, 1551, p. 117 & 118
(pic. at r.). See also the
items built by
FPM,
MORIN,

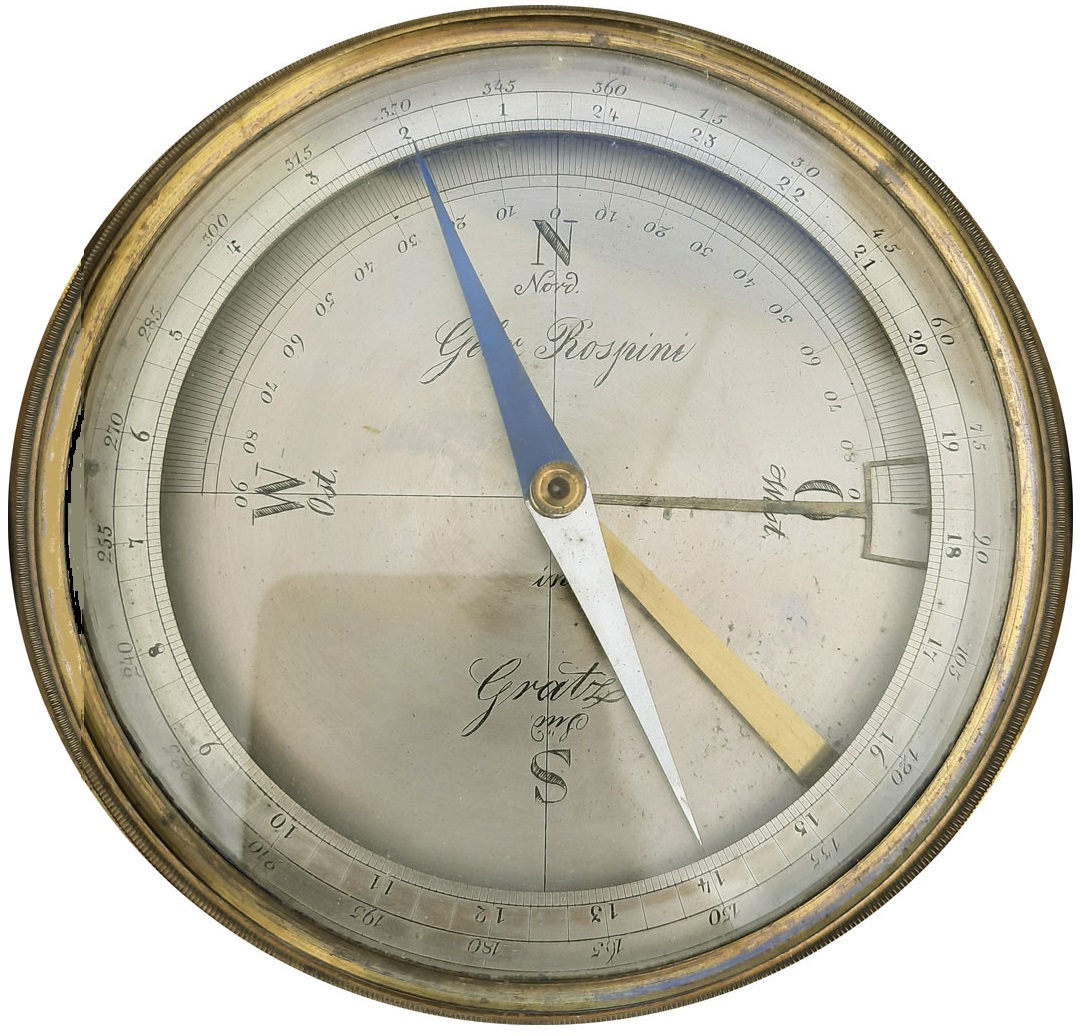

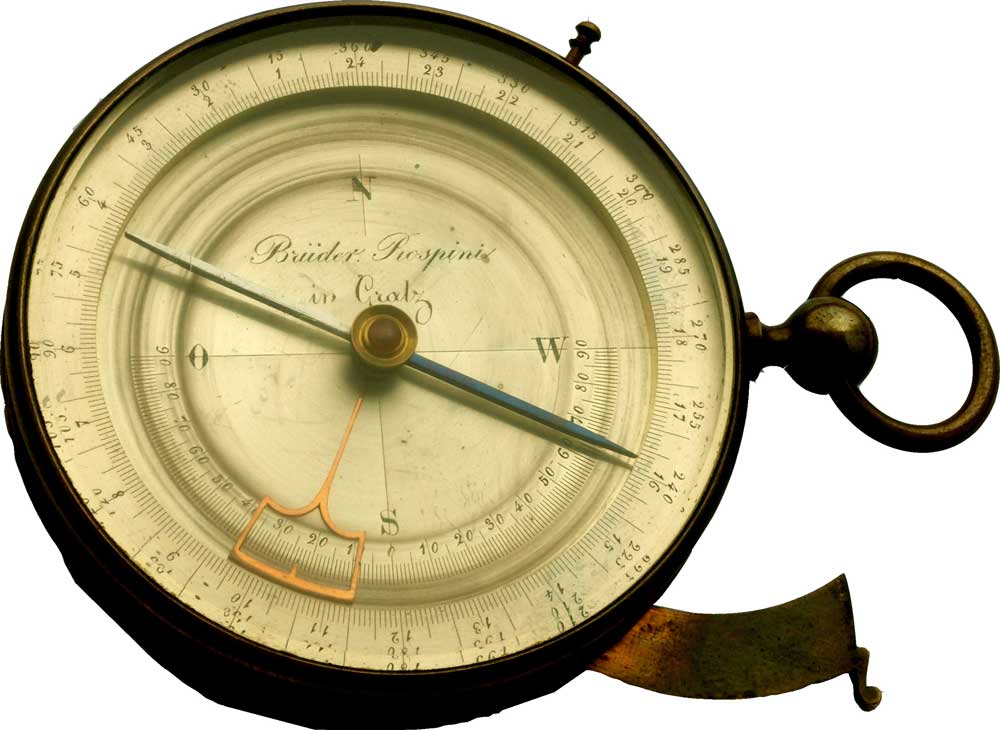

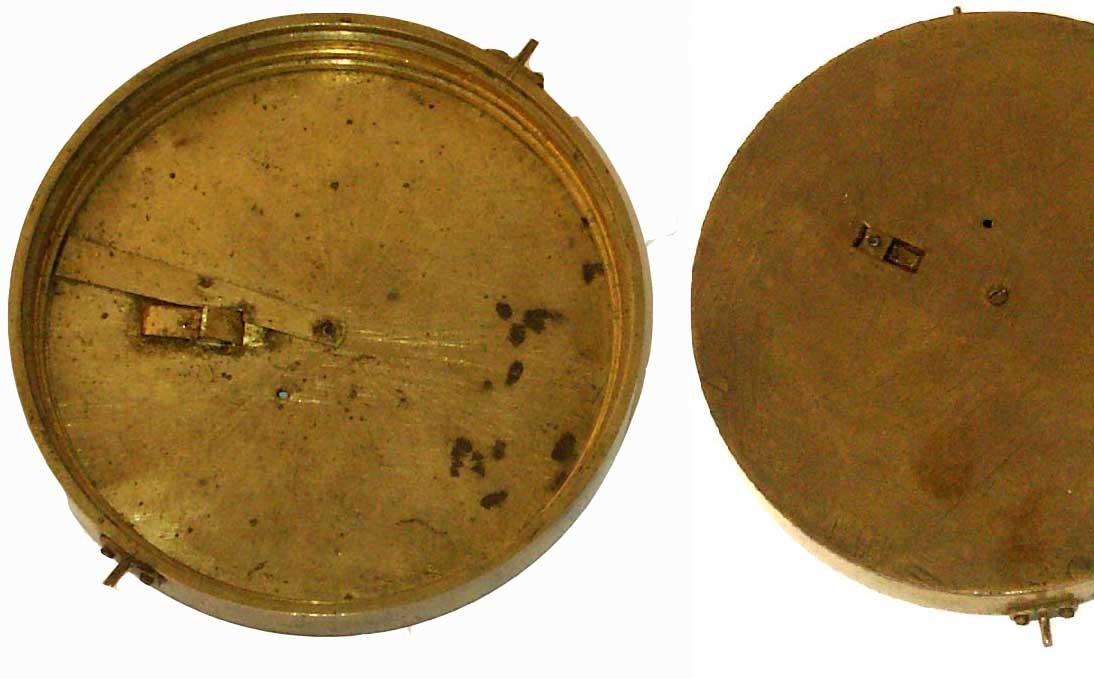

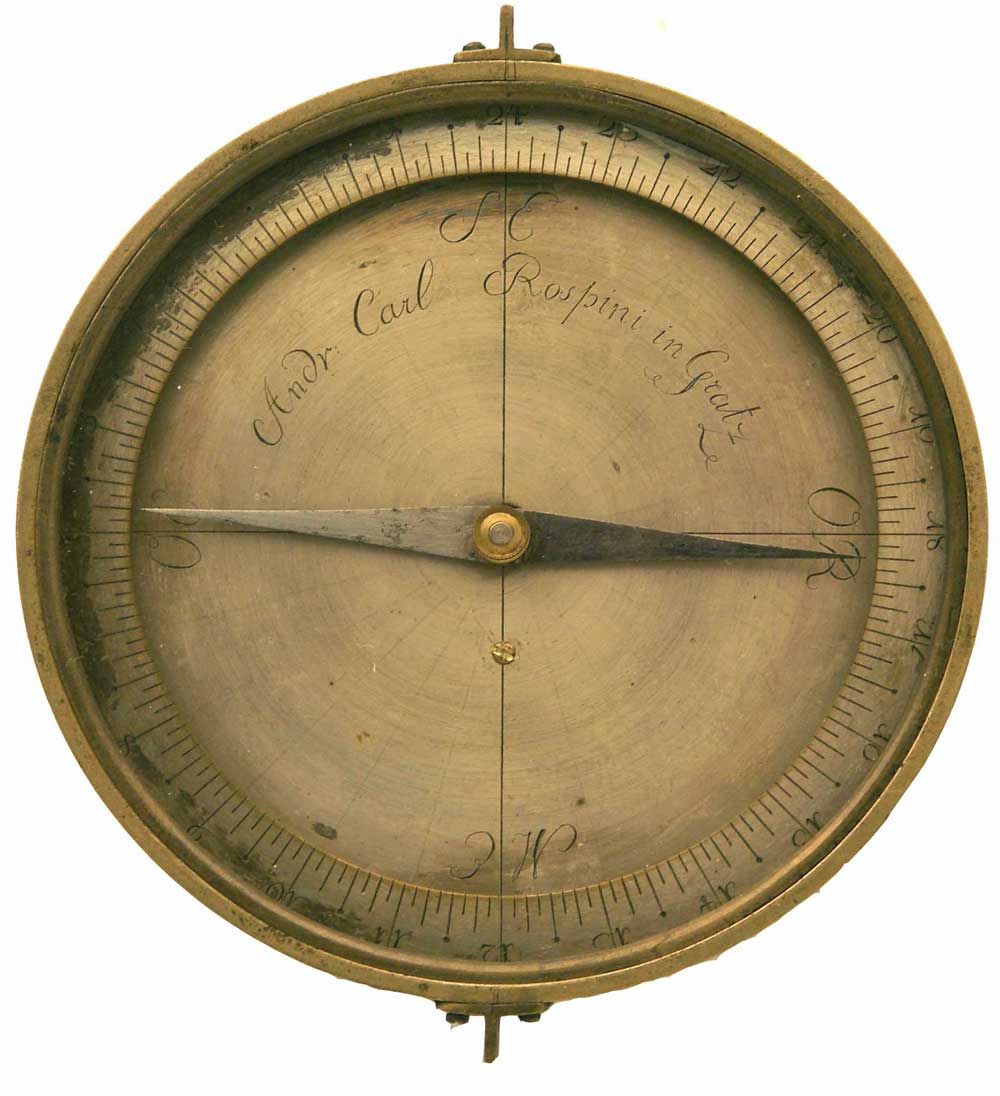

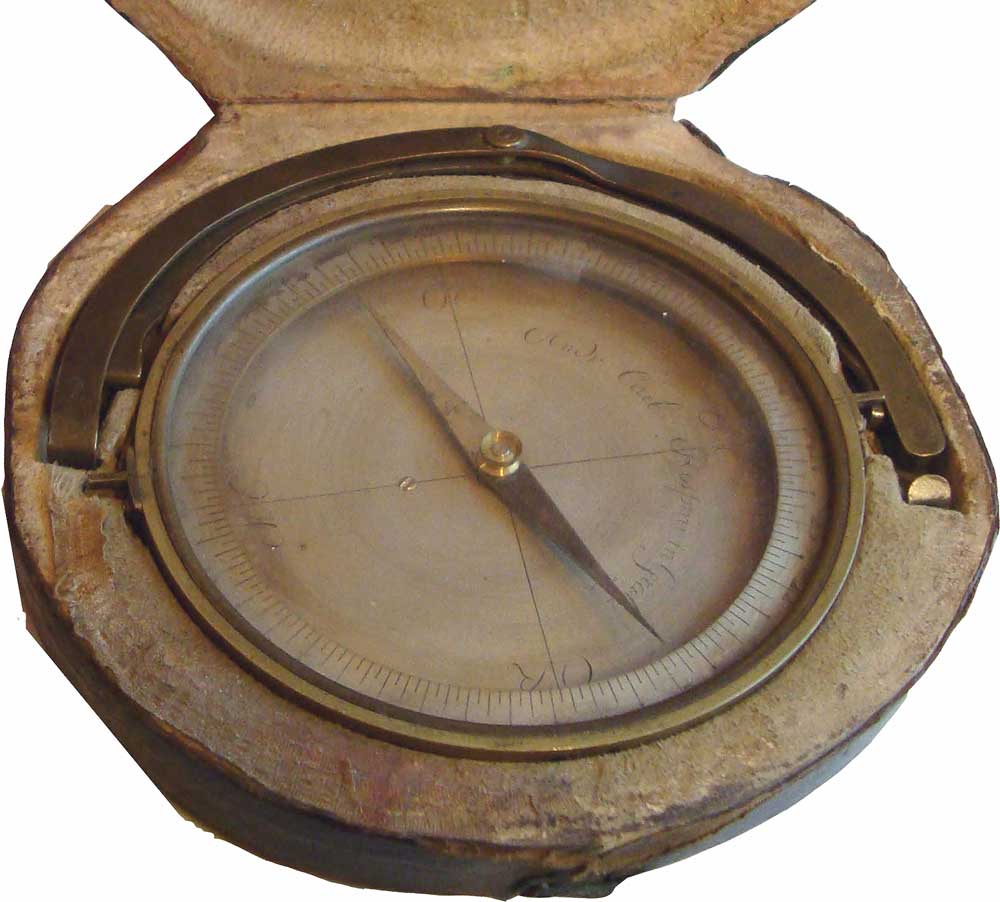

ROSPINI,
SECRÉTAN).

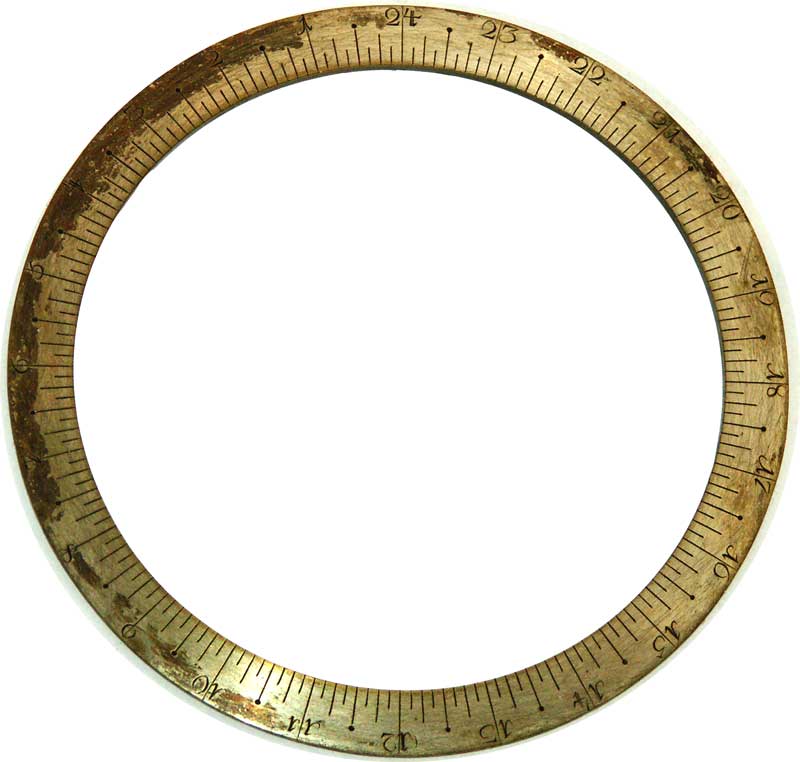

Older compasses in France and in the German-speaking
countries were
divided into 24 hours and often 2 x 12, example: see Schablass).
(Click
on pictures for enlarged
views)
|
|
DESCRIPTION

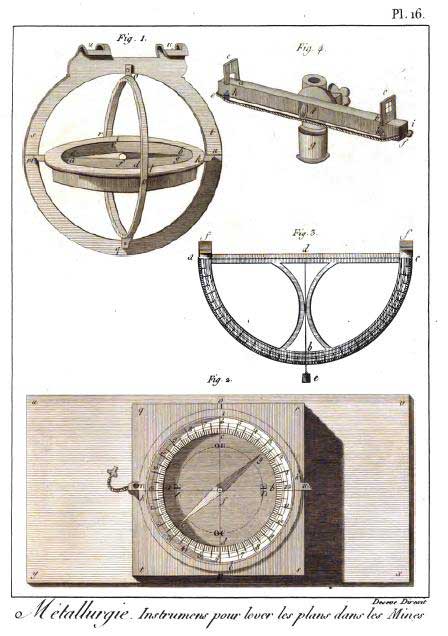

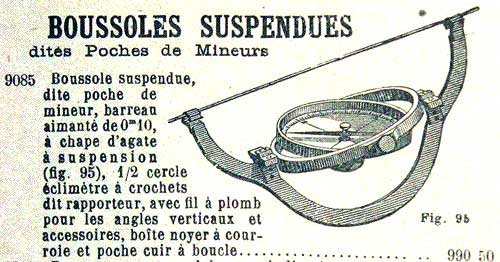

Left: description of a miner's compass in an old French encyclopedia
for measuring instruments and metallurgical tools (1813).
(Translation - see original text in the French part : poche
de mineur)
A
miner's compass assembly generally
comprises:
1. a compass to measure the galleries' orientation
2. a graduated half-circle with plumbline to measure their slope
3. a chain to measure the distance between the stations
4. several brass screws, to attach the chain
5. a protractor to transfer the measurements on the drawing
6. (optional) an optical sight. |
Pictures courtesy
www.frickeinstruments.de |
Click on the images for enlarged views
|

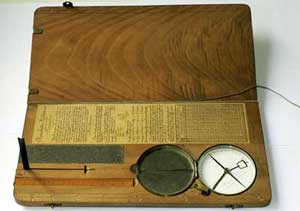

Miners'
Compass
complete with semi-circle hanging protractor, plumb bob, adjustment
keys etc.
Technical
Data
- Maker: Noesselt & Staritz, Breslau (Silesia, now Poland),
late 19th c.
- Compass card: silver-coated, with 360-degree scale.
- Dimensions: wooden case (c. 30 x 23 cm).
On the back of the case is still the original leather bag.
Detail
view of a
compass: see SECRÉTAN |

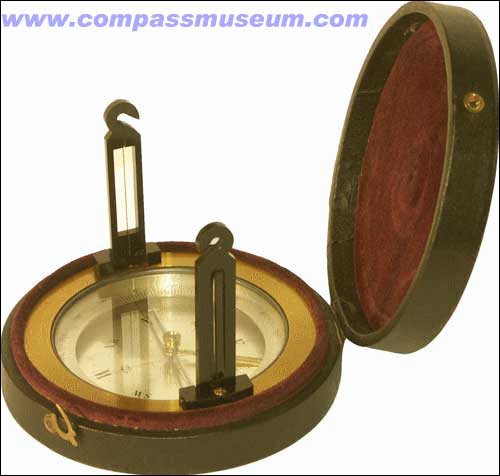

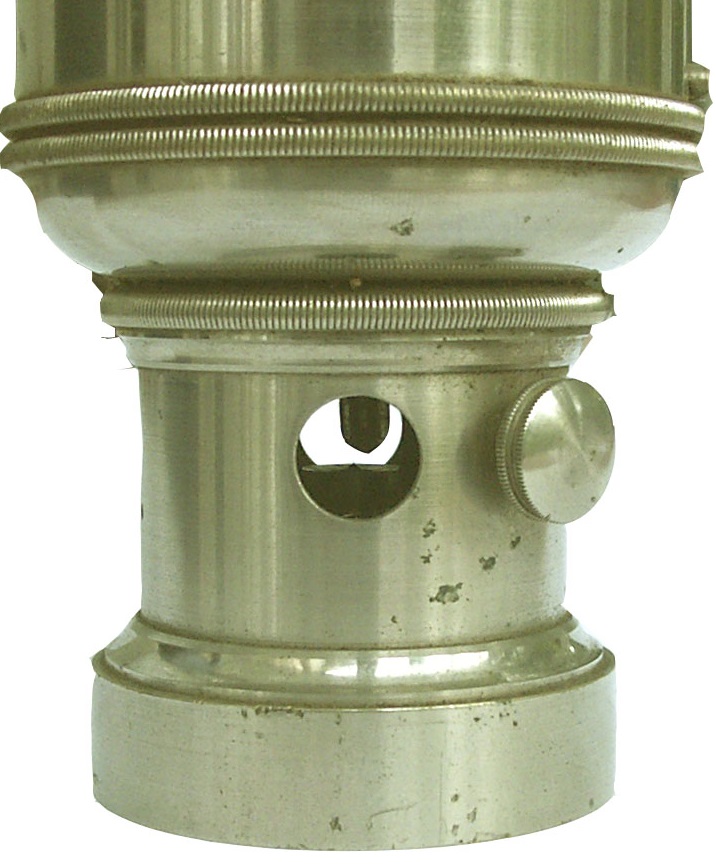

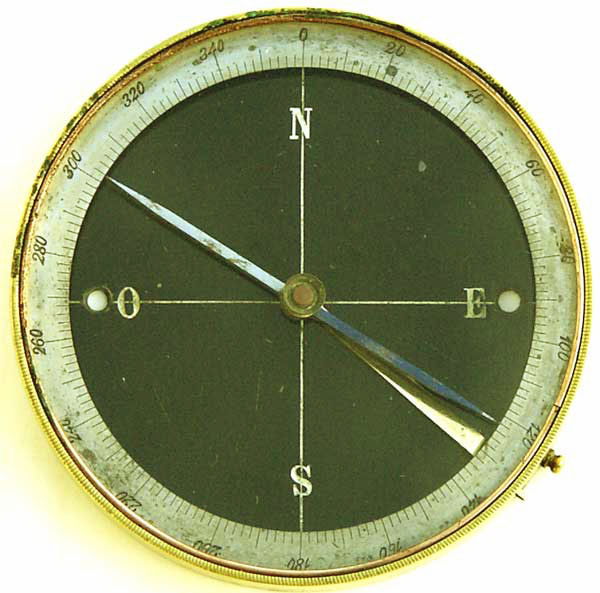

Former French company (for more information, click
HERE).

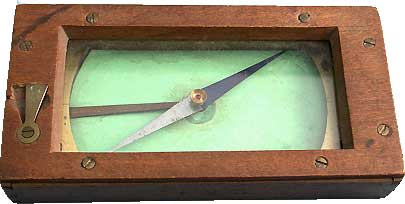

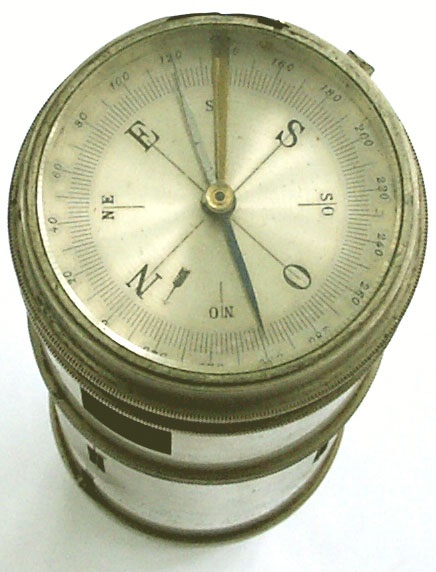

Morin had
been a supplier (partly as retailer*) for the French armies and the
industry since
the late 19th

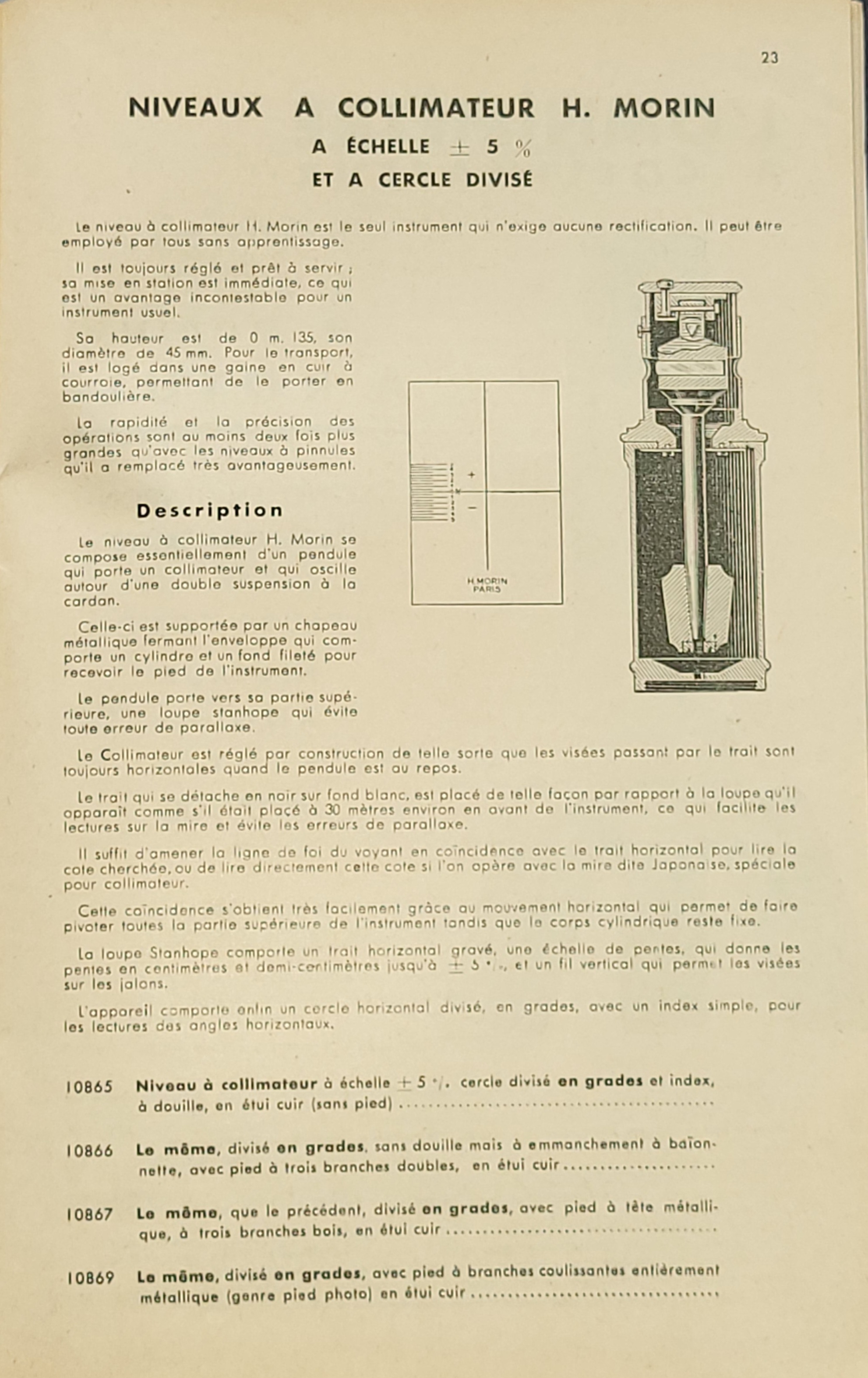

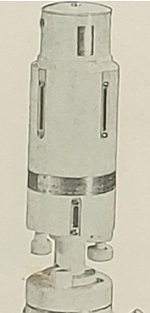

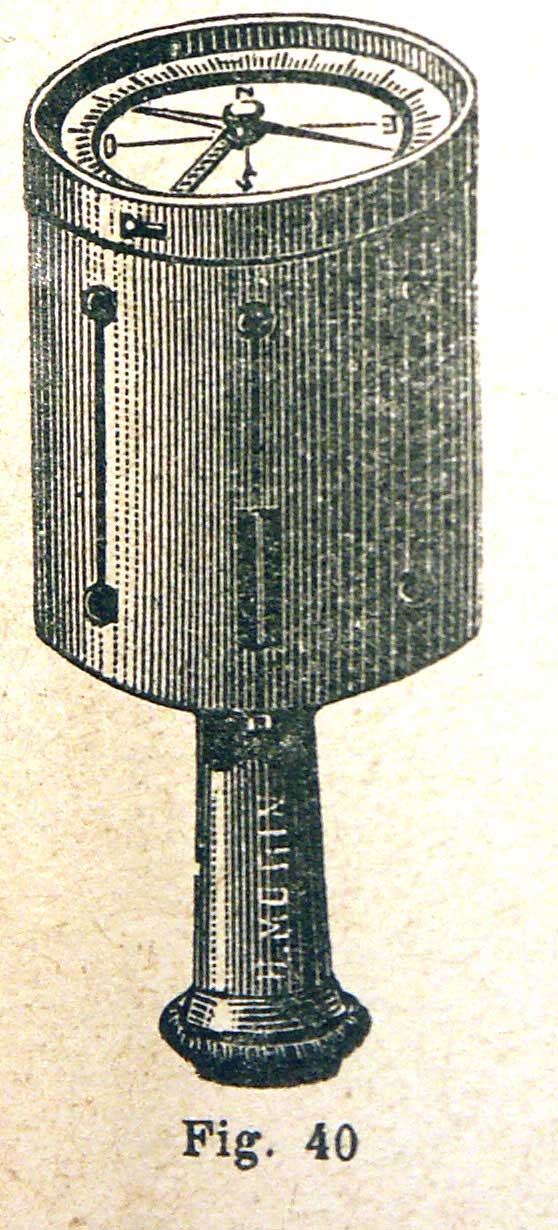

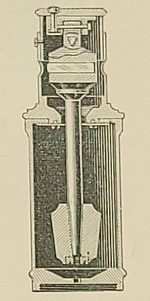

c. The catalogue for the year 1930 (
at right) gives a perfect
overview of its
product range. The various items are shown together with the catalogue
illustration.

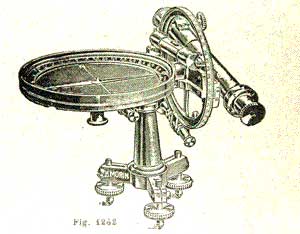

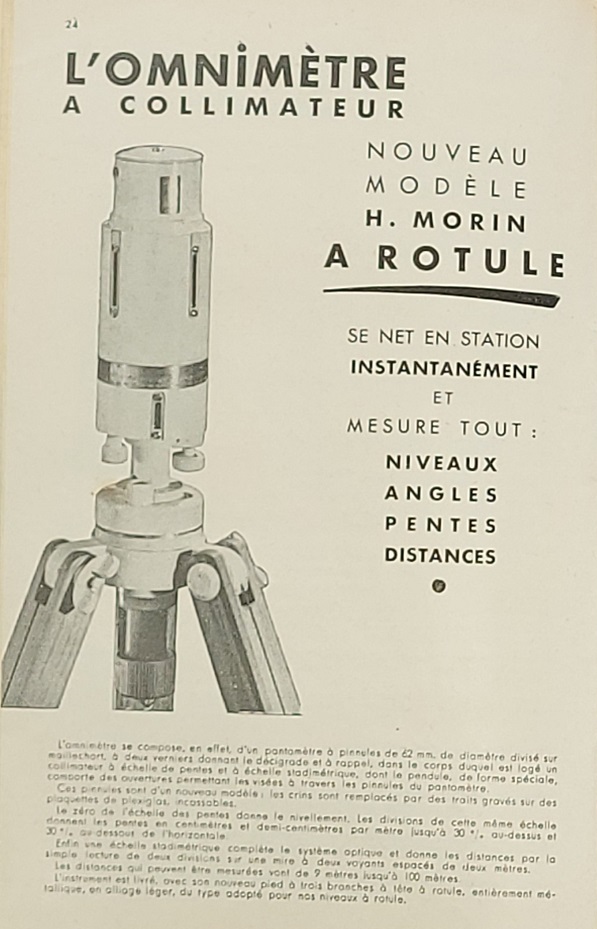

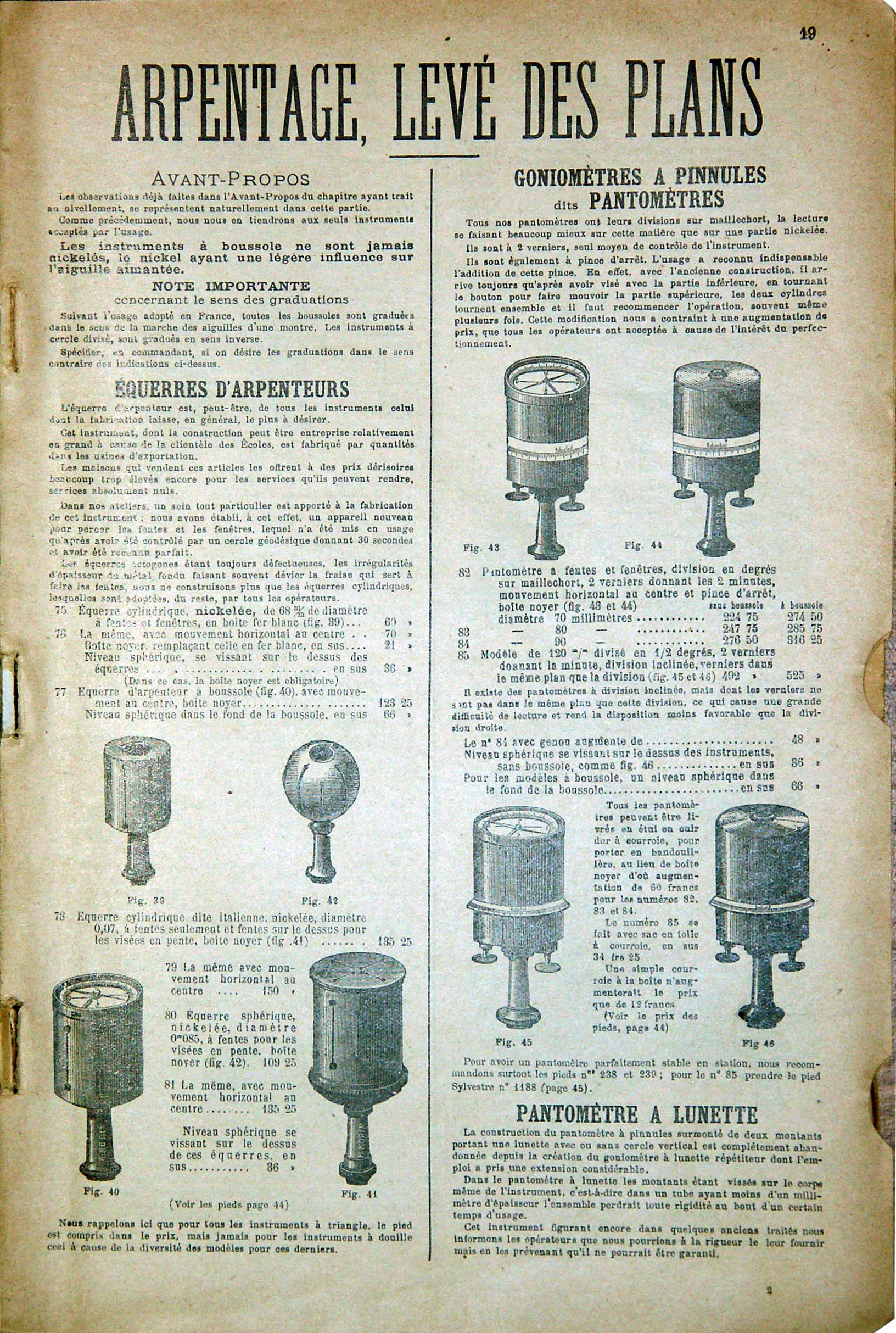

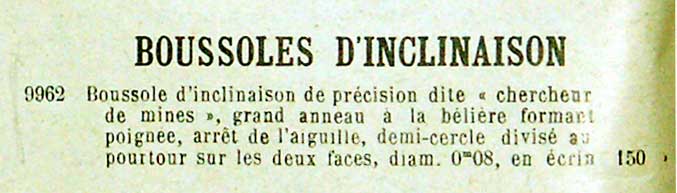

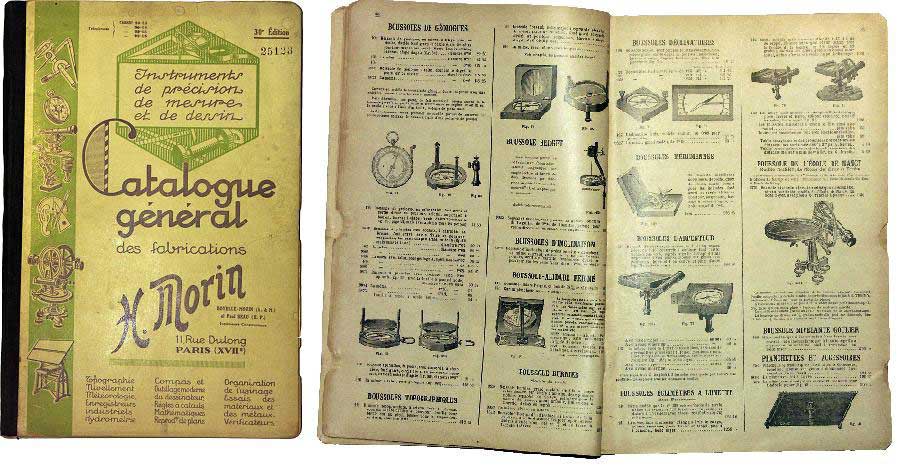

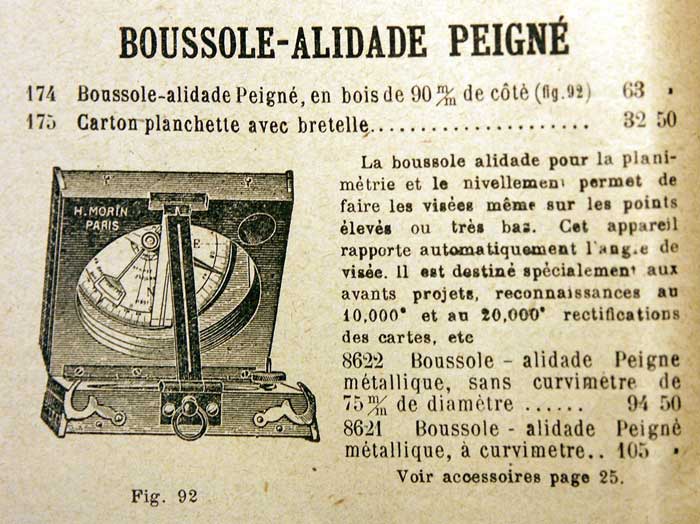

Picture: MORIN
catalogue (1930's)

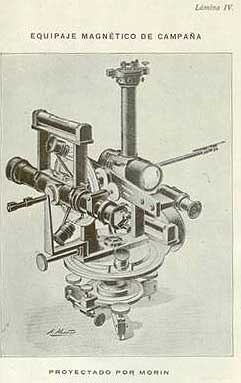

The
oldest instrument (
link to
picture sent by D. M. Farrioli)
that we know of is
described in
a book about the drawing of the isoclinical map of Spain (
Magnetismo Terrestre,
Madrid 1919)
.
* One of the main manufacturer
was
Collignon-Houlliot.
See also the categories Marching compasses, Nautical compasses and
Pocket compasses.
|
|

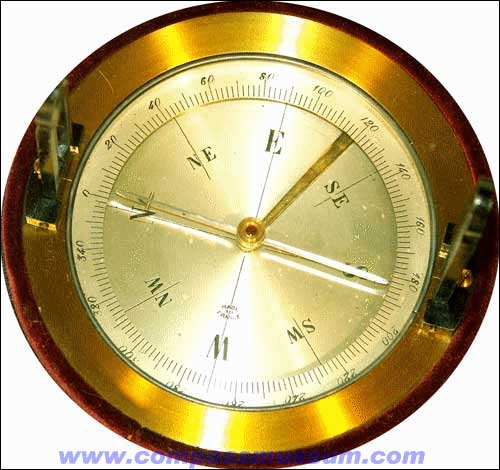

Technical Data
- Diameter: 80 mm
- Depth (closed): 27 mm
- Height (alidade upright): 60 mm
- Weight: 300 gr |
|
|
Technical
Data
- Diameter: 80 mm
- Depth: 12 mm
- Weight: 110 gr |
|
Example:
go to Collignon-Houlliot
|
Technical
Data

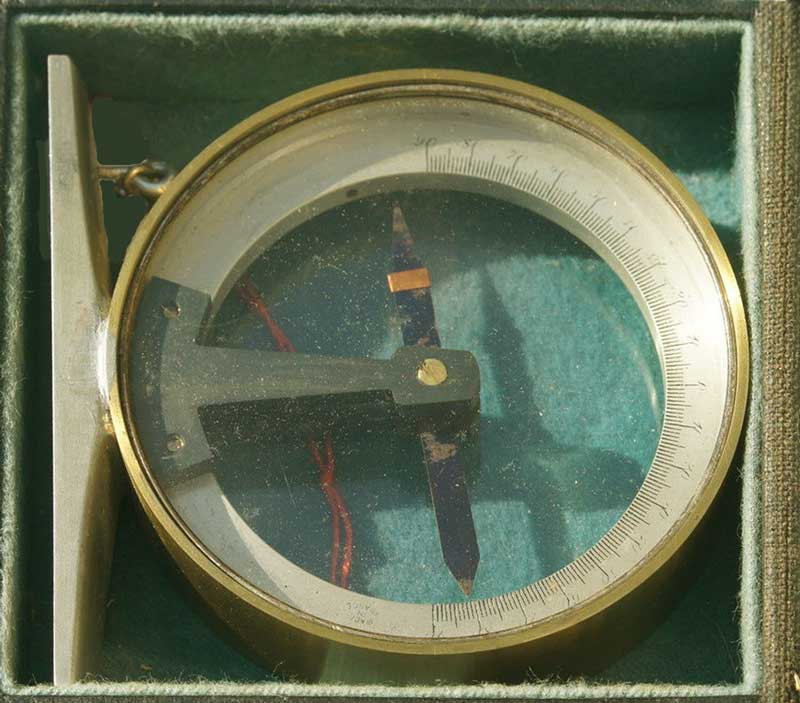

Compass equipped with a clinometer: The zero reference is situated on
a tangent defined by a retractable lever. The needle can be locked by
means of a piston sliding through the loop fitting (free when
extended).
The same model exists also bearing the name of the italian manufacturer
of optical instruments SALMOIRAGHI. |
|
|
Technical Data
- Diameter (compass): 90mm
- Depth (case, closed): 30mm
- Height: (alidade upright): 75mm
- Weight: 200gr
Export Version (cardinal points in English) |
|

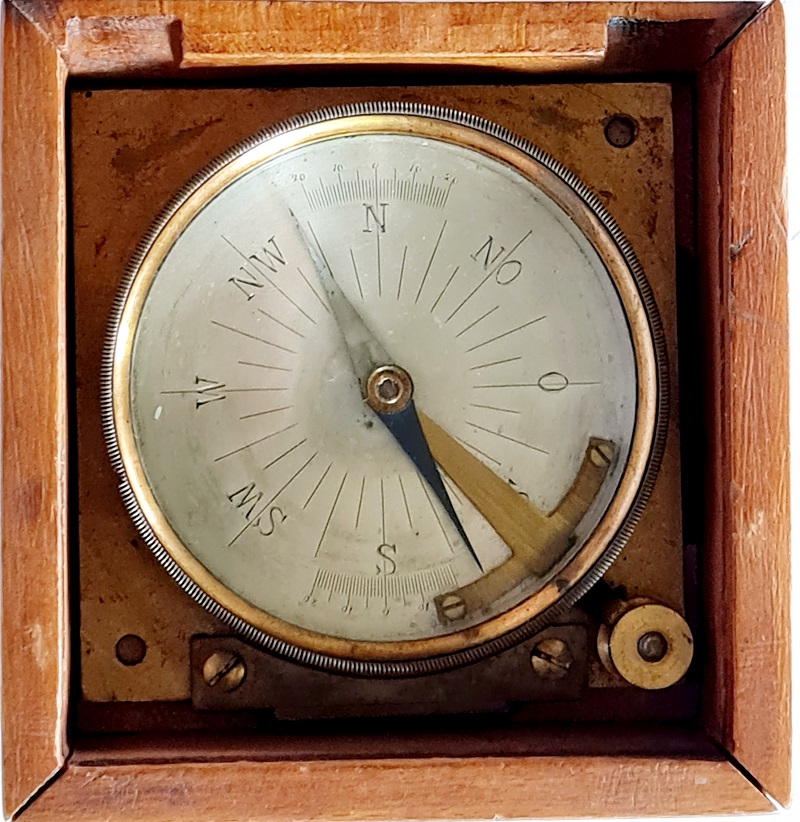

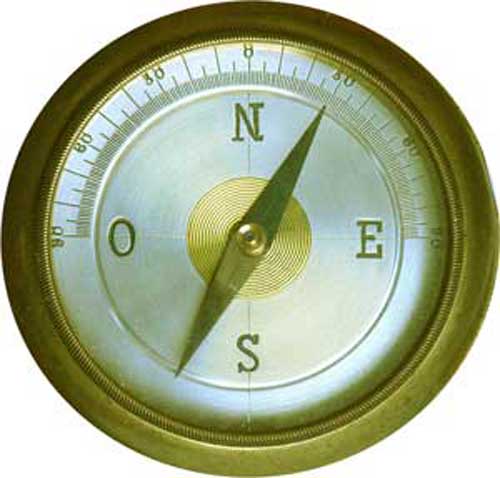

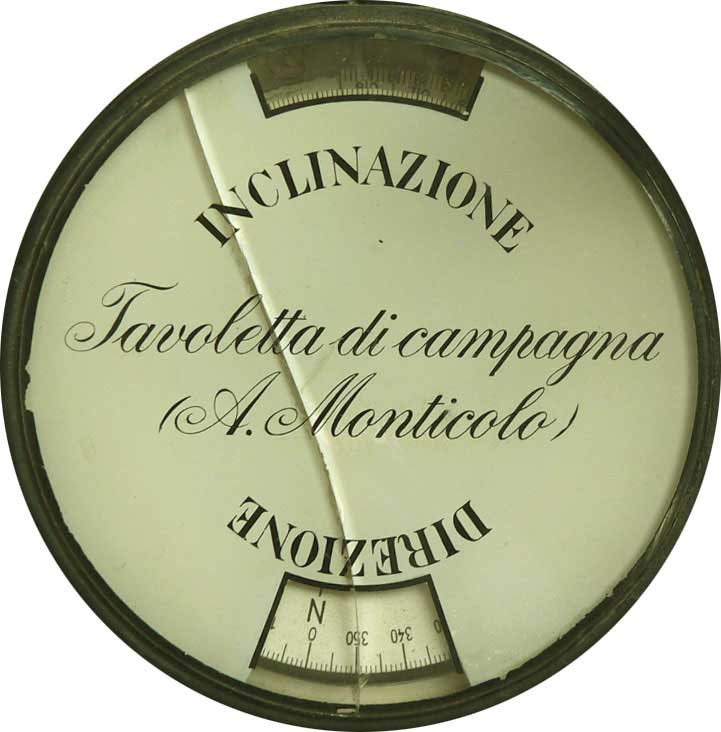

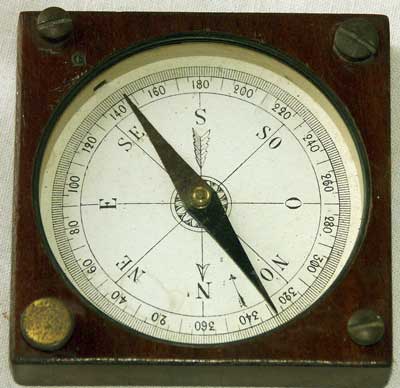

Plane
Table Compass
|
Technical
Data
- Dimensions: 70 x 70 x 15mm
- Weight: 50gr
|
|

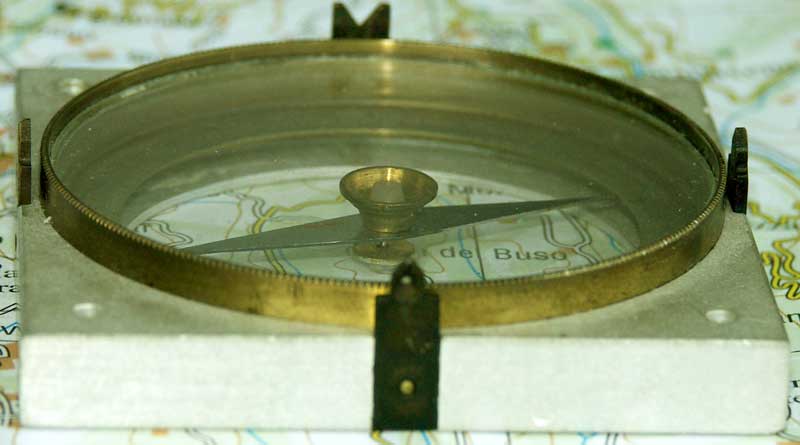

Trough
or Plane Table Compass
|
Technical
Data
Dimensions: (?)
NOTE: the museum
doesn't possess this item. This

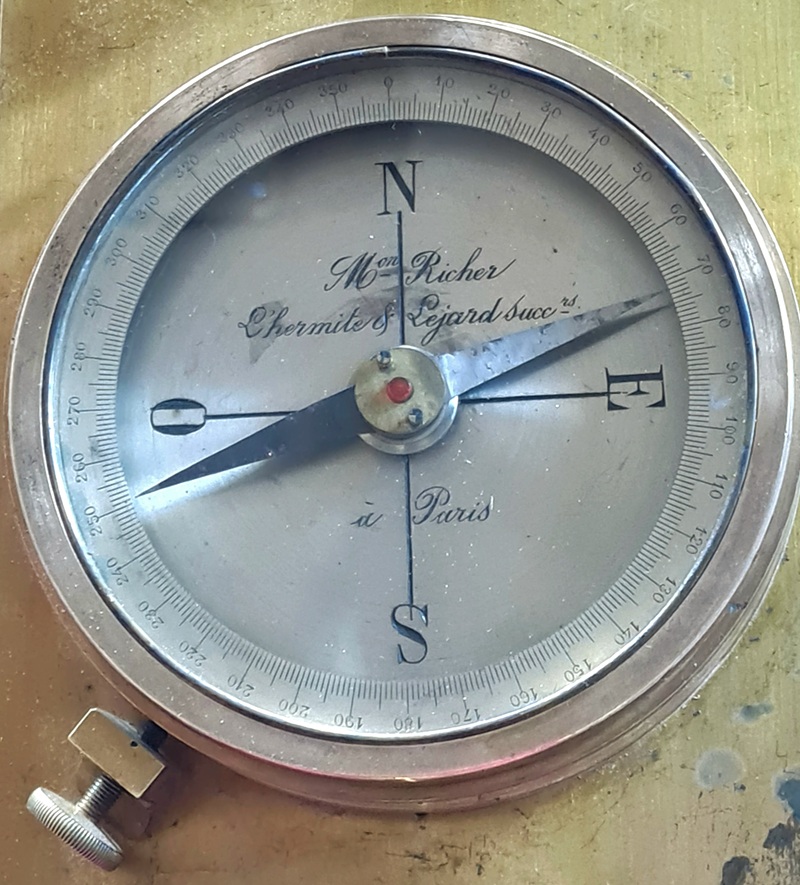

was sent by a visitor. The museum has four other exhibits (see RICHER,
SECRETAN and two no-name, items, one being part of a military
theodolite, see the trough compass below). |
|
|

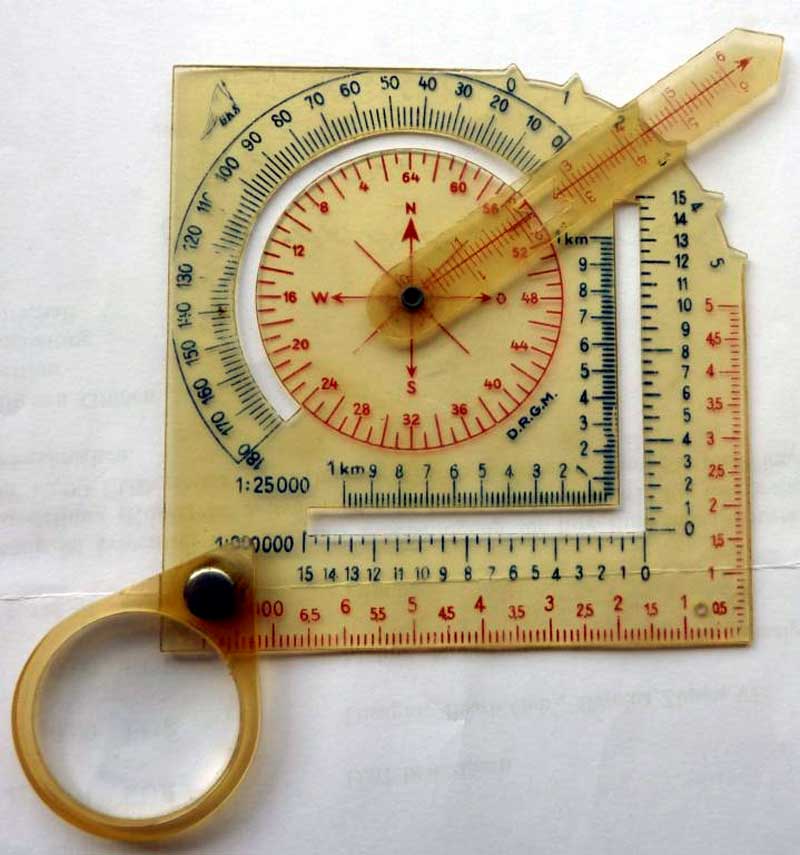

Square
protractor
(See "protractor,
square
/
Romer scale"
below)
|
|
Miners'
compass
Special compass for survey works in mines' galleries (see also description
and exhibits made by SECRÉTAN
and FPM). |
Technical Data
- ... |
Prismatic
compass designed by Berget
MORIN catalogue no. 9925
|
The compass unfortunately w/o its prism. Compare with the item
made by Houlliot
(Click
for
enlarged view) |
Technical Data
- Dimensions (overall): 110 x 85 mm
- Compass diameter: 40 mm
- Divisions: 400 grades
- Weight: 85 gr |
|
|
MORIN
produced together with SRPI
a
modern version
of Général
Peigné's system (see further down) made of aluminum.
(Pictures
Jaypee - private collection) |
|
Click on the image above for displaying the entire page |

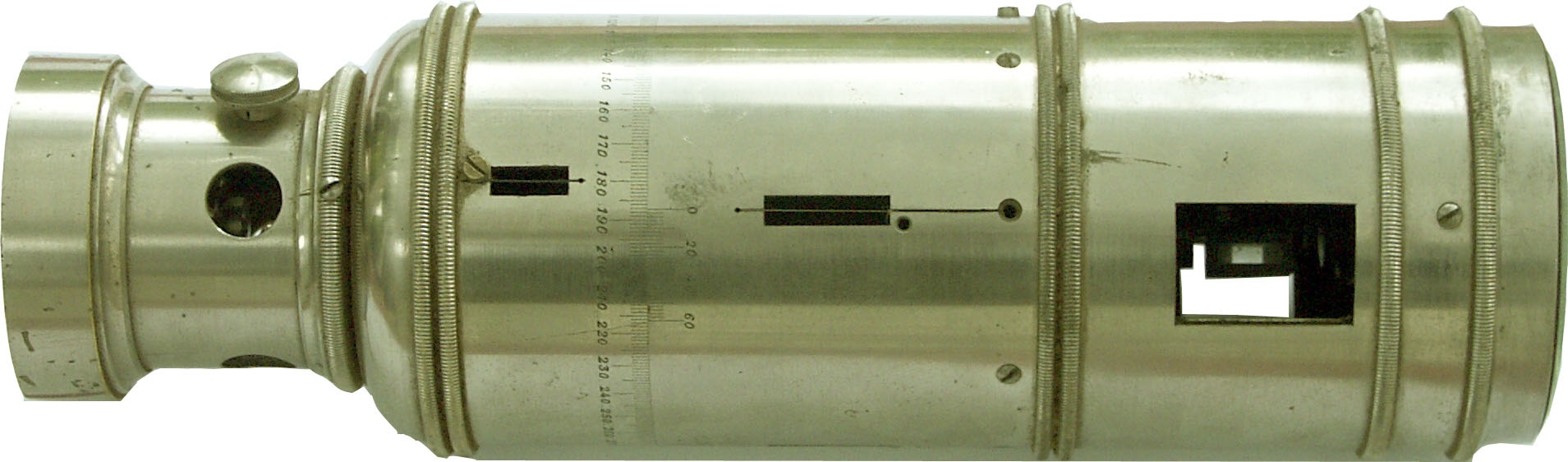

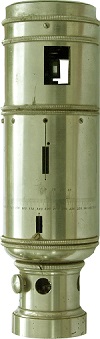

Cross
staffs and similar instruments
Morin made them only in cylindrical cases while Secrétan
made them octogon-shaped. |

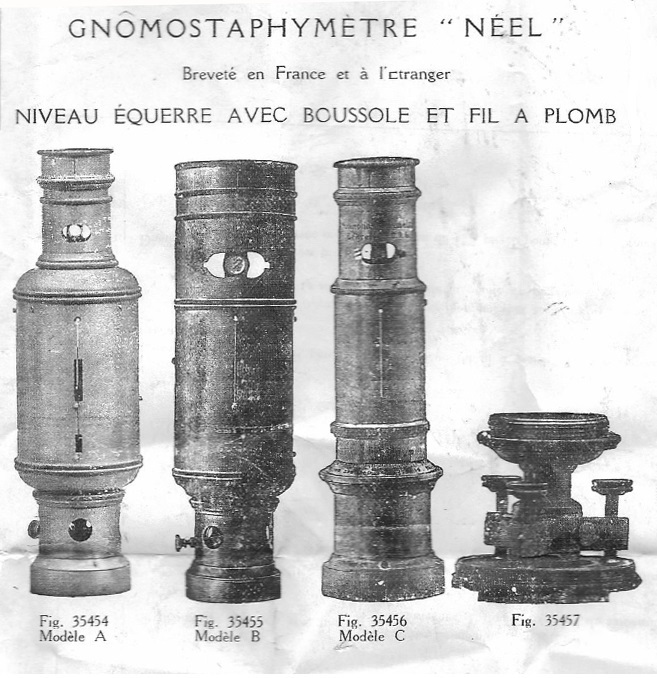

GNÔMOSTAPHYMÈTRE
"NÉEL"
Pictures by courtesy of M. Bergouignan
(link to pic of flyer) |
(1)
|
(2)
|
Cross staffs and similar instruments
The vertical stand of the instrument at outer left is ensured by means
of knurled knobs with which the staff head can be tilted so that two
pins (one hanging from above) are aligned
(see pic at r.).
The compass was supplied by Houlliot
Dimensions: compass dia. 60 mm; height 230 mm
The later made instruments (1 and 2) had no compass
The drawings of these two instruments
called (1) 'niveau à
collimateur' (level with sighting device) and (2) omnimètre ("tool for
measuring everything" !) are taken from a MORIN catalogue
dating back to the 1960s.
Click on the images for the complete description.
|
|
|

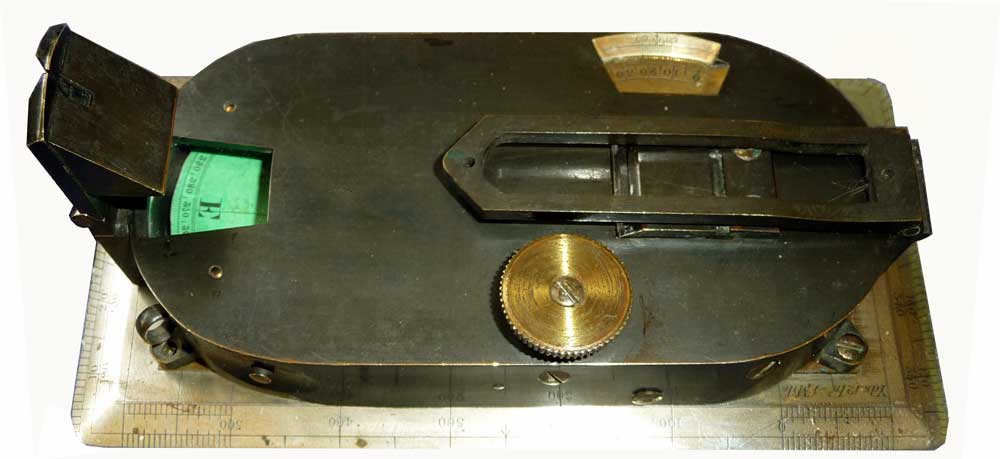

MORIN retailed in the 1960s/70s a
dip needle compass
made by
Collignon-Houlliot. This item featured a foot so that it could be used
as a altazimut compass but is identical to the one described in the
1930 catalog (w/o pic) which featured a large ring. |
-N -
Louis NÉEL was a scientist who worked on magnetism. The instrument
above (see MORIN) was probably dubbed "gnômostaphymètre Néel" to honour
him.

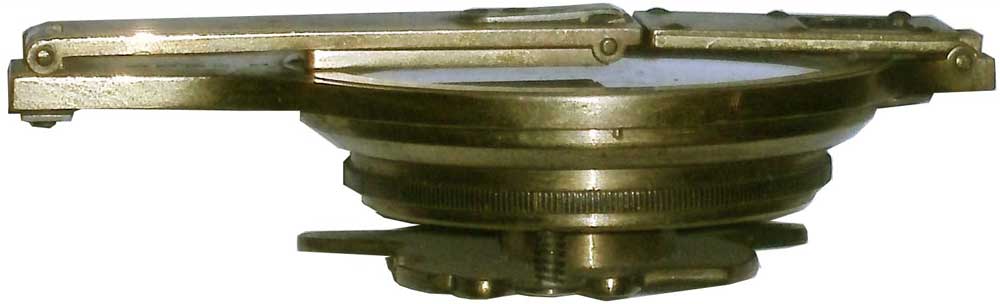

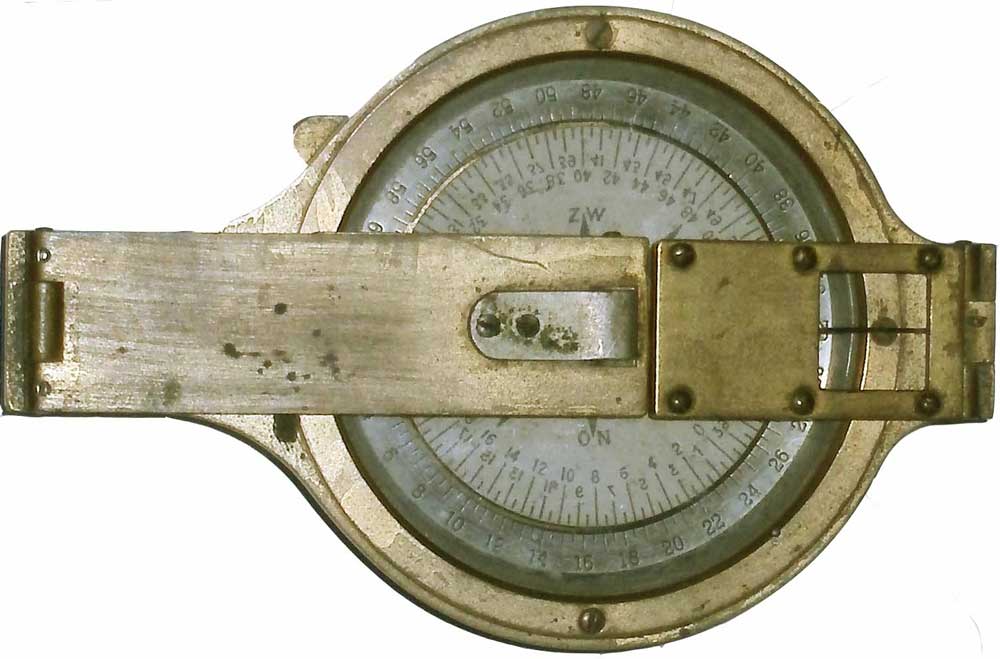

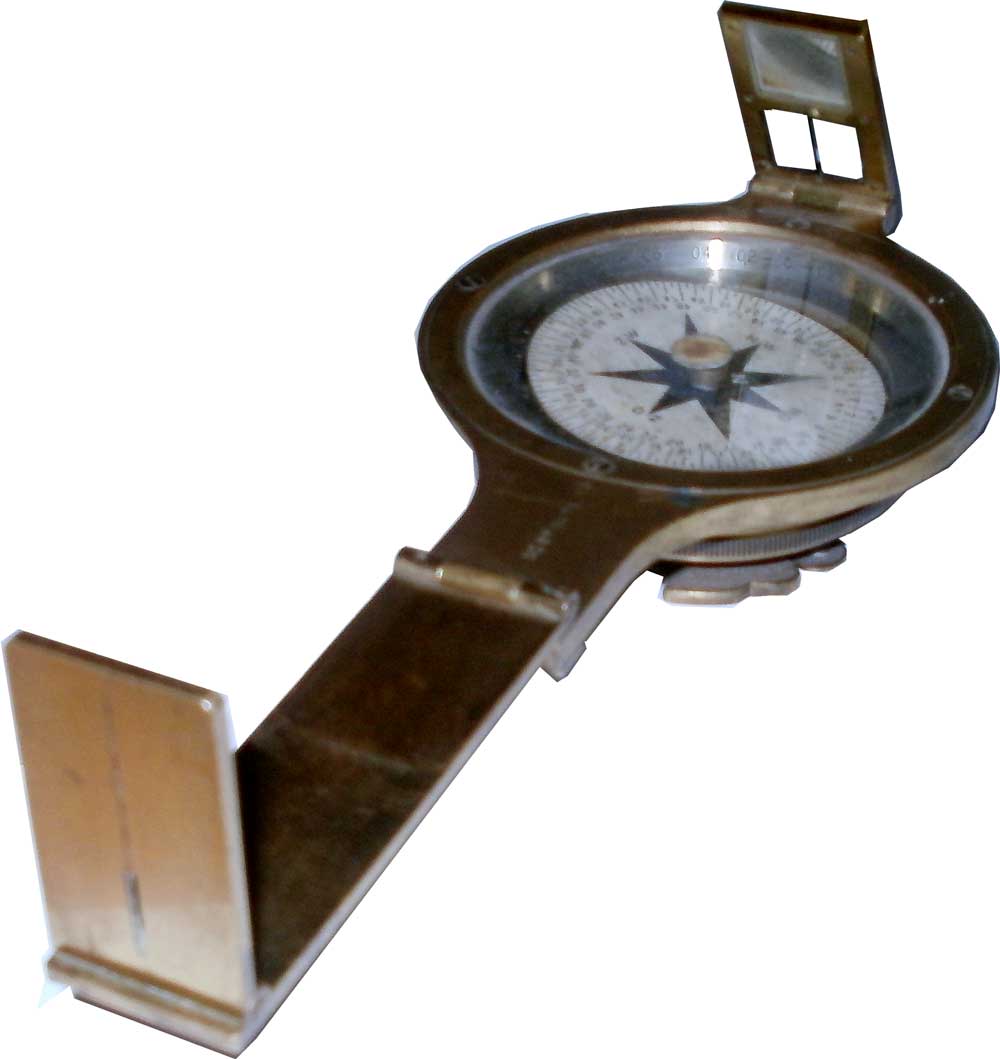

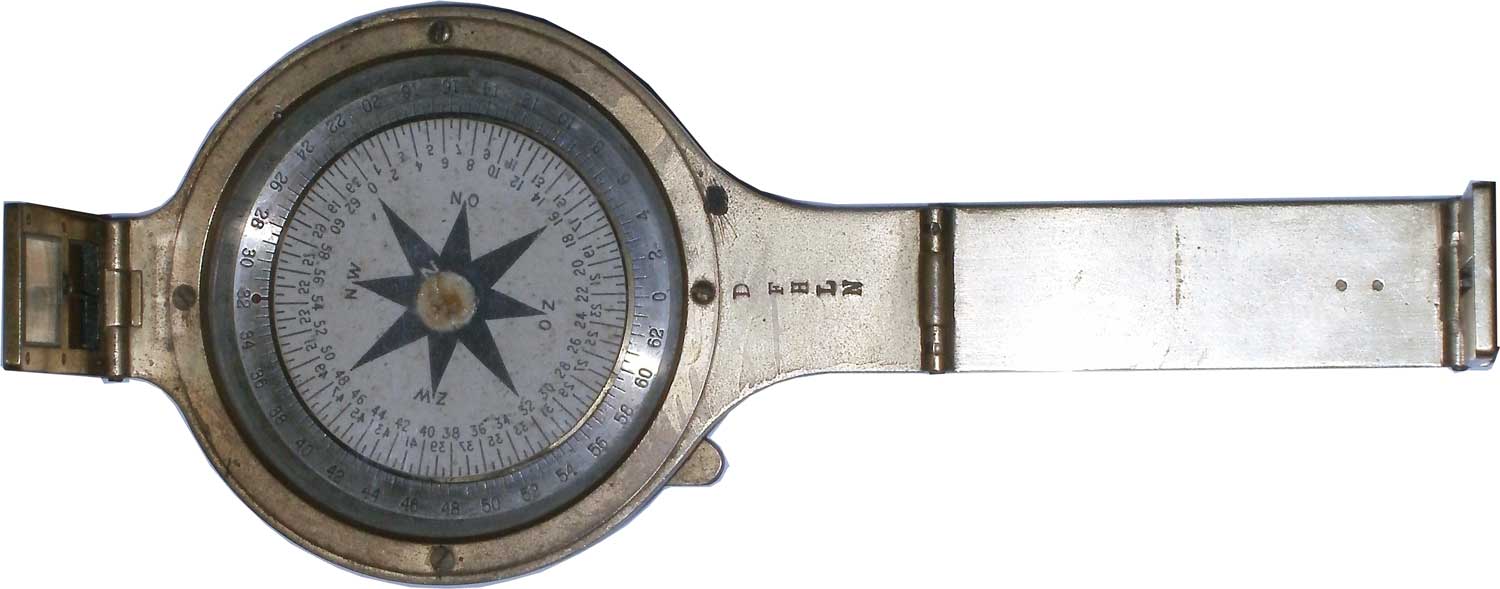

PROFILE - Artillery compass for guns battery made by
Staatsbedrijf
der Artillerie-Inrichtingen.
Sighting
through the slot and over the wire. The
angle values are read in the small square mirror located above the wire.
(Click
on the images for enlarged views)
Pictures courtesy
M. Langner
|
It was
used together with
binoculars and a
tripod. The meaning of the
letters (DFHLN) is not known. All compasses
featured different letters.

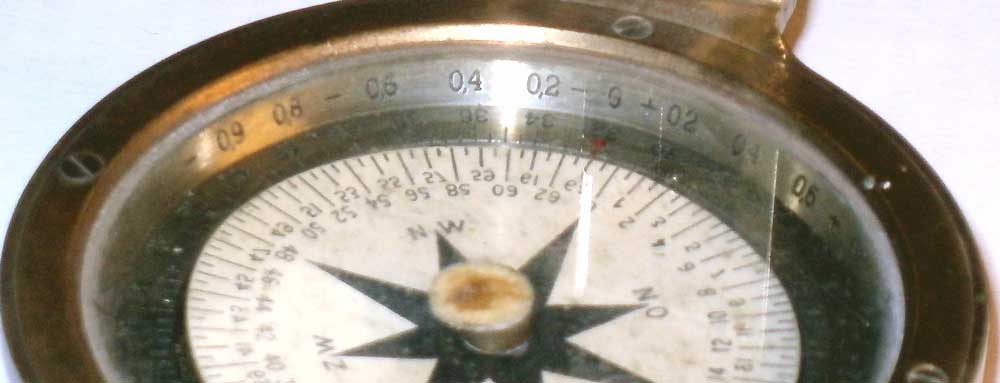

The divisions ring also comprises a scale for correction
coefficients (see pic.

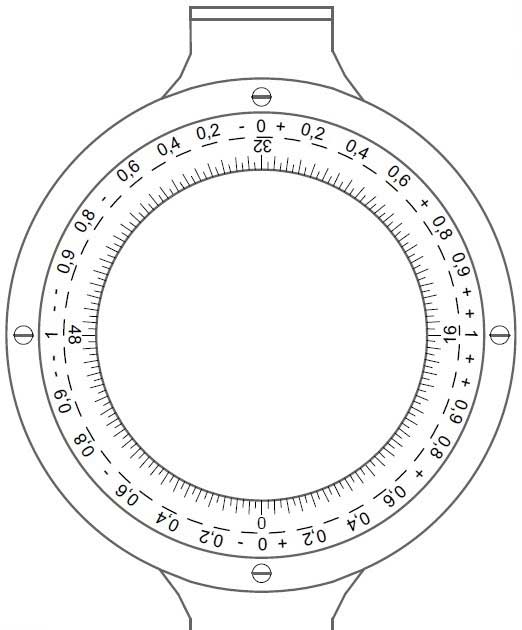

below. For a
drawing of the complete range please click HERE. Thank you for any hint
about its use):
|
|
Technical
Data
- Length. (extended): 8" / 201mm;
- Length (folded): 5" / 128mm
- Dia. (case): 3 1/4" / 83mm
- Dia. (compass disc): 2" / 52mm
- Divisions: 6400 MILS
- Weight: ca. 1 lb. / 480 g

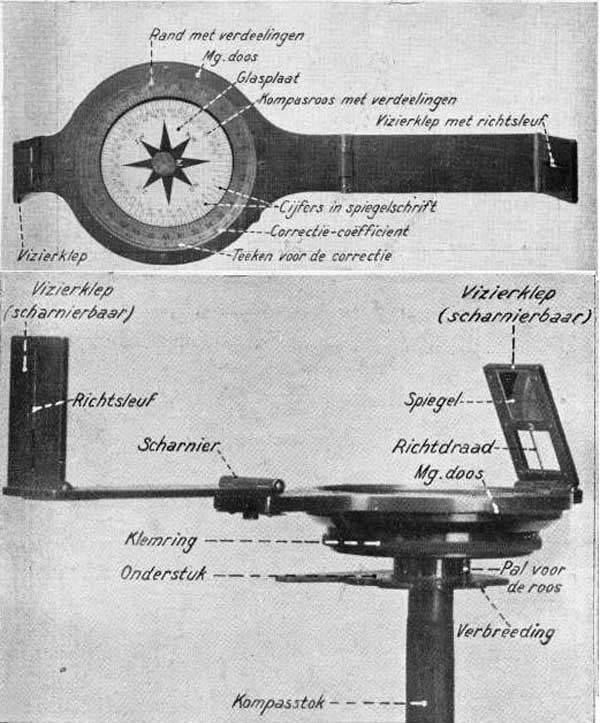

Descr. in Dutch language
(pic.
court. T. Brink):
Transl. of
Teeken: sign (plus
or minus)
|
- O -

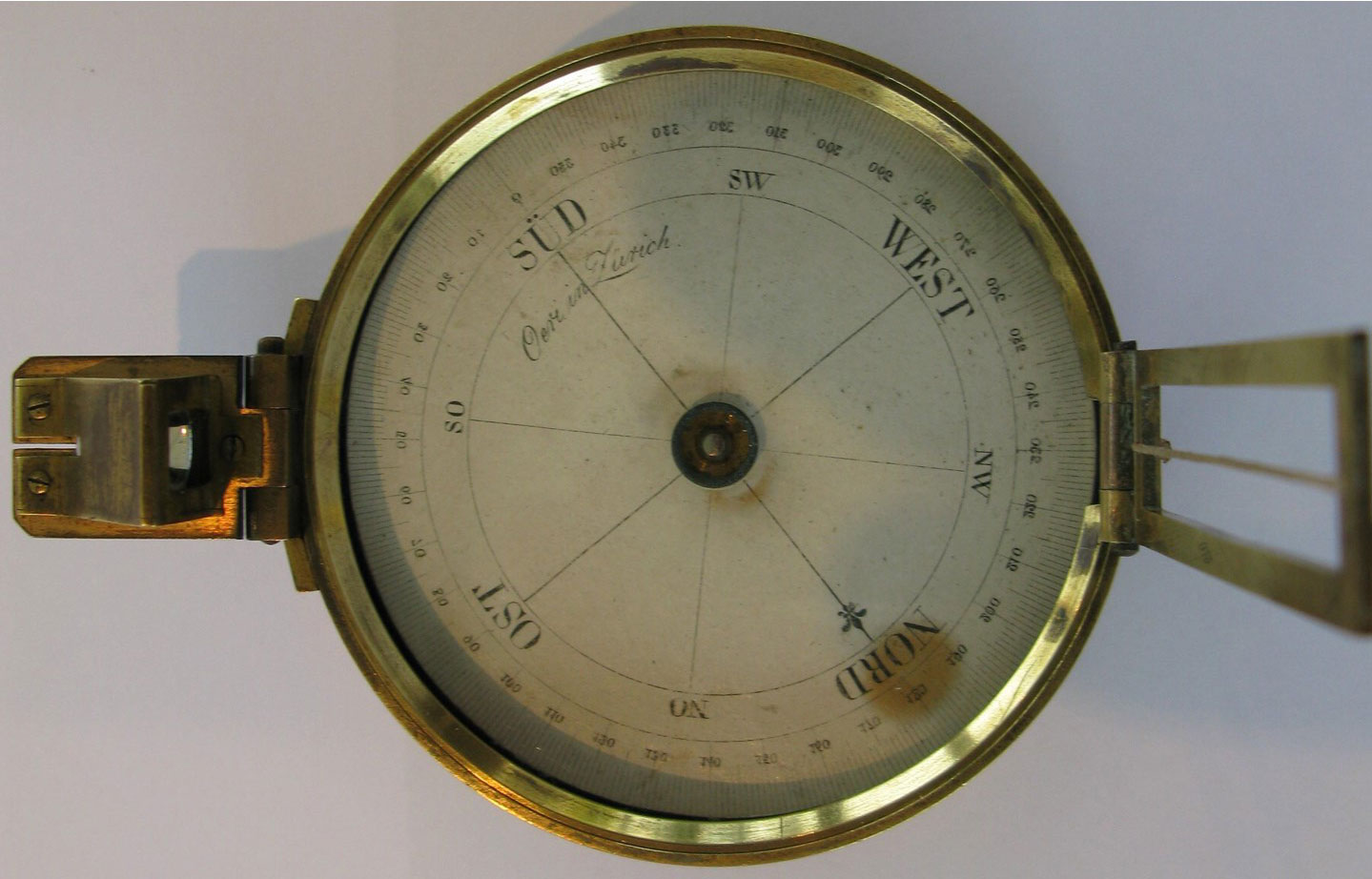

Johann Georg OERI (1780-1852) was born in Zurich, Switzerland. He
learned first silversmith and went then to Paris and was apprentice to
Jean Niclas Fortin
and learned the making of barometers and optical instruments. A
portrait of him was painted by his brother Hans Jakob.
Source:
https://www.goldschmid-aneroide.com/firmengeschichte/johann-georg-oeri/
(Cliquer
sur les images pour les agrandir)
|
|
Technical Data
Dimensions
- Ø : 72 mm
- Height: 22 mm
- Weight: 180 g

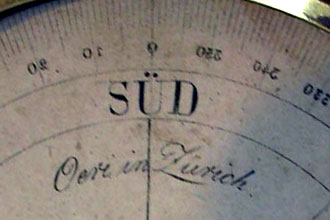

Marking on disc : Oeri in Zürich

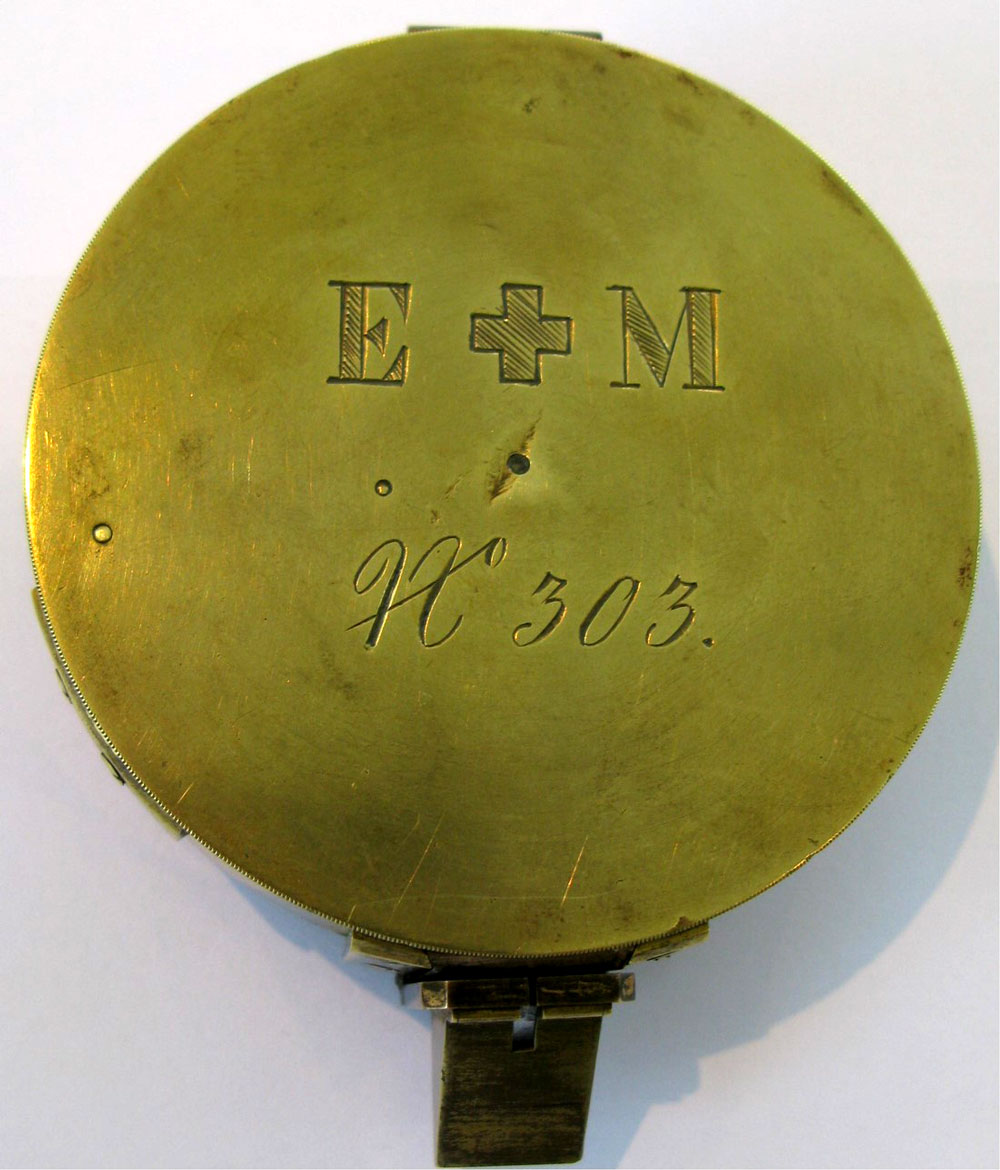

Engraving on back: E. and M. on eitner side of the Switss cross =
Equipement militaire ?
Pictures
by courtesy of Th. Steffen
|
Richard Hebden O'GRADY HALY* was a British officer (born 22
February 1841, died 8 July 1911 Major General) who invented when he was
Lieutenant Colonel a compass system with clinometer that bears his name
and was built by
ELLIOTT
Bros.
* For comprehensive résumé and portrait click
HERE.
OSTOYA

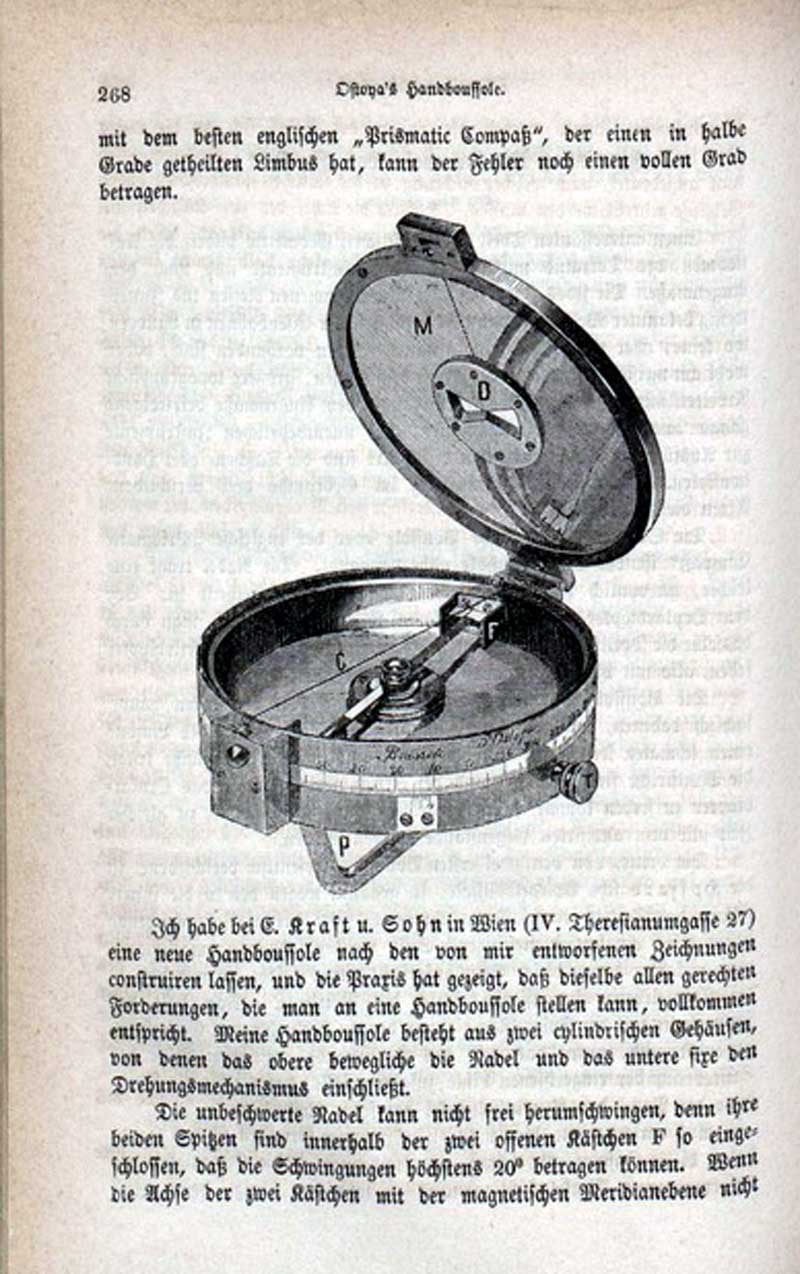

PROFILE - G. Ostoya was an Austrian (Imperial officer?) and inventor.
He had this system built by E. Kraft in Vienna. Full
description in German in the article "
Eine
neue Handbussole von
G. Ostoya" (a new marching
compass designed by G. Ostoya) published in the review Polytechnisches
Journal (issue 1877), online on the website of the Alexander von
Humbodt University in Berlin
HERE.
Images digitized by
A. v. Humboldt University
(Click
on the image for an enlarged view)
|
Technical
Data
- Dimensions: no information available
- Technique: this instrument is a precision trough or plane table
compass. The needle can only swing between the two boxes (F). Rotation
of the cylinders while sighting
is effected via the mechanism (T). The angle value (precision
20 minutes or arc) can be read on the external nonius.
(For more details
read the full description on the A. v. Humboldt
University's website - If needed, we can help with a translation).
|
- P -

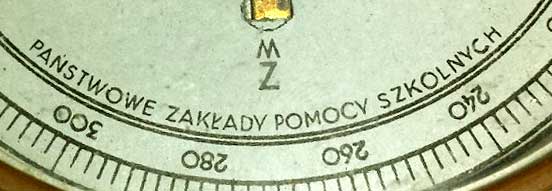

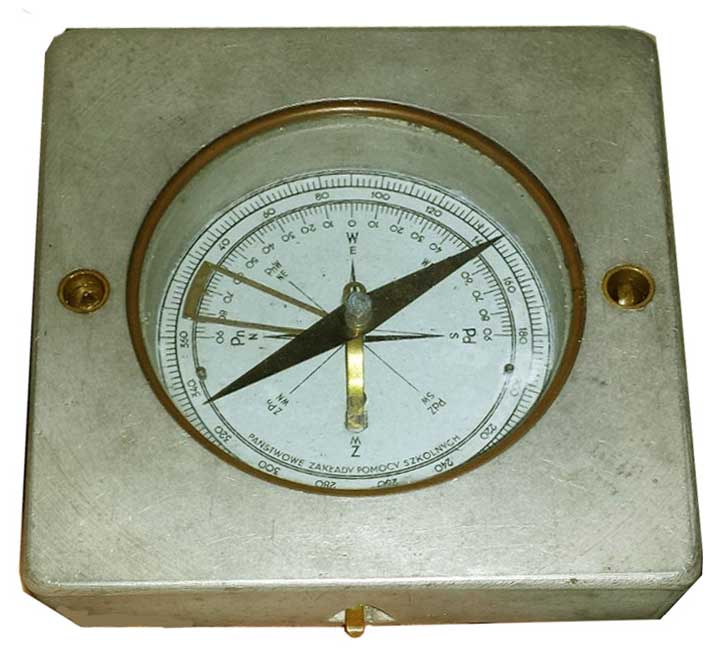

Państwowe Zakłady
Pomocy
Szkolnych
Państwowe Zakłady Pomocy
Szkolnych was a government supplier
of
educational material for mining and surveying in
technical colleges. It was
created
in Warsaw in 1949 and existed until 1973.
|
Pictures
courtesy of hipermetalo
|
Technical Data
Dim.
- Case side length: approx. 150 mm
- Kompass-Ø: ca. 100 mm

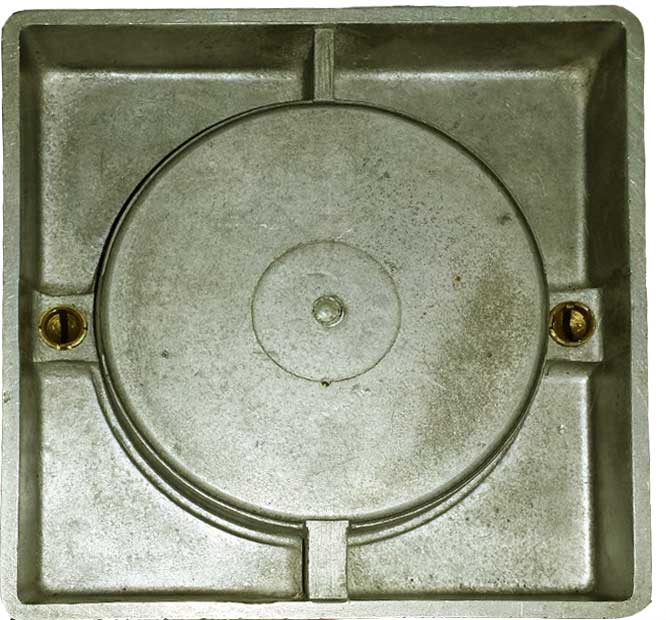

The underside is hollow without
markings (link
to pic.).
|
James Parkes was a
British manufacturer of telescopes.
He founded his company in 1839. He was
succeeded by
his
son and the company was renamed James Parkes
& Son (1843 – 1862).
Both companies traded from 5, St. Mary’s Row, Birmingham.
We presume that there is a connection with a certain Robert
Parkes who lived in the late 16th century and was cited by Simon Forman
in
his book
Longitude.
Parkes was apparently a manufacturer of telescopes.
Description of the production scope in a catalogue for the year 1848:
"Measuring
tapes, land
chains, mathematical instruments, miners' & mariners'
compasses,
watchkeys, seals etc."
Parkes's trademark was a
human left eye shown open together with an eyebrow. The "eye" trademark
also appeared on both sides of Britain's
coat-of-arms in an 1867 catalogue (
see
image at right - click to enlarge).

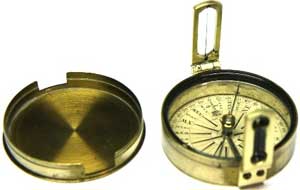

Compass open with the vanes erected (compare with the compass
made by the German FENNEL
or the French MORIN, above). |
|

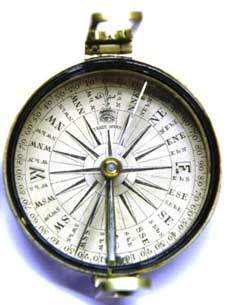

Technical
Data
- Diameter (sighting vanes folded): 60 mm
- Diameter (sighting vanes deployed): 70 mm
- Depth (closed with lid on): 21 mm
- Weight: 120 g
(Pictures
courtesy
of TRADEMARKLONDON)
|
This compass type was designed by the French officer Paul
Peigné (for his
résumé,
click
HERE).
It could well be that in reality, the then captain only modified the
system designed by a lady compass maker called Mademoiselle
DUPUY
by integrating the clinometer into the compass capsule and
adding
user's instructions glued on the case's upper and lower sides.
See also
LEZY.
It was built by several companies like
MORIN, LADOIS and S-L. A short version of the users' instructions was
glued on both sides of the wooden casing (printed by Delagrave et
Cie). Late 19th until early 20th century. This compass is equipped with
an
alidade that could be used both with the compass needle to take
azimutal
bearings and with the clinometer to measure elevation angles. The
magnetic needle oscillations can be slowed by depressing a thin piston
gliding through the transit locking screw. The clinometer scale is
printed
inverted so as to be read in the mirror. It was one of the major
official compasses used in the French Army during WWI.
(Fig. at
right: French Infantry petty officers manual 1914/15 in which the
compass is still designated "du capitaine Peigné")
Compass system by Gen. PEIGNÉ in the MORIN catalogue for 1930
(Click
on the picture for the full
catalogue text in French) |
Versions
signed Capitaine Peigné dated 1874 (made by LADOIS)
and Colonel Peigné dated 1897.
Another intermediate version states his
grade as Lieutenant-Colonel
(link to pic) from 1883 on.
|
Military
version
(6400 mils) with signature
"Gal
Peigné", 1916, made by Delagrave, Paris. The mention
Général Peigné

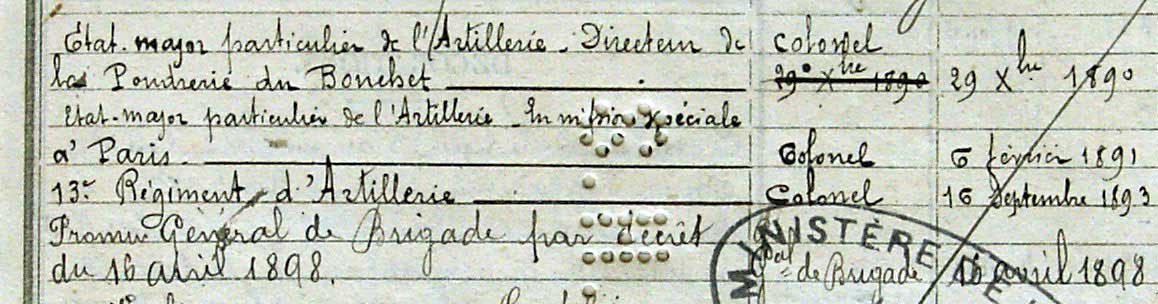

appears only after he was appointed
General in 1898 (source: French
mil. archives).
Note: the figure
"9" in the year is a typo: Link to pic. it
appears mirrored when looking at the mirror!
A version with the grade of commandant (major) is said to have existed
but we have no picture of it. |
A bakelite version was made by S-L
in the 1930's. |

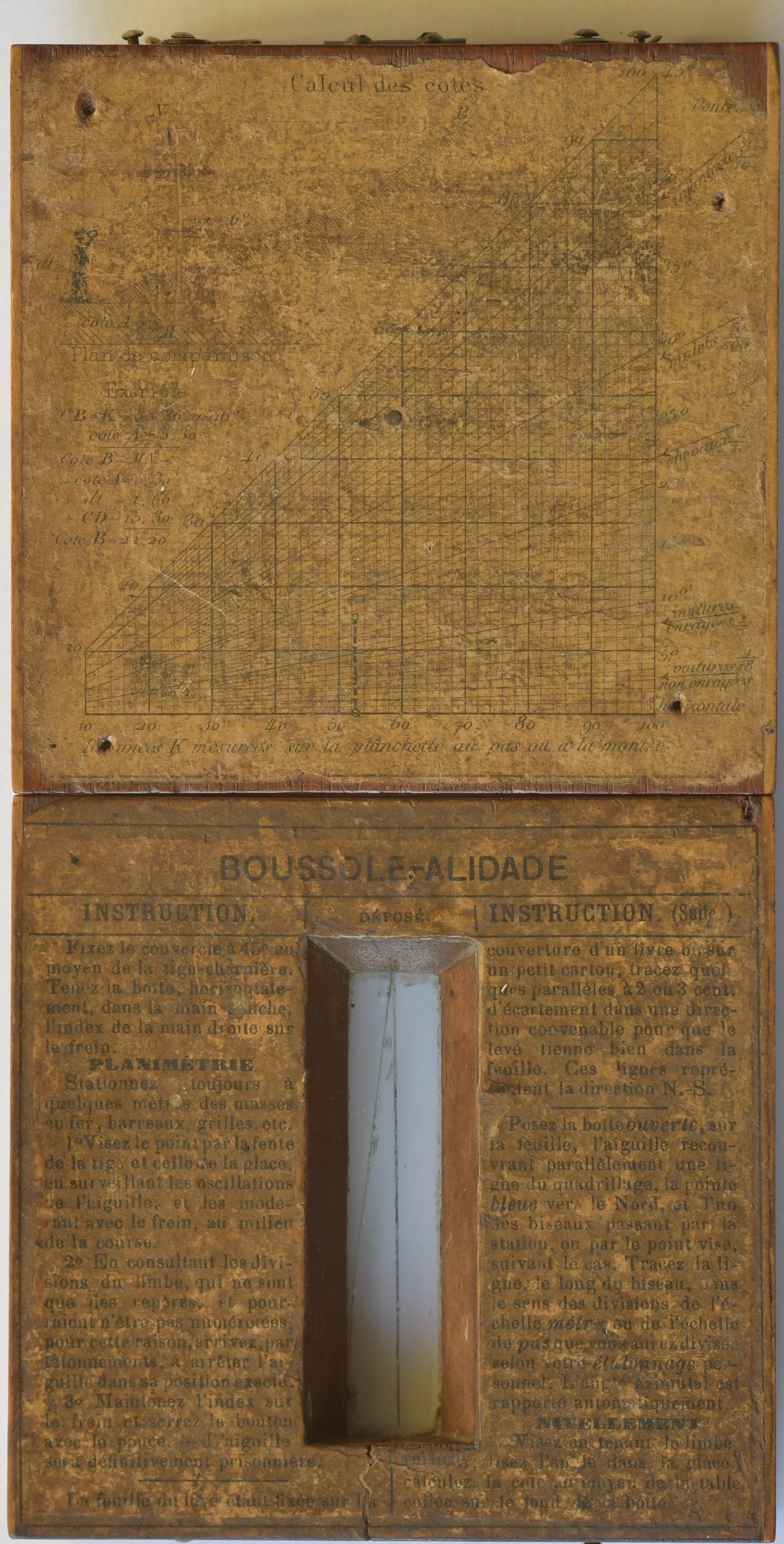

The
user's instructions on the casing differ between the first Capitaine
version (img. at left, courtesy A. Coubard) and the following edtions
(img. at r.). They were not signed Delagrave
& Cie Editeurs, Paris.
At right: comprehensive manual (4 p., see SHOP) |
Technical
Data
- Dimensions: 92 x 90 x 35 mm
- Dim. of the original "capitaine" version: 84 x 87 x 29 mm
- Diameter of compass rose: 70 mm
- Divisions: 6400 mils, clockwise
- Clinometer: 0-1000 (unit ?) upwards and downwards
- Weight: 200 gr
- Side ruler (casing deployed): 160 mm
The French Capitaine Brèche who teached military survey
technique in the
St-Maixent infantry school
published in 1911 his entire lecture course (link to
image) in which he
described various compasses, among others the Peigné system.
He described this system as having two horse hairs inside
the mirror's slot:"le
plan vertical de la visée est
déterminé par le milieu de l'intervalle qui
sépare DEUX CRINS tendus dans la fenêtre".
This device could only be observed on relatively few compasses but it
is
represented in the drawing in the MORIN ad, top row, left.
|
At right: Map reader for five scales
(1:50.000, 1:80.000, 1:100.000, 1:200.000 and 1:320.000)
|

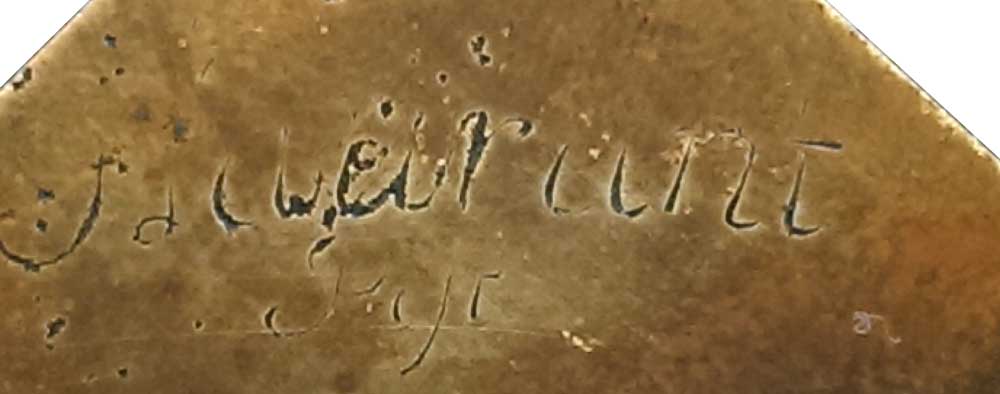

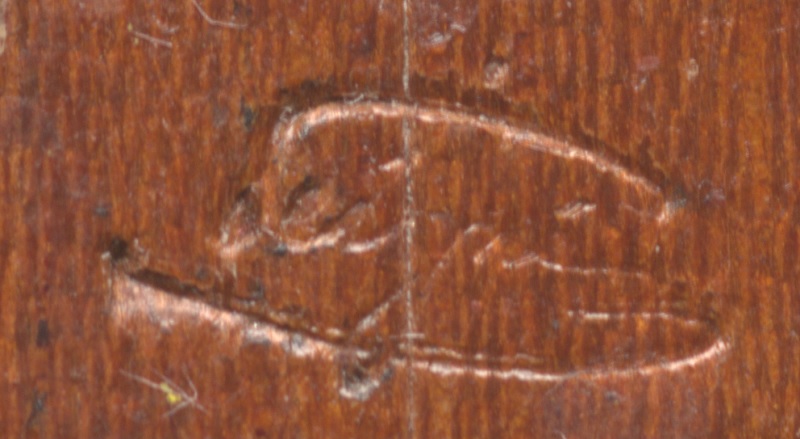

Peigné's first signature (1871) was different from his later "général"
one. It was engraved in some wooden caae models made by Ladois and on
the
metallic version. |
Metallic
cylindrical version called
Saint-Maixent* model
It
was manufactured by LADOIS.
*
Famous military
school
Technical Data
- Diameter: 83 mm
- Depth: 26 mm
- Divisions: 6400 mils, clockwise
- Clinometer: degrees, no separate scale
- Weight: 320 gr
- Ruler flap: 70 mm |
|
Similar
model but
unsigned. The dial was
probably made by HOULLIOT. The divisions (360° clockwise,
clinometer +/- 30°) are engraved and not printed on paper. The
locking hooks are sturdy. The sighting recess in the lid features
rounded ends.
|
Technical
Data
- Dim.: 930 x 930 x 31mm
- Side ruler: none

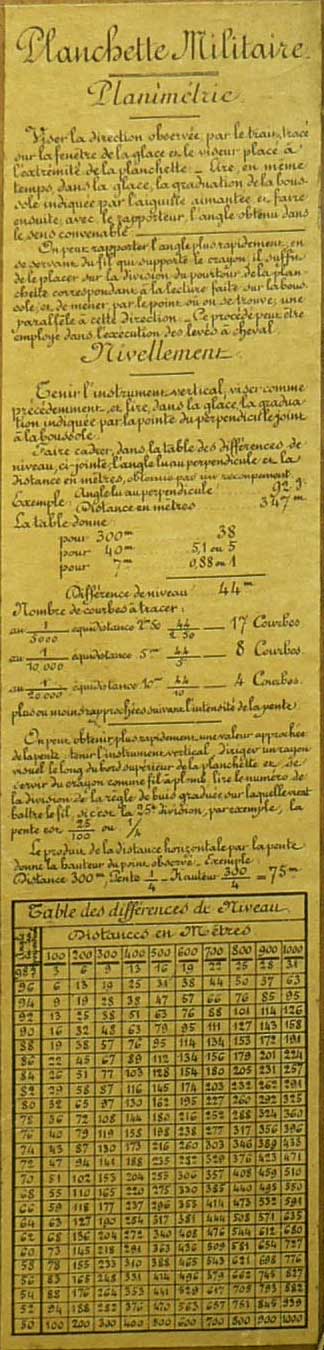

On the rear face, a placard with user instructions refers to a table
designed by MARTEL of which we know nothing yet.
|
|
Pic.
at left: Version
made by
Houlliot
Technical Data
- Dimensions : 87 x 87 x 33 mm
- Weight : 150 g
- Casing : mahogany
|
It was
proposed to use this compass type
to assess the elevation angle to aircraft (excerpt of Revue du Génie
Militaire, Jan. 1922
|
Compass with Map
Measurer (Curvimeter)
This instrument is described in a document dated 1880 and attributed to
Peigné (
Aide-Mémoire
à l'usage des officiers d'artillerie,
s. enlarged image at r.). The manufacturer was probably LADOIS. The
curvimeter is also unique: one can measure distances of up
to one meter by means of the integrated mechanism. One notched wheel
protruding from the casing's side indicates 100 mm. Each full rotation
of it causes a small wheel to advance by one unit. It bears numbers
from 0 to 9 (decimeters). These values can be read through the two
heart-shaped windows on the rear face. Further characteristics:
- The needle can be locked for transit, but its oscillations can be
manuallly slowed downs by means of an additional lever.
- Folding sights consisting of two plates: one with a pin-hole, the
other with a square window with a vertical pin.
|
The
rear face with the two windows
|
(Click
on the pictures for enlarged
views)
|
Technical
Data
- Casing material: Nickel
- Dimensions: 80 x 41 x 17 mm
- Weight: 100 g
- Ruler: 50 mm
- Clinometer: 2 x 60 deg.
- Compass divisions: 360 deg. clockwise
- Serial (or model?) number (rear face, bottom): 1 |
PROFILE - Former German manufacturer located in Freiberg
/ Saxony.
Created probably at the very beginning of the 20th C.
Astronomical and Survey instruments. The company was taken
over by the communist government in 1951 and
integrated into the group
FPM.
Picture courtesy Jaypee
priv. coll.
|
Picture courtesy
feltfedora
Click
on the images for enlarged views
|
|
Technical Data
(black compass)
Dim.: 100 x 80 x 15 mm,
Compass Ø: 65 mm
Compare with the similar compass made by Voigtländer.
|

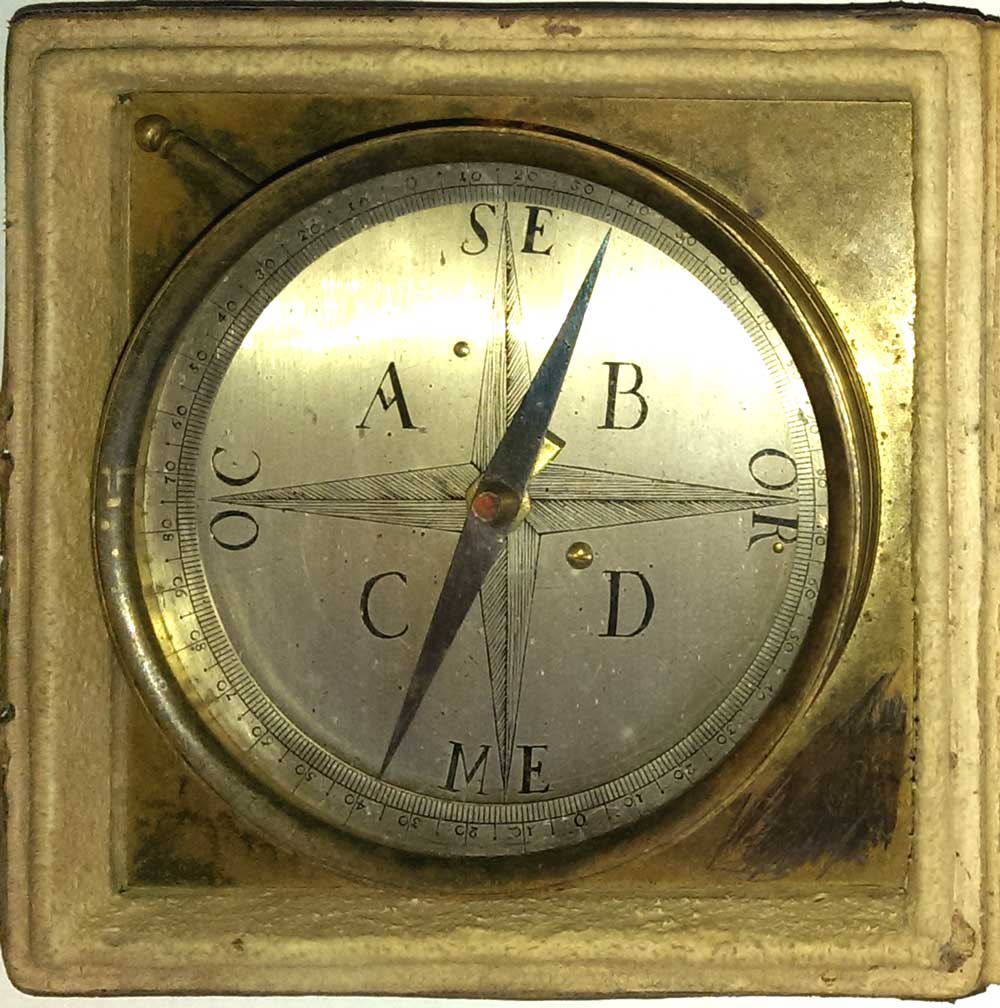

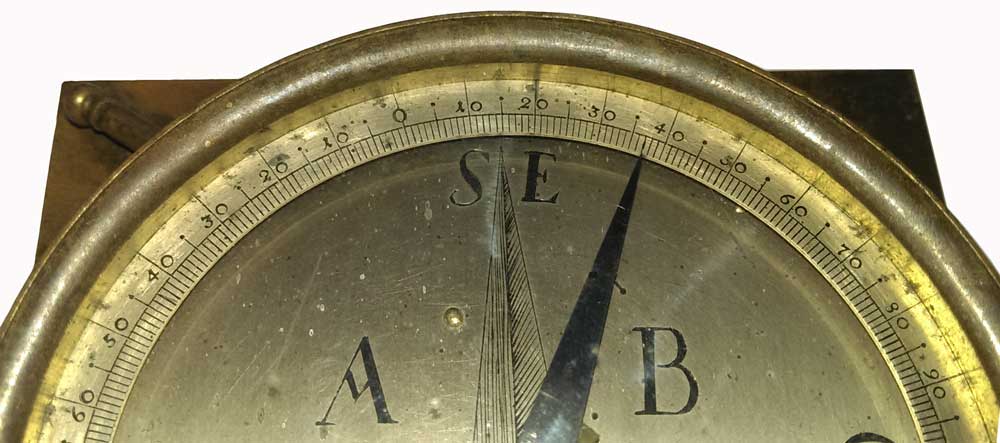

PROFILE
- Surveyor compass. The maker is still unknom but the city engraved
below his name (S. Weirant ?) was
PEST,
now a district of
Budapest
(
source
: Dorotheum, Vienna, Austria)
after the three distinct cities
Buda,
Obuda
and
Pest
merged in 1873.
The case's lid uper face (black leather) is enhanced by golden
stamped arabesques and rosaces along the edges and a sort of caduceus
in each corner.

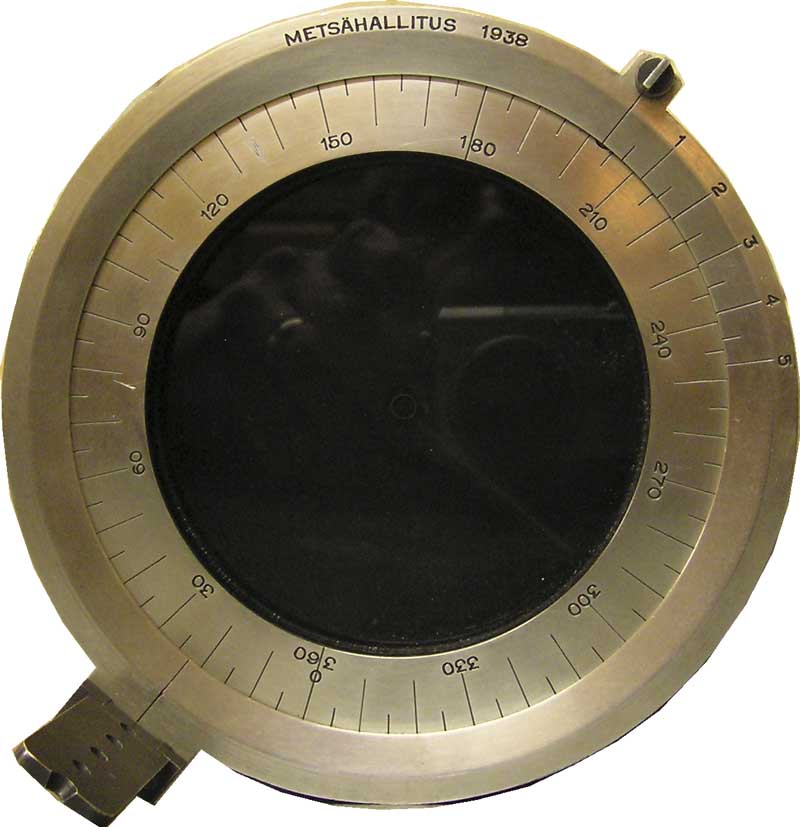

PROFILE
- Former Finnish manufacturer located in Helsinki. It was
probably short-lived. The only
instruments known up-to-now are this compass apparently used by the
national
Forestry department (
Metsähallitus)
and a wrist compass displayed in the SUUNTO entry which were both built
in
the 1930's.
at right: the
maker's
label on the compass below
The holes in the vane were a means to assess elevation angles
(slopes).
Former German company located in Berlin, active from 1824 to 1836. Carl
Philipp Heinrich Pistor (* 3 Jan. 1778 in Berlin; † 2 April 1847 in
Berlin) was an inventor (optical devices) and a pioneer in optical
telegraphy.
In 1824, Pistor associated with Friedrich Wilhelm Schiek who had
supplied him with various equipment for several years. The oldest
instrument known signed „Pistor & Schiek“ is the Prussian
master foot dated 1816. Their cooperation ended in 1836. (Source:
Wikipedia, German version).
A telescope is attached under the compass capsule. The
tripod adapter (link to picture)
features a special screw with which the assembly compass-telescope can
be rotated smoothly.
The
tool called plane table (
plain
table prior to 1830) is a device
used in surveying and related disciplines to provide a solid and level
surface on which to make field drawings, charts and maps. The early use
of the name plain table reflected its simplicity and plainness rather
than its flatness (source: WIKIPEDIA).
Its consists of a board usually attached to a tripod and articulated by
means of a knee joint so that it can always be levelled.
The picture at left shows a simple product out of MORIN's catalogue
c.1930. On it are placed a Peigné compass and an alidade.
The French word 'planchette' (small board) also designates a small
portable plane table held
in front of oneself, hung by a lace around the neck. A French Ponthus
& Therrode catalogue (ca. 1910) displays a
drawing
of a soldier holding one, also
with a
large
Peigné
compass.
A 'planchette compass' designated hence also a pocket
compass that could be attached to the board by means of a tab and two
screws. However, in the description displayed at right (
Stockert
catalogue, click on image for full descr.), the word planchette is
wrongly used to designate the tab
screwed to the compass case. The current German designation for plane
table is
Messtisch.
The correct English designation of such instruments is
Trough
compass.
Houlliot
manufactured different ones until WW1 (pict. of
Russian
models).
We own one of them and one can also be seen with cardinals in
ancient
Russian writing in the 1910
Stockert catalogue.

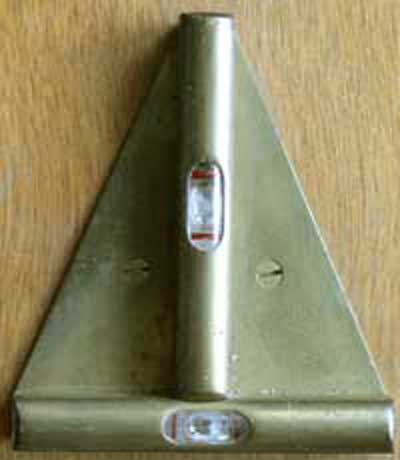

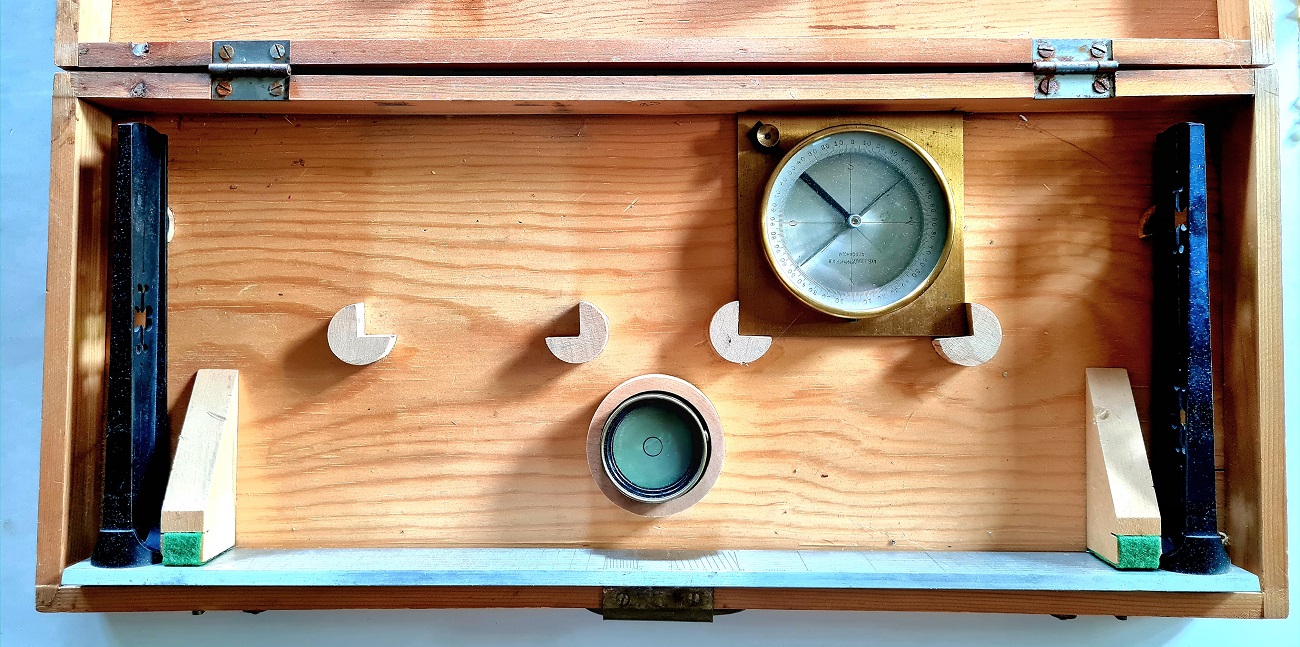

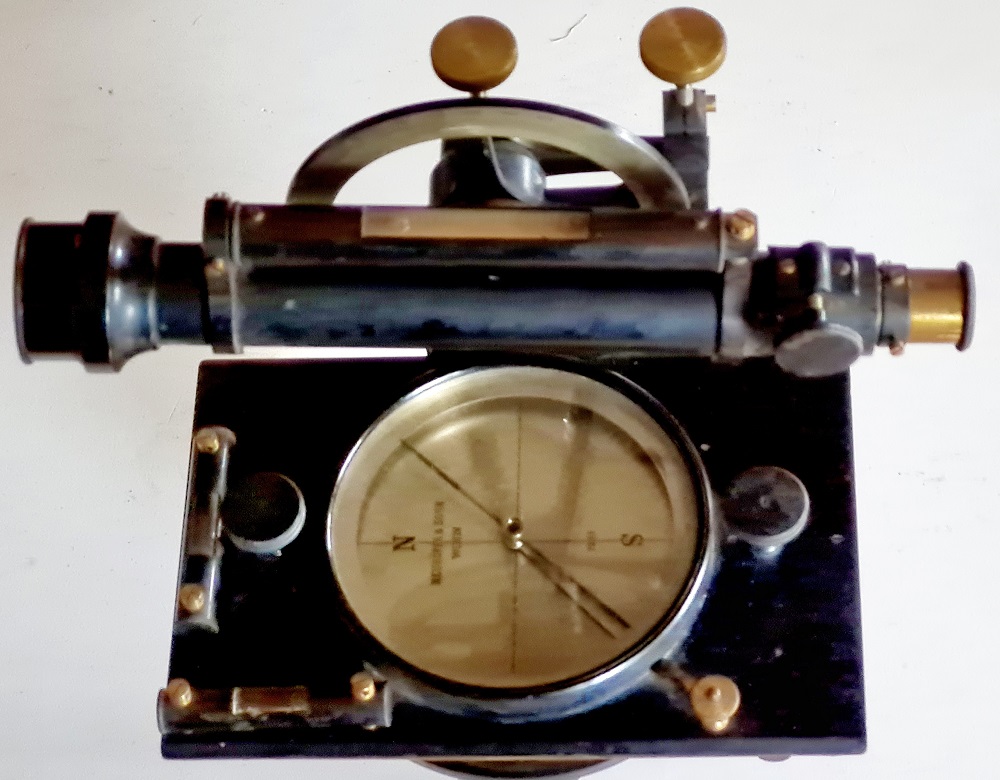

We display below a plane table with integrated compass and
double level. A sighting system could be attached by screws.

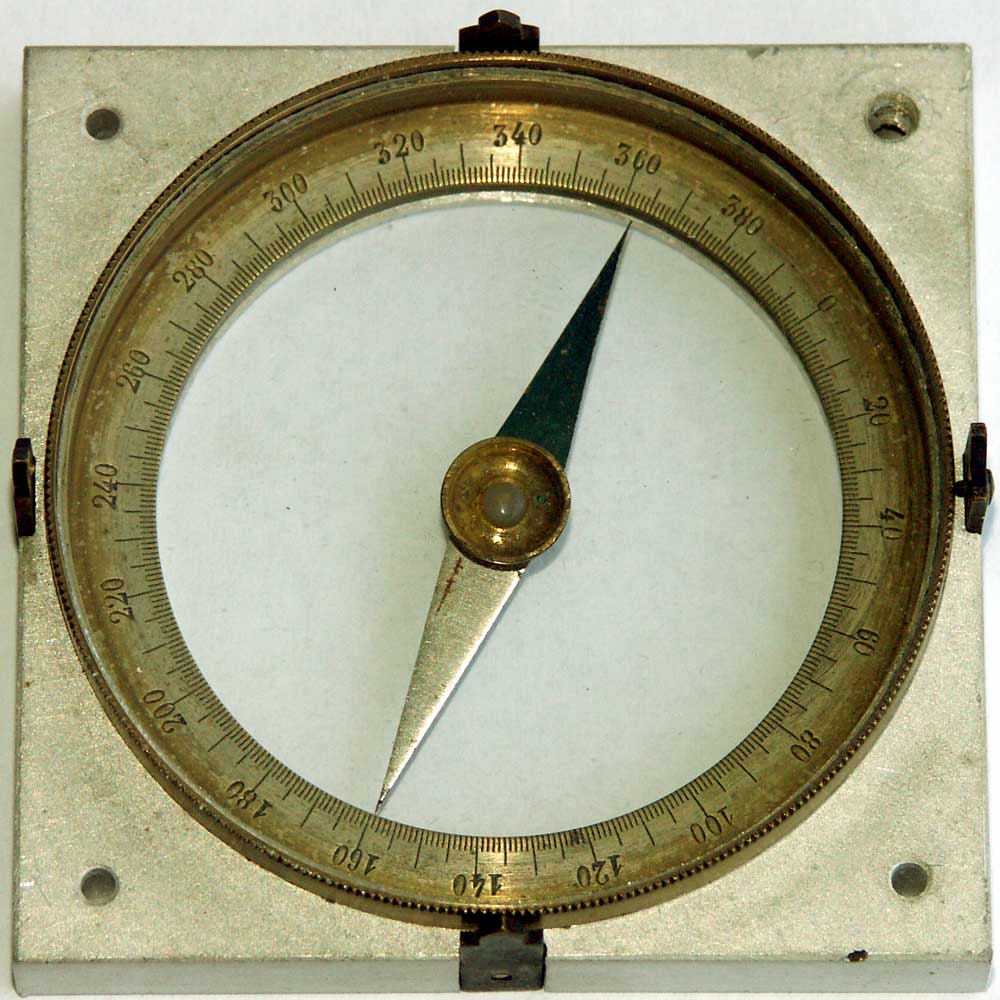

In the 2nd row of the table: square compass designed by DELCROIX with
four holes in
the aluminium base. It was stowed in a wooden box lined outside with
leather and inside with silk and velvet.
Divisions: 400 grades. Sighting device: rifle type and two additional
sighting pins located at a 90 degree angle.
The brass capsule rotates freely. The pivot is glued onto a glass
disk. Identical to the 'Boussole Directrice' designed by Delcroix.
|
Technical
Data
- Dim.: 300 x 300 mm
- Dia. compass:
80 mm
- Gradation: 2 x 90°
Period: post WWII
|
Instrument
called Boussole
directrice (marching compass)
designed by Delcroix (1895) for use on a plane table - Divisions: 400 grades; Dim.: 60 x 60 mm
|
Model
signed VION (see
descr. there)
featuring a standard
French
soldier's compass (WWI)
(360°, Radium Markings)
|
Pictures
courtesy H. Waldmann |
Square-shaped German Plane Table
Compass
Technical Data
Base plate: 76.4 × 77.2 mm
Compass dia.: 70 mm
Height (Overall): 14.65 mm
Material: brass
Wooden box: 98.5 × 94.3 x 39.5 mm
Weight /w/o box): 214 g
|
Small Portable Devices
There existed also portable plane tables with all elements needed to
carry out topographical works.
Our first example is the one designed by
the French officer Capitaine
Henri
HUEL.
The wooden case was probably covered with leather or fabric so as to
hold the pens in place. The lid is hollow and contains a protractor. |
|
Technical
Data
- Dimensions (open) : 260 x 250 mm
- Compass diameter: 60 mm
- Divisions : four 100 grades quadrants
Instructions for use: This device also allowed for working on horse
back (see also DELCROIX'
system).
(Click
on the picture for
full text view) |

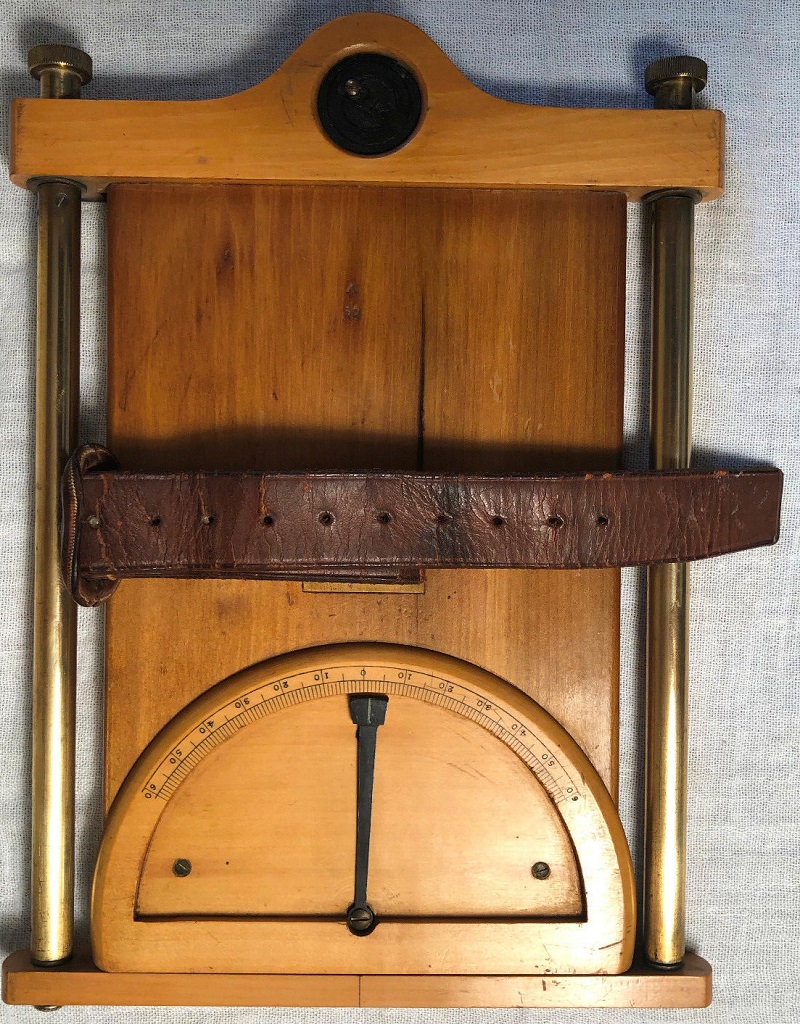

This plane table features a small compass set in a wooden frame. It
would be carried attached to
forearm
with a leather strap. It was in use from the late 19th c.

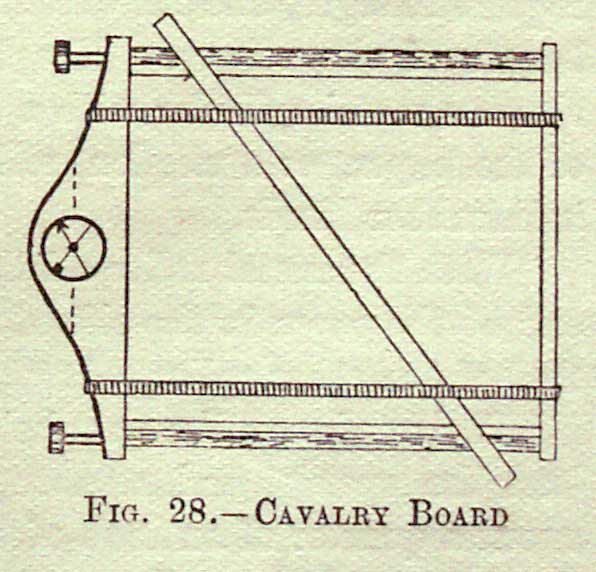

until WW1 and is described in the handbook
Military
Sketching, Map
Reading and Reconnaissance (1915, see below and in
Miscell. / Hist. & Bibliogr.).
Some models are marked
Mk.IV.
(Mark IV) engraved on the reverse side preceded by the British Army's
symbol,
the
broad
arrow
also called
crow foot.
View
of a
complete
item
Picture by courtesy of Nick
Godridge |
|
Compass of a destroyed Mk IV model
Click
on images for detailed views |
Technical
Data
- Dimensions: 10" x 7 ½" (250 x 190mm)
Link to pic Protractor on rear face
Picture by
courtesy of M. Jones
|
CHAIX plane table
The same principle was used on the device patented in 1938 by the
French Paris-based company
TOPOCHAIX.
|
(Click
on the picture for an enlarged view) |
At
left: Short
description (excerpt of user instr.)
and figs. of the patent:
The device (A)
comprises:
1° a sliding table (B) with a rotating protractor (C)
2° two rolls (D) on which a stripe of transparent paper (F)
is
wrapped around and on which the drawings are made.
At right: pocket plane table
(Copies
of all docs can be
ordered) |
(Click
on the picture for an enlarged view) |

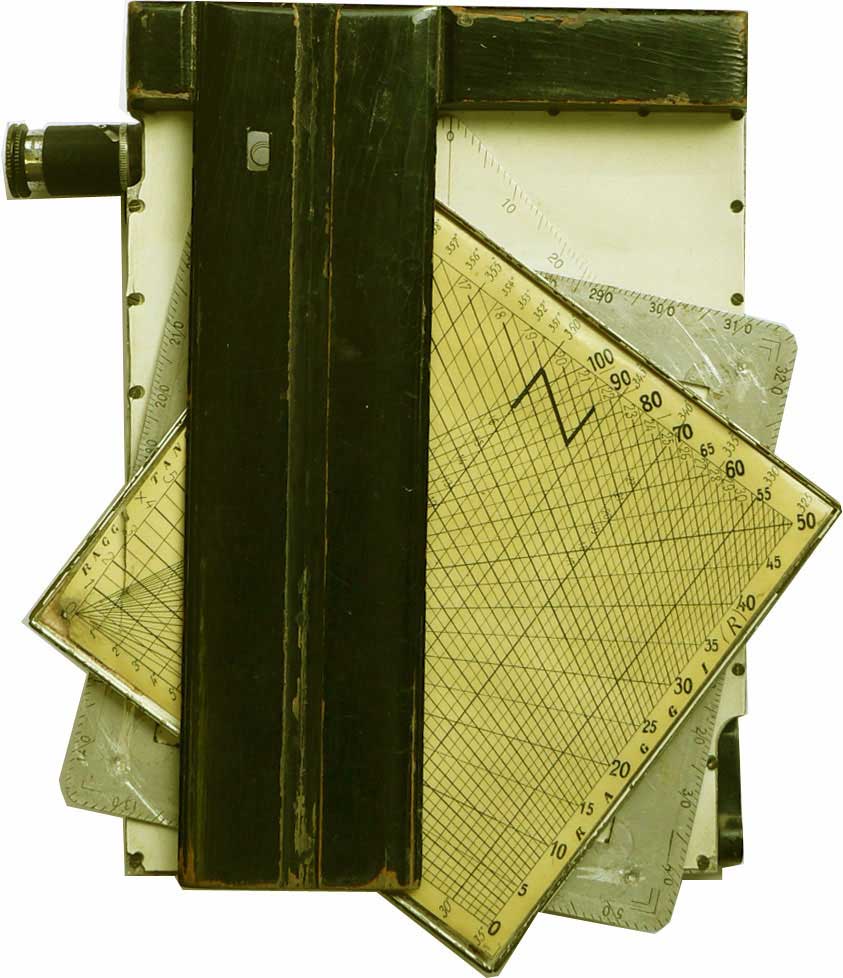

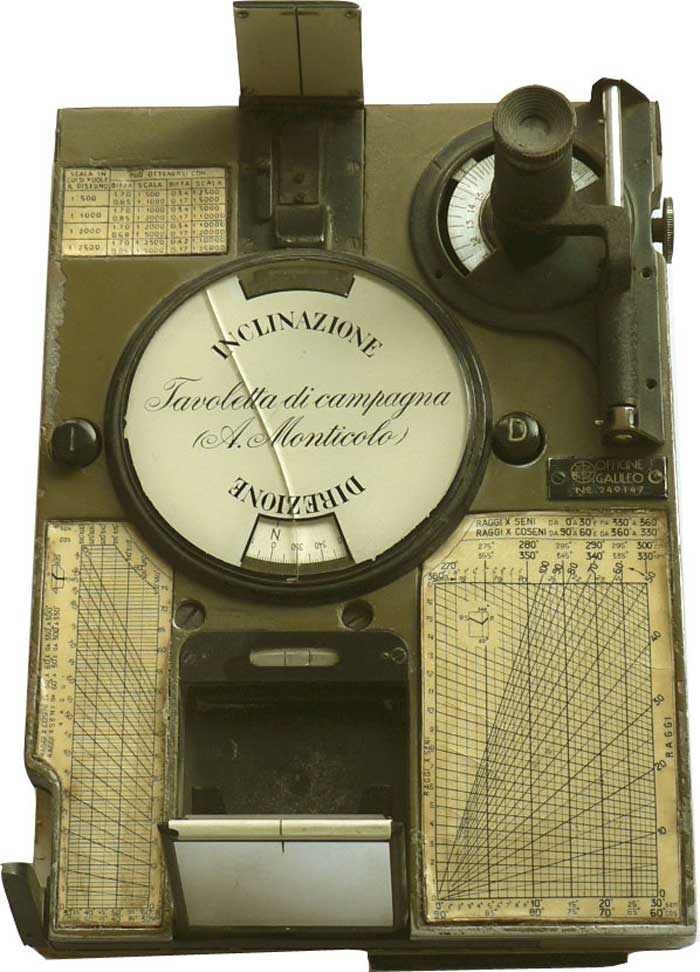

Tavoletta
di Monticolo
Another system was developed in Italy probably in the late 19th c. by
A.
Monticolo, who was an engineer
with the company 'Officine
Galileo'. The device was called 'Tavoletta di Campagna' (di Monticolo)
and produced from 1908 until the second half of the 20th c.
For a comprehensive description (in Italian language) refer to the
following websites:
-
Nottolini
-
Arxiv-Papers
(page 72)
|
|
Technical
Data
- Dimensions : 130 x 180 mm
- Compass/clinometer diameter : 70 mm
- Compass and clinometer : two windows on the round dial
- Rangemeter (with prism)
- Reduction tables (attached on rear face)
|
Plane Table Compass
(see
Trough
Compass)
PLATH
(link to the main entry) also built a "double
compass" similar to
BUSCH's
design. The label on it states BUND (owner is the German Army,
Bundeswehr) and a date (1964). This means that an old instrument was
reused long after WWII.
Picture courtesy BSH |
Weilbach catalogue
|
Technical
Data
|
* see Wikipedia
DESCRIPTION - A square protractor is an instrument utilized to measure
the geographical position of any point on a map with
UTM grid reference
and
describe it for a user of the same map. It
is graduated with one or several scales in a vertical and an horizontal
direction.
Old models generally consisted of a square frame with several scales.
The distance between
the point and the grid lines is measured simultaneously with a
horizontal and a vertical branch.
In the 30's and 40's, there was in Germany a famous cardboard flyer
called
Wehrsporttafel No. 12
especially printed for
the paramilitary 'defence sport associations' (
Wehrsportgruppen)
which explained the use of the square protractor (which could be
cut-away). It also desccribed other instruments like one of
BUSCH's
famous

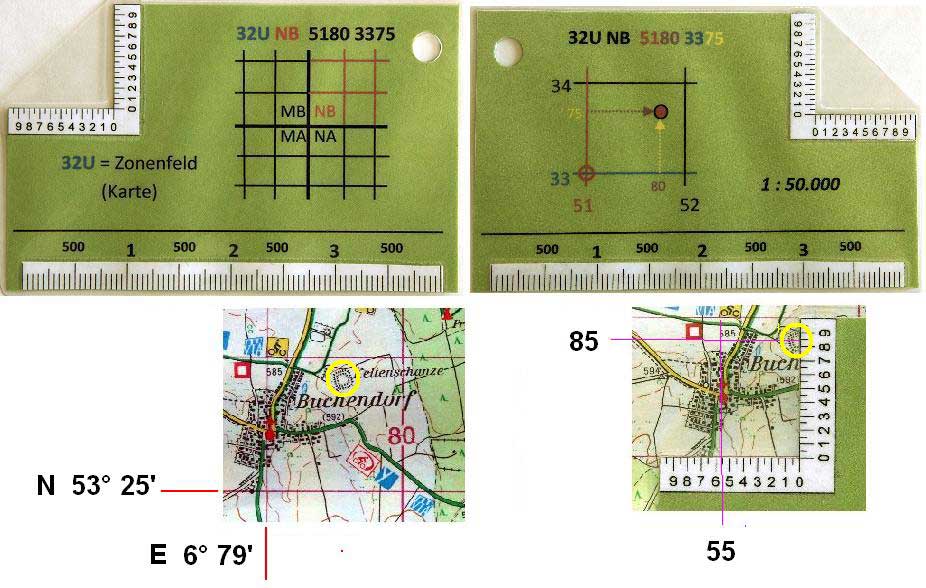

marching compass. Today, Germany's Army
uses
its own system (see picture at left).
Pic. at r.: How the French Army designated the position of a target on
a map (excerpt of the examination booklet for future officers
Recueil de
résumés à l'usage des candidats
au Brevet de la
Préparation Militaire
(1955): UP-LEFT
Modern marching compasses (like
the ALPIN made by
K&R
or the special British Army model Expedition 54 made by SILVA)

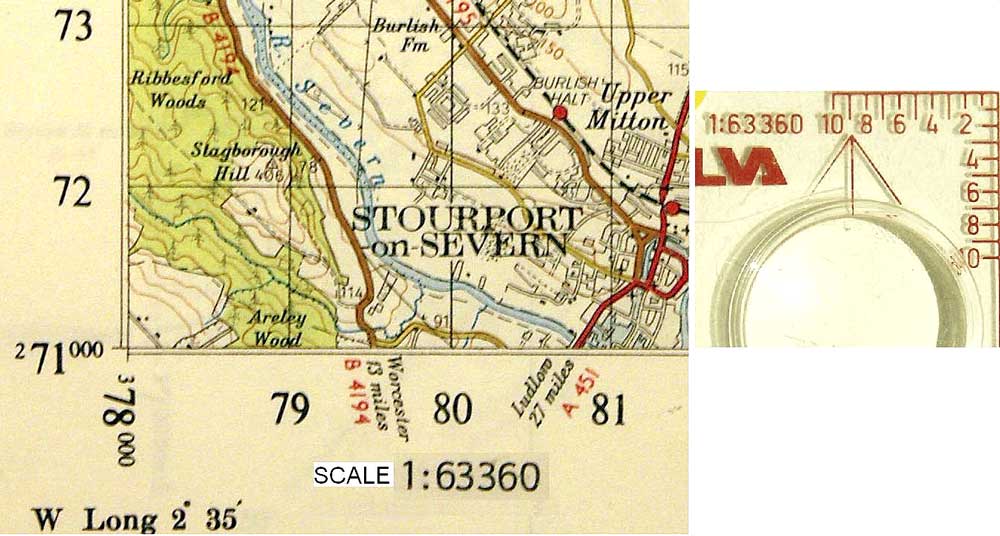

feature an engraved protractor. On British survey maps with the scale
1:36360
the grid corresponds to 1 inch for 1 mile (see pic of map and compass
HERE).
Examples:
- Pic. at right: Romer scale for use with national grid maps (GB)
(Click
HERE
for protractor type OS.80876).
- Ancient ones: see MORIN above (WW1).
- Pöferlein (marching compasses)
- WW2: table below and also Bézard compass
(Technical Documentation/Training)
- Modern items: see Google
results
Apparently, the U.S. Army used a system based on a gross assessment:
Read UP-RIGHT, "4/10 the distance between 11 and 12 is read 114"
(see
Lensatic
/
Training).

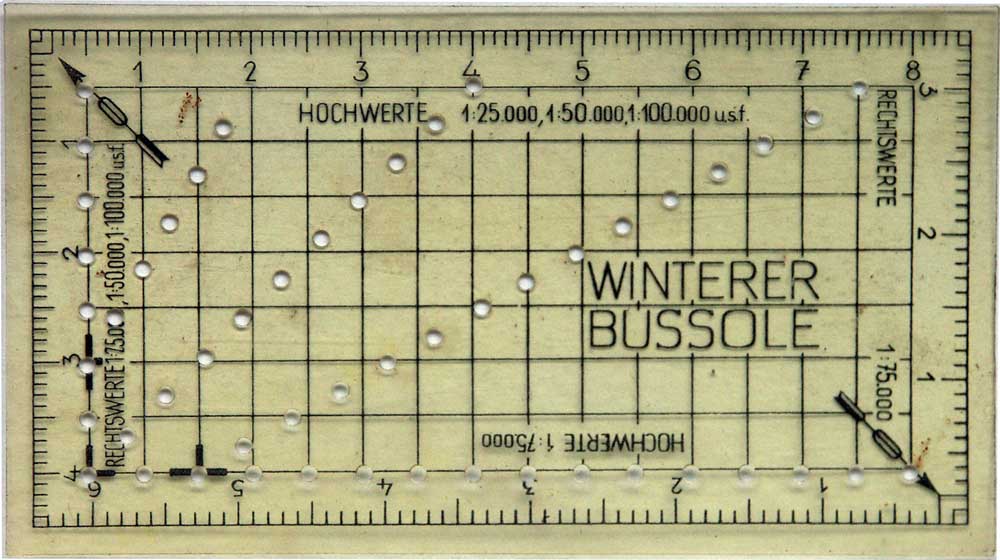

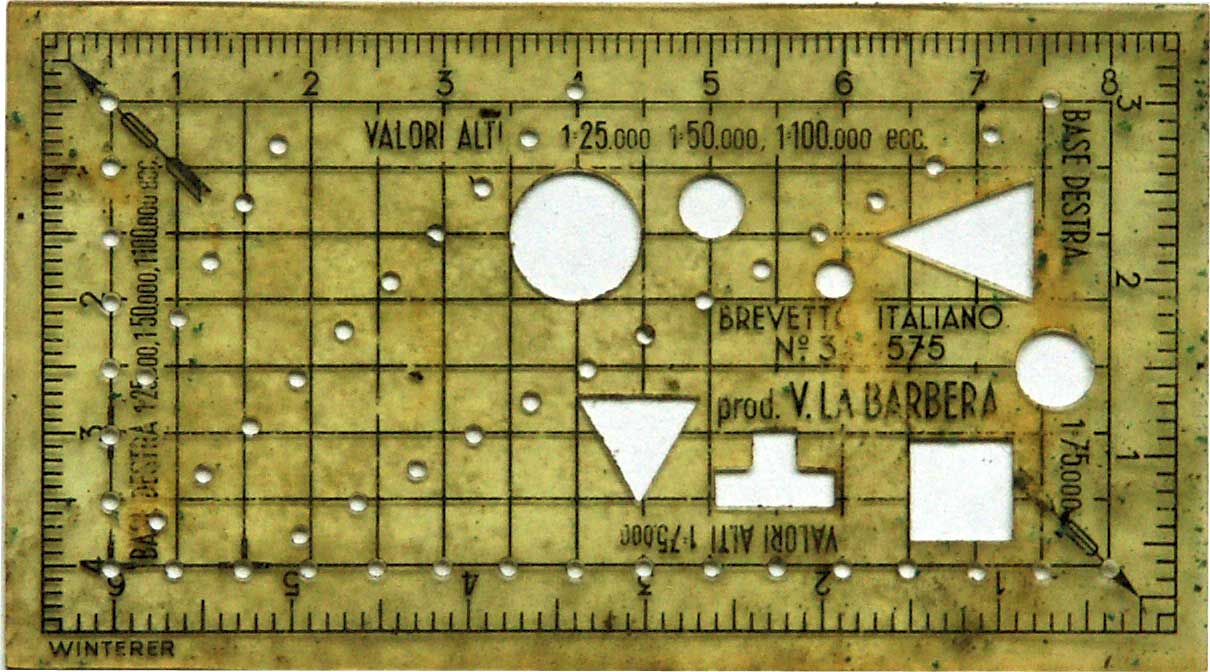

Winterer's
system
(Austrian and Italian Army until WWII).
NOTE: The values read right of the meridian were
called Rechtswert
and
the values read above the latitude line were called Hochwert.
You had to rotate this item by 90 deg. to read either the scale
1/75,000 or the 3 scales 1/25, 1/50 and 1/100 thousand (click HERE
for the Italian version with tactical symbols).
|

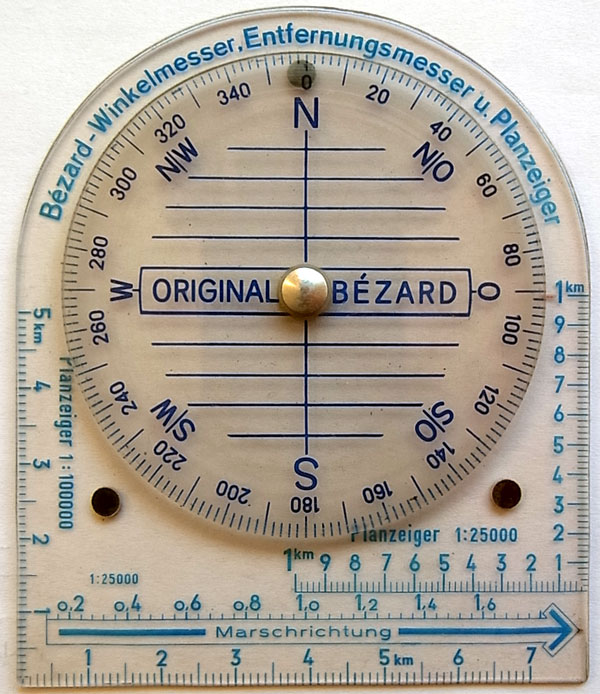

BÉZARD
Version
(s. Bézard / Part 2 - Doc.)
|
Square
protractor for 3 scales
(Germany, WWII and Jensen catalogue 1938)
Technical Data
- Dimensions: 86 x 86 mm
- Material: Aluminium
- Weight: 2 gr
(Click
for
enlarged view) |
Cardboard flyer Wehrsporttafel
no. 12 (see
"Wehrsport"): how to use the sq. prot.
and
the measuring device called Messwinkel.
(facsimile
can be ordered). |
Cardboard flyer 12: The sq. protractor (top right)
drawn inside the Messwinkel
to be cut out.
(Click for enlarged views) |

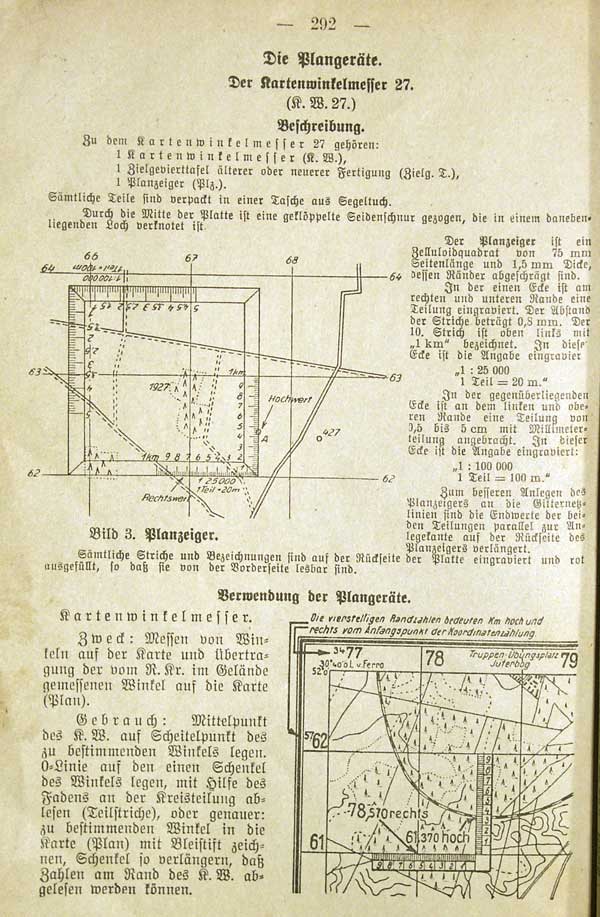

The Gunner's manual (1940) :
How to use the sq. protractor
(Planzeiger)
|

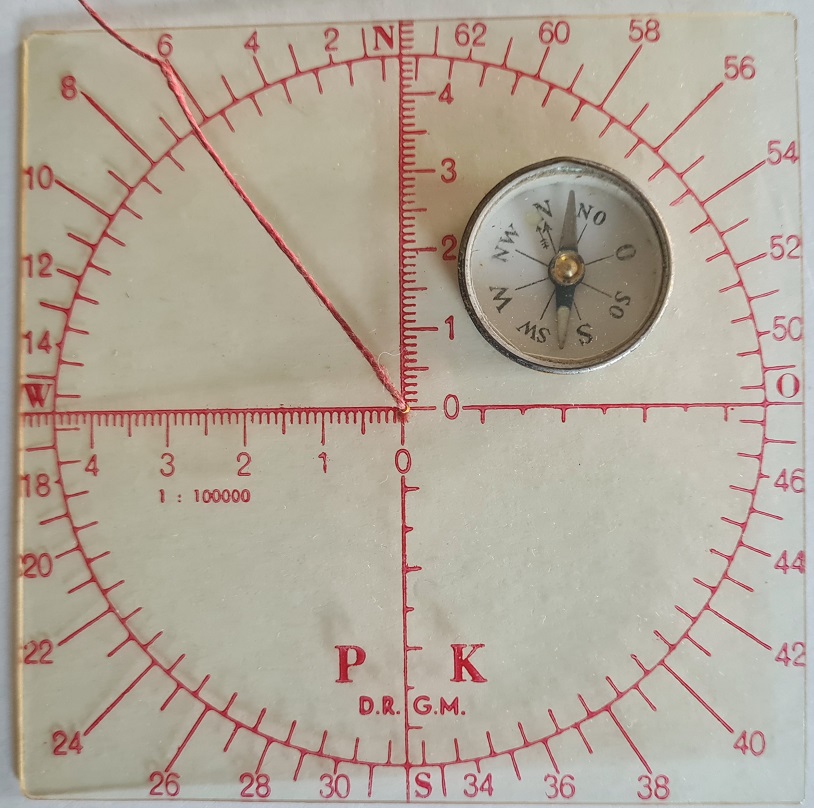

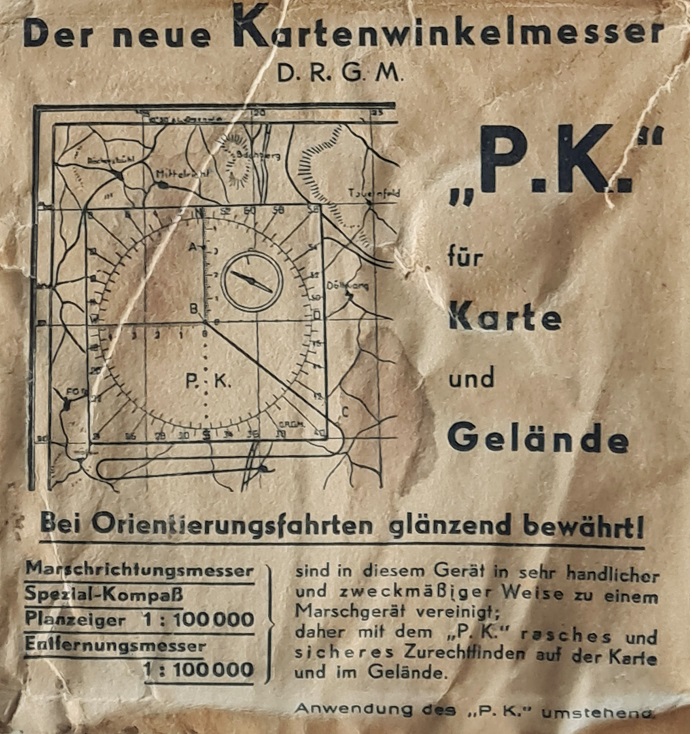

The P.K. system
The letters
P.K.
are not explained on the pocket and the documents inside (exercises)
but can be interpreted as the abbreviation of the German words
Planzeiger and
Kompass or
Kartenwinkelmesser
which are used in the text can both be translated by square protractor
or
romer scale.
It was probably made in the late 1930s or early 1940s but its
manufacturer is unknown. One version was also called
WH 30
(i.e. Wehrmacht 1939, pic. crtsy lux-military-antiques.com)
This instrument combines the functions of several devices.
|
|

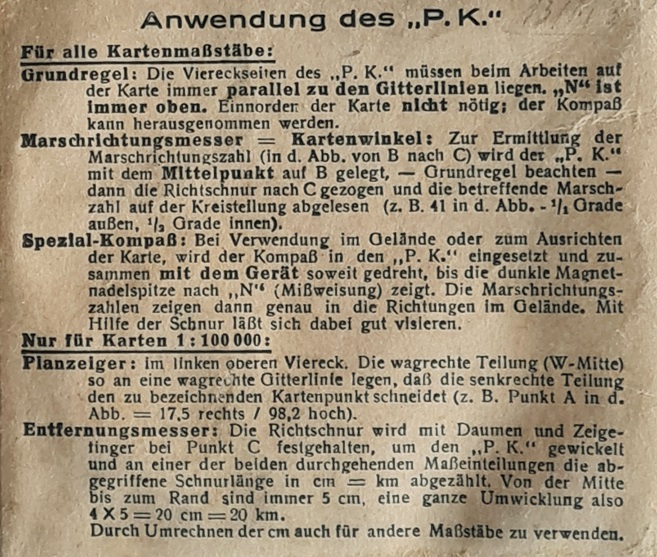

User instructions
Pictures
by courtesy of H. Waldmann
|
Technical
Data
Dim.: 100 x 100 mm
Divisions: 6400 MILS, counter clockwise
Detachable compass
|
|
|
|
Technical Data
Abm.: 100 x 70 mm
Compass dia.: 27 mm

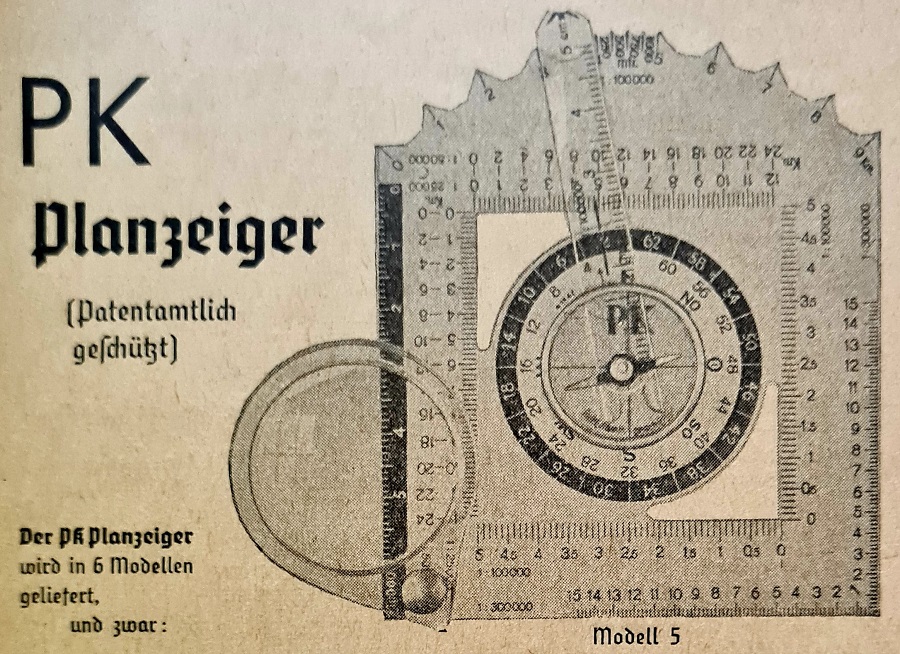

This P.K. model could be supplied in 6 different versions.
No. 5 featured a magnifying glass and luminous markings.
Compare to the ZIKO system.
|

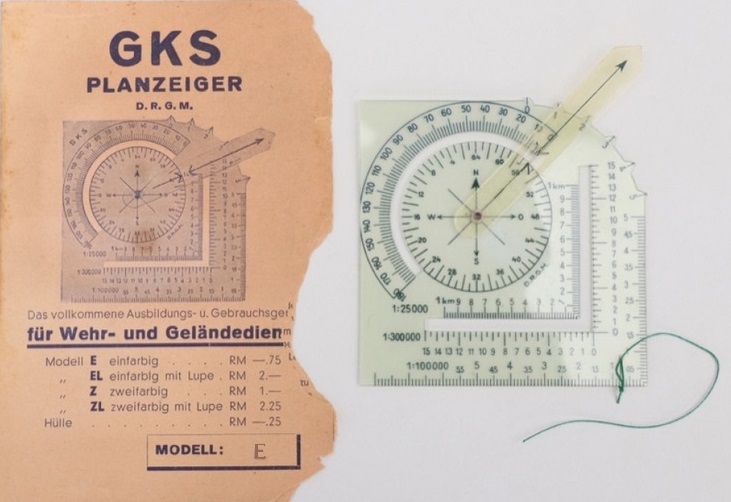

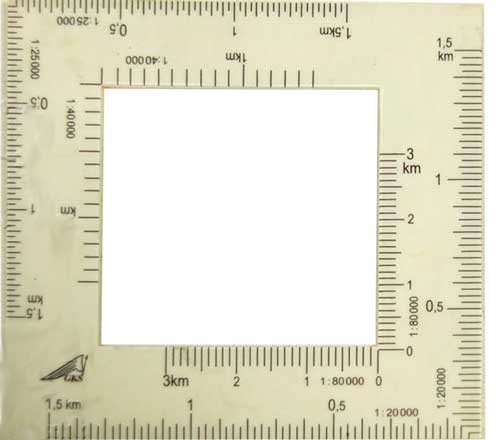

The GKS-System and Variants (BKS, ESERO)
|
|
|
|
Pictures
from left to right:
- Protractor featguring the GKS logo (upper left corner, model ZL (with
magnifying glass)

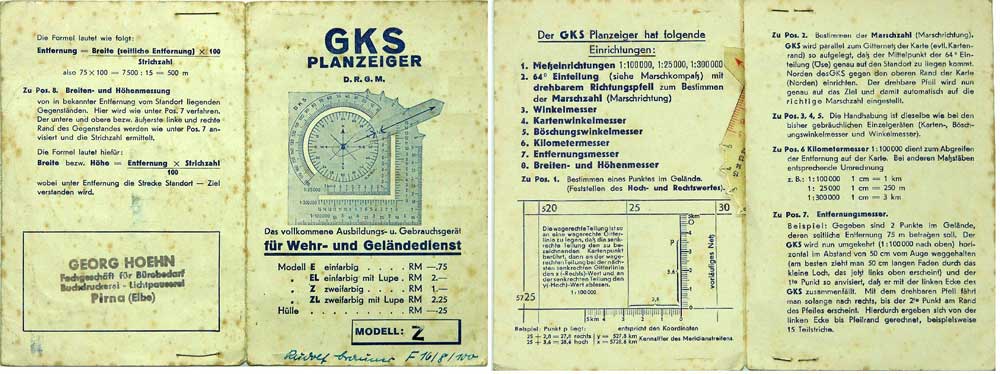

- User instructions (Pic.
crtsy H. Waldmann)

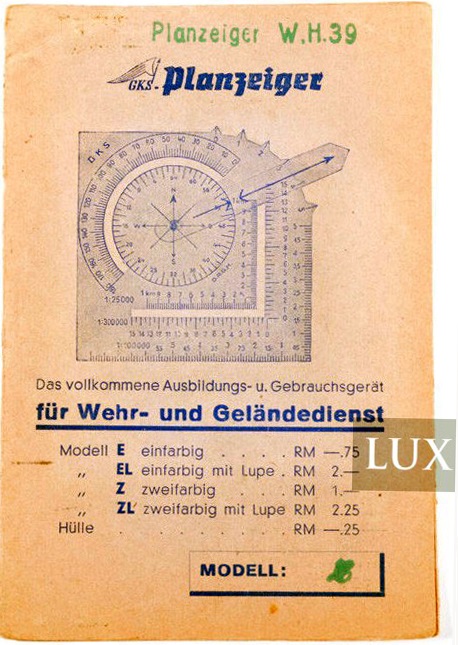

- Two versionen called W.H.
39 i.e.
Wehrmacht 1939 (Pic.
crtsy Lux
Military Antiques)
|

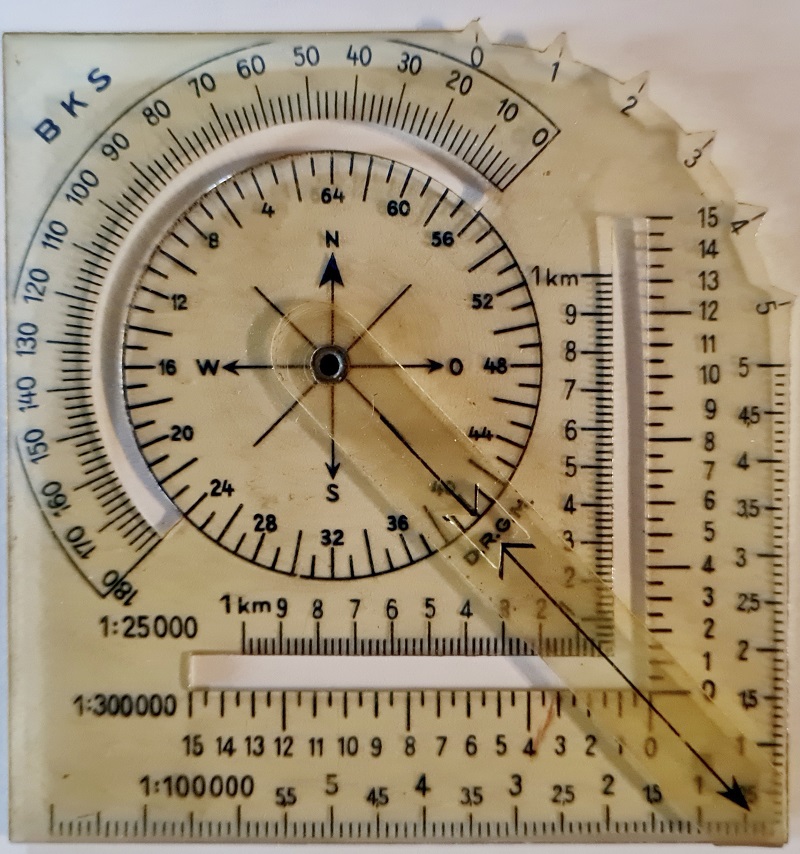

Item marked BKS,
identical to the GKS model E (Pic. crtsy H. Waldmann) |
Large square GKS model
|
Small GKS model |

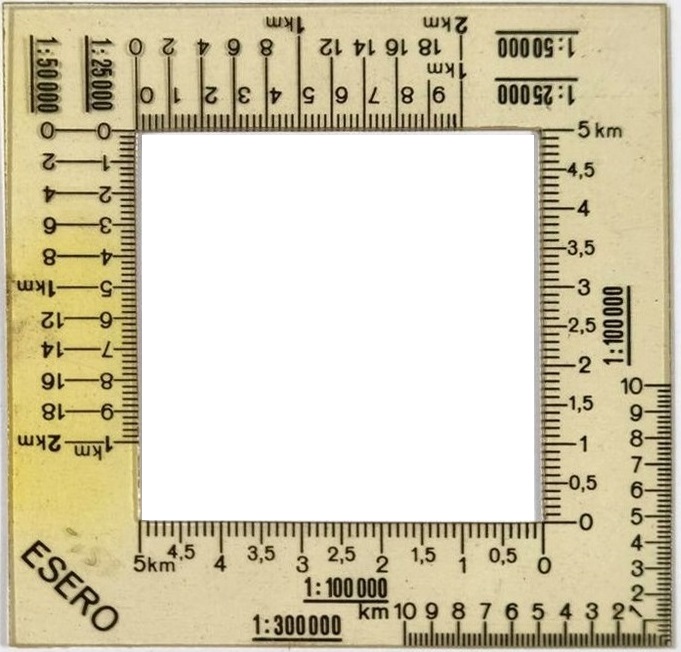

Similar instrument signed ESERO
|
|
-
Q -
-
R -

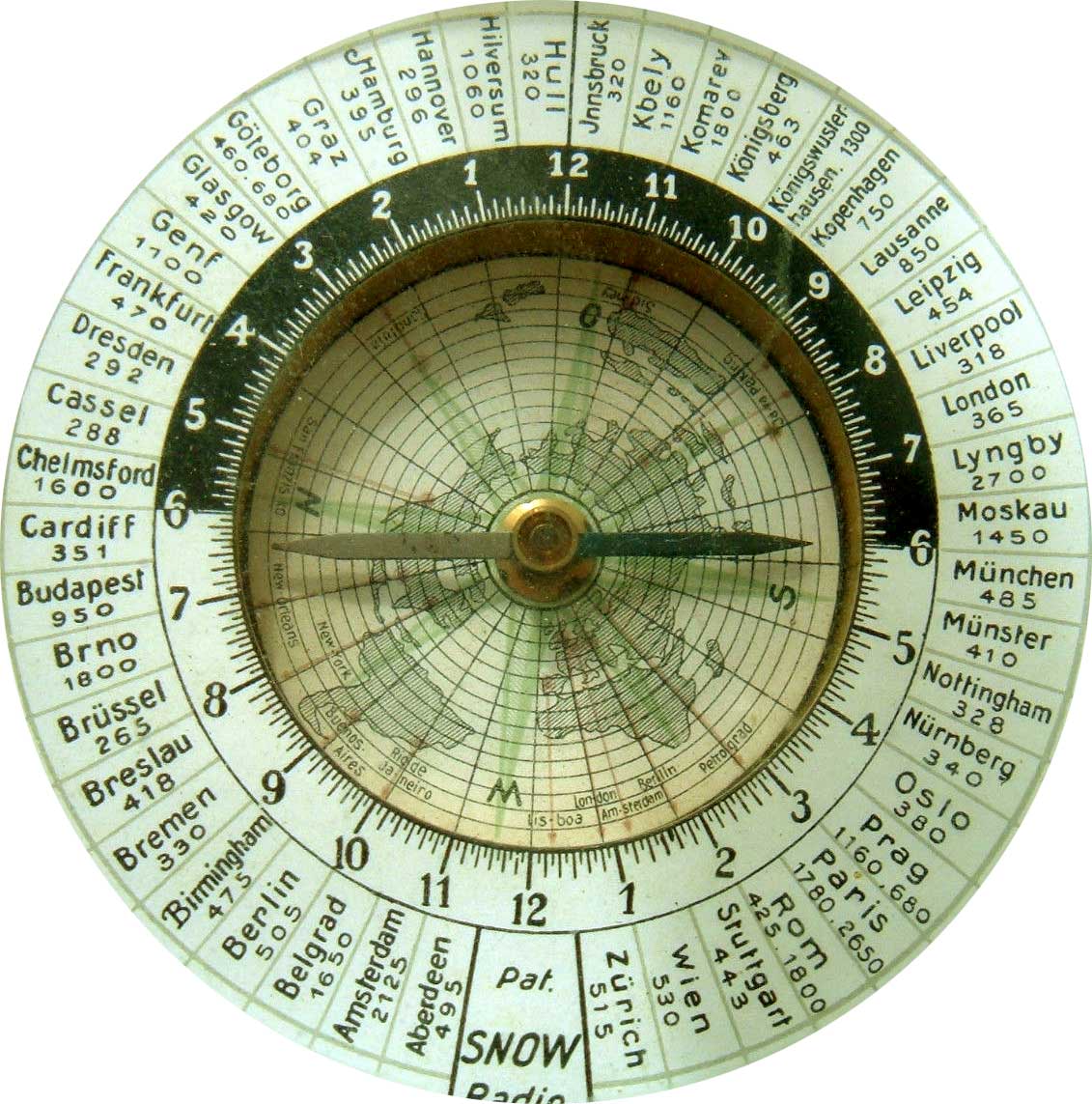

Radio-compass
(for locating broadcasting stations)
Brass compass in a wood casing. The dial is divided in two ranges of 12
hours, each one being itself divided in two sectors,
a white one from zero to 6 and a black one from 6 to 12. European city
names are
indicated in German language (Nürnberg = Nuremberg) all around
the
outer dial. A centre dial features a green
rose of the winds and a world map
centered around the north pole where the magnetic needle's pivot is
located. The cardinals are oriented for an observer standing at the
geographic north pole: north is towards Canada and the Americas, south
towards Sibiria! This map can be rotated by turning a knurled knob
located on the side. Markings: Pat. SNOW Radio-Kompass Trademark and a
watermark-like logo featuring the letter A and the letters GIL. Dia.:
ca. 5 ¾".
Click on image for a detail
view of the dial

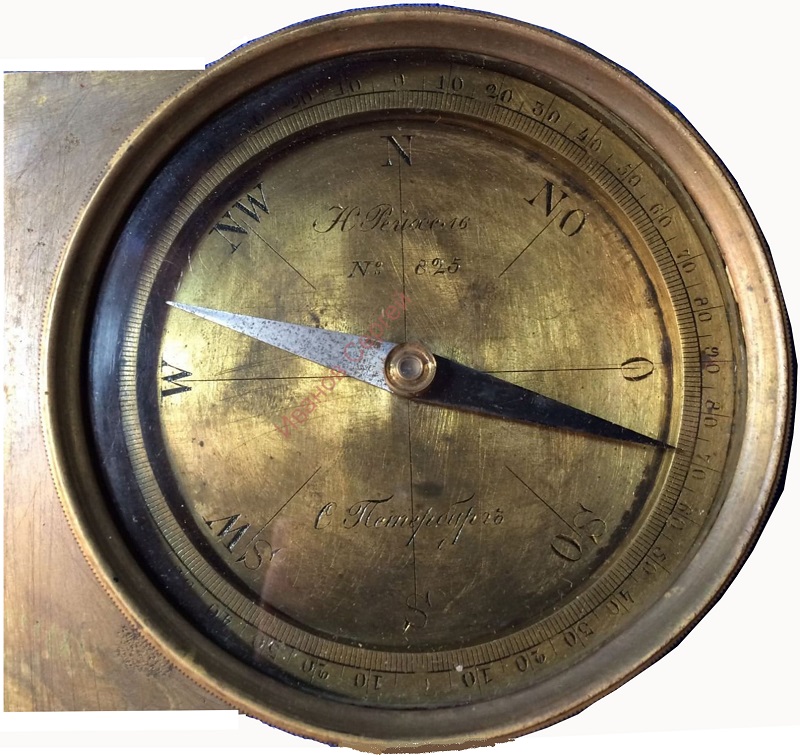

REICHEL Рейхель in
Russian
Reichel, Russian maker located in Saint Petersburg (Picture courtesy to
Ivanov Serguei).

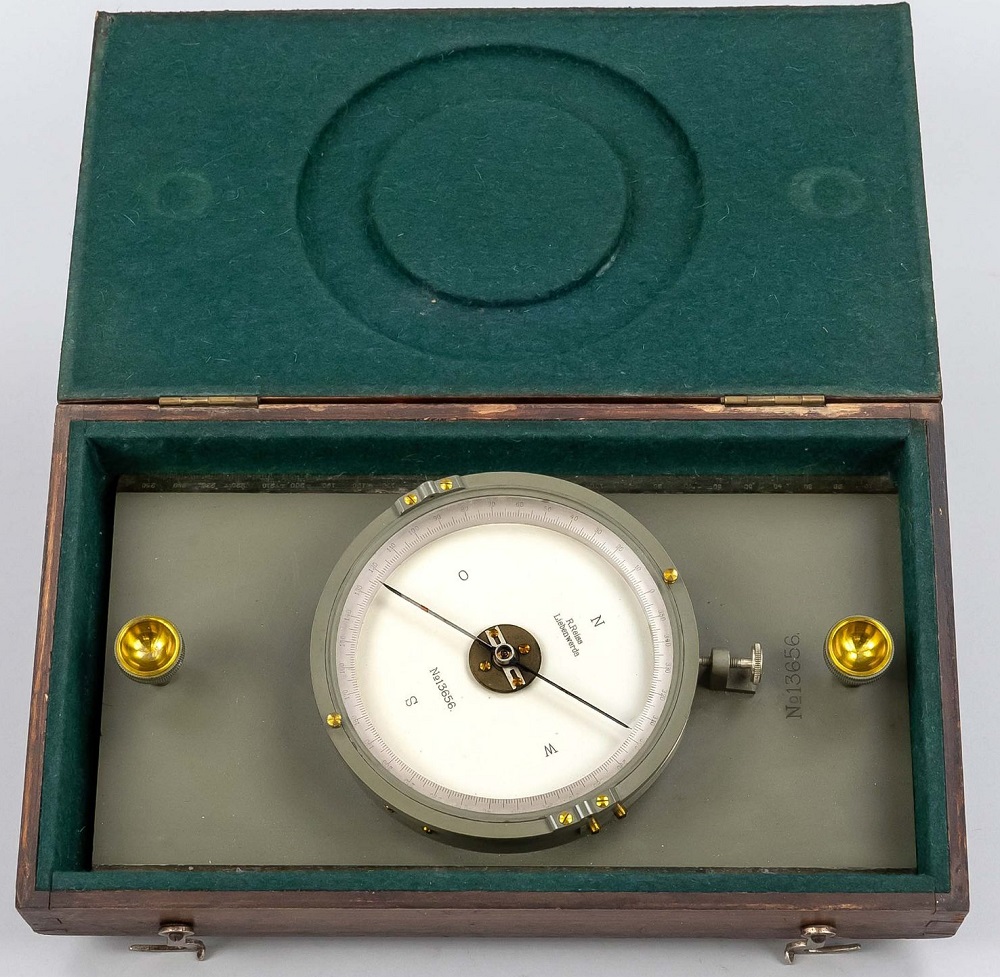

Herrmann Robert REISS was a German inventor and manufacturer. His fine
mechanics plant was located in Bad Liebenwerda (Saxony). Read a
comprehensive entry in the German Wikipedia).
Technical
Data
Divisions: counter clockwise

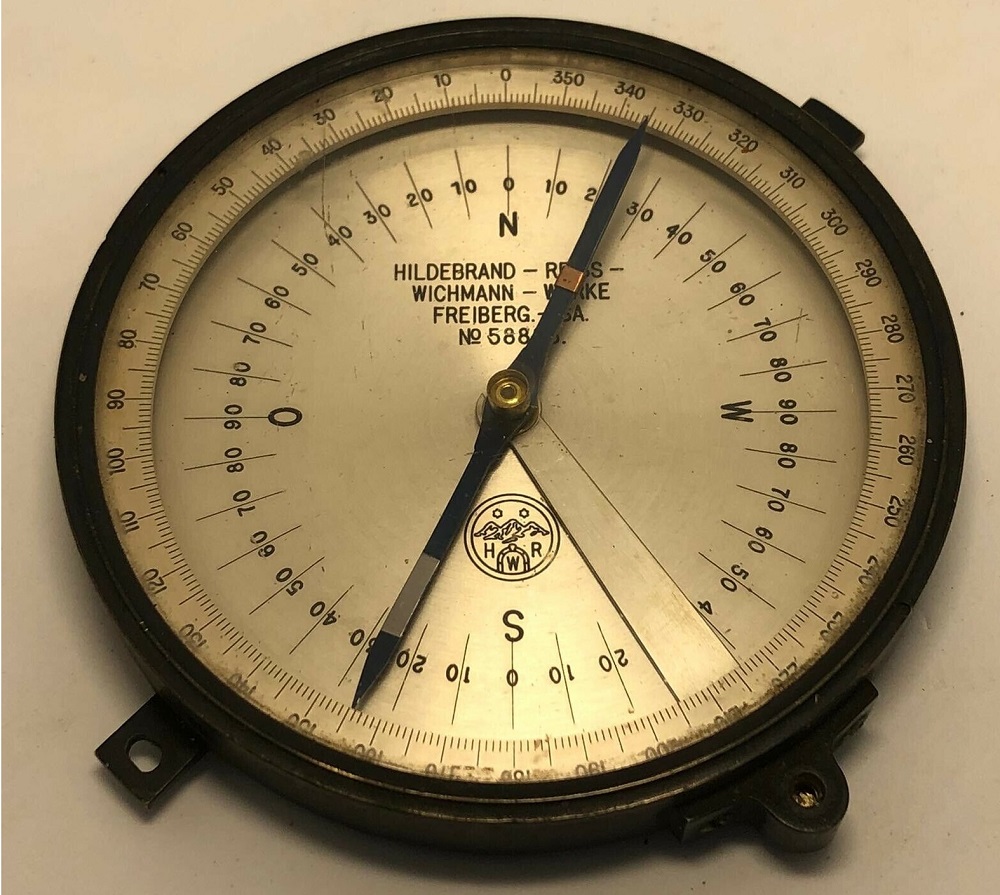

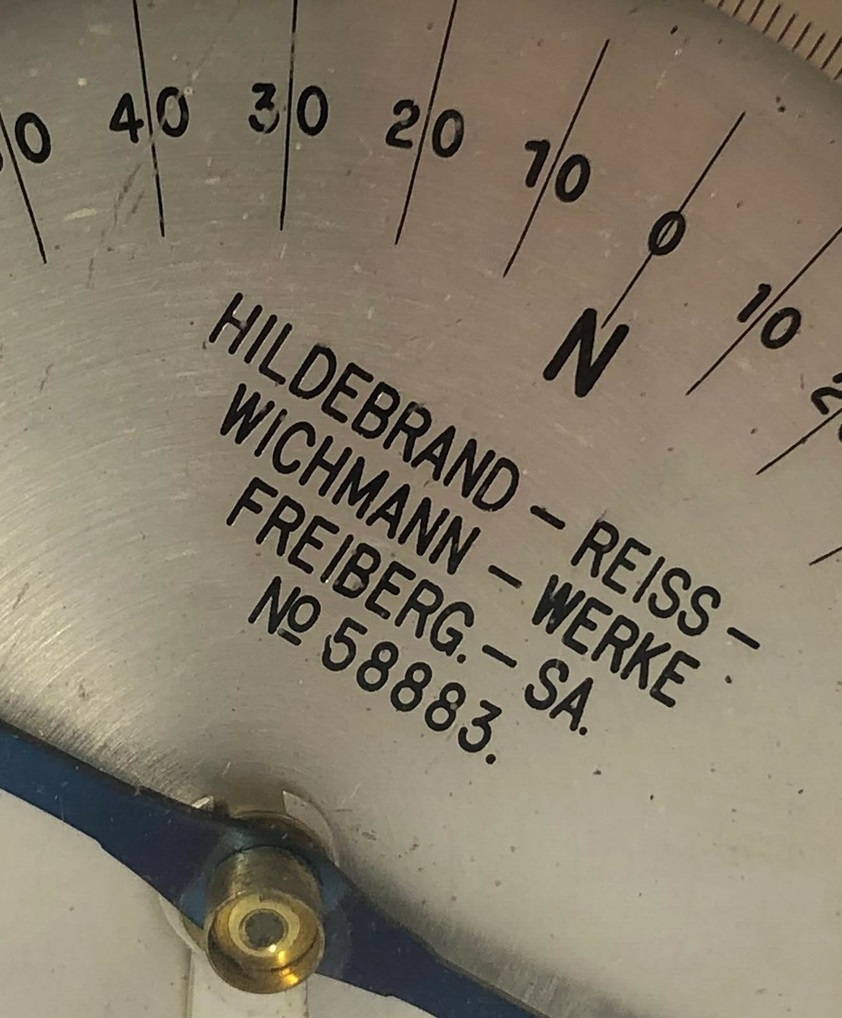

This compass was built
together with Hildebrand
(Freiberg/Sax.) and
Wichmann (s. these names). Detail pic. HERE.
|
|
Technical Data
Diam.: 120 mm
Dim. box: 50 x 290 x 160 mm
Picture by courtesy of Auktionshaus lot-tissimo |
L'HERMITE & LEJARD, located 13, rue de la Cerisaie
(near
La Bastille), apprentices to and successors of RICHER,
GUYARD & CANARY (formerly RICHER, GUYARD, CANARY
& Cie).
Excerpt of a catalogue (c. 1905):
"The company was created in 1780 by RICHER and his son Emile
Richer was his successor. In 1870, Emile Richer associated two
apprentices of his his father,
Guyard and Canary who became his successor. In 1890, they followed the
example of their former head and associated two of their apprentices
L'Hermite and Lejard who are currently the company's owner."
(Source:
catalogue -
sent by Antonin L'Hermite's grand-grand-daughter)
See also
TROUGH
COMPASS.
Trough
compass
for plane table
|
(See
definition
under MISCELLANEOUS / Glossary and Definitions)
Technical Data
Wooden casing, ivory scales
- Dimensions: 120 x 44 x 15 mm
- Weight: 40 gr |
In Austria, the word
Bussole
was utilized instead of the normal German word
Kompass.
Examples:
see. Bézard and Winterer.
Artillery compasses used to orientate (verb is 'richten') a gun were
called consequently 'Richtbussolen'.
Examples: GANSER and GOERZ.
Oskar Richter was a maker and/or retailer of scientific
instruments located in Petrograd or Saint-Petersburg,
Russia (
Петроградъ /
Санкт-Петербургъ)
until 1878. The
only information about him is published on the website of the
city of
Dresden, Germany. It says that Oskar Richter was a wealthy merchant
(optical and measuring instruments) who had sponsored a
new church near Dresden where himself and his wife had moved in
1878.
Several models are known with cardinals either in German (N-O-S-W) or
in Russian. The city name was engraved in Russian language in two
versions: 'Petrograd' or 'Peterburg').
courtesy (anonymous)
|
courtesy sieur25
|
courtesy M. V. Berdyev
|
Émile RIMAILHO was a French engineer and officer (born in Paris in
1864 - died in Pont-Erambourg, département Calvados in 1954).
He was granted several patents for various military devices, among
others for this small theodolite (pat. nos. FR 361823, 1906 ; US
848.132, AT
29.963, DE 195.466, CH 37.363, DK 9.637 and ES 38.964). His name was
also associated in France with the 6000 MILS angular unit (see menue /
Miscell. / Cardinal Points and Divisions / ANGULAR MIL - 6000). This

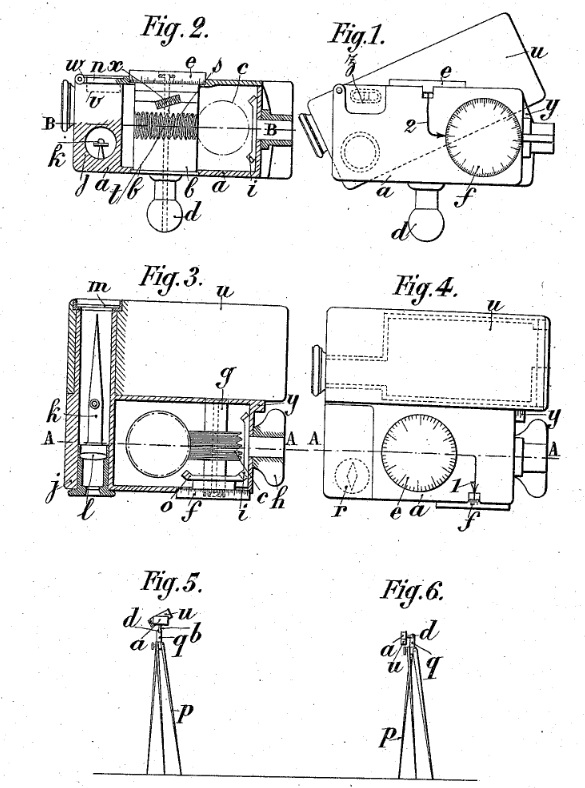

theodolite comprised a tiny compass (pos.
r in the
fig. at r.).
David RITTENHOUSE was a U.S. manufacturer in the 18th c. He
is famous for having been the supplier of survey materiel to
George
Washington. The picture shows a
compass engraved 'Go.
Washington / Mt Vernon' (his estate's location).
The dial is signed Rittenhouse & Potts. The Smithsonian
Institution's
museum
displays a similar instrument online
Picture at right: this compass was displayed on the occasion of the
1939 World Fair in New York (click on image for detail view).

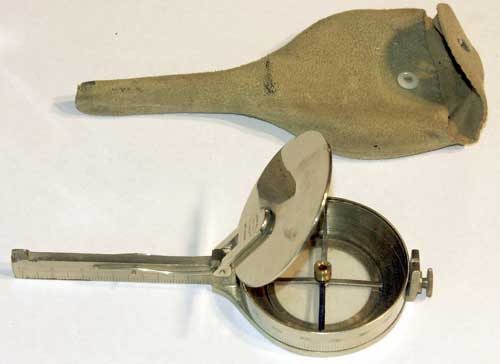

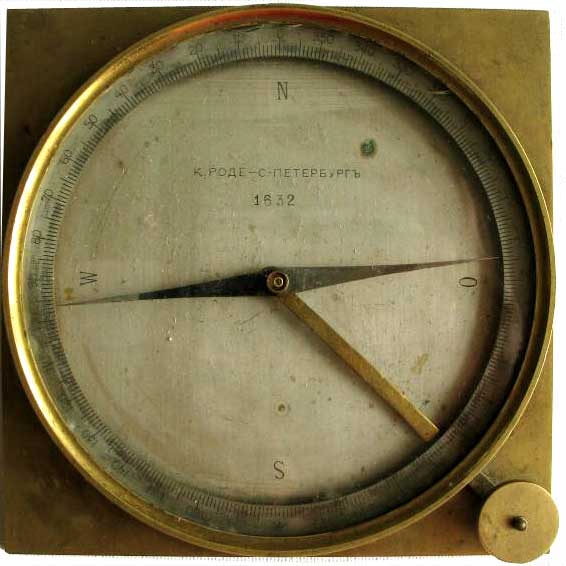

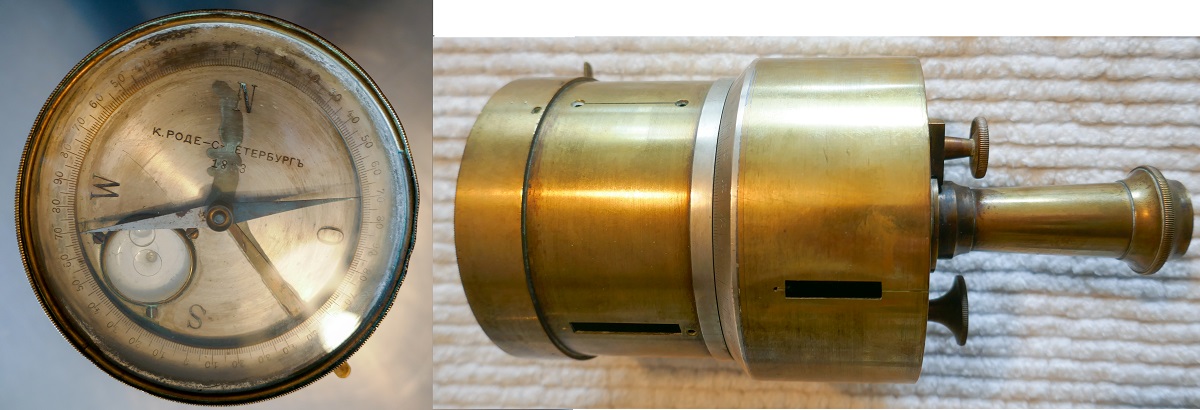

PROFILE - K. Rode was a manufacturer locatd in Saint-Petersburg
(in Russian К. Роде, Санкт-Петербургъ - picture at rightcourtesy M. W.
Berdyev). Rode Works operated from 1815 till the Bolshevik's Revolution
on November 1917. Rode was a maker of instruments for Military
Topography Division, ministry of Transportation, Chief Engineers'
Directorate and Russian Geographical Society.
RODE is also indicated on a
cross
staff head which seems to be identical with the one in the
WICHMANN retailer catalogue (real
maker is unknown, maybe MORIN above).

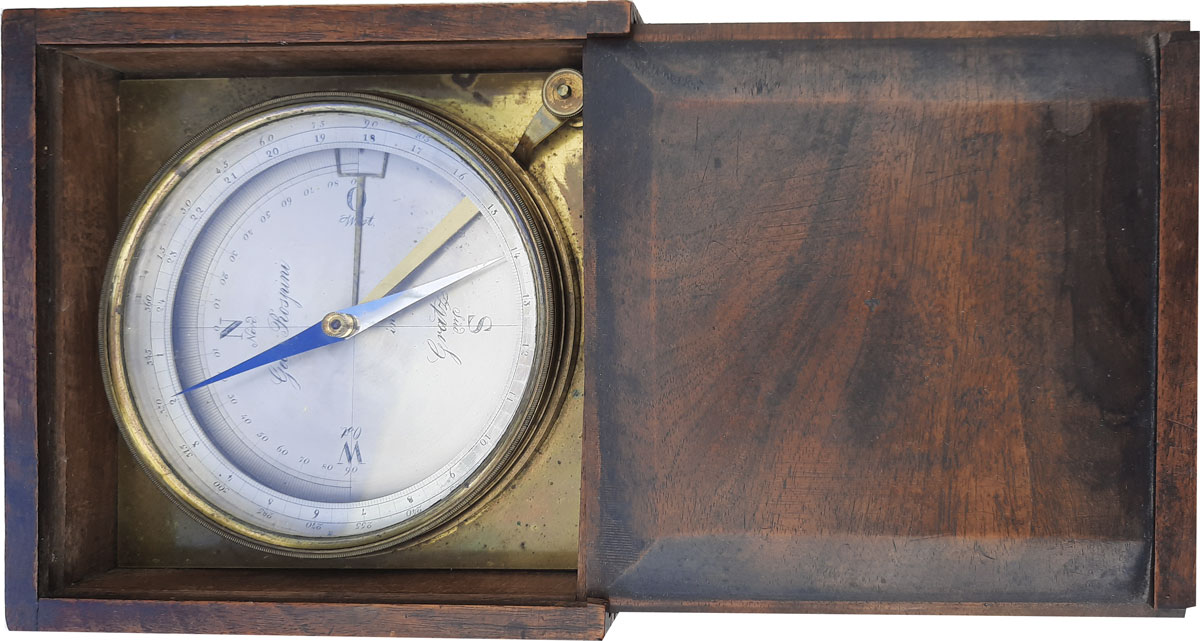

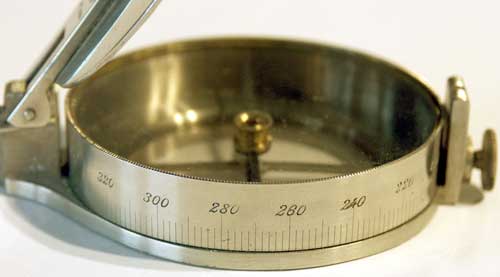

Rospini was the name of two brothers (
Brüder or Gebrüder
in
German, abbrev. Br. or Gebr.), Andreas Carl
(1811-1867) and Carl Joseph (1816-1887), sons of Andreas Rospini
(formerly Rospino from Como, Italy). They were instruments makers in
Graz, Austria
written
Gratz
until the early 20th century.
Carl Joseph Rospini who died in 1861 ran a shop in Vienna (pic. at
right) was the son of Joseph ROSPINI (1767-1832), a brother of
Andreas.
In the German-speaking countries like the Austro-Hungarian Empire or
Saxony, angles used to be measured in mines with compasses graduated in
24 hours each subdivided into 8 units
(about 2
degrees precision) or 2 x 12 h and 16 units
(see
STUDER
and BREITHAUPT), i.e. the precision
was thus better than 1
degree.

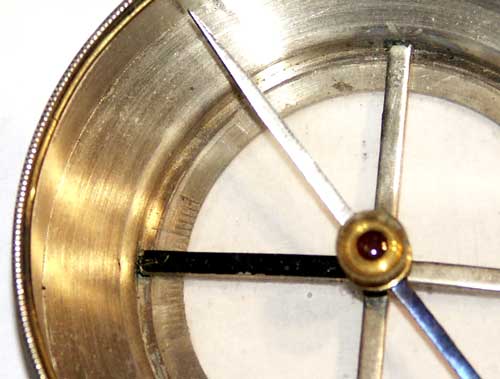

The compass displayed in the first row is the oldest one known and thus
probably made around 1830 (cardinals in Latin).
The other one features a clinometer (see also
FENNEL
and MORIN) and a double scale (360° + 24h) where each hour is
divided into 15 units thus exactly matching the degrees (24 x 15 = 360).
Miner's
compass
: can be hung at wires in mine galleries (comp. to SECRÉTAN).
|
The case lid's rim is decorated with garlands and flowers (click on pic. above left
for detail view).
The suspension can be folded and stowed into a special recess. |
Technical
Data
- Dim. (dia. x thickness): 3 5⁄8"
x 3⁄8"
(93 x 13mm)
- Weight (compass): 10 ozs. (300g)
- Divisions: 24 h, each comprising 8 units, counter clockwise
(for
detail view of the divided circle click HERE)
- Cardinals: Latin (s.
MISCELLANEOUS / Cardinal pts.)
- Needle transit lock: tiny
sliding lock in a recess under the case body (link
to pic.)
- Case material: wood lined on the outside
with decorated leather, inside with shammy. |
|
Pictures
courtesy D. Geras |
Technical
Data
- Clinometer with swivel-out lever
- Divisions: 360 deg. and 24 hours with 15 units each,
counter-clockwise (see pic. below
and menu point Miscellaneous / Divisions / Hours)
- Dim. (dia. x thickness): 2 5⁄8"
x 3⁄16"
(67 x 10mm) |
|
Pictures
courtesy
Cl. Hollmann
|

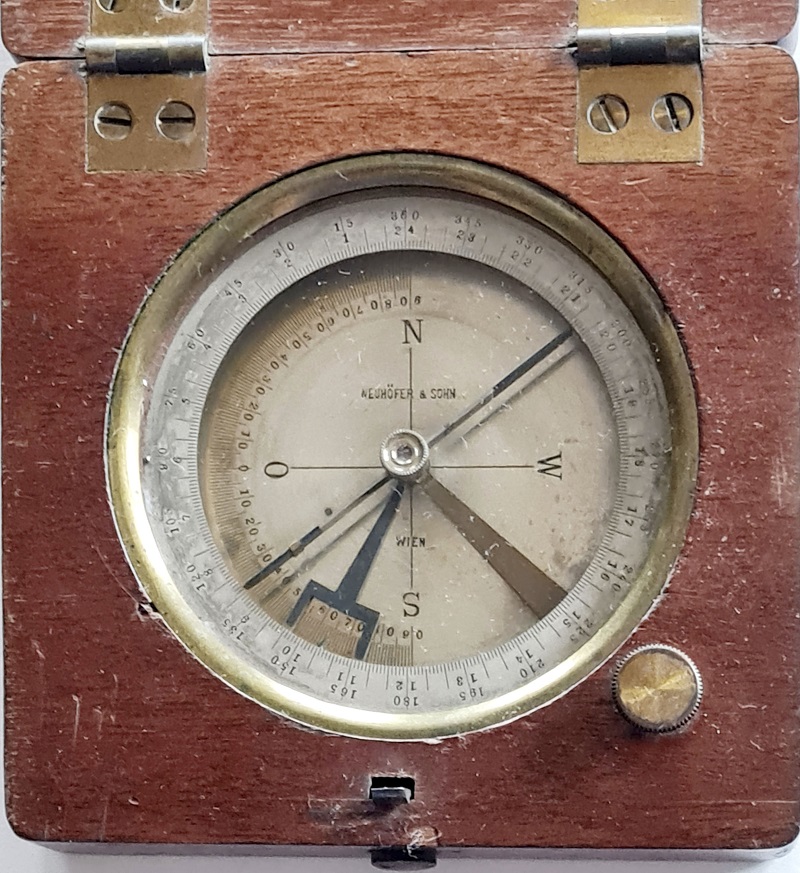

Compass
in a wooden casing with sliding lid (compare to the French Morin models)
Technical Data
- Clinometer
- Divisions: 360 deg and 24 hrs, each divided into 15 units
- Dia of compass and side length of wooden casing: 105 mm
and 125 mm
Note the indication W(est) and O (Ost = east) together with the
opposite
cardinal engraved below like in most US surveyors' compasses.
The uppercase letters W and O represent the real position of the
cardinal point in space. The word written below indicates to which
direction
you are looking when you hold the compass in front of you using the 0
(north) to aim at a point and rotate
away from north ! The needle is then moving into the western sector but
indicates an easterly angle value.
|
Camille Rossignol was a French officer and weaponsmith (for
his resumee,
click
HERE).
He patented two compass systems. The first one is only known by the
official announcement (no.
167,980, 4 Oct. 1885),
Boussole
militaire devant servir à
diriger les troupes et au levé des plans
-

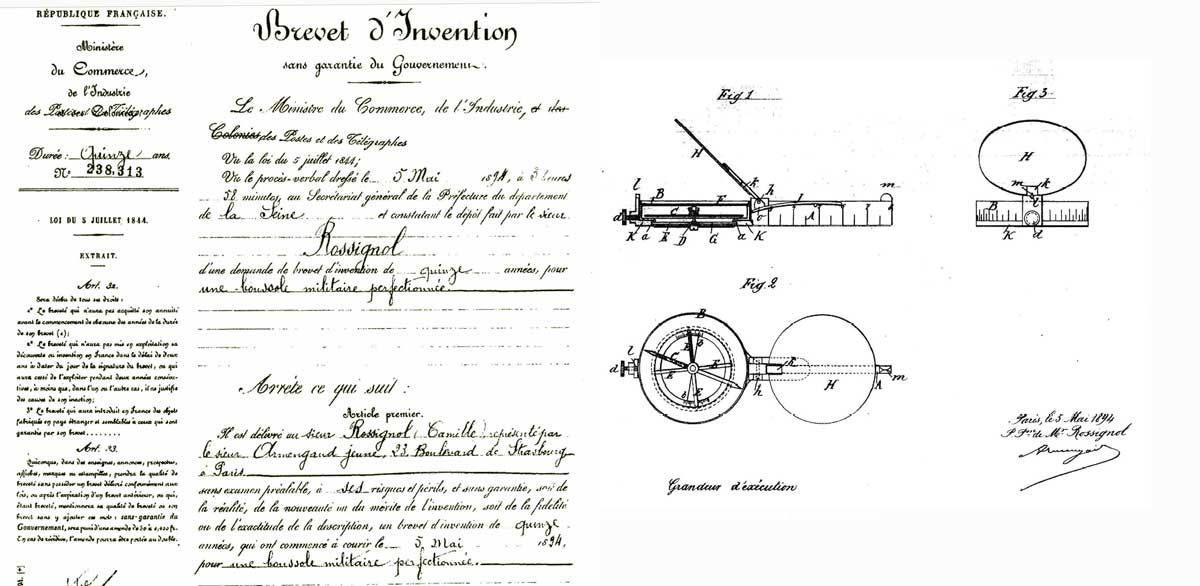

Military compass for leading troops and survey tasks). The second one,
(no. 238,313, 5 May
1894) Boussole
militaire perfectionnée - Improved mil. compass.
Its unusual design features a boom with the rear part of the sight and
two rulers. The sight's rear part is a notch in the fitting of the
marching course setting screw. The right-hand side ruler is a distance
measuring scale (1:80.000). The left side features a ruler in
millimeter. The zero reference of both rulers is located in the
compass'
center, so that the divisions read 40 to 100 mm and respectively 3 to 8
km. The compass capsule can rotate. It has a transparent bottom made of
horn and a cross, one arm of which being painted black. For taking a
bearing, one has to observe in the mirror the magnetic needle and turn
the capsule until the black cross arm lies under the North pointer. The
compass was delivered with a leather pouch and a wooden box.
Pic.
at
r.:
C. ROSSIGNOL
Chef-Armurier (Chief
weaponsmith)
Bté SGDG (Patented)
Top: leather pouch, ruler left side
Bottom: wooden case
On some items, the surface has been intentionally scratched so that the
chromated protection doesn't betray the user's position through light
reflexion. |
The
Magnetic needle and the black cross
arm. On the capsule's base
plate are divisions engraved which make it possible to take the
magnetic declination into account.
Serial no. on the rear sight
|
Divisions:
The mirror automatically stops at an angle of 45° by means of a
spring and a triangular cam.
The distance measuring ruler with scale 1:80.000 (French milit. maps)
|
Technical
Data
- Dimensions:
140 x 55 x 18 mm
- Weight: 115 gr
Materials
- Compass case: brass, nickel-coated
- Ground plate: horn, transparent
- Divisions: 360° clockwise
- Serial No. : 168
- Copies of patent, user's instructions and manual (fac
simile)
can be ordered as well as of the following booklet:
|

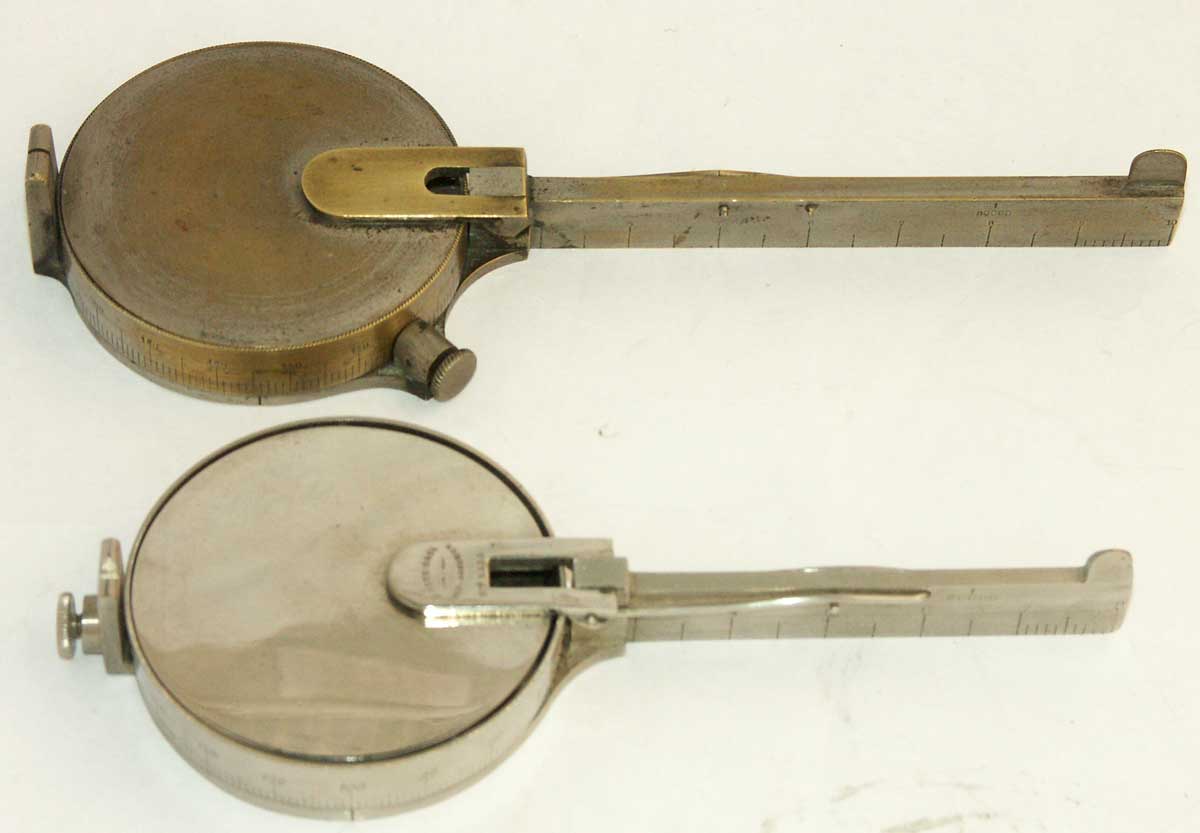

The original
version (w/o no.) features a clinometer and a side
screw:

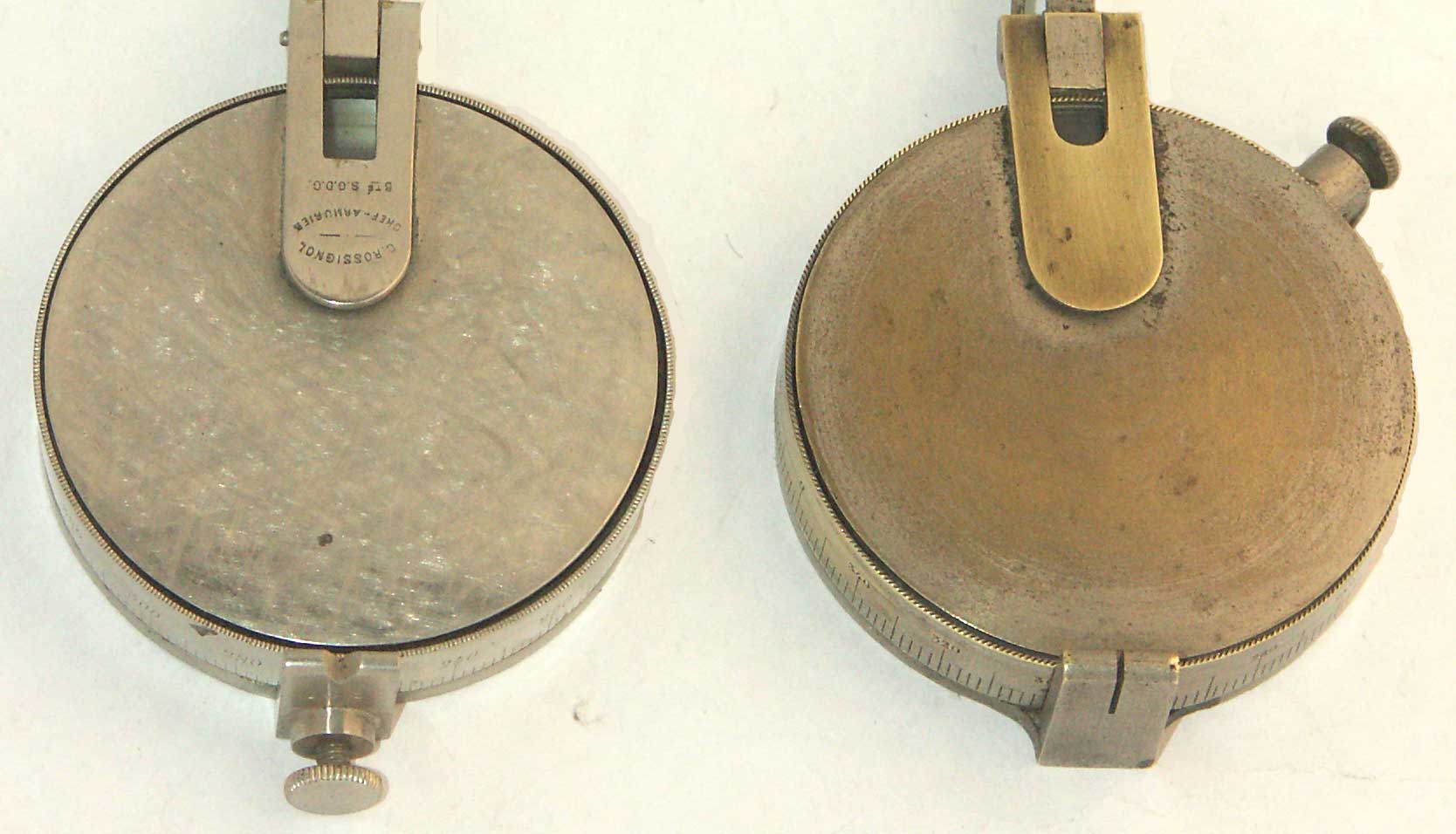

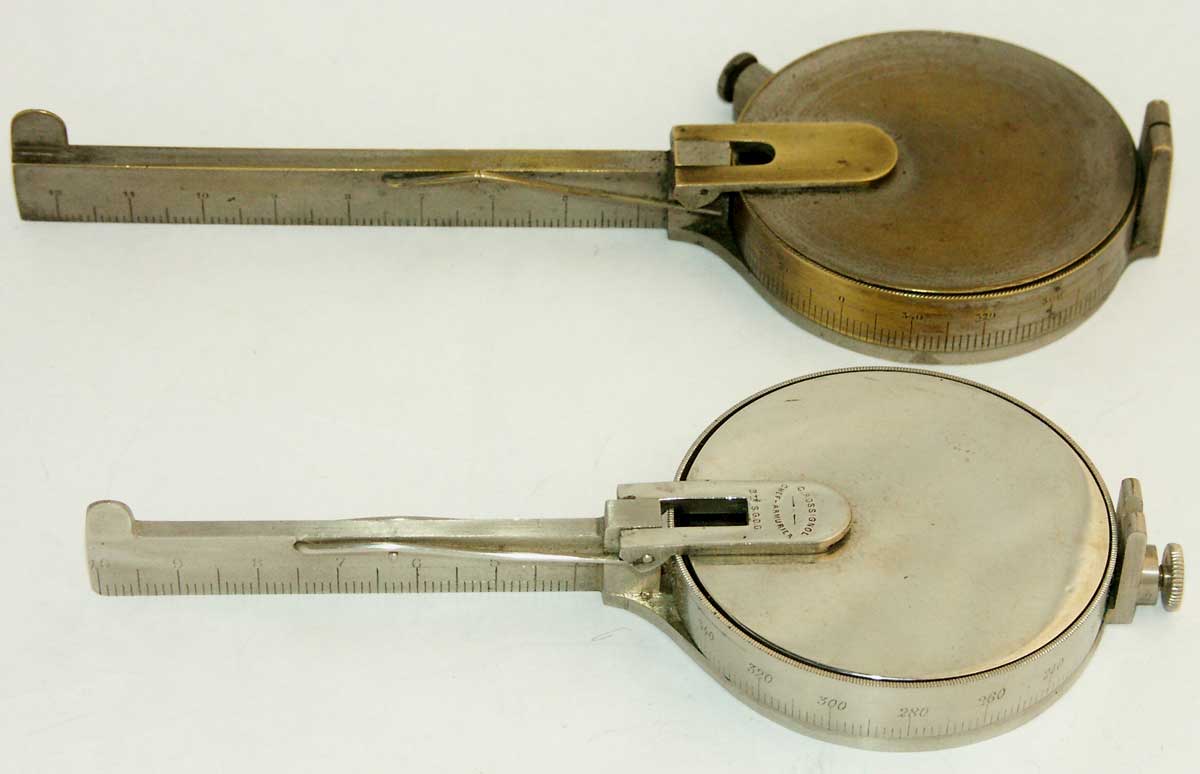

(Click
on images for compared views)

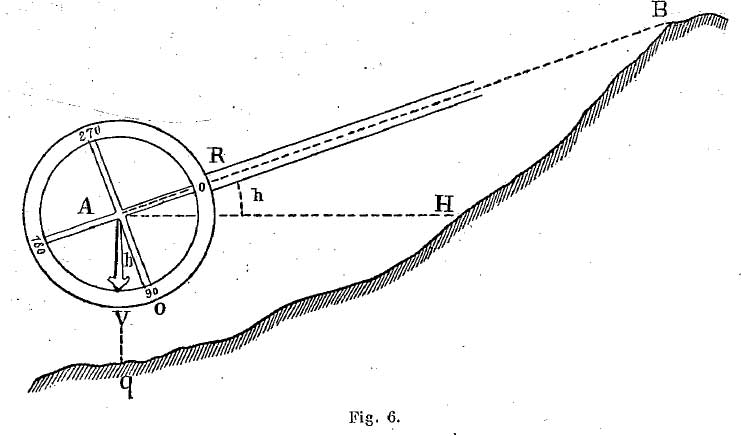

Drwg. at r.: from the Art. Conduite des colonnes en marche,
in Revue du Cercle Militaire, 1889
|
|
|
Technical
Data
(differences
to the current model)
- Overall length: 15,8 mm (approx 6 in), ruler graduated up to 12,5 mm
(5 in) on left side,
scale 1:80,000 on right side to read distances up to 10 km on military
maps.
- Graduation (360°) in capsule,
clinometer pointer arrow-shaped, red lines at 45° angle between
the centre cross bars.
- Rear sight with slot and plane face to apply the clinometre on flat
surface. |

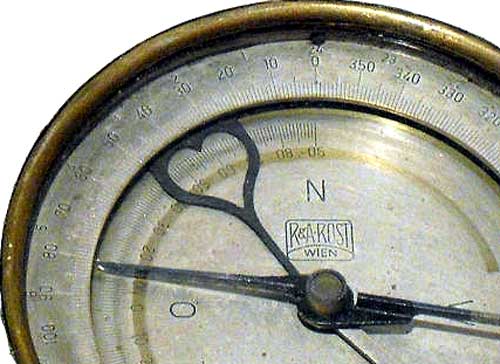

R. & A. was an Austrian manufacturer
located in Vienna (Wien)
courtesy cashinthetaesch2009
|
Divisions: 360 degrees and 24 hours
(see Rospini above)
(Click
on the pictures for enlarged views)
|
|
RPGP
(РПГП in cyrillic letters)

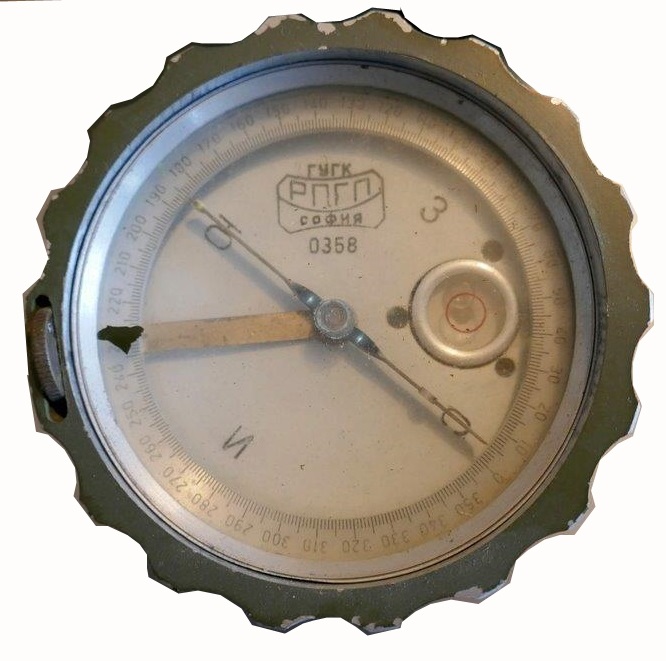

Cross staff head with compass made in Sofia (СОФИА), Bulgaria by РПГП
(RPGP). We have no information about this maker. The
abbreviation printed above the logo in shape of telescope lenses reads
ГУГК
(= GUGK) and appears also on a wrist compass (see this section)). GUGK
(Главное
управление геодезии и картографии,
Glavnoe
Upravlenie Geodesii i Kartografi)
was the name of
the Survey and Mapping authorities in the former USSR. Because of
the similarities between the two languages, we assume that the
Bulgarian authority had the same designation and abbreviation.
